Component Locations

CAUTION: When battery is disconnected, vehicle computer and memory systems may lose memory data. Driveability problems may exist until computer systems have completed a relearn cycle. See COMPUTER RELEARN PROCEDURES article in GENERAL INFORMATION before disconnecting battery.

Fig 1: Power Window Component Locations

Courtesy of AMERICAN HONDA MOTOR CO., INC.

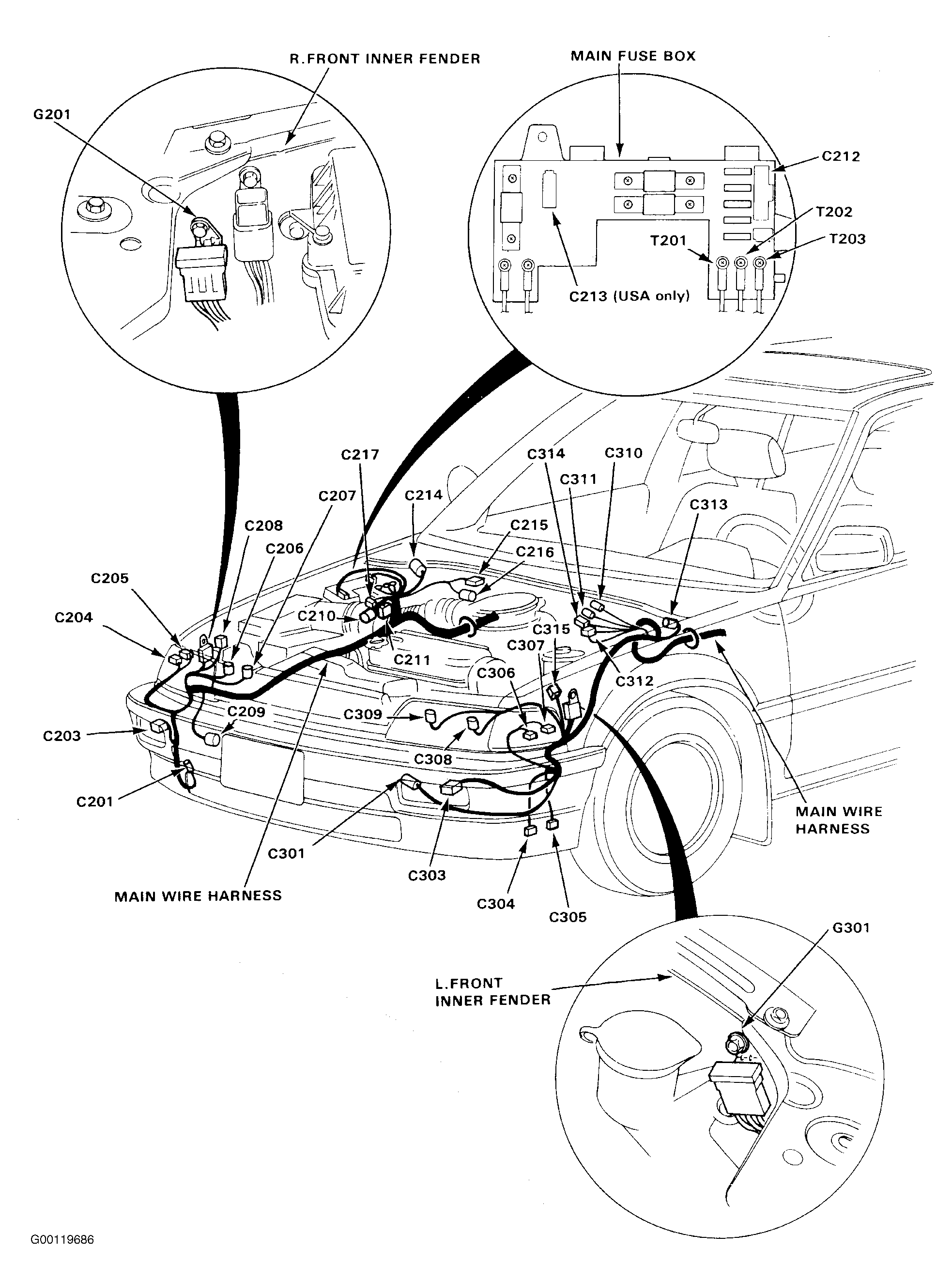

Fig 2: Locating Ground G301

Courtesy of AMERICAN HONDA MOTOR CO., INC.

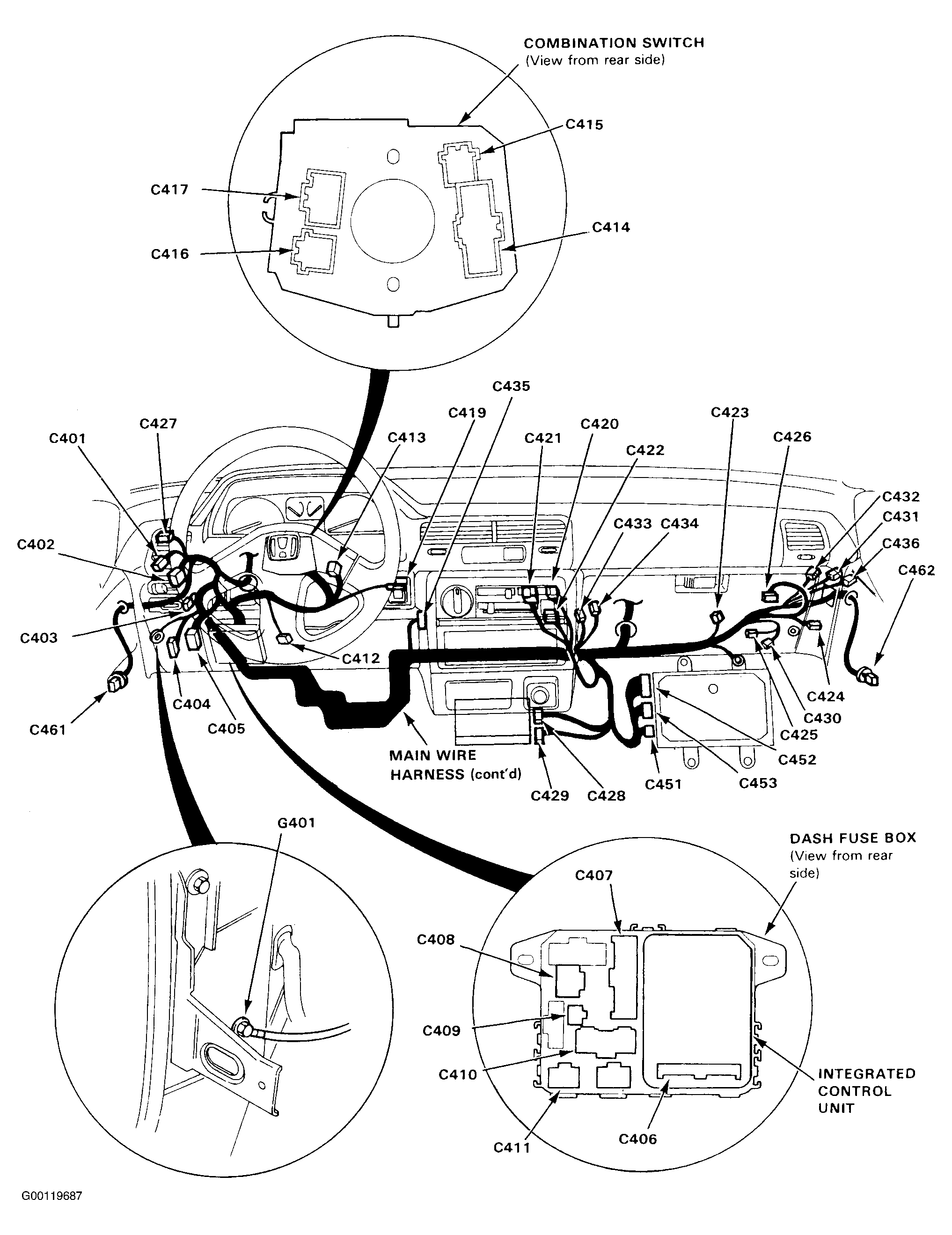

Fig 3: Locating Ground G401

Courtesy of AMERICAN HONDA MOTOR CO., INC.
