Driver's Motor Test

  1. Remove the door trim panel. See DOOR TRIM PANEL  under REMOVAL & INSTALLATION.
  2. Disconnect the 4-P connector from the driver's motor. See Fig 1 .
  3. Test motor operation by connecting battery voltage to terminals No.1 and 2. Test the motor in each direction, by switching the leads from the battery.
  4. If the motor does not run, replace motor.

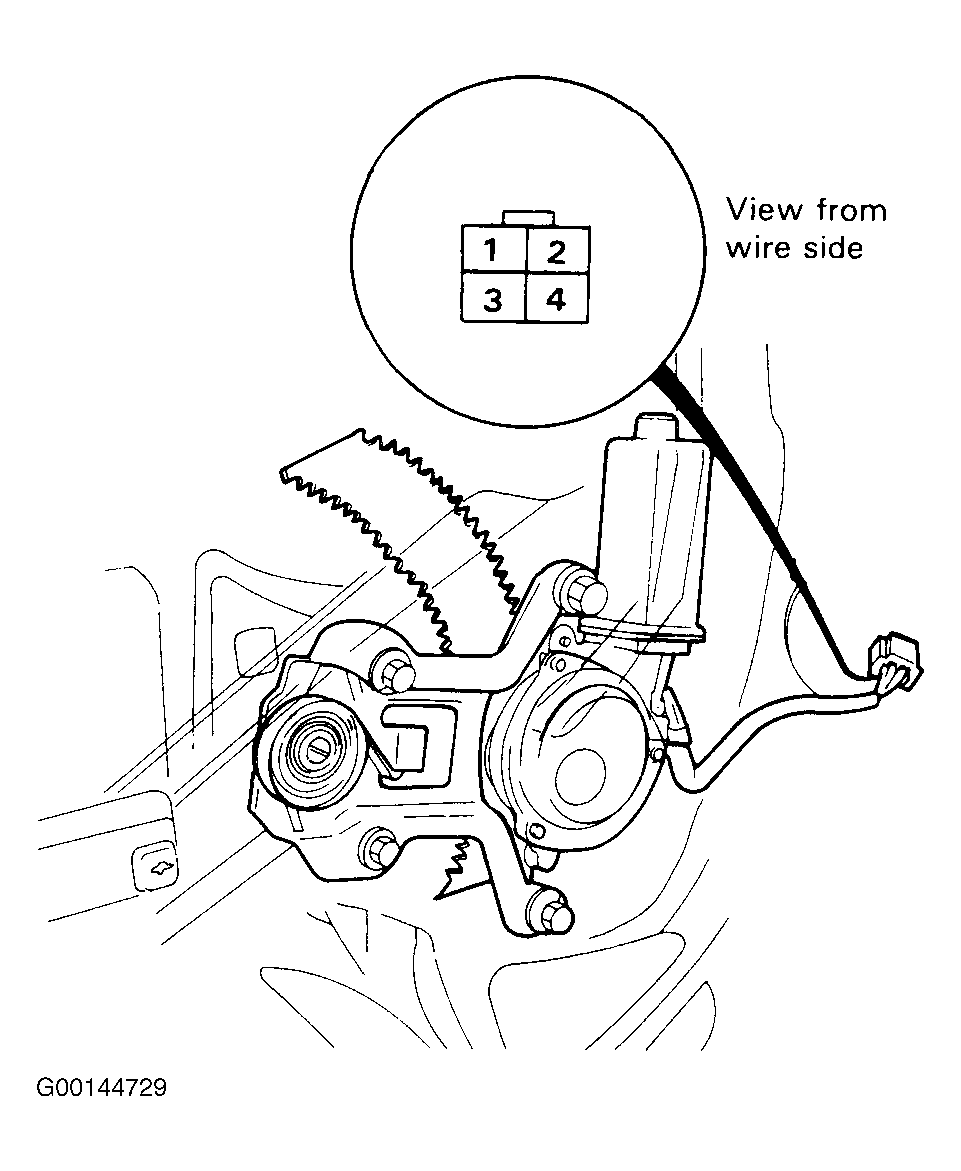

Fig 1: Driver's Window Motor Test
G00144729Courtesy of AMERICAN HONDA MOTOR CO., INC.
