Driver's Switch Input Test

NOTE: The control unit is built into the driver's switch, and only controls driver's door window operation.

Remove the left door trim panel and disconnect the 10-P connector and remove the driver's switch for the door trim panel. Make input tests at the harness pins. See Fig 1 .

NOTE: Recheck the connections between the 10-P connector and the driver's switch, the replace the driver's switch is all input tests prove OK.

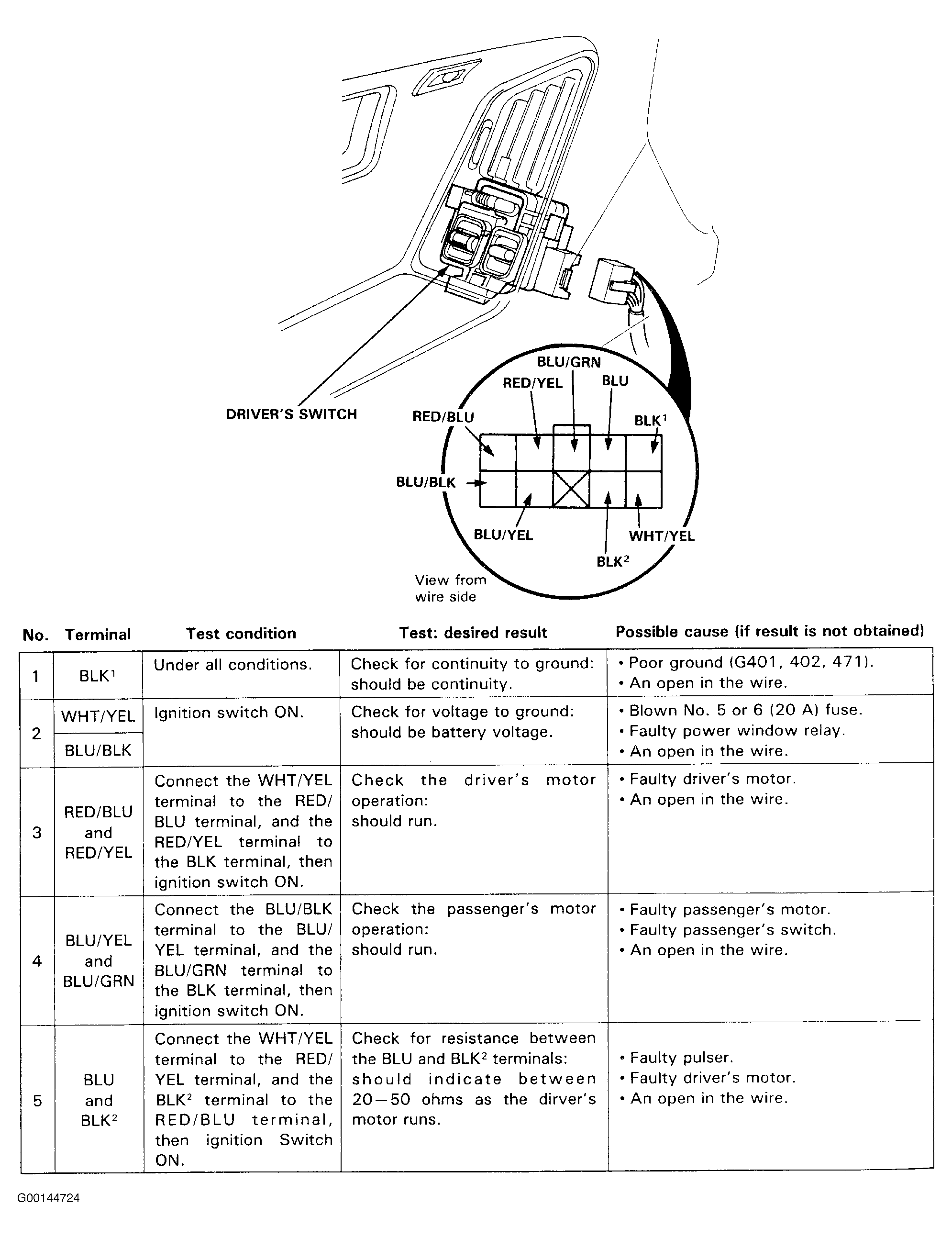

Fig 1: Driver's Window Switch Test

Courtesy of AMERICAN HONDA MOTOR CO., INC.
