Driver Window Switch Input Test: Coupe

NOTE: Recheck the connections between the 10-P connector and the driver's switch, then replace the driver's switch if all input tests prove okay.

Remove the driver's door trim panel. See DOOR TRIM PANEL under REMOVAL & INSTALLATION. Disconnect the 10-P connector from the driver's switch. See Fig 1 . Make the following input tests at the harness pins. See Fig 2 .

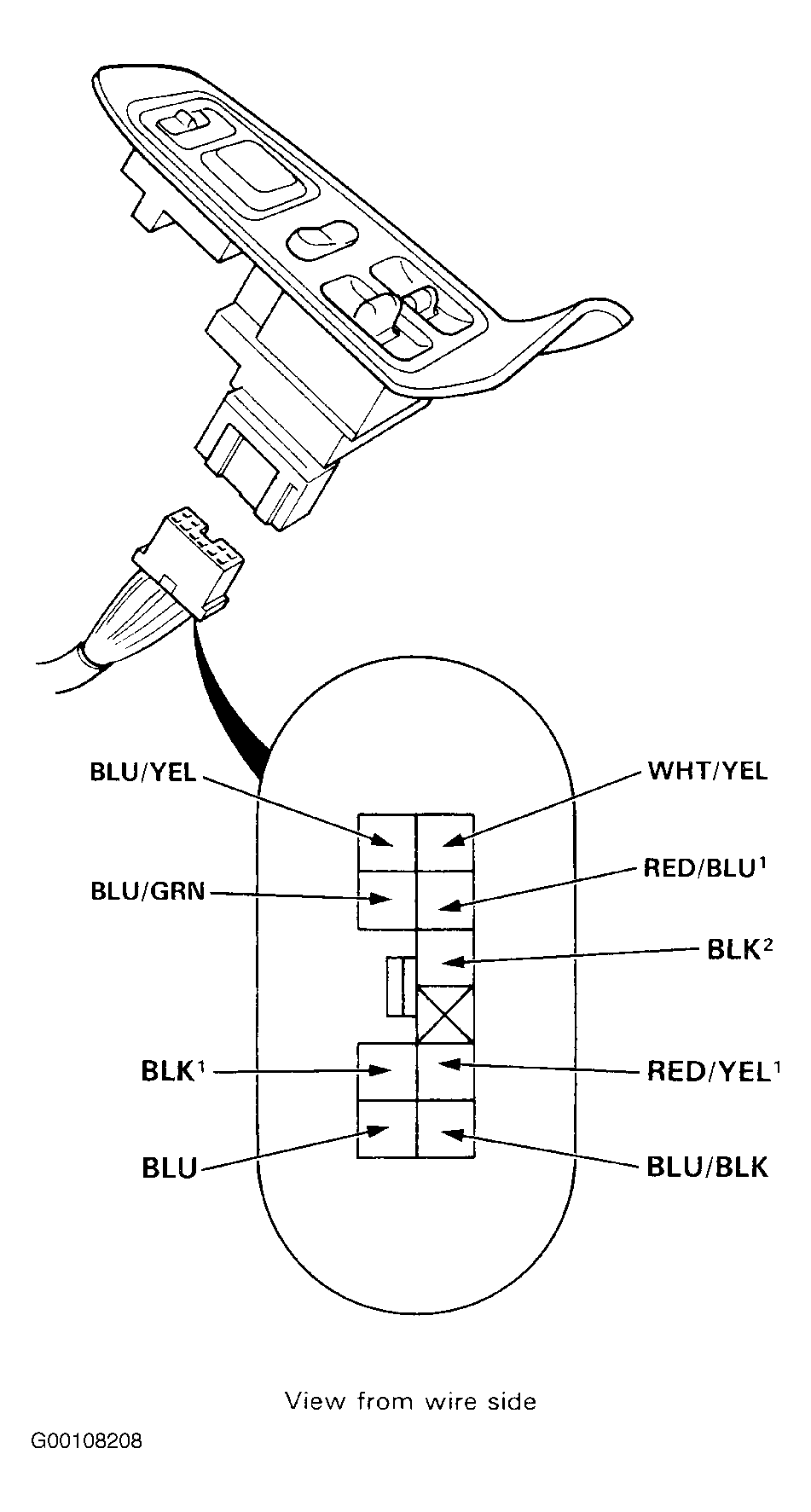

Fig 1: Identifying Driver's Switch Terminals (Coupe)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

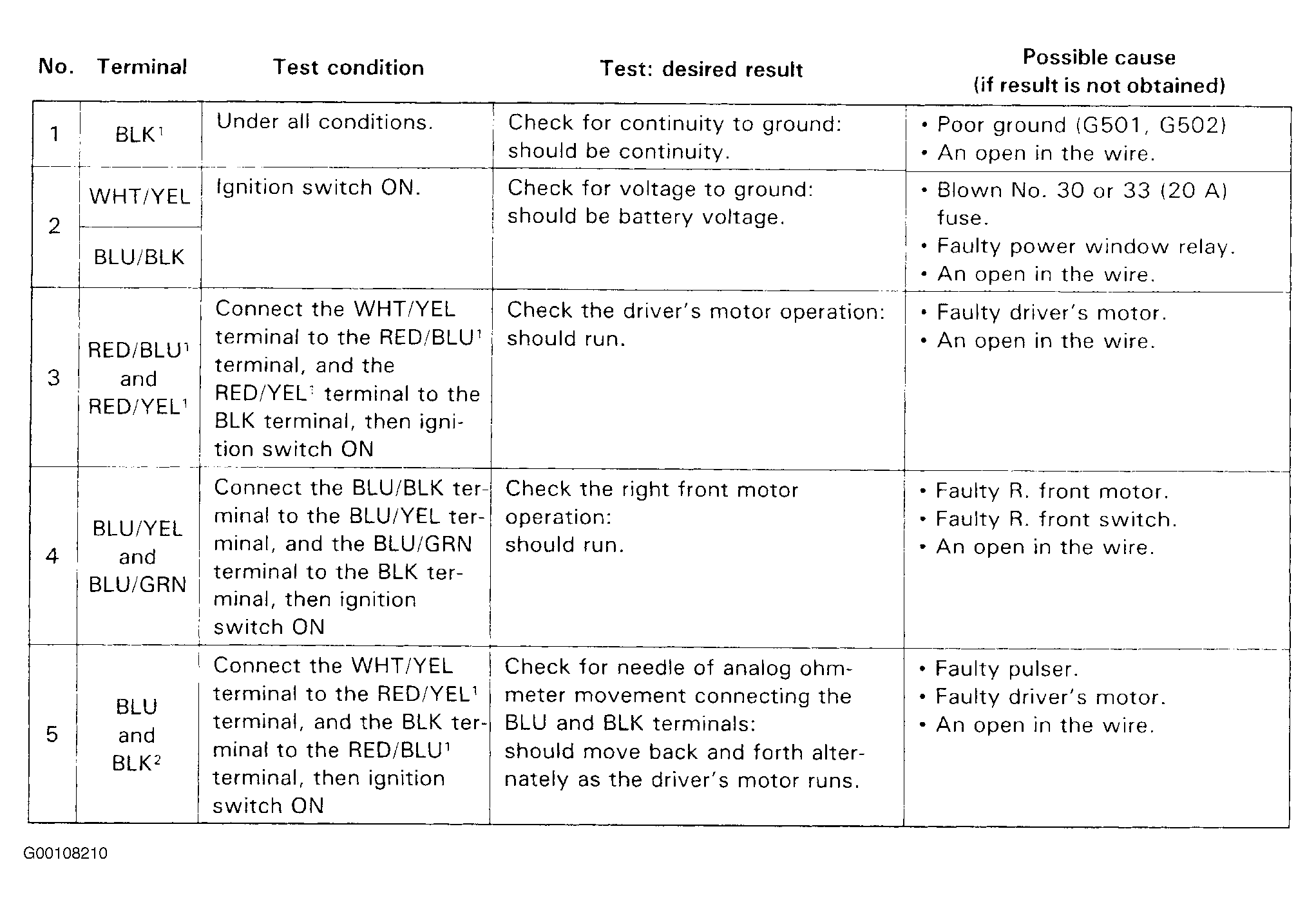

Fig 2: Testing Power Windows At Driver's Switch (Coupe)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
