Driver Window Switch Input Test: Sedan

NOTE: The control unit is built into the driver's switch, and only controls driver's door window operation.

NOTE: Recheck the connections between the 14-P and 1-P connectors and the driver's switch, then replace the driver's switch if all input tests prove OK.

NOTE: Recheck the connections between the 14-P connector and the driver's switch, then replace the driver's switch if all input tests prove okay.

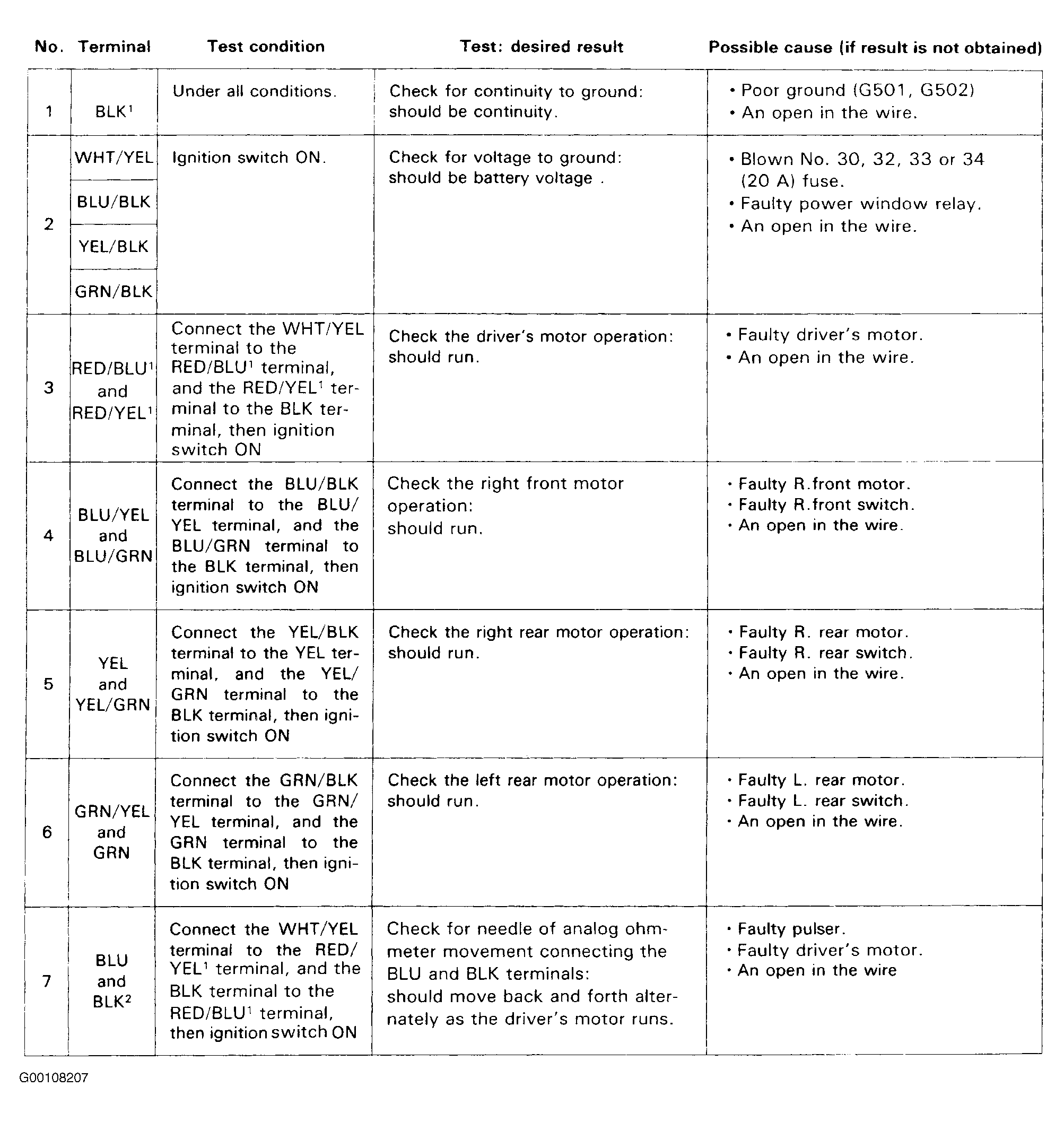

Remove the driver's door trim panel. See DOOR TRIM PANEL under REMOVAL & INSTALLATION. Disconnect the 14-P and 1-P connectors from the driver's switch. See Fig 1 . Make the following input tests at the harness pins. See Fig 2 .

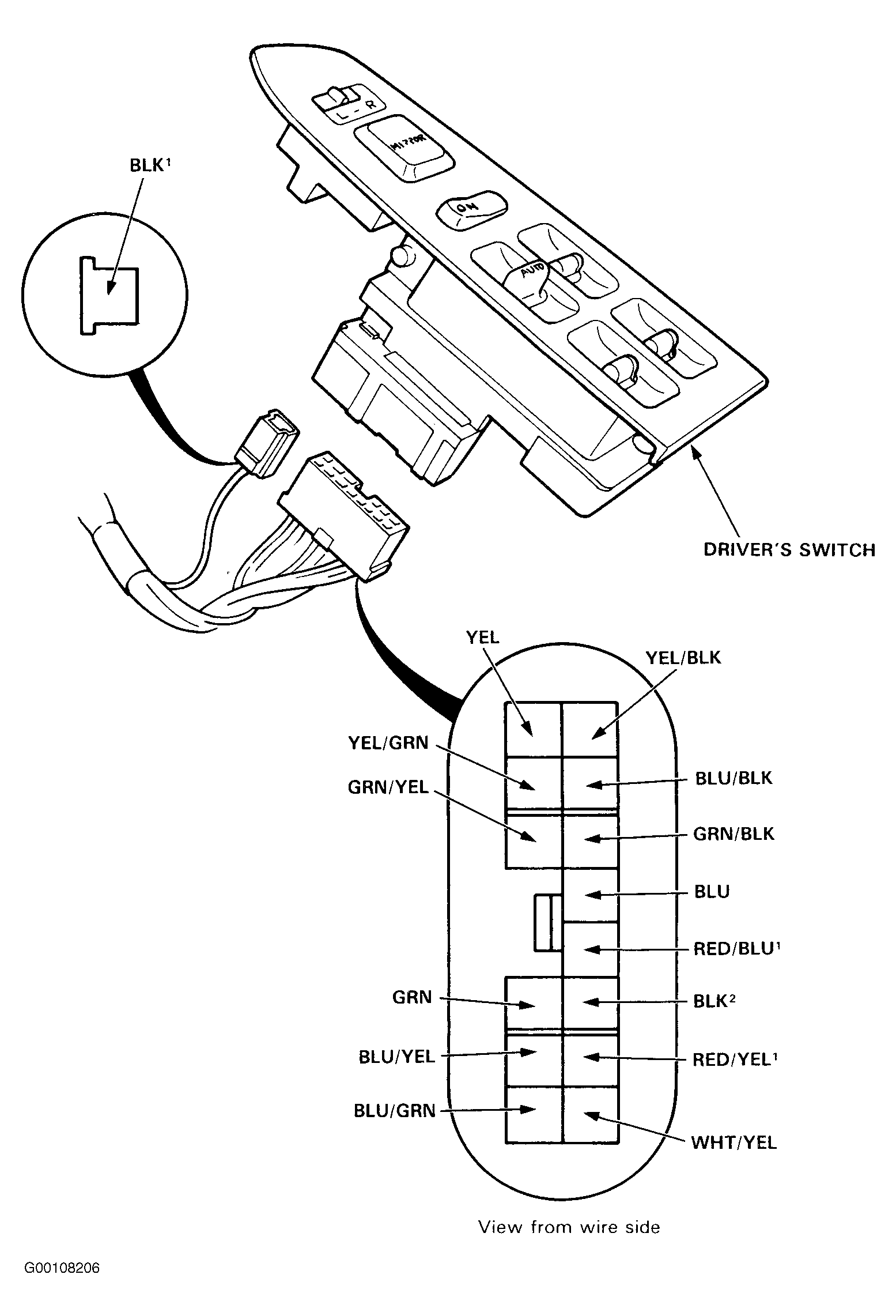

Fig 1: Identifying Driver's Switch Terminals (Sedan)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Testing Power Windows At Driver's Switch (Sedan)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
