Control Unit Input Test

NOTE: Recheck the connection between the 14-P connection and the control unit, then replace the control unit if all input tests prove OK. SeeFig 1 .
  1. Remove the driver's door trim panel. See REMOVAL & INSTALLATION  .
  2. Remove the 2 screws and the control unit from door panel.
  3. Disconnect the 14-P connector from the control unit. Make the following input tests at harness pins. See Fig 1 and Fig 2 .

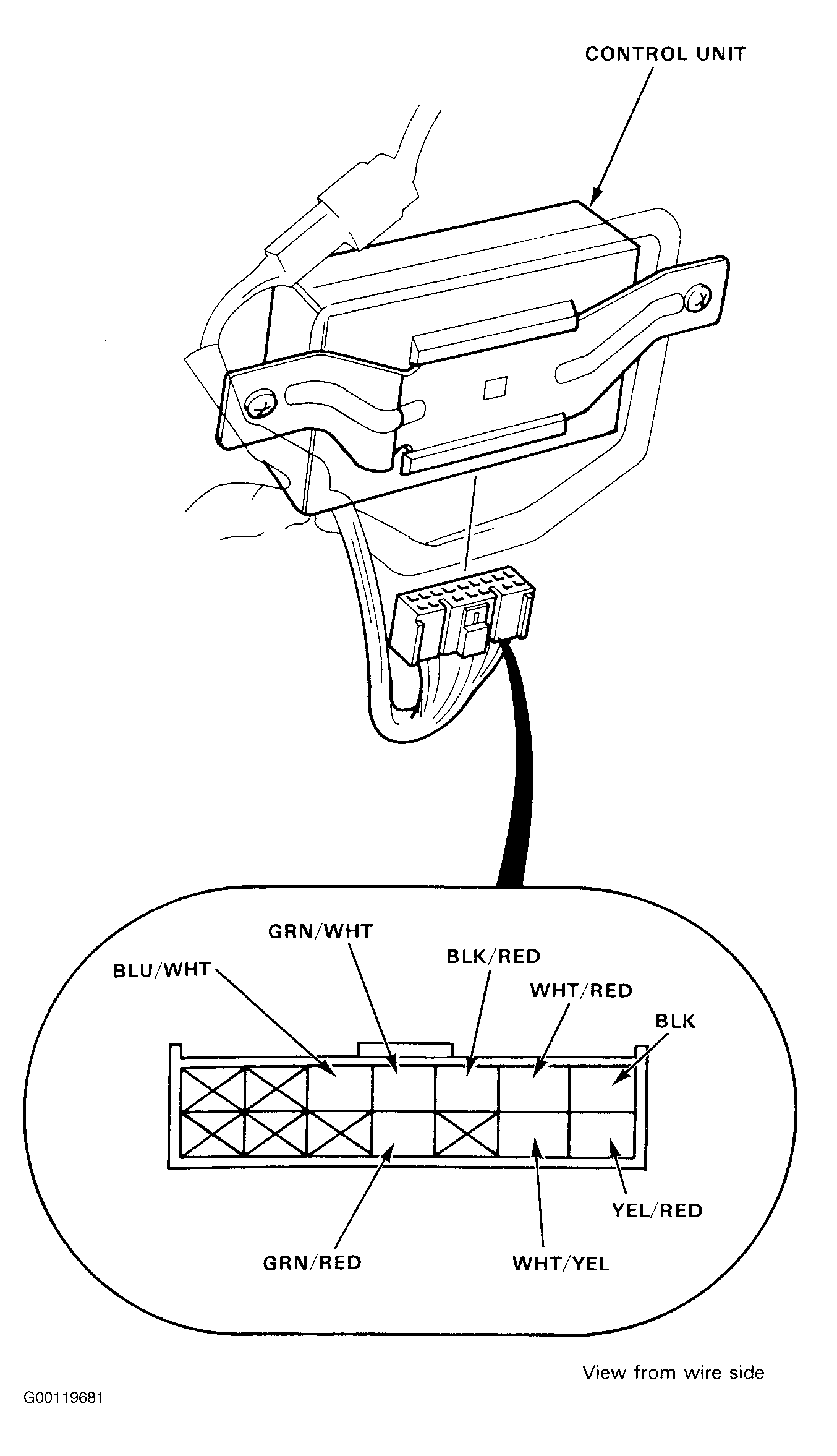

Fig 1: Identifying Control Unit Connector Terminals
G00119681Courtesy of AMERICAN HONDA MOTOR CO., INC.

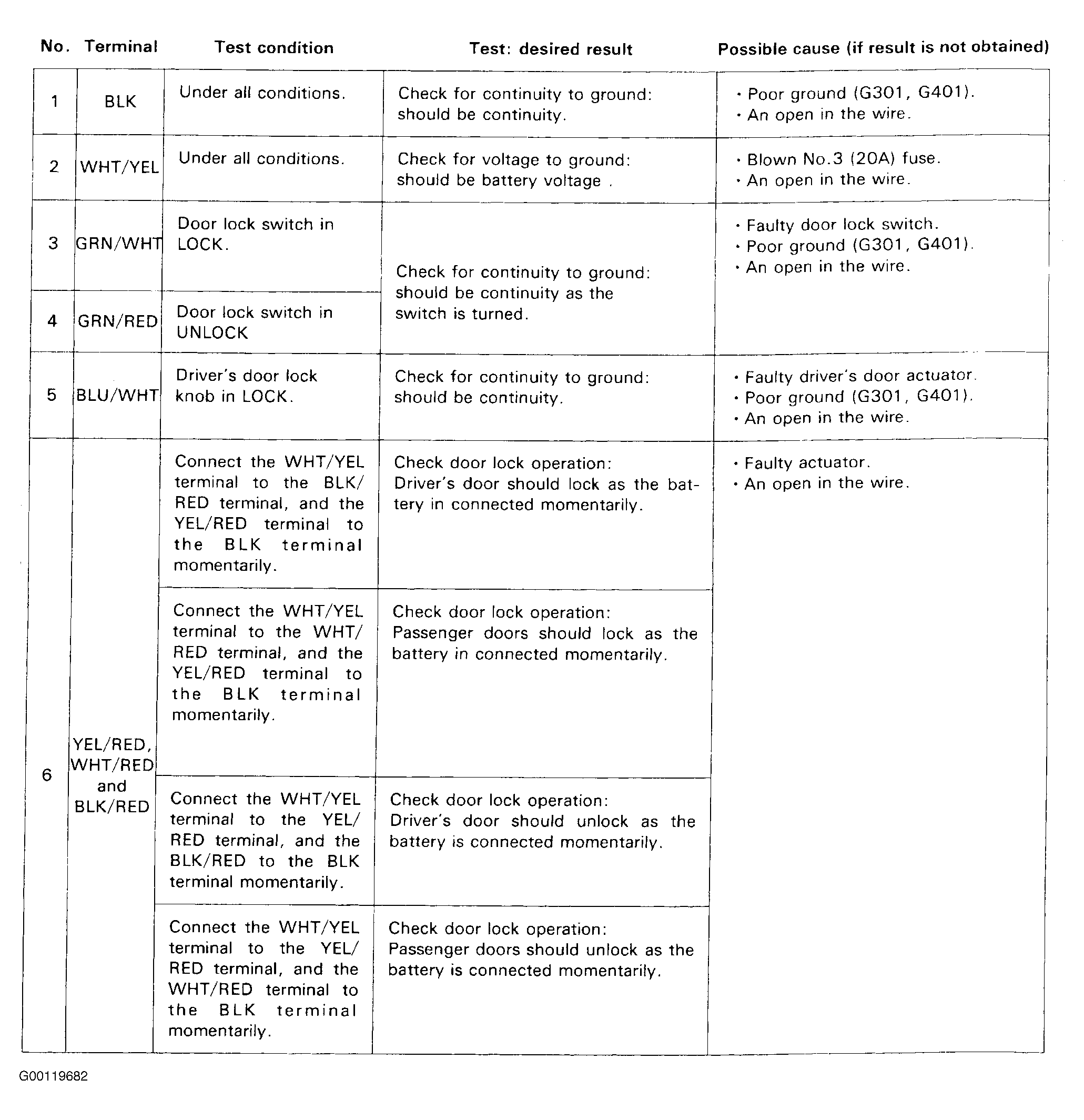

Fig 2: Testing Control Unit
G00119682Courtesy of AMERICAN HONDA MOTOR CO., INC.
