Code 7 - Throttle Angle Sensor Circuit

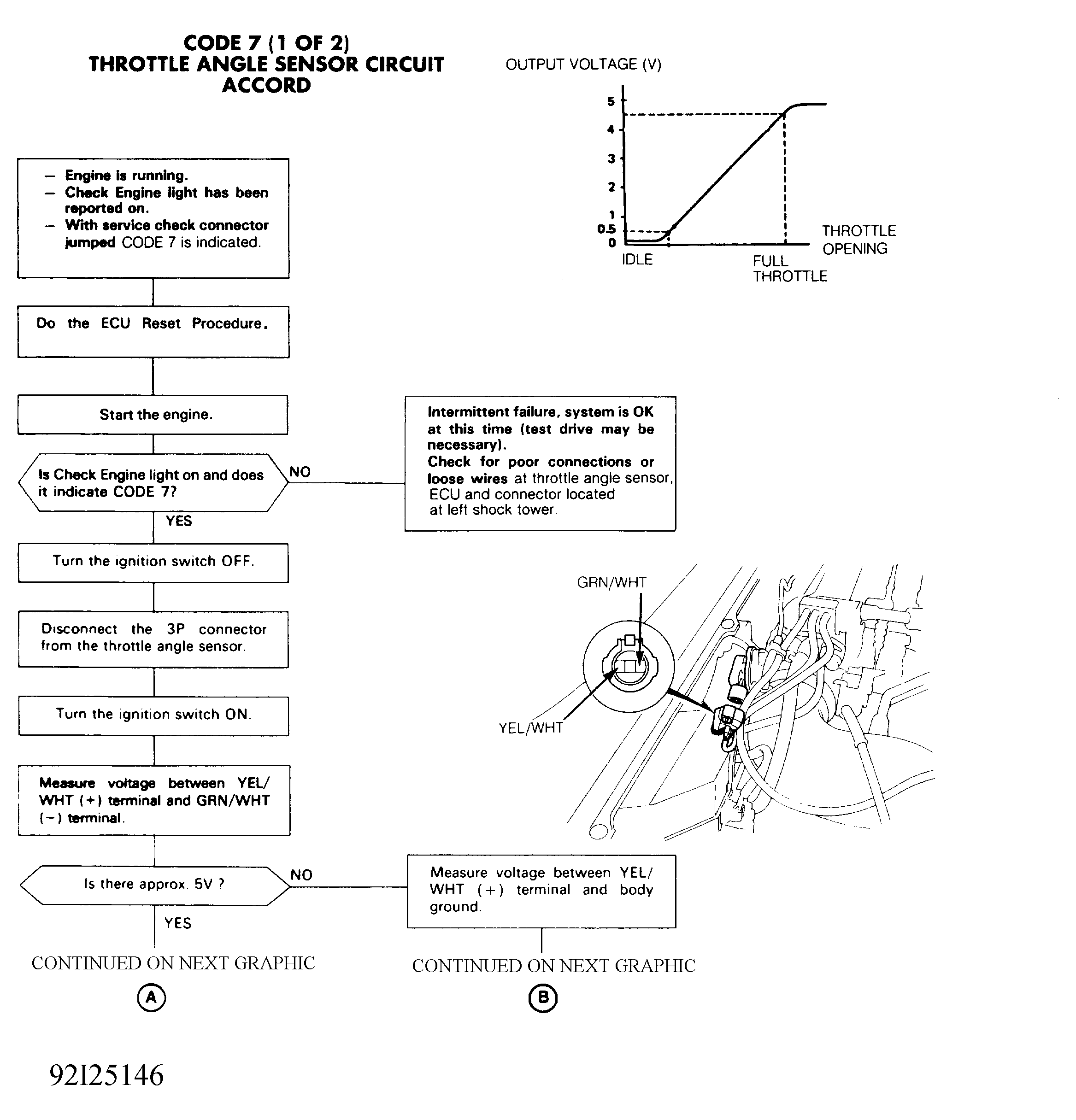

Fig 1: Code 7 Chart (1 OF 2) - Throttle Angle Sensor Circuit

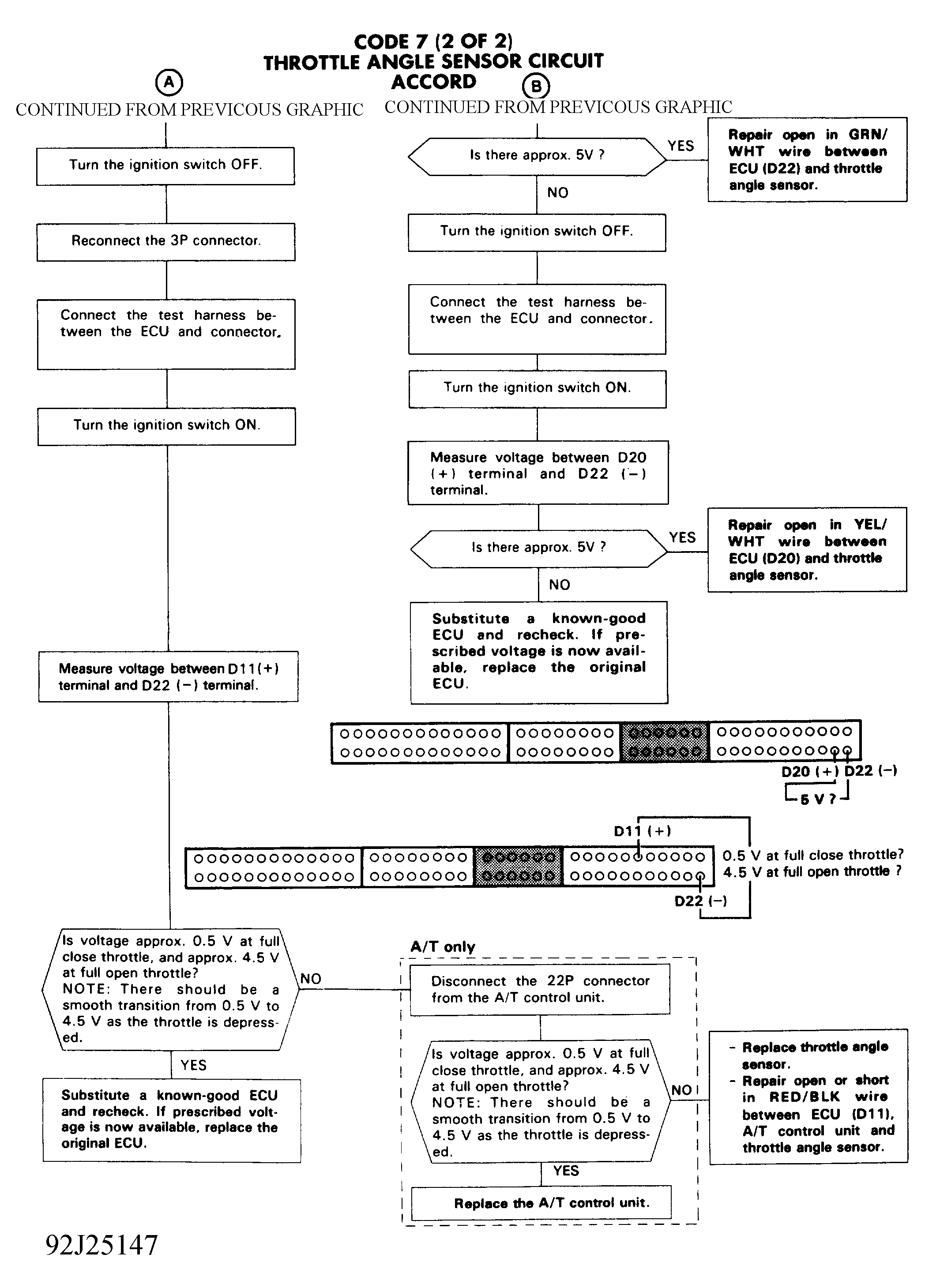

Fig 2: Code 7 Chart (2 OF 2) - Throttle Angle Sensor Circuit
