Steering Column: Overhaul

NOTE: For exploded view of steering column assembly, see Fig 1 and Fig 2 .

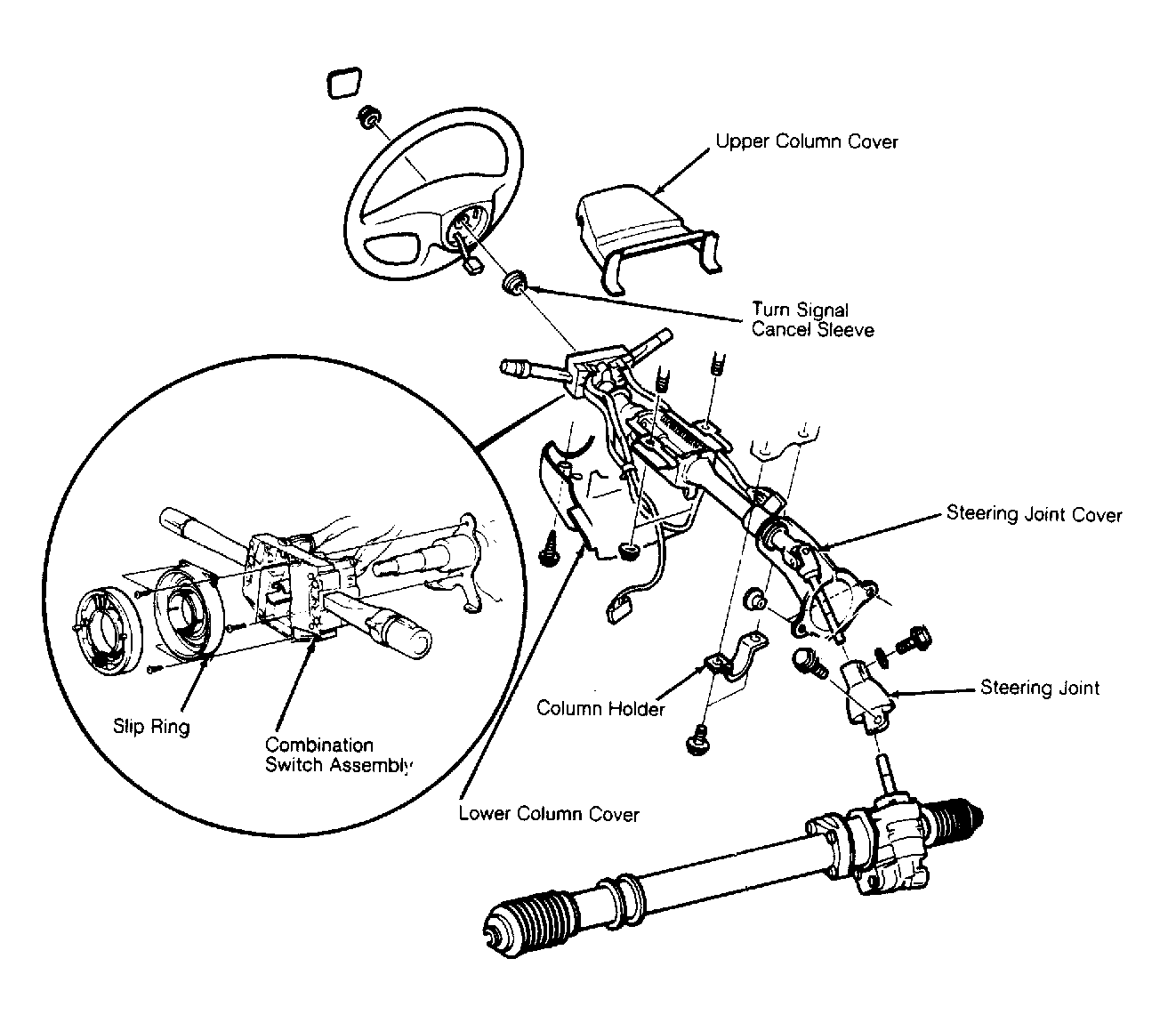

Fig 1: Exploded View of Column Assy (Typical Prelude & Accord)

Courtesy of AMERICAN HONDA MOTOR CO.

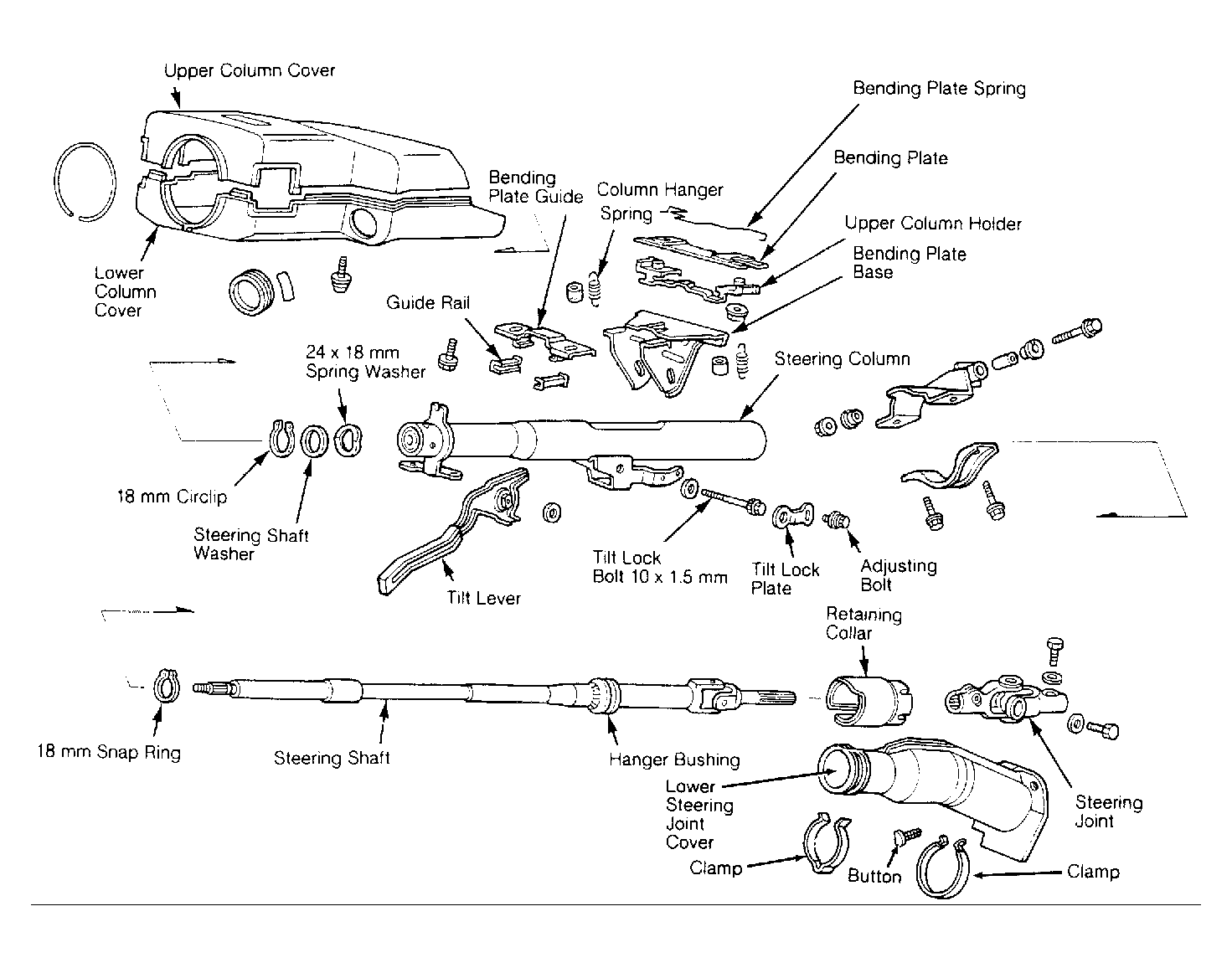

Fig 2: Exploded View of Steering Column Assembly (Civic)

Courtesy of AMERICAN HONDA MOTOR CO.
