Main Switch Test/Replacement

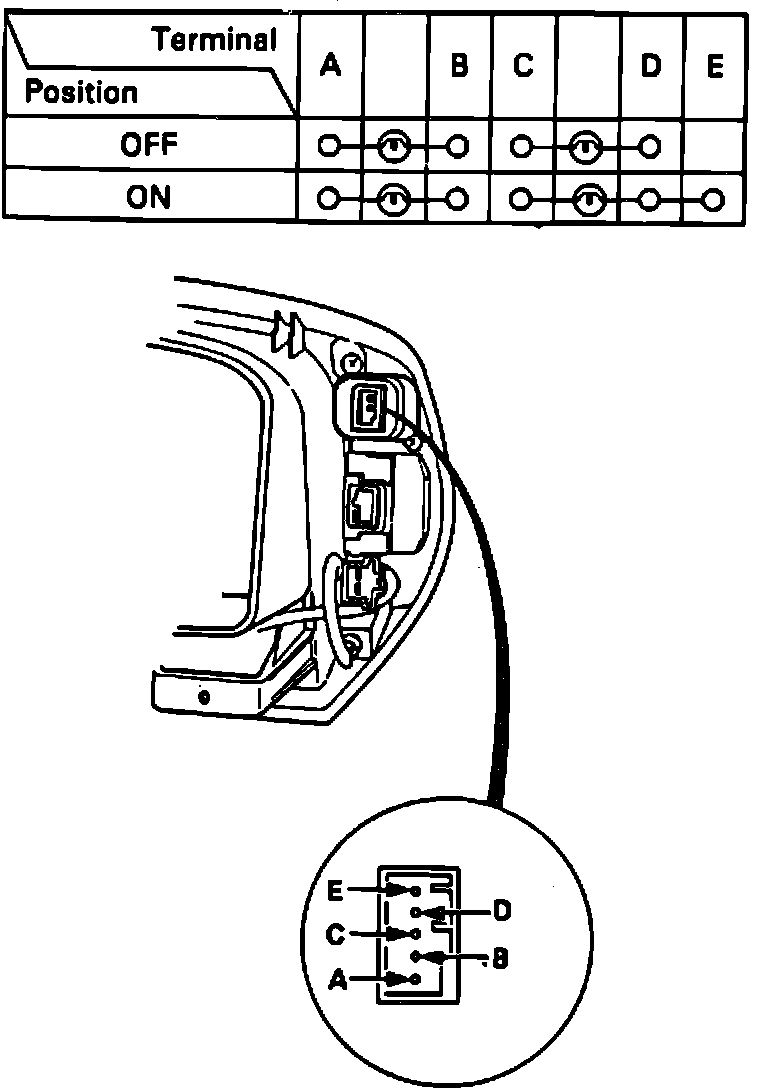

Fig. 28 Main Switch Test. 1989 Accord:

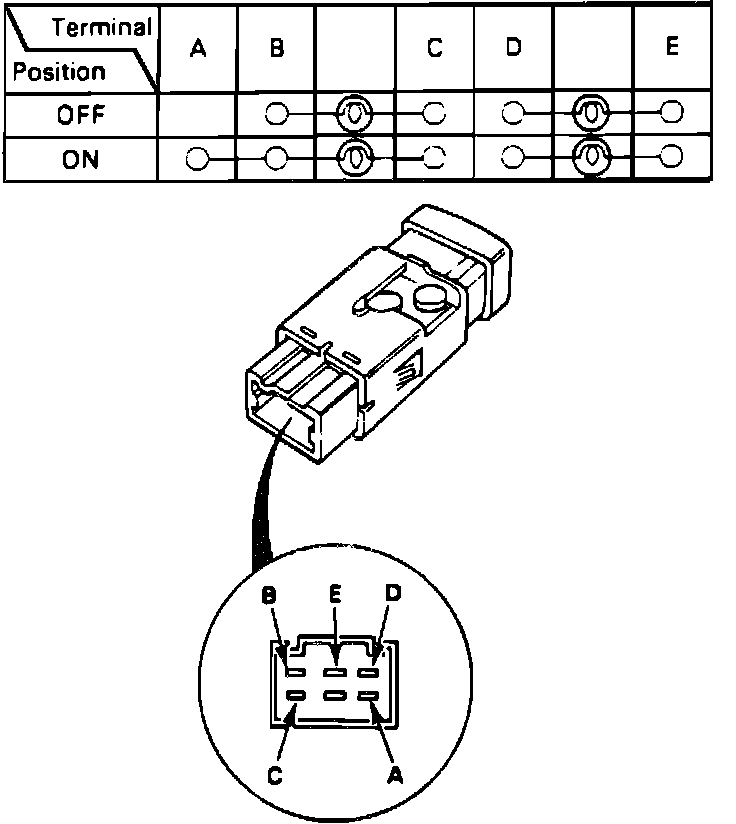

Fig. 29 Main Switch Test. 1990-93 Accord & 1992,93 Prelude:

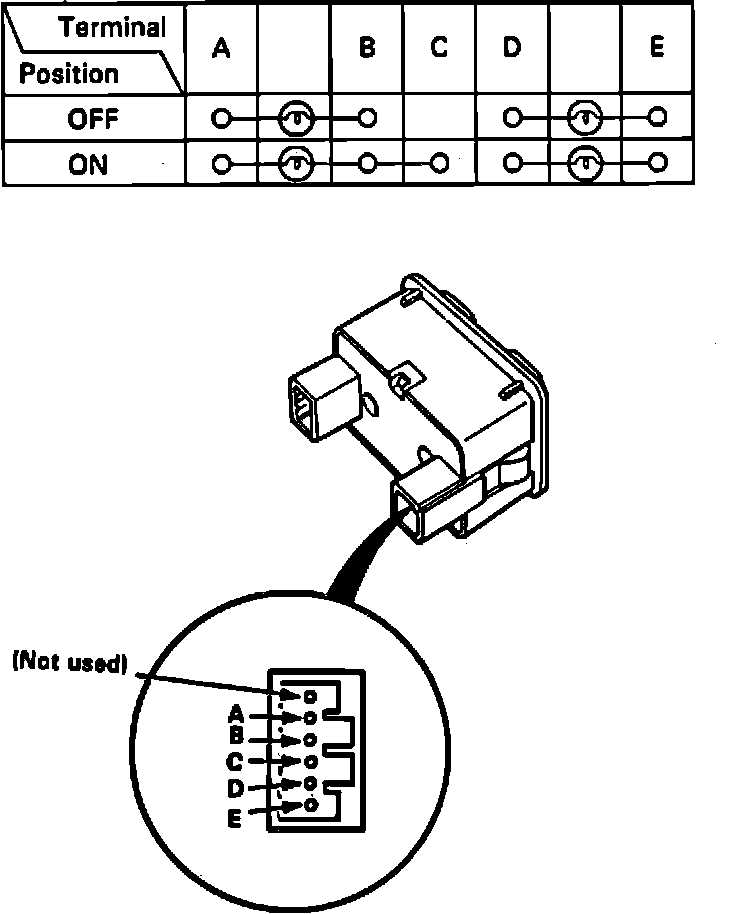

Fig. 30 Main Switch Test. 1989-91 Prelude:

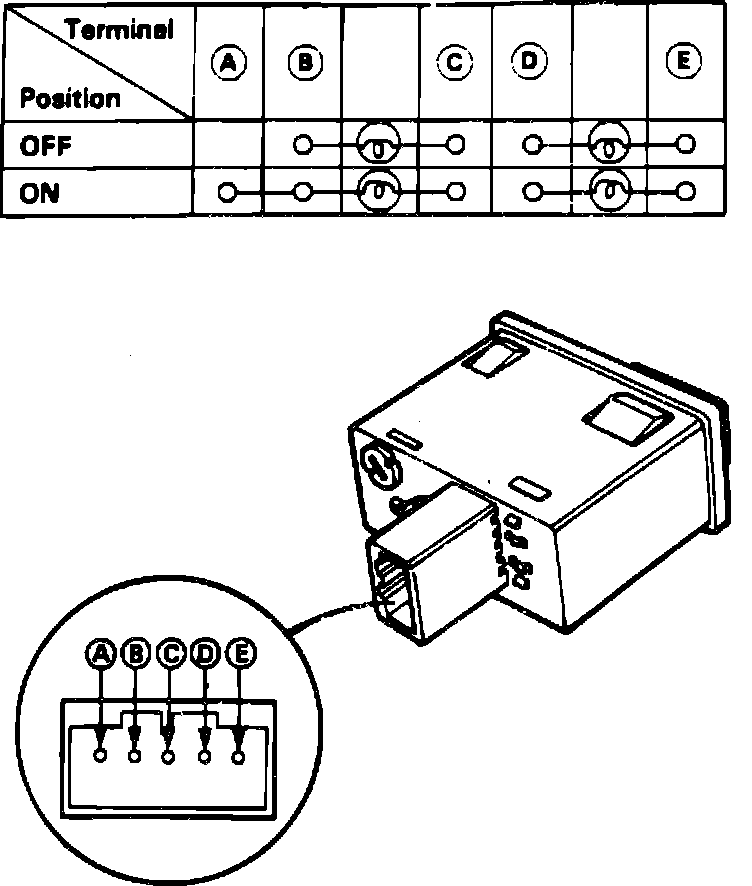

Fig. 31 Main Switch Test. Civic & Delsol:

1. Carefully remove switch from instrument panel and disconnect electrical connectors.
2. Remove cruise control switch from switch panel.
3. Check for continuity between terminals in each switch position according to tables shown in Figs. 28 through 31.
