Engine Ground

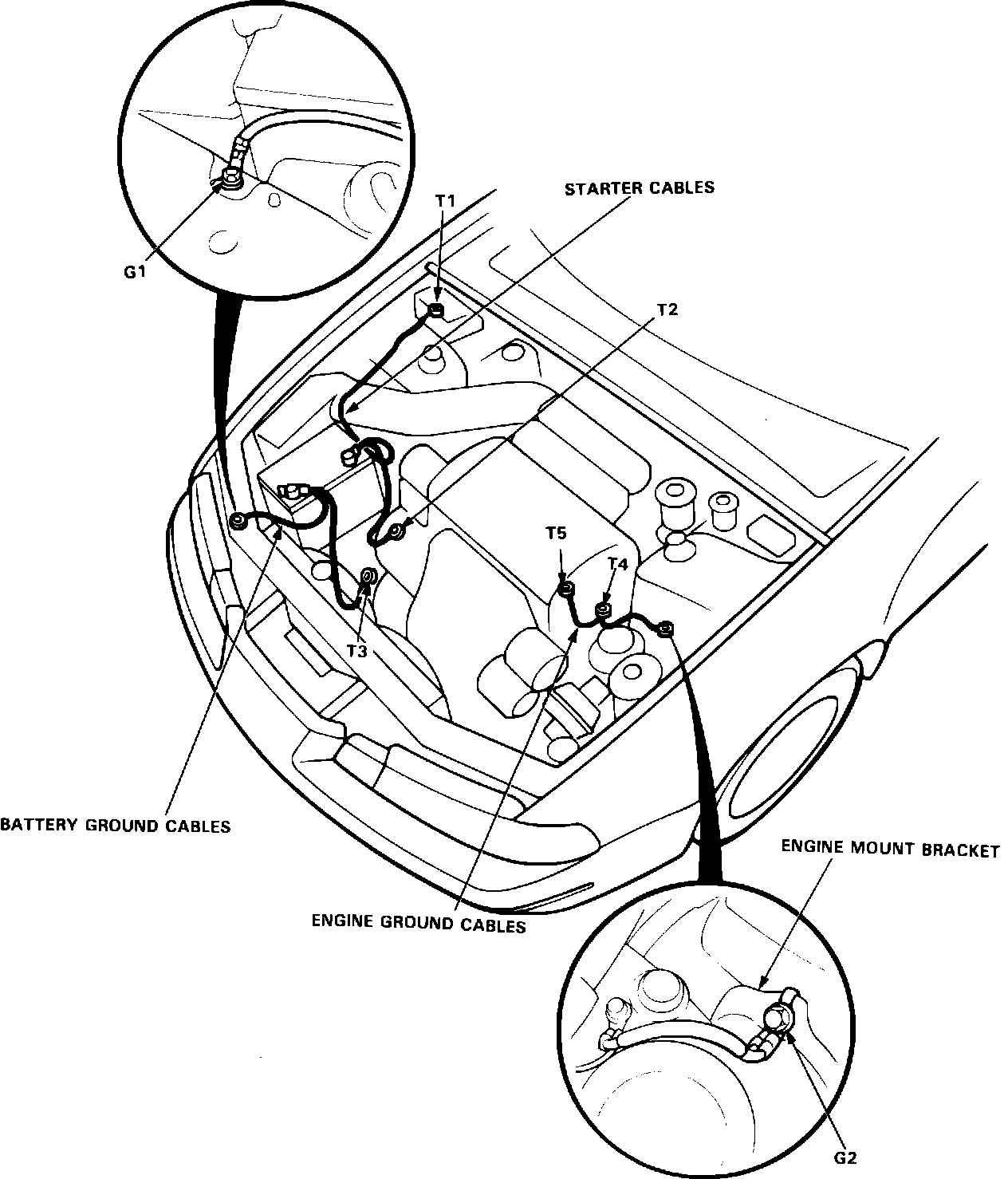

Starter Cables, Battery Ground Cables, And Engine Ground Cables:

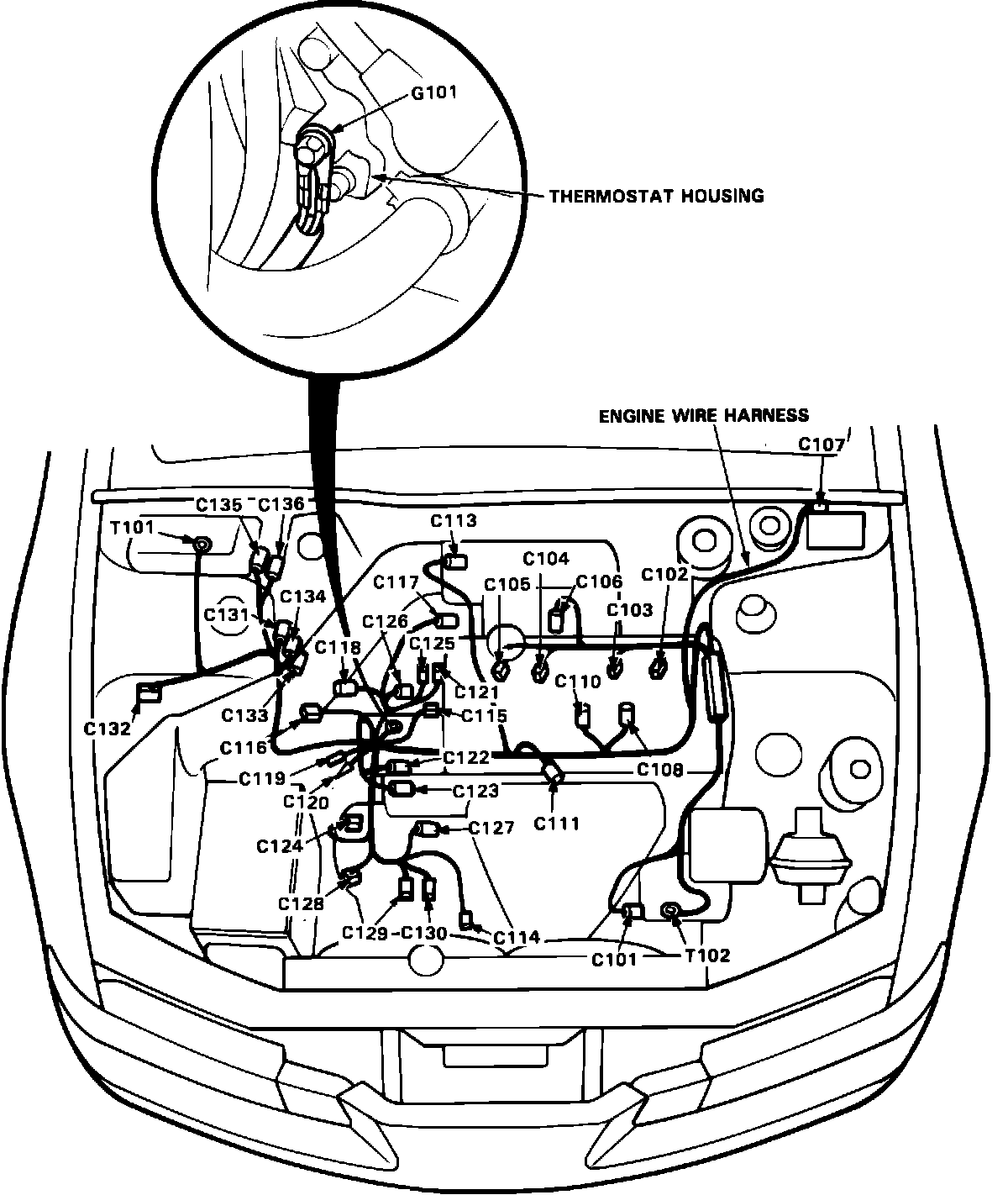

Engine Wire Harness - 2.2L Engine:
