Mode Control Motor Replacement

Mode Control Motor Replacement

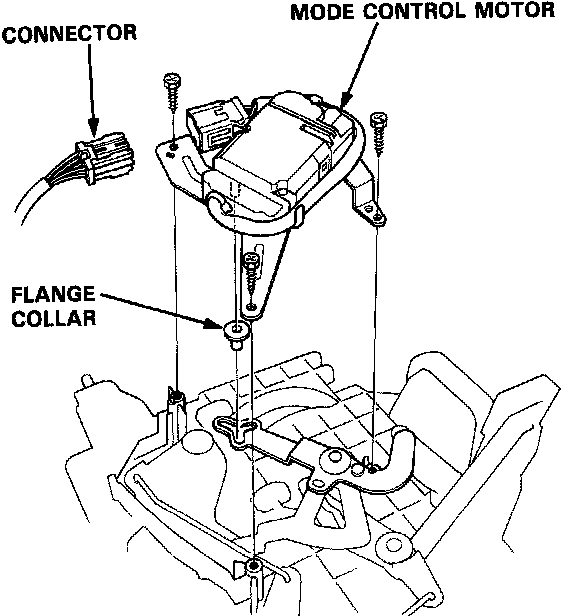

1. Disconnect the mode control motor 8P connector.
2. Remove the three screws, mode control motor and flange collar.
3. Install in the reverse order of removal. After installation, make sure the mode control motor operates smoothly.
