Electronic Brake Control Module: Locations

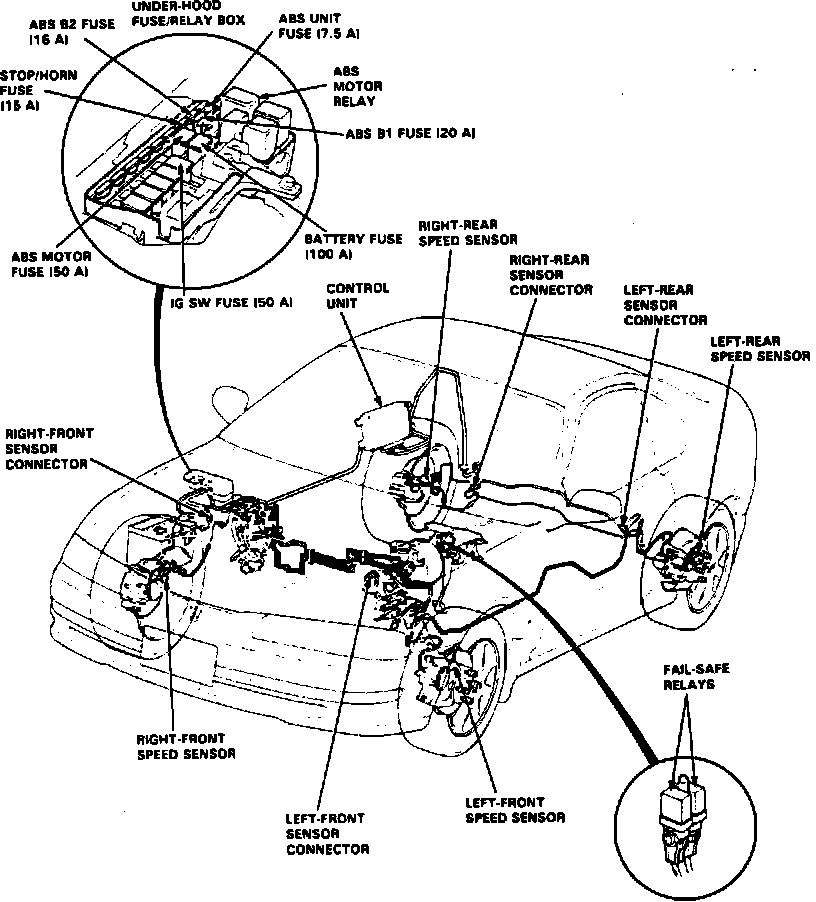

Anti-Lock Brake Components.:





RH Quarter Panel Area

Applicable to: 1992
