Electric Load Sensor: Locations

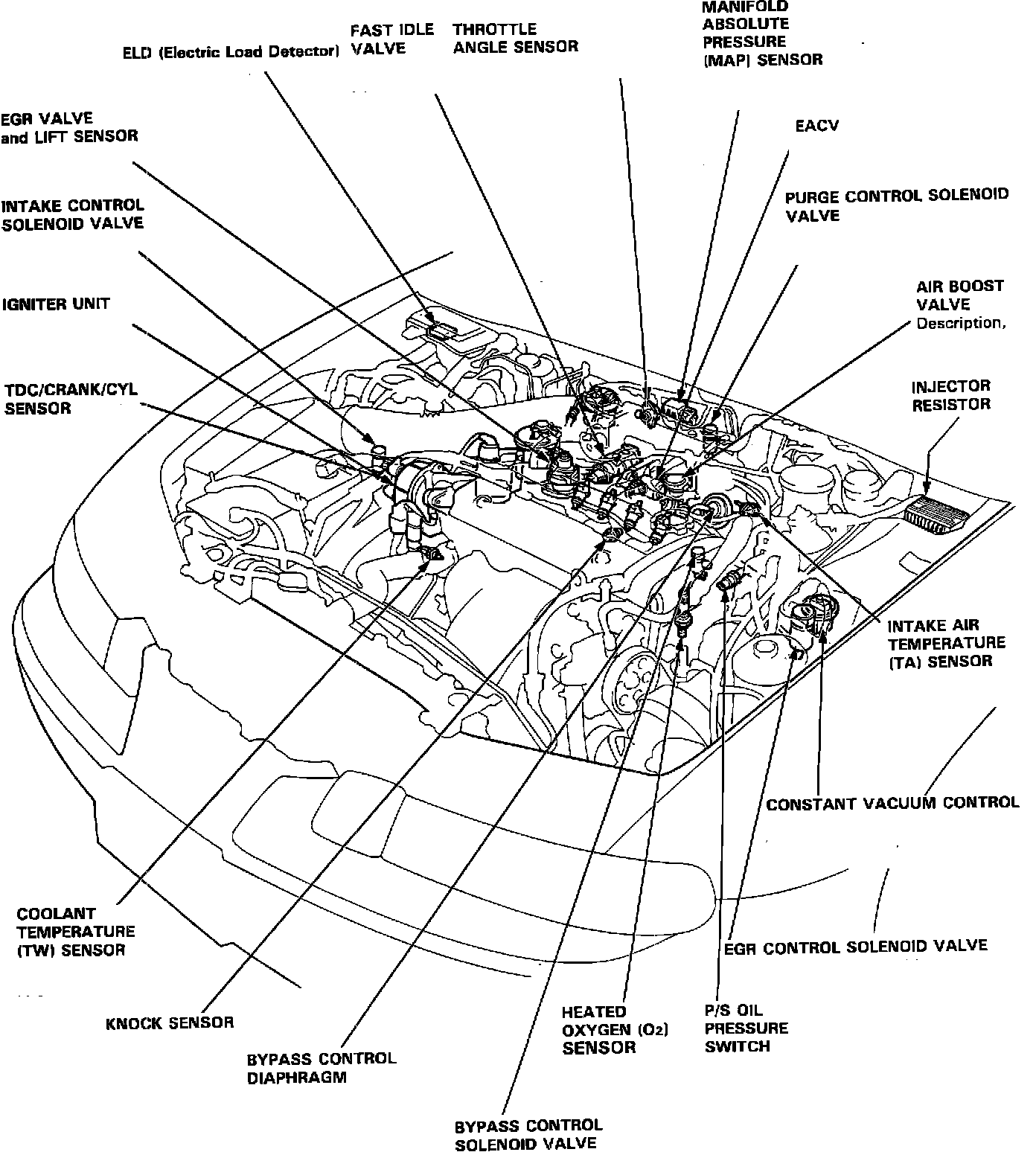

Component Location, Engine Compartment:
Engine compartment component location
