Torque Specifications

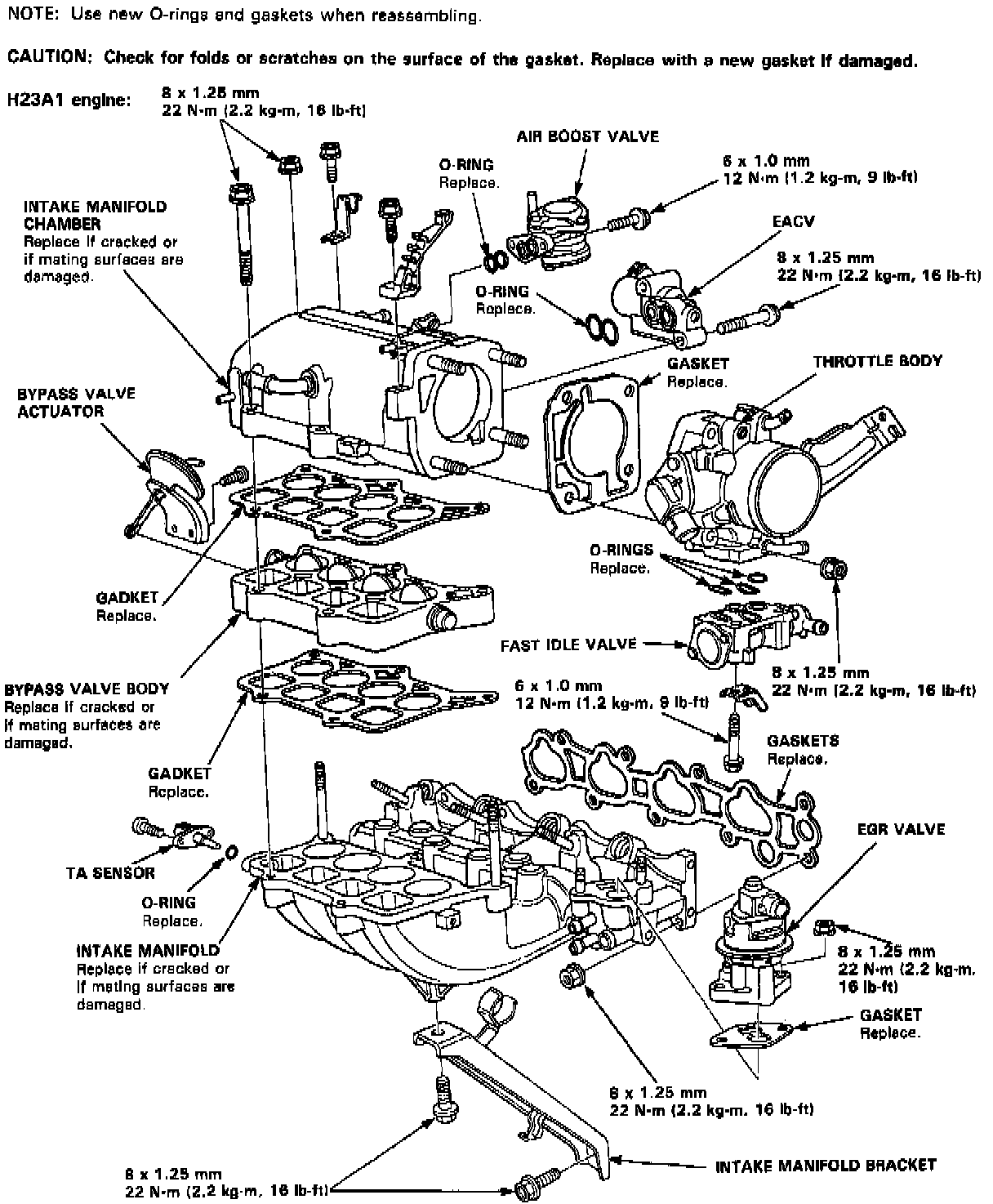

Intake:

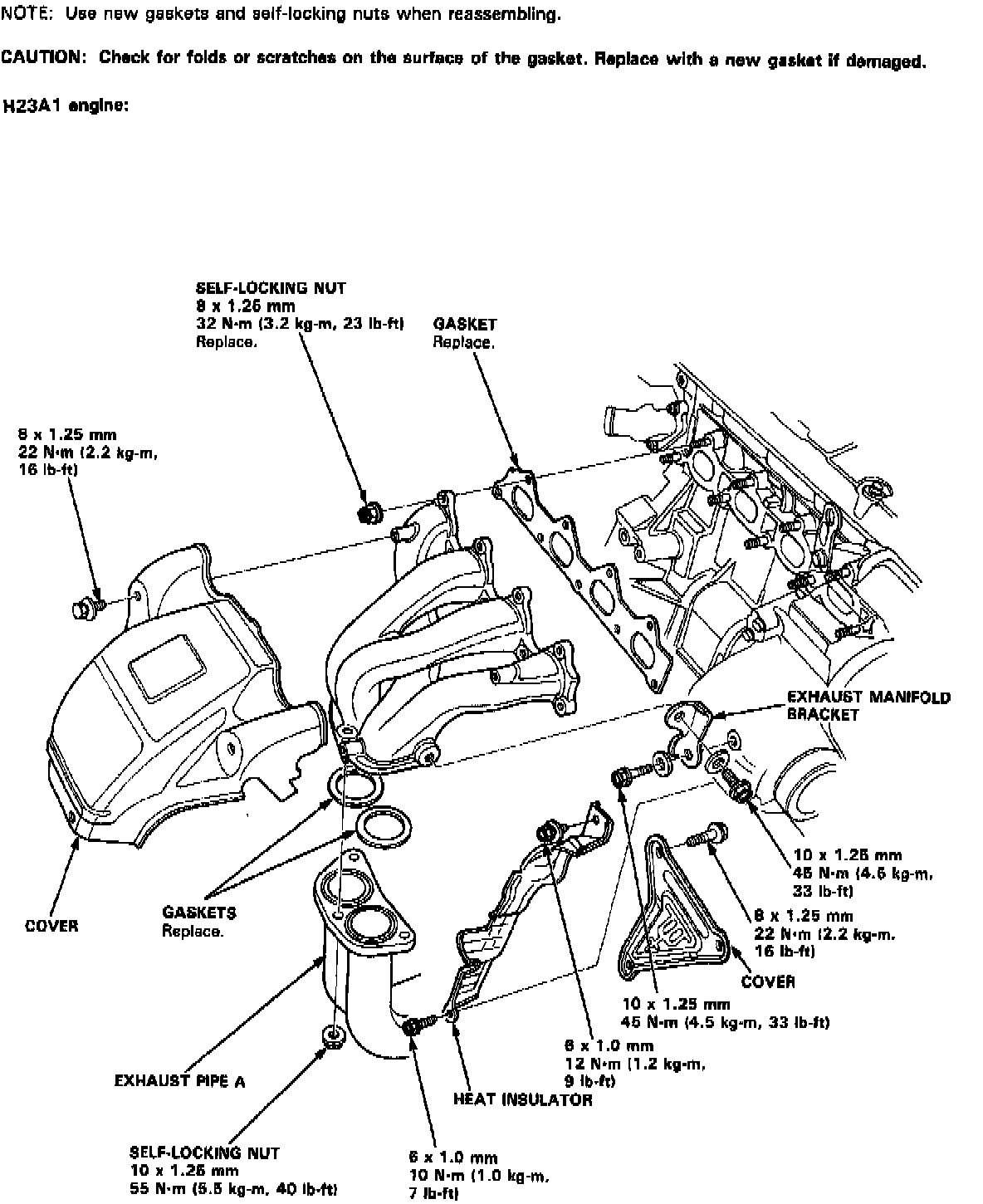

Exhaust Manifold:

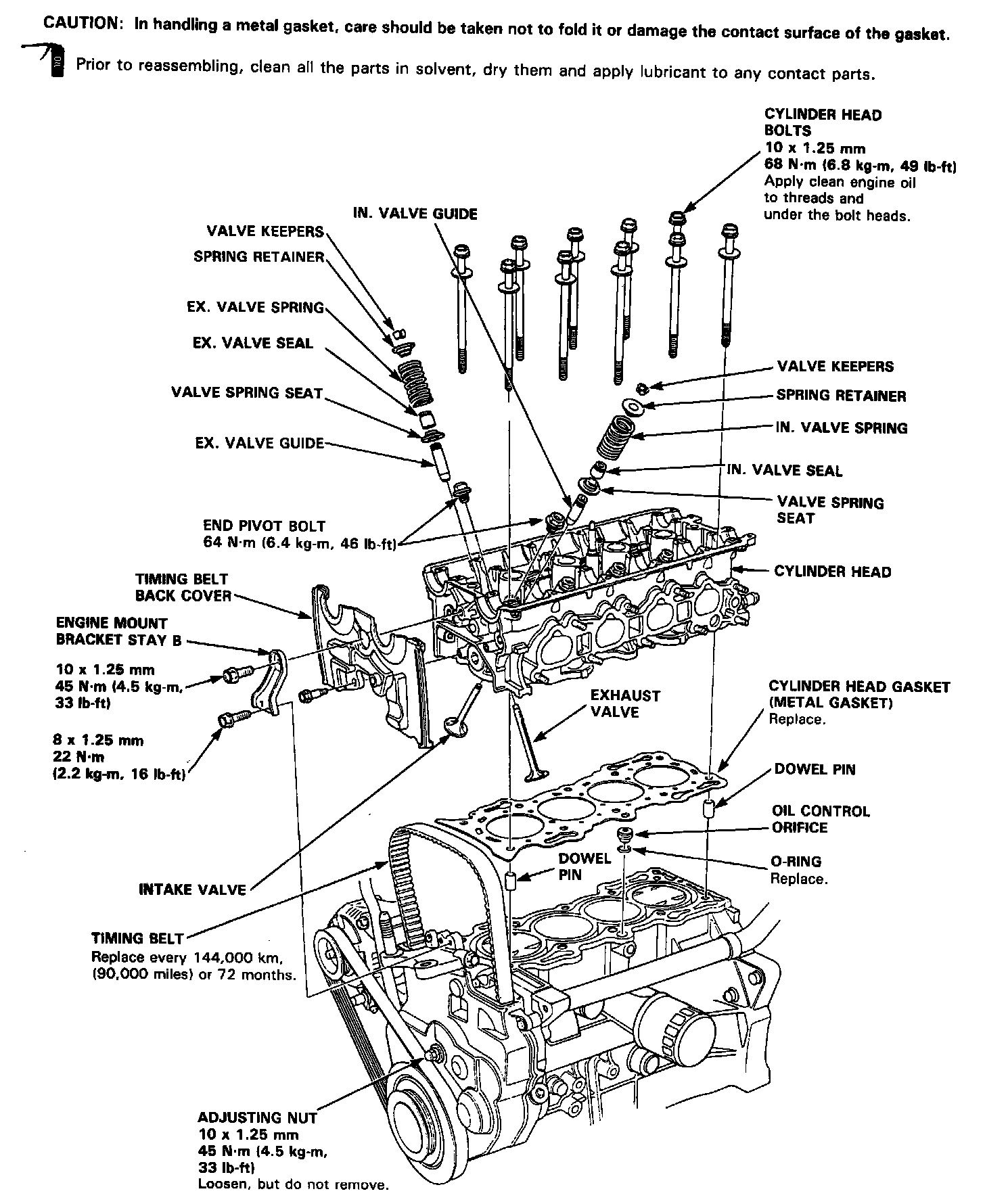

Upper Engine:

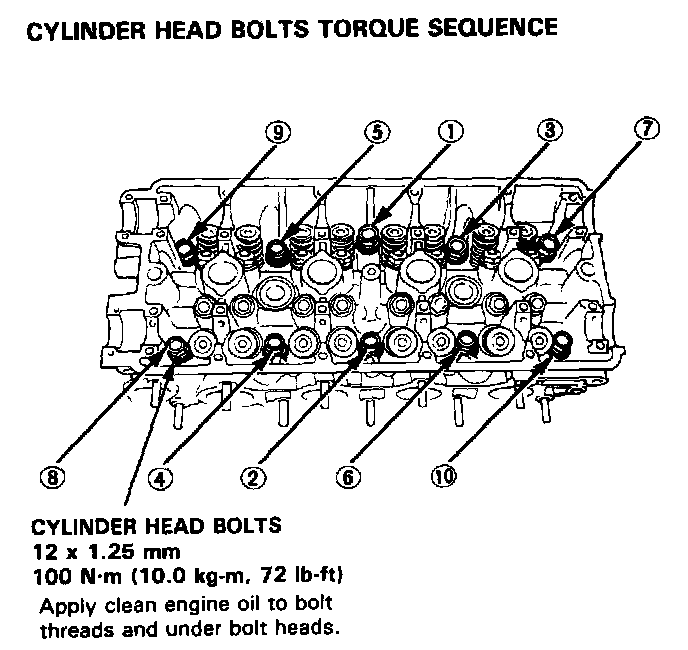

Head Bolt Torque Sequence:

Tighten cylinder head bolts, in sequence, in three steps:

1st step: 40 N.m (4.0 kg-m, 29 ft-lb)
2nd step: 70 N.m (7.0 kg-m, 51 ft-lb)
3rd step: 100 N.m (10.0 kg-m, 72 ft-lb)

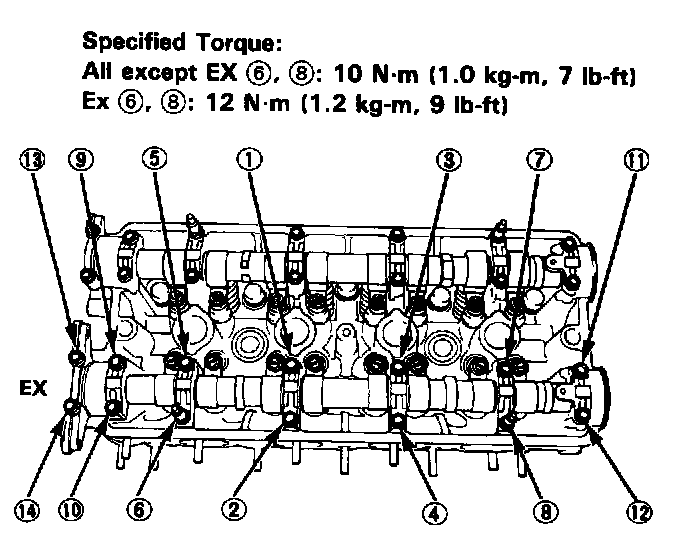

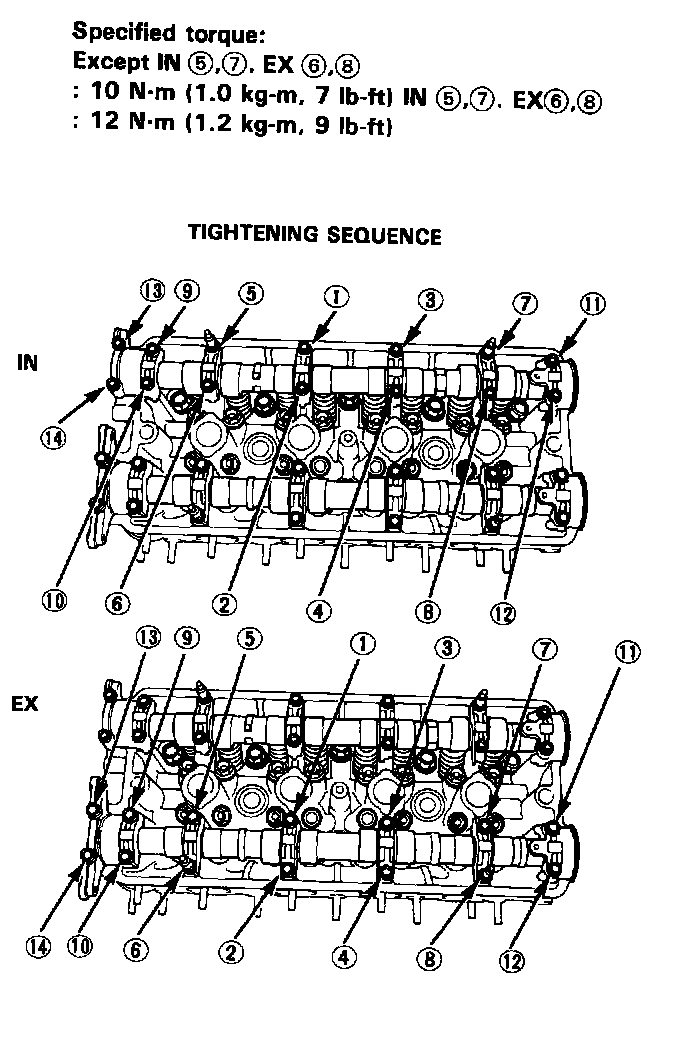

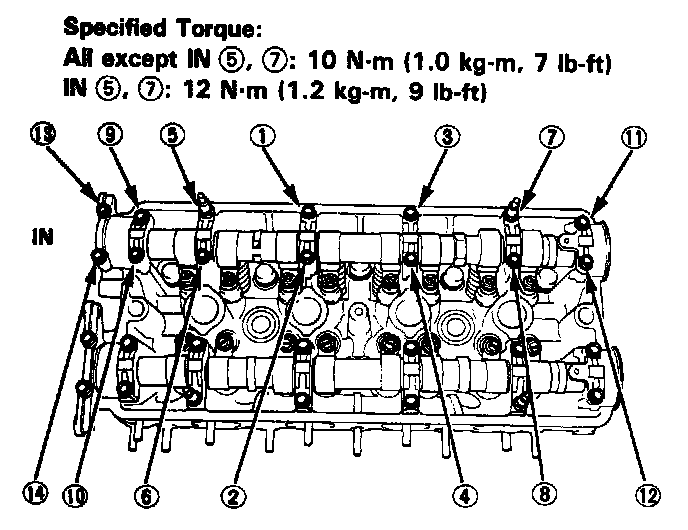

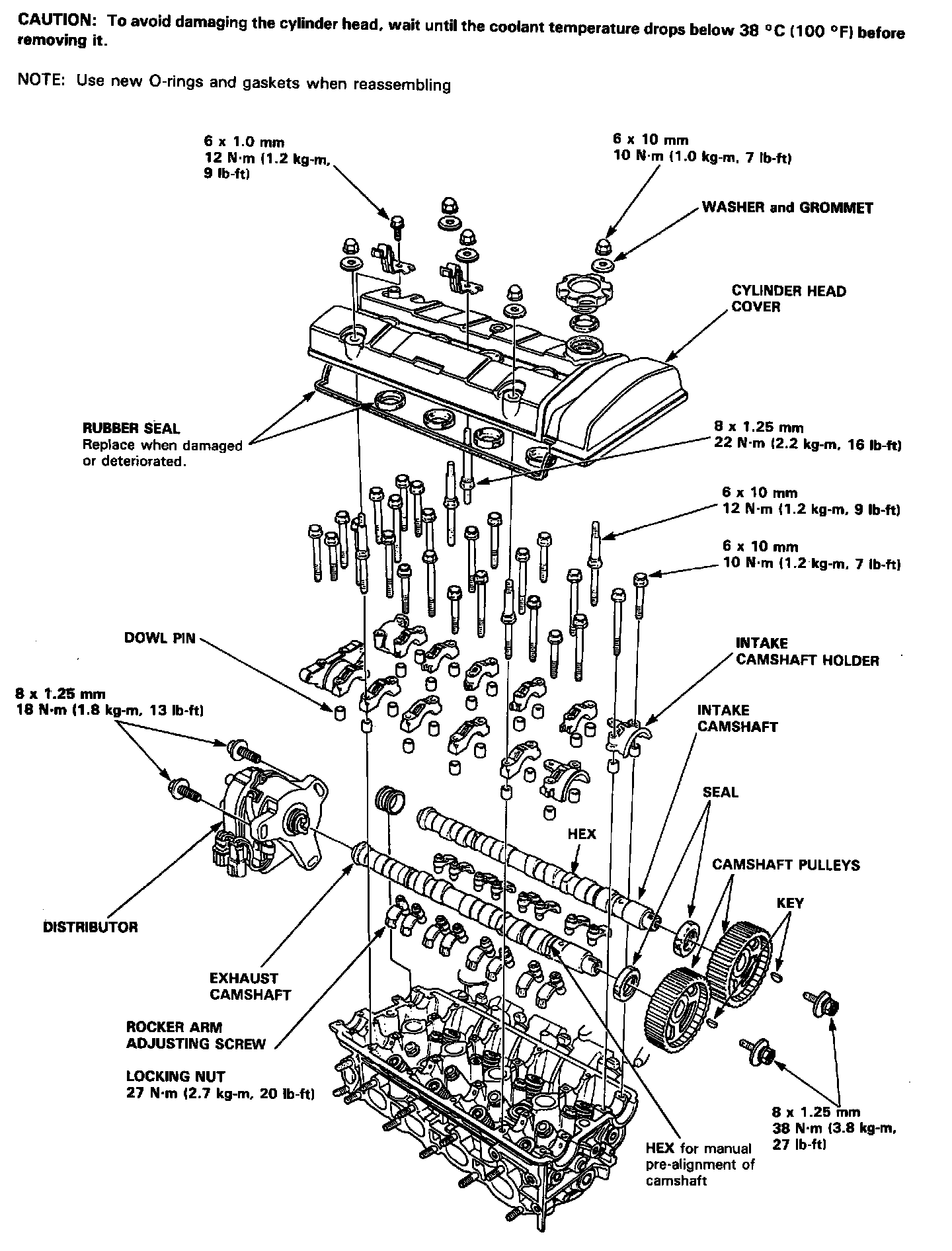

Cam Holder Torque Sequence:

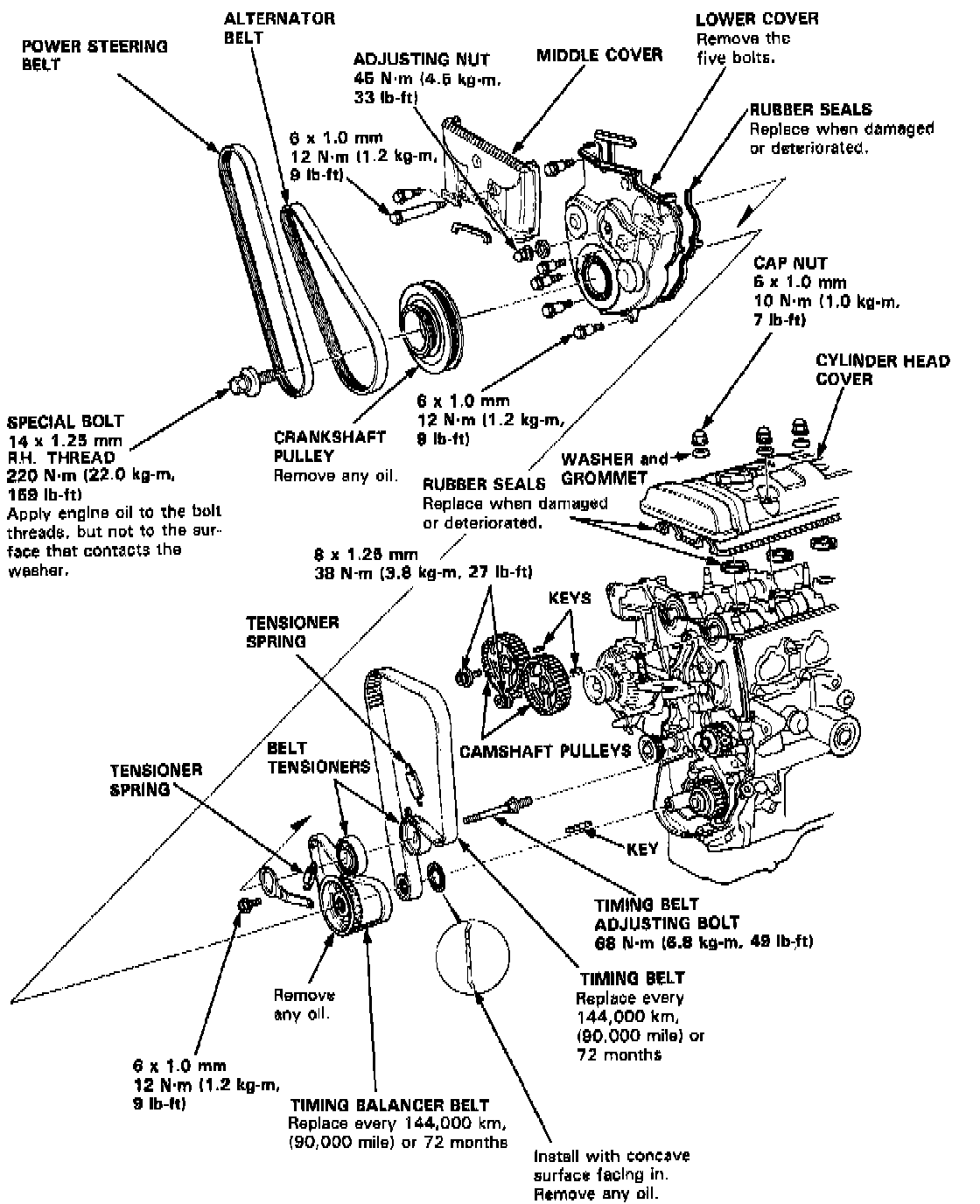

Timing Components:

Lower Engine:

Engine Lubrication:

Main Bolt Loosening Sequence:

Main Bolt Torque Sequence:

Flywheel (M/T) Torque:

Drive Plate (A/T) Torque:
