Code 20 - Electrical Load Detector (Eld) Circuit

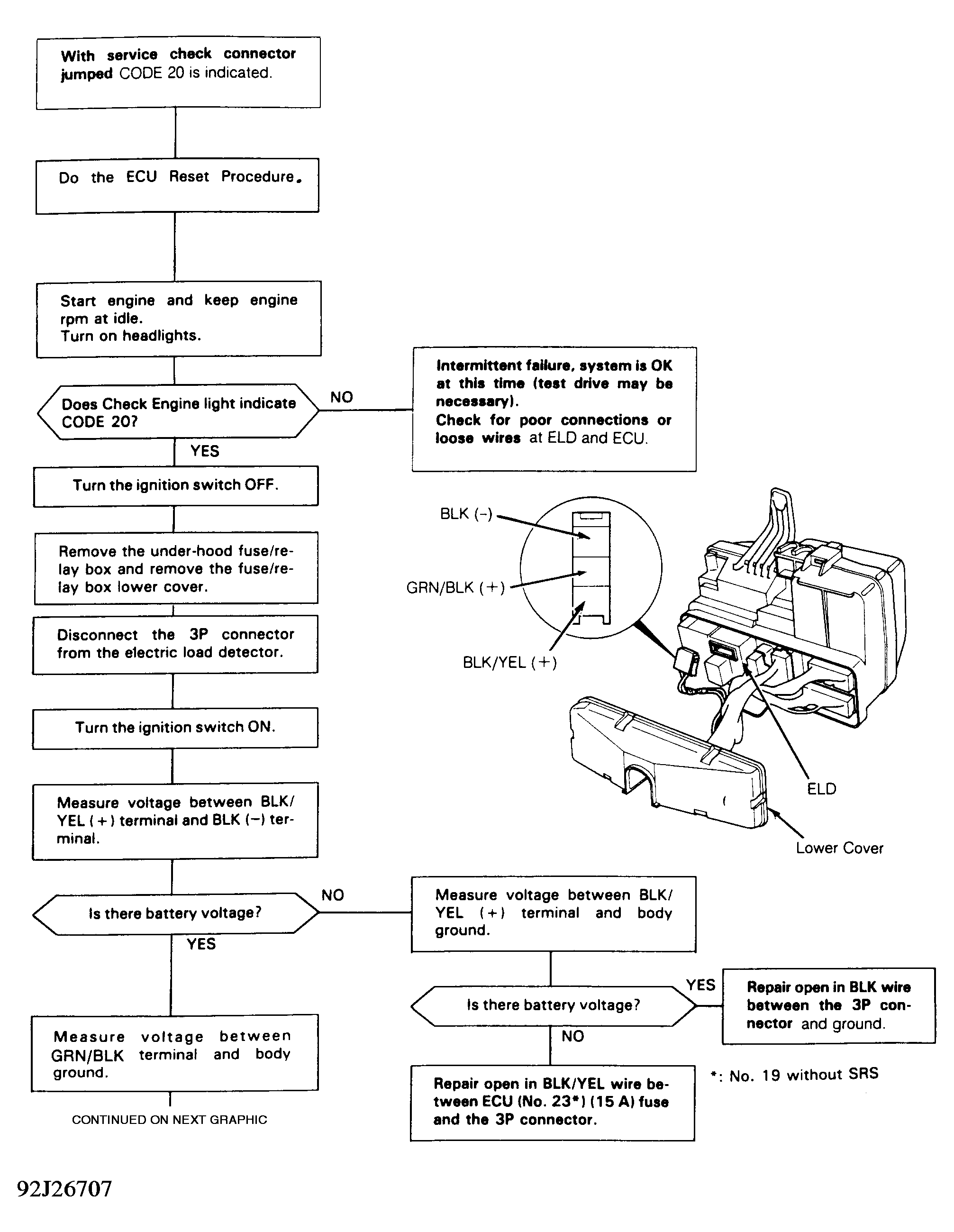

Fig 1: Code 20 Chart (1 Of 2) - Electrical Load Detector (ELD) CKT.

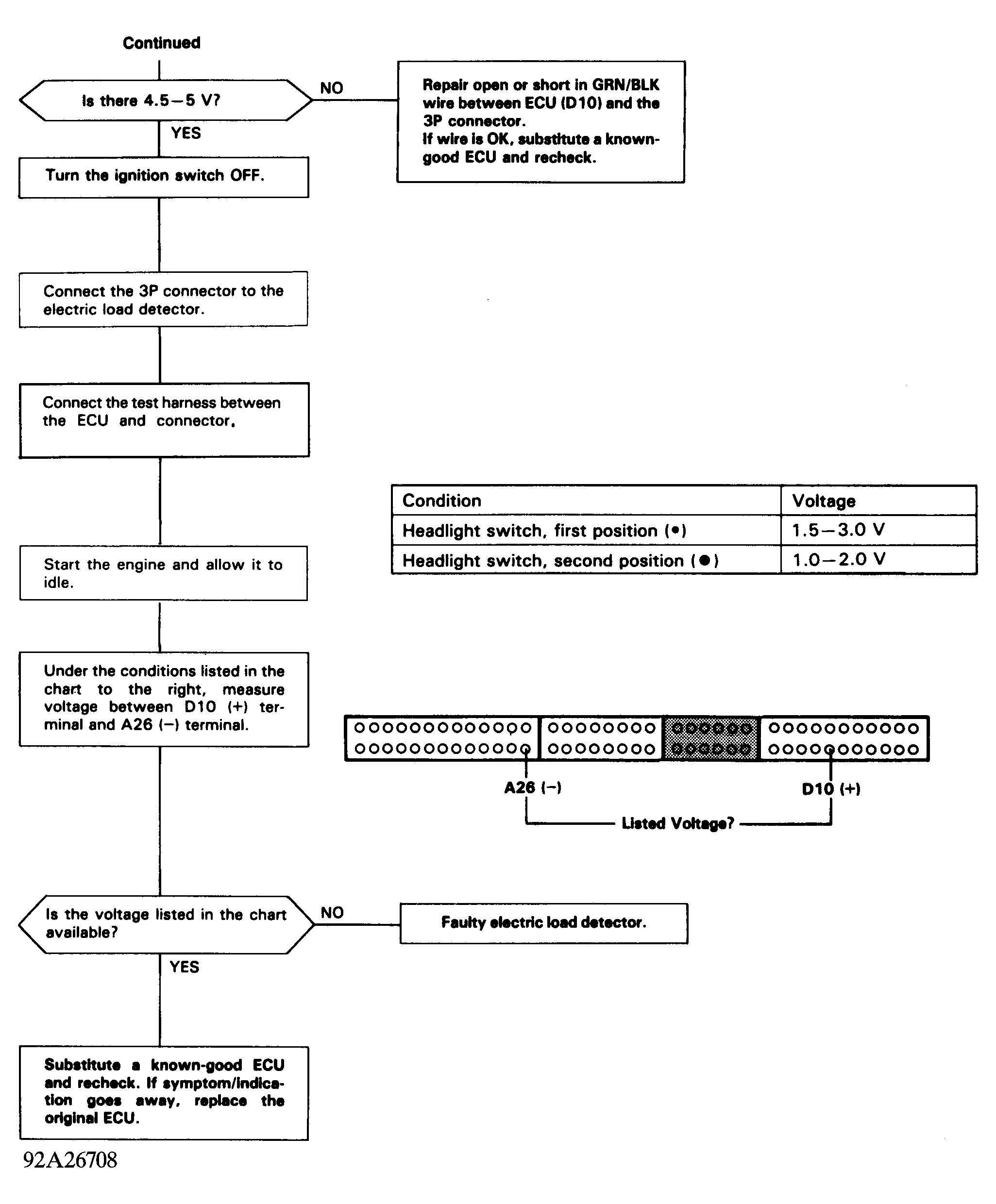

Fig 2: Code 20 Chart (2 Of 2) - Electrical Load Detector (ELD) CKT.
