Code 6 - Coolant Temperature (TW) Sensor Circuit

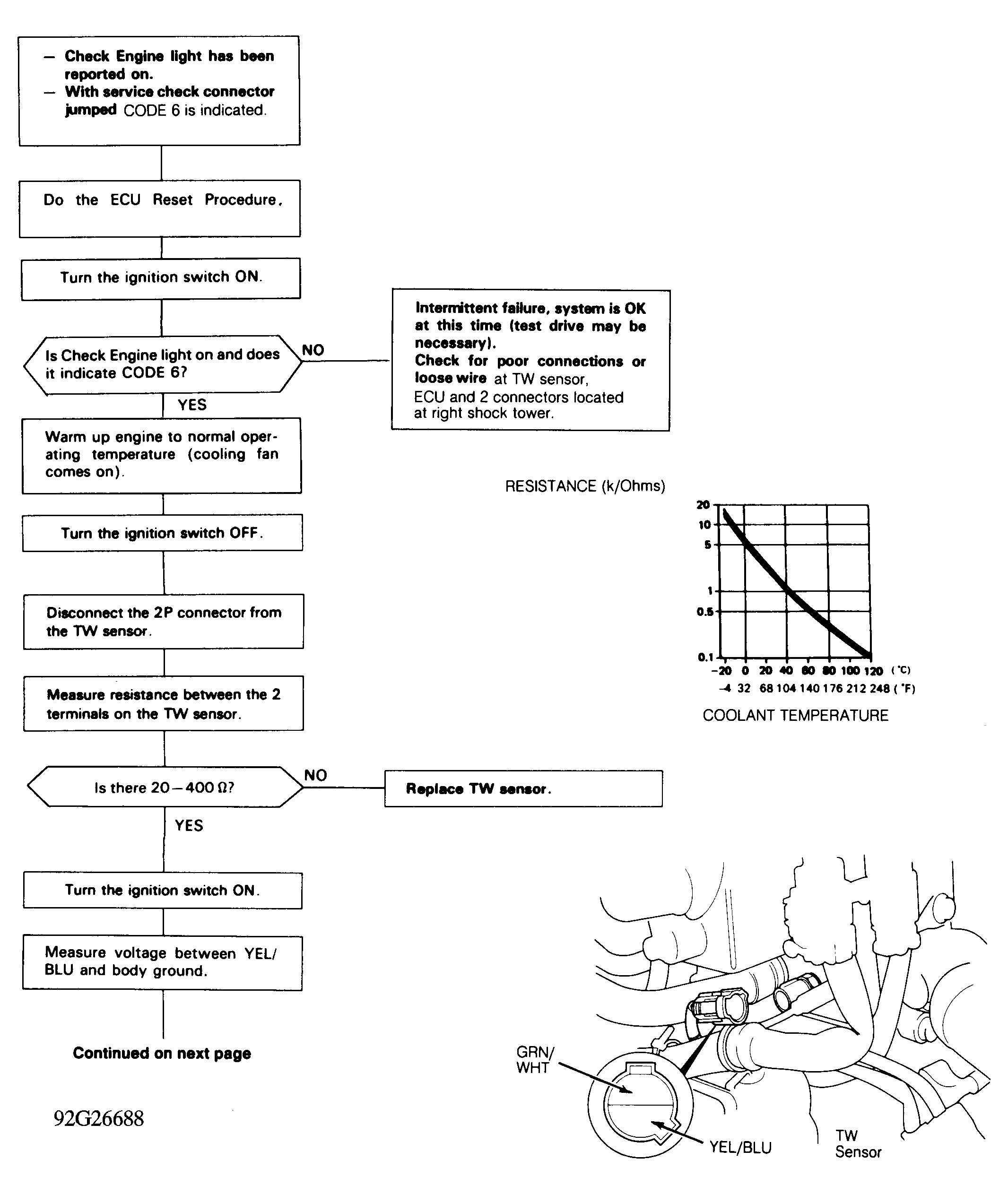

Fig 1: Code 6 Chart (1 Of 2) Coolant Temp. (TW) Sensor CKT.
G92G26688

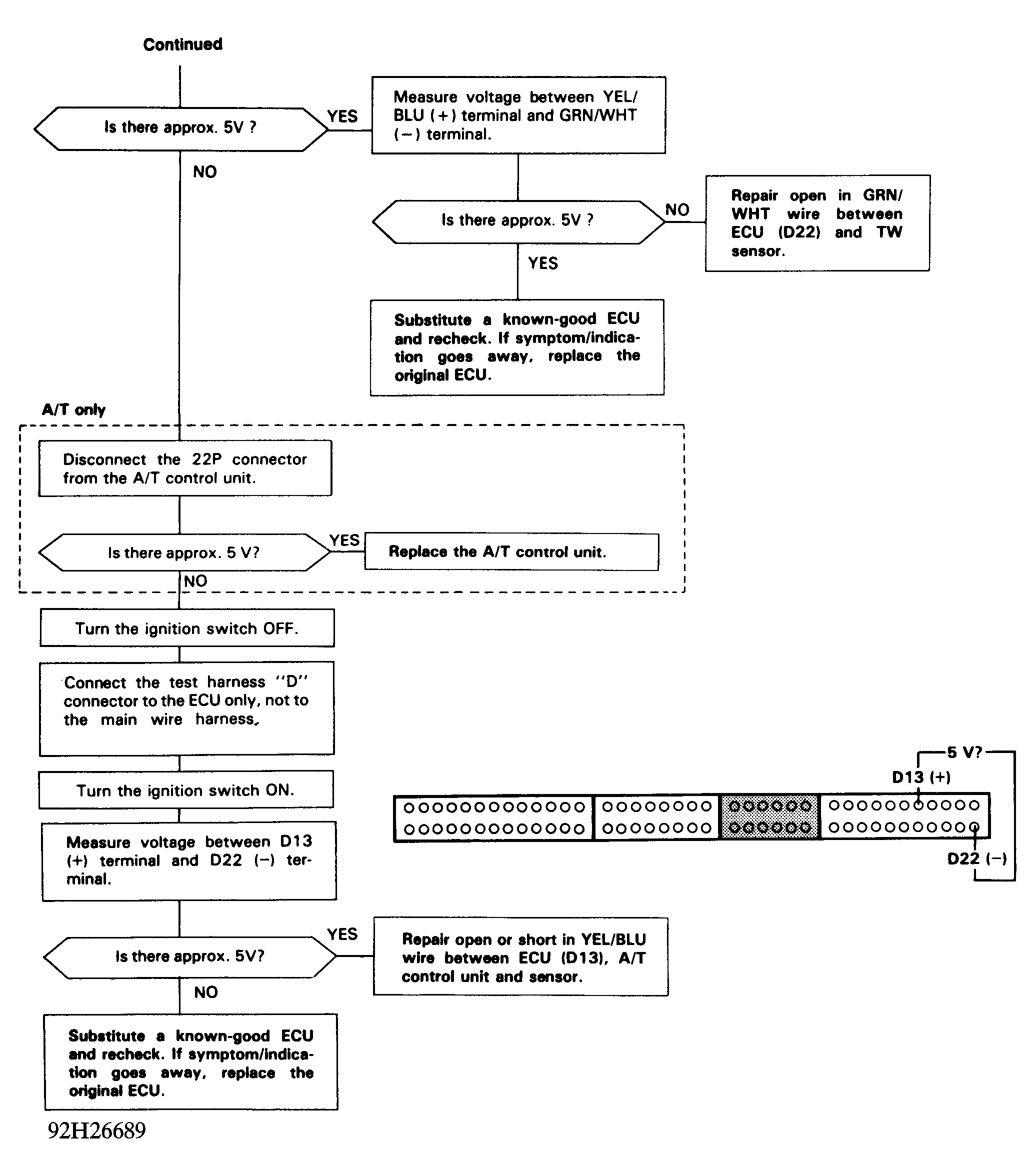

Fig 2: Code 6 Chart (1 Of 2) Coolant Temp. (TW) Sensor CKT.
G92H26689
