Code 22 - VTEC Pressure Switch

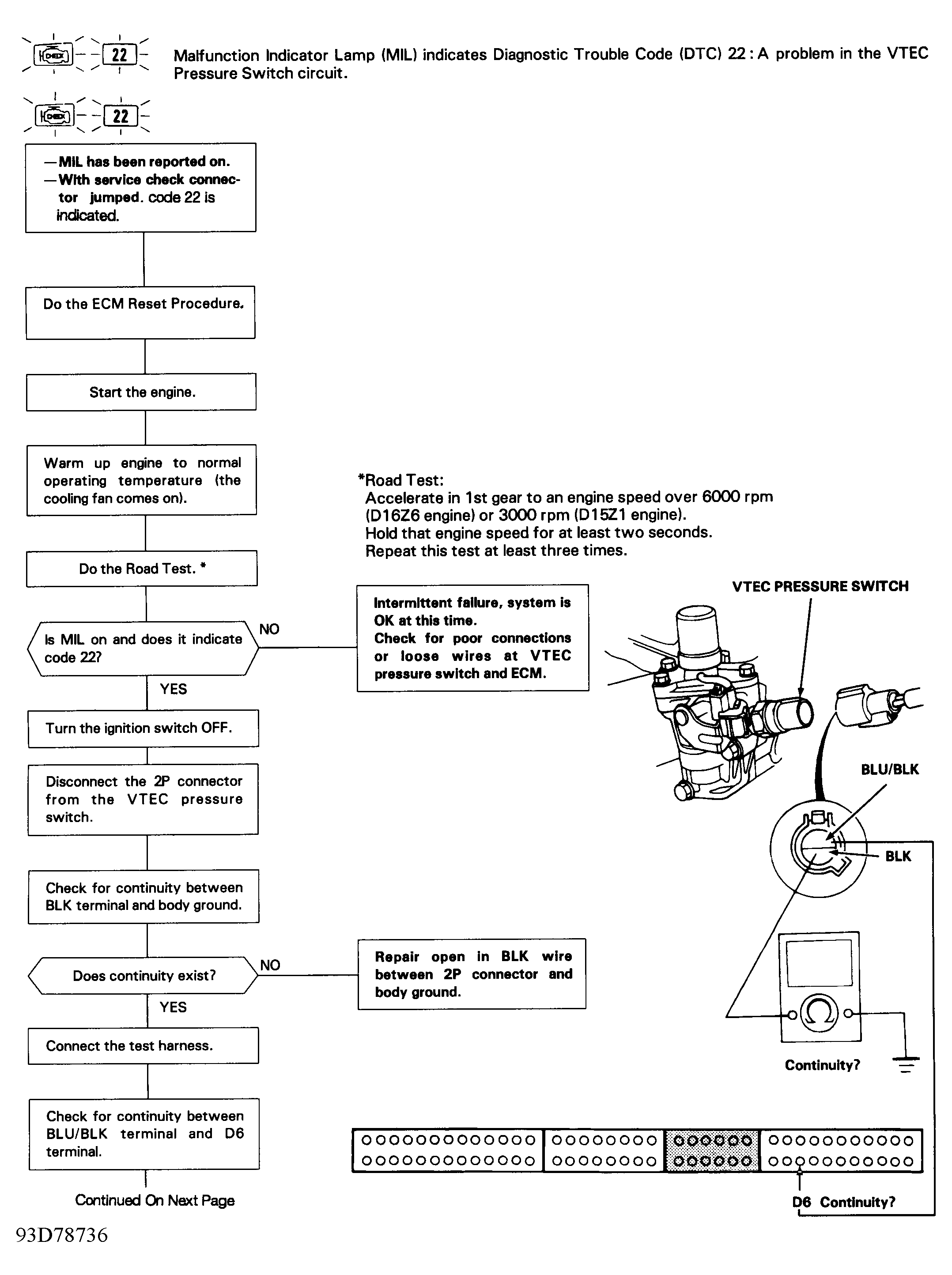

Fig 1: Code 22 Flowchart, VTEC Pressure Switch (1 of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

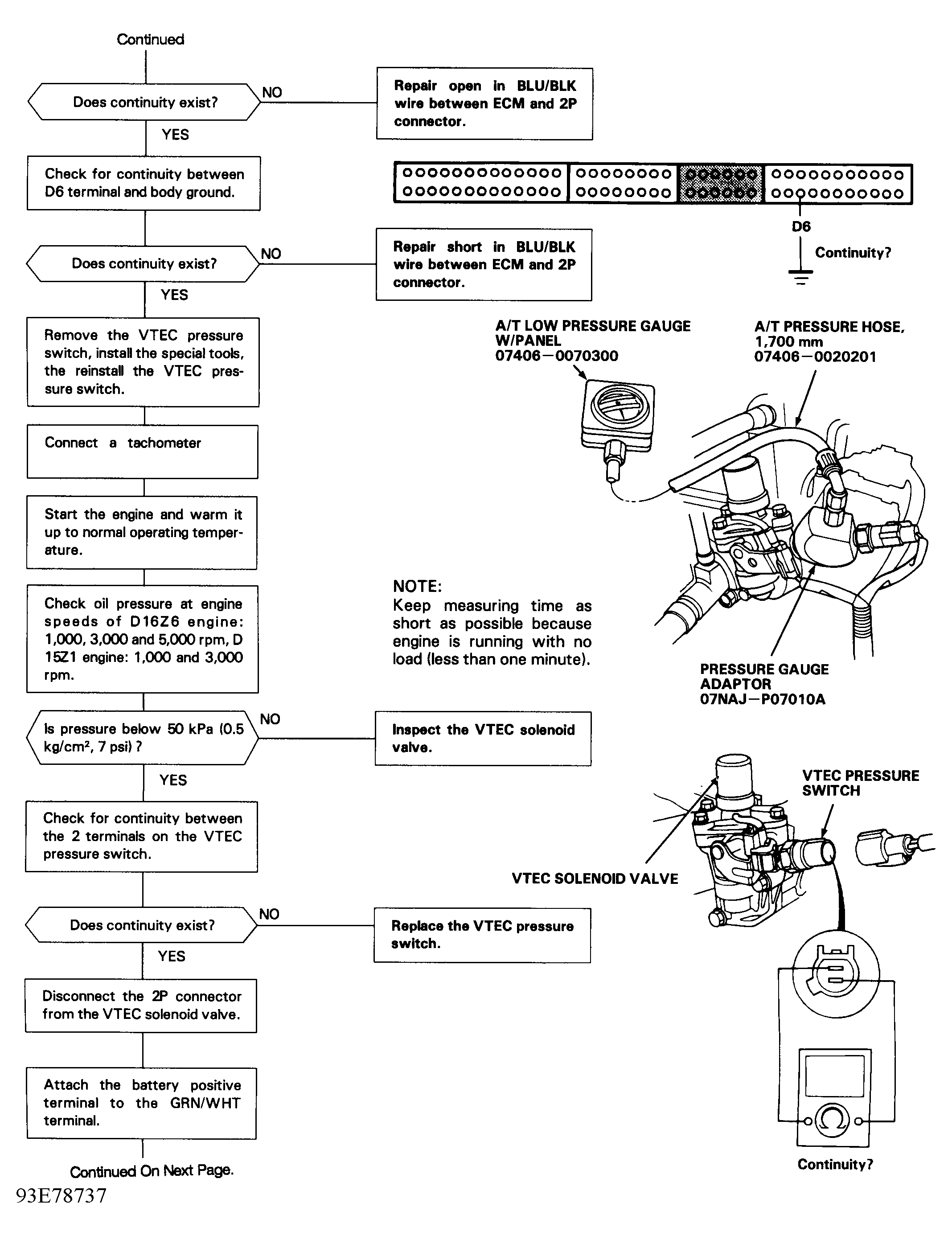

Fig 2: Code 22 Flowchart, VTEC Pressure Switch (2 of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

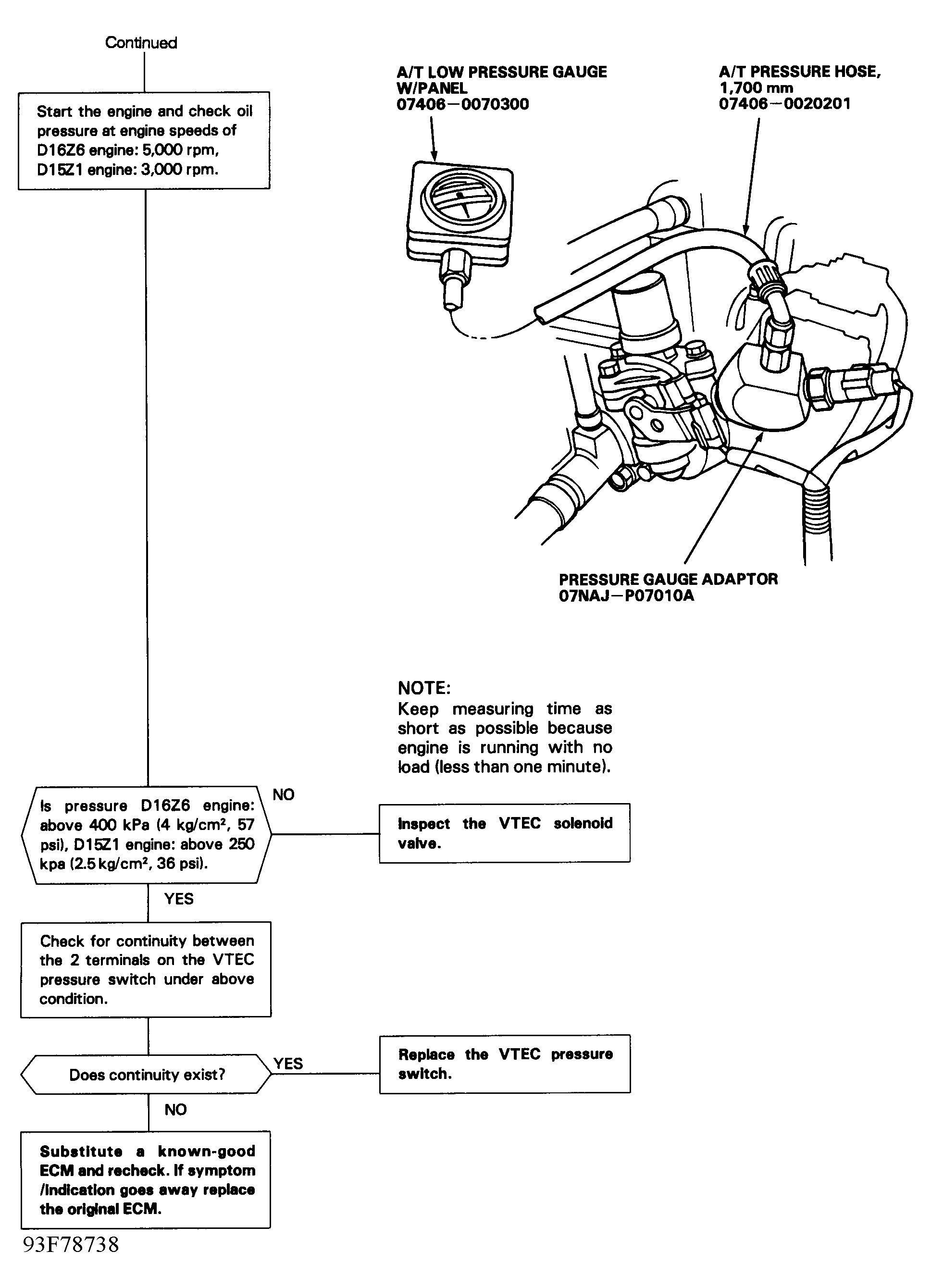

Fig 3: Code 22 Flowchart, VTEC Pressure Switch (3 of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
