Code 5 - D15B7 - Map Sensor Circuit

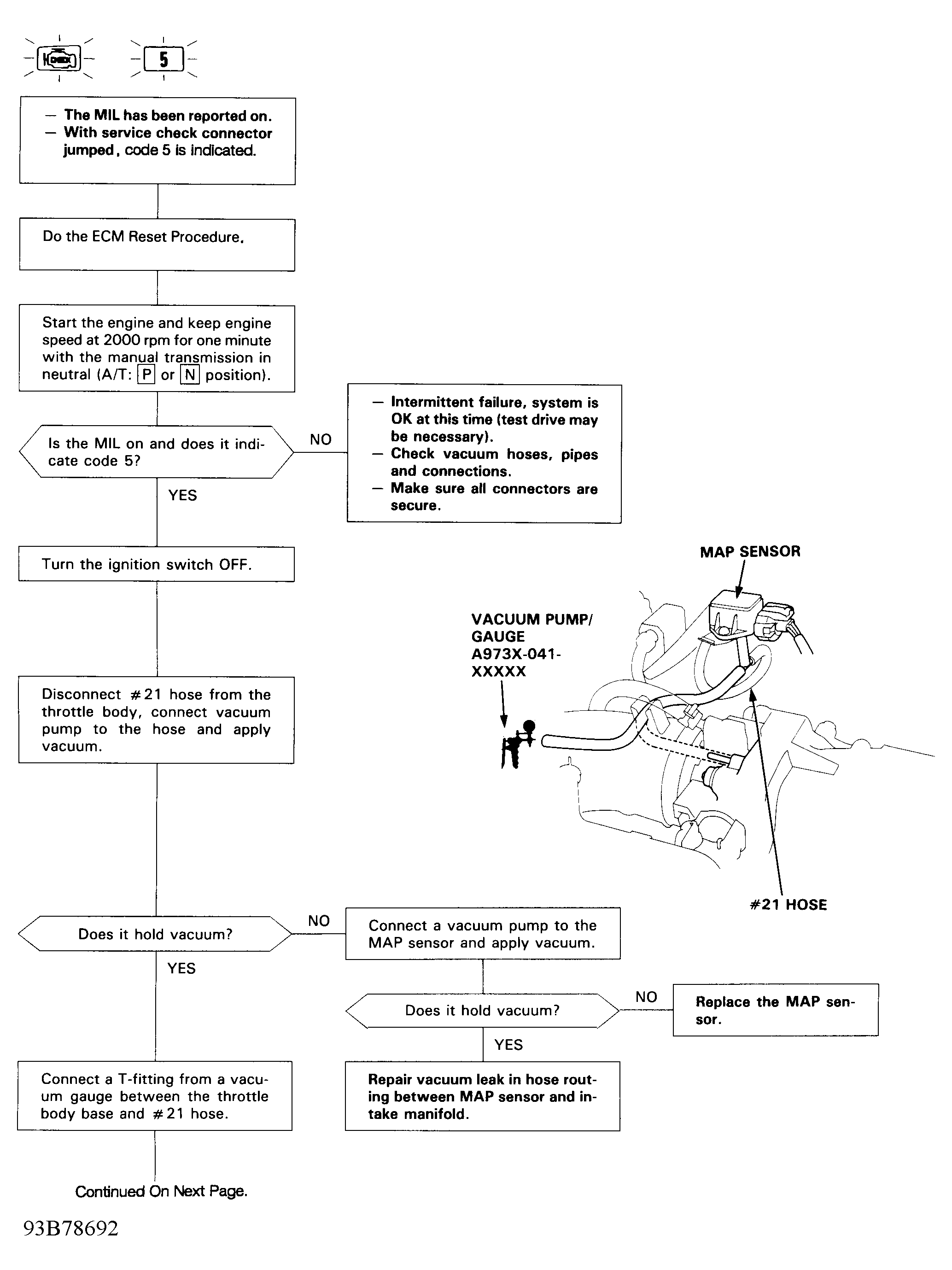

Fig 1: Code 5 Flowchart, MAP Sensor Circuit (D15B7) (1 of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

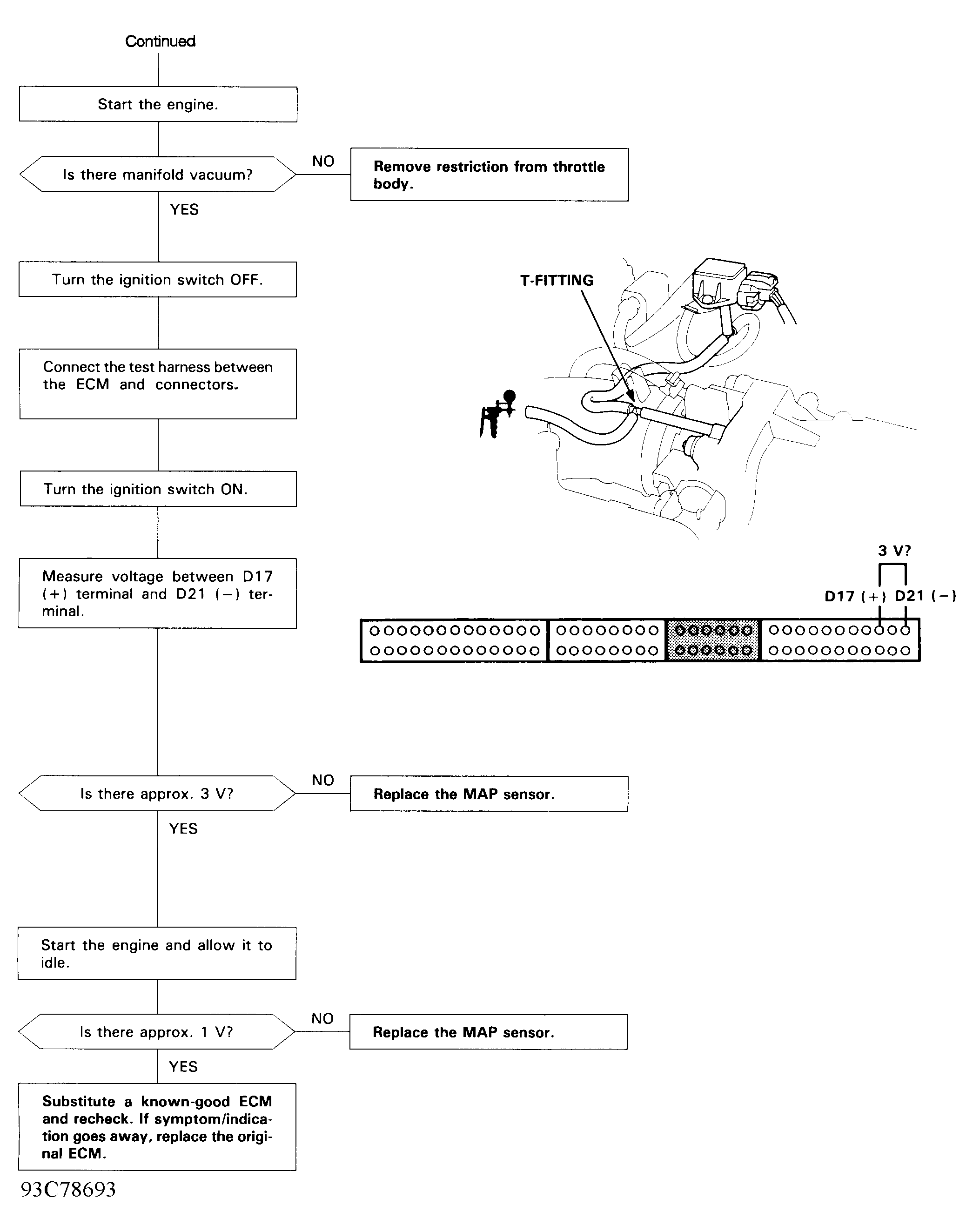

Fig 2: Code 5 Flowchart, MAP Sensor Circuit (D15B7) (2 of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
