Transmission Position Sensor/Switch: Testing and Inspection

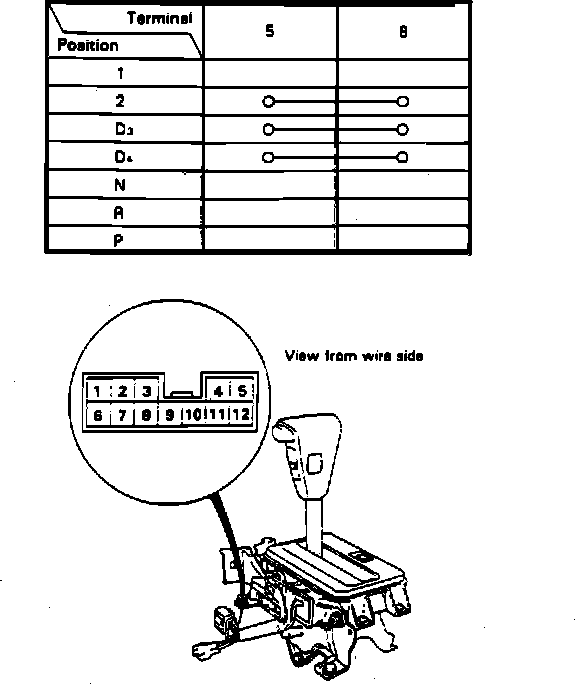

Fig. 44 Shift Lever Position Test. 1989 Accord:

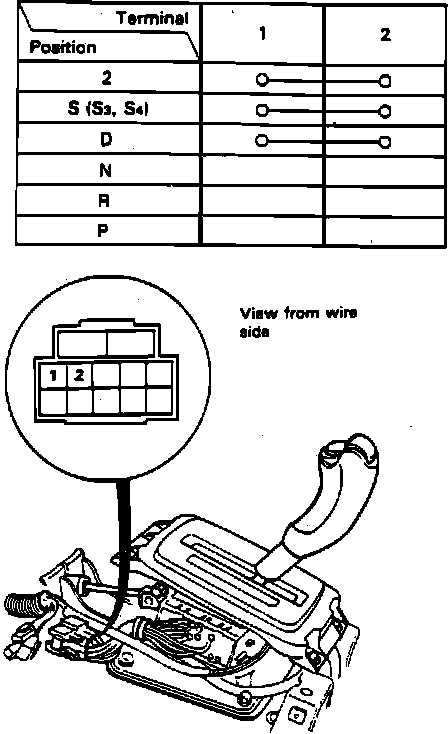

Fig. 45 Shift Lever Position Test. 1990-92 Accord & 1992 Prelude:

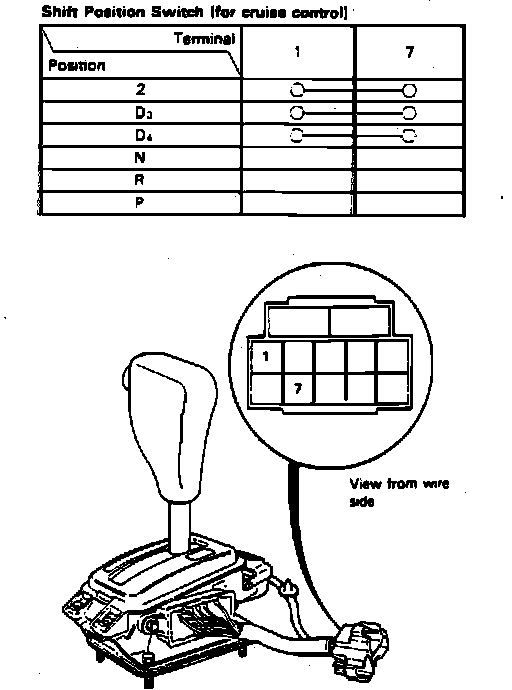

Fig. 46 Shift Lever Position Test. 1989-91 Prelude:

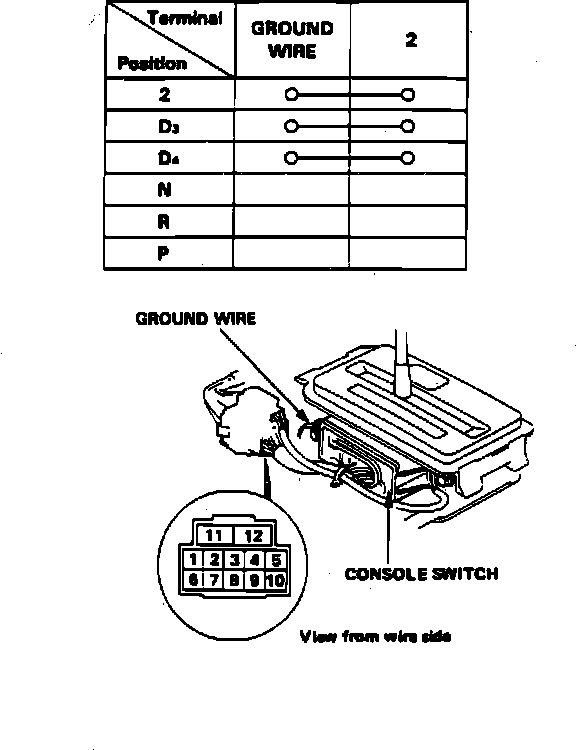

Fig. 47 Shift Lever Position Test. Civic:

1. Remove front console.
2. Check for continuity between terminals in each switch position, Figs. 44 through 47.
