Torque Specifications

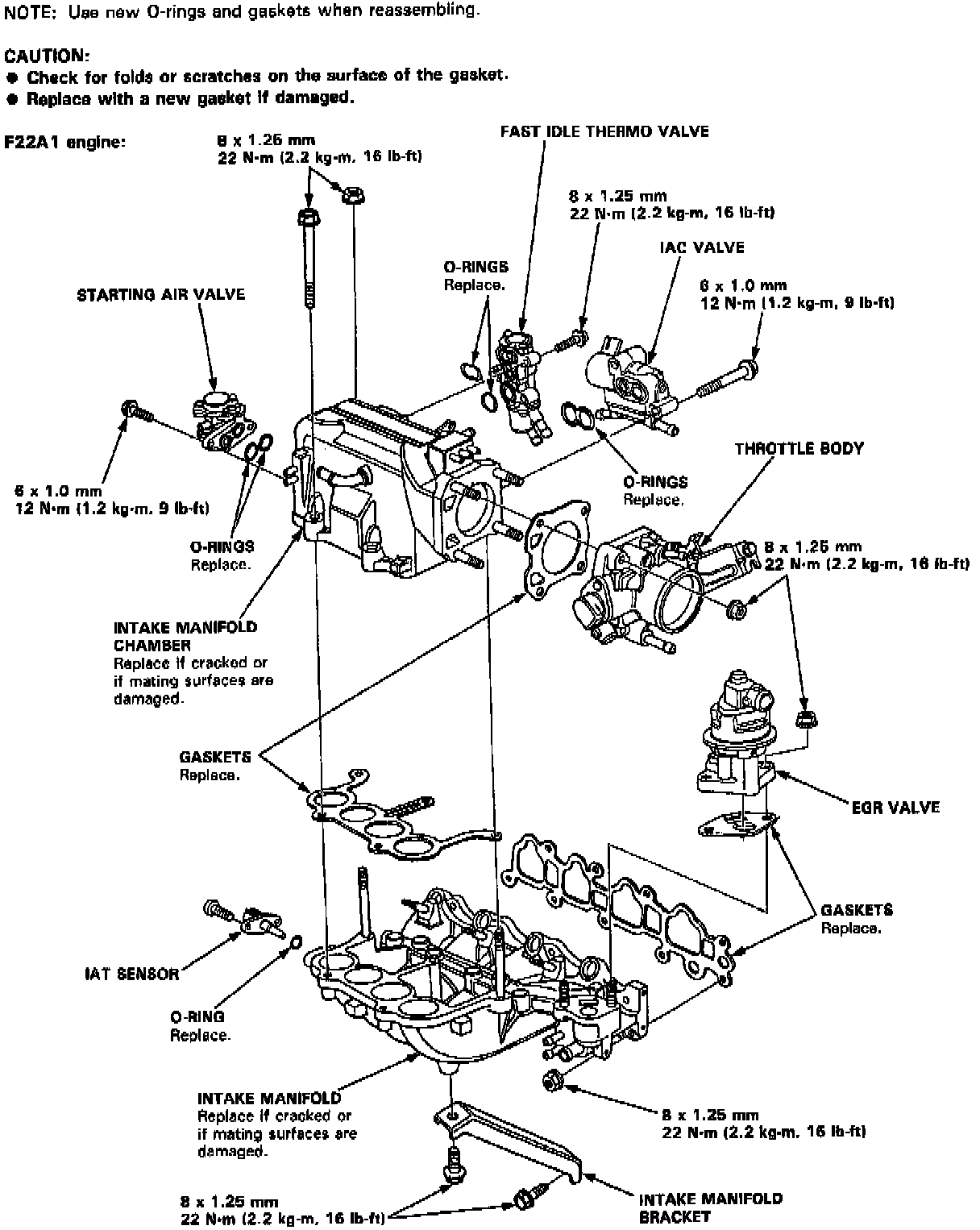

Intake:

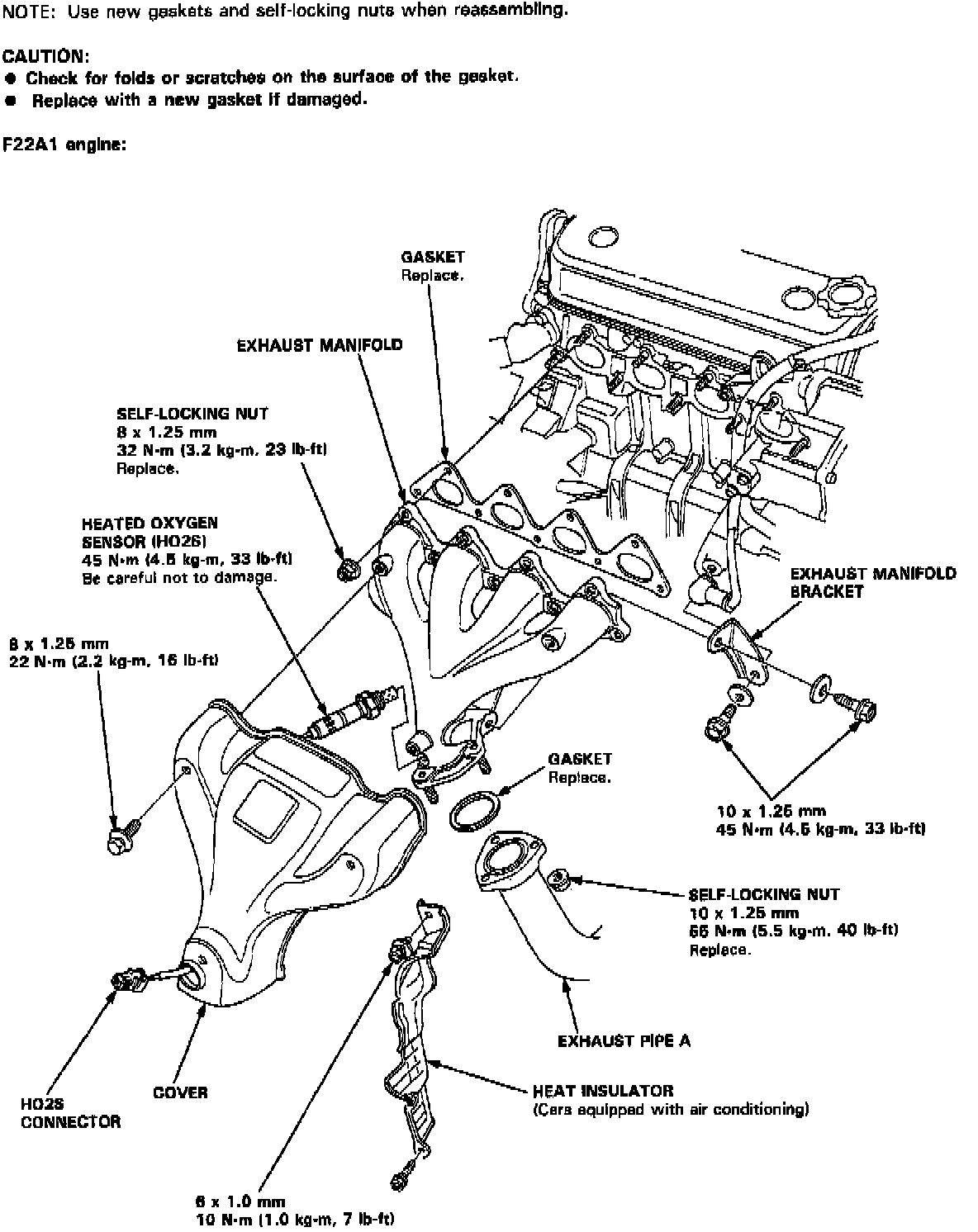

Exhaust Manifold:

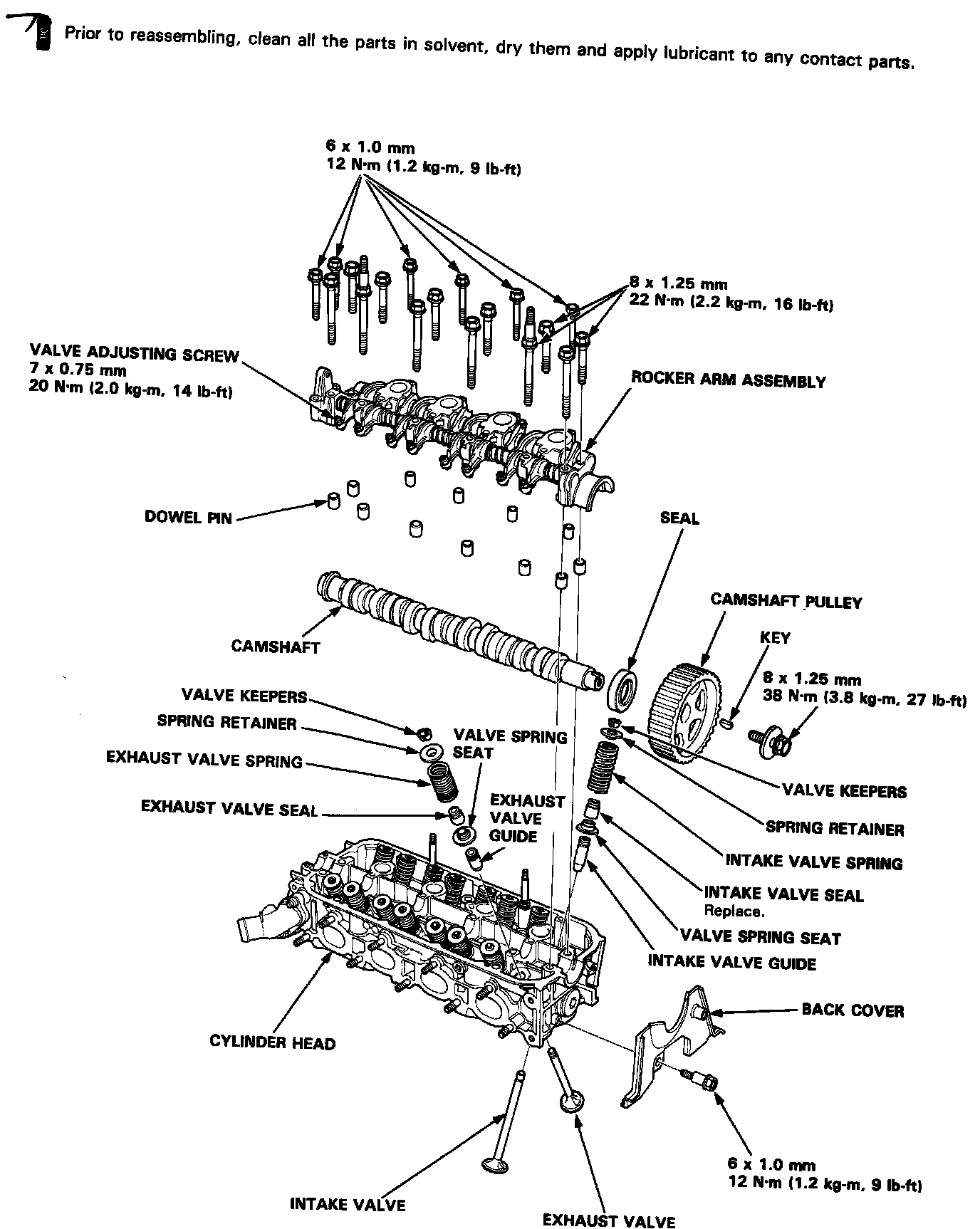

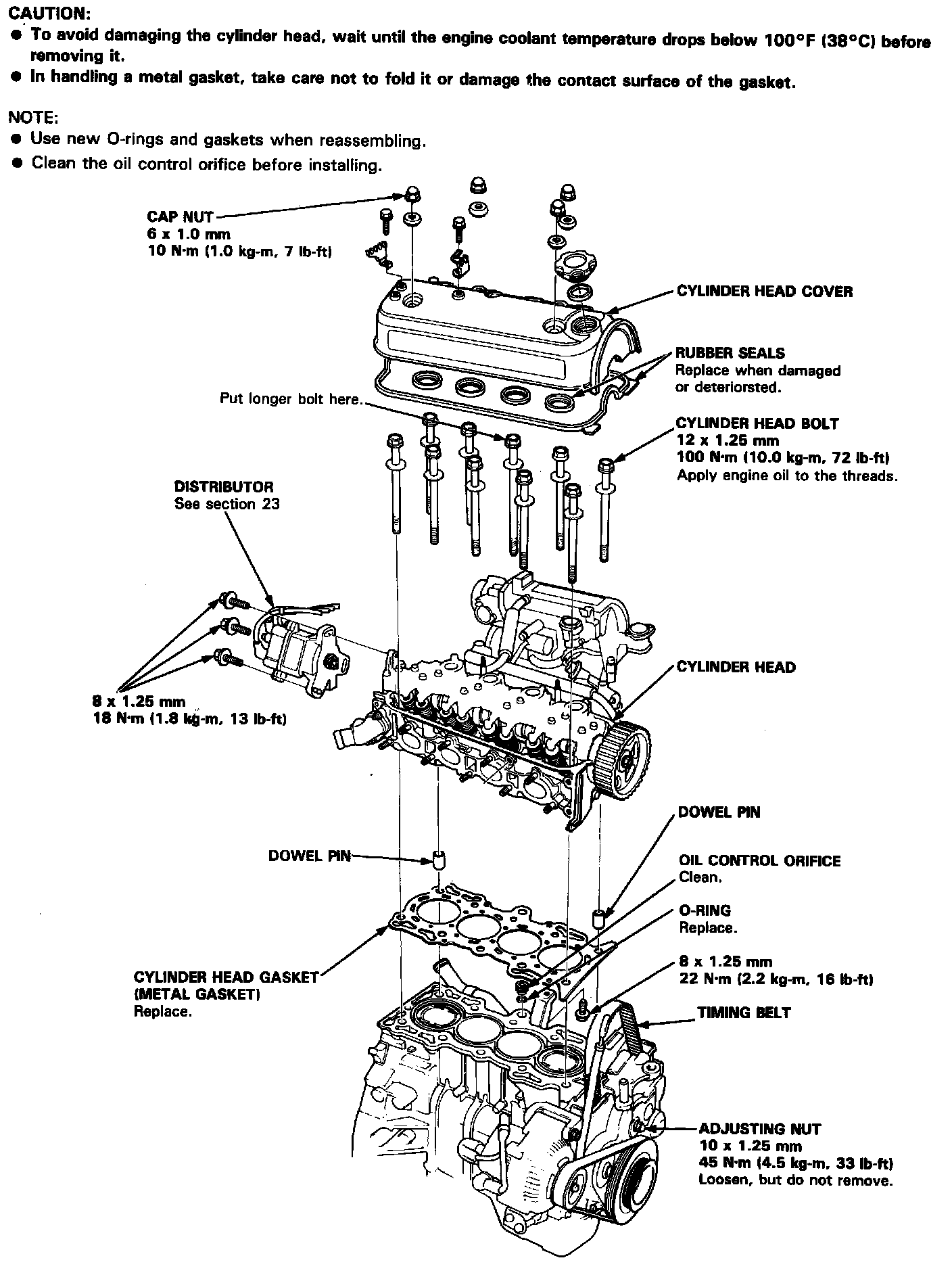

Upper Engine:

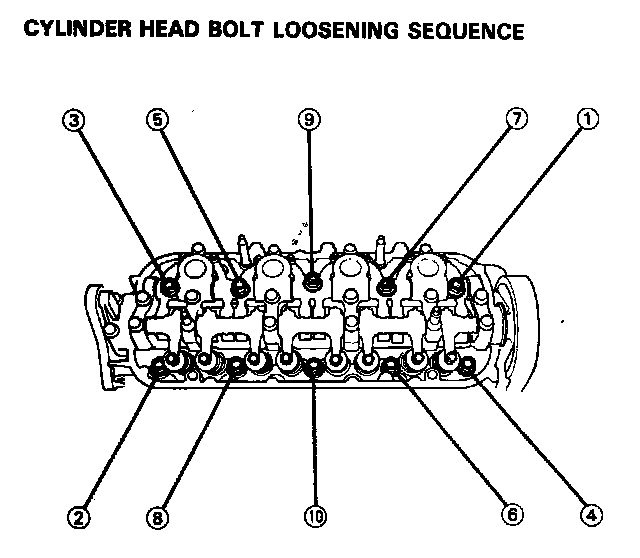

Head Bolt Loosening Sequence:

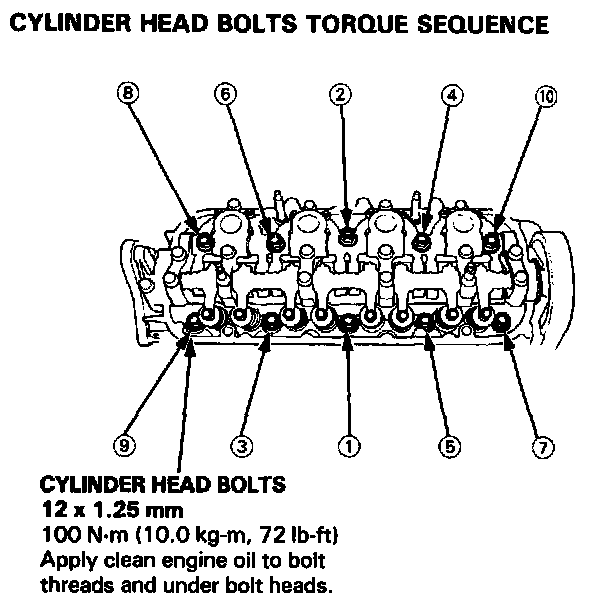

Head Bolt Torque Sequence:

Torque cylinder head attaching bolts in three steps; first step to 29 ft. lbs., second step to 51 ft. lbs., third step to 72 ft. lbs.

Cam Holder Loosening Sequence:

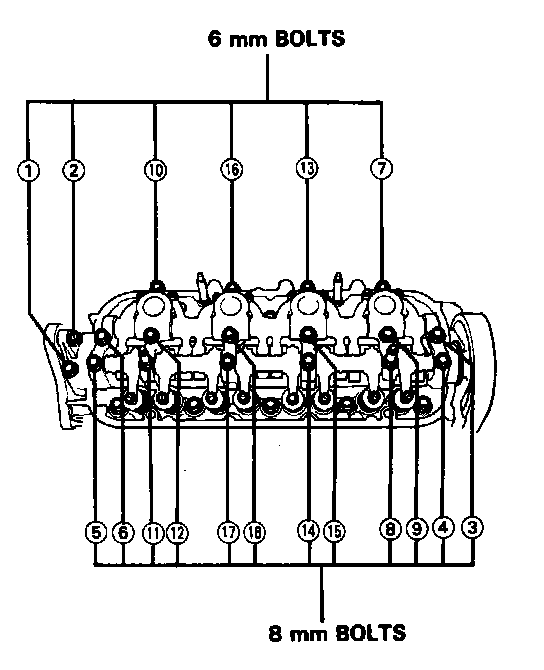

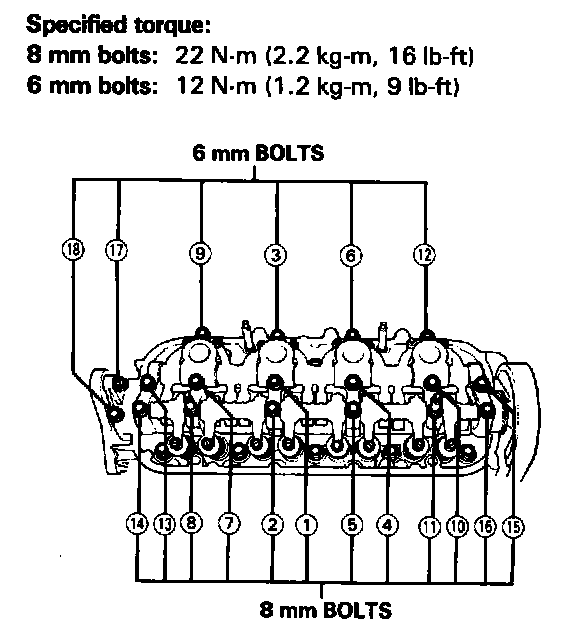

Cam Holder Torque Sequence:

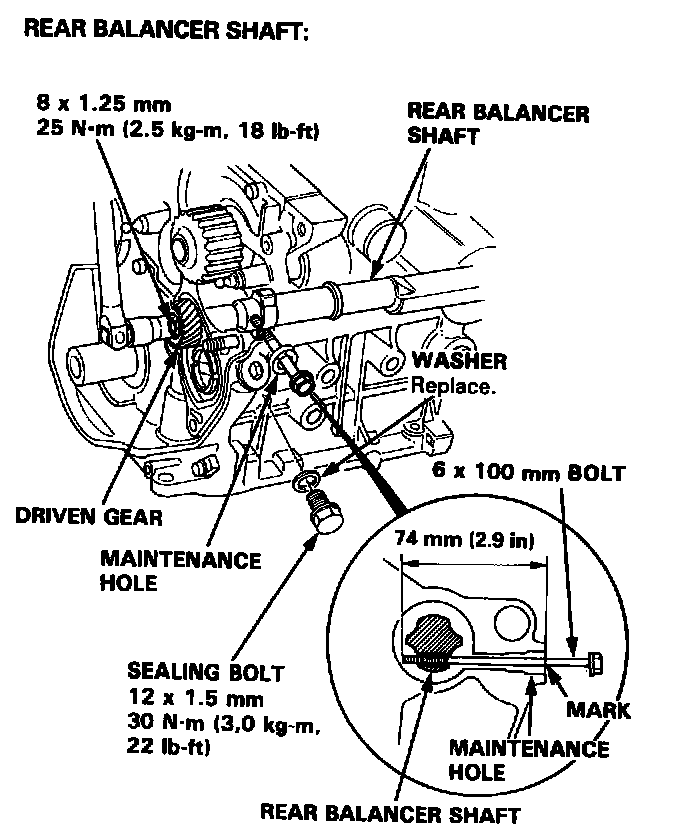

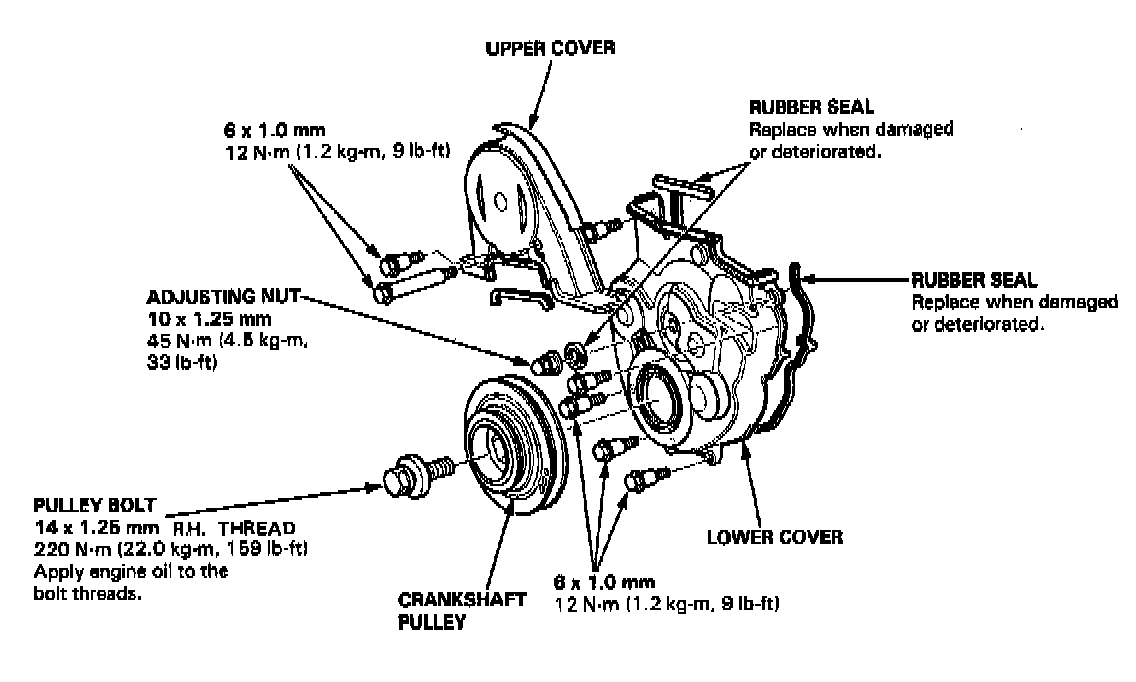

Timing Components:

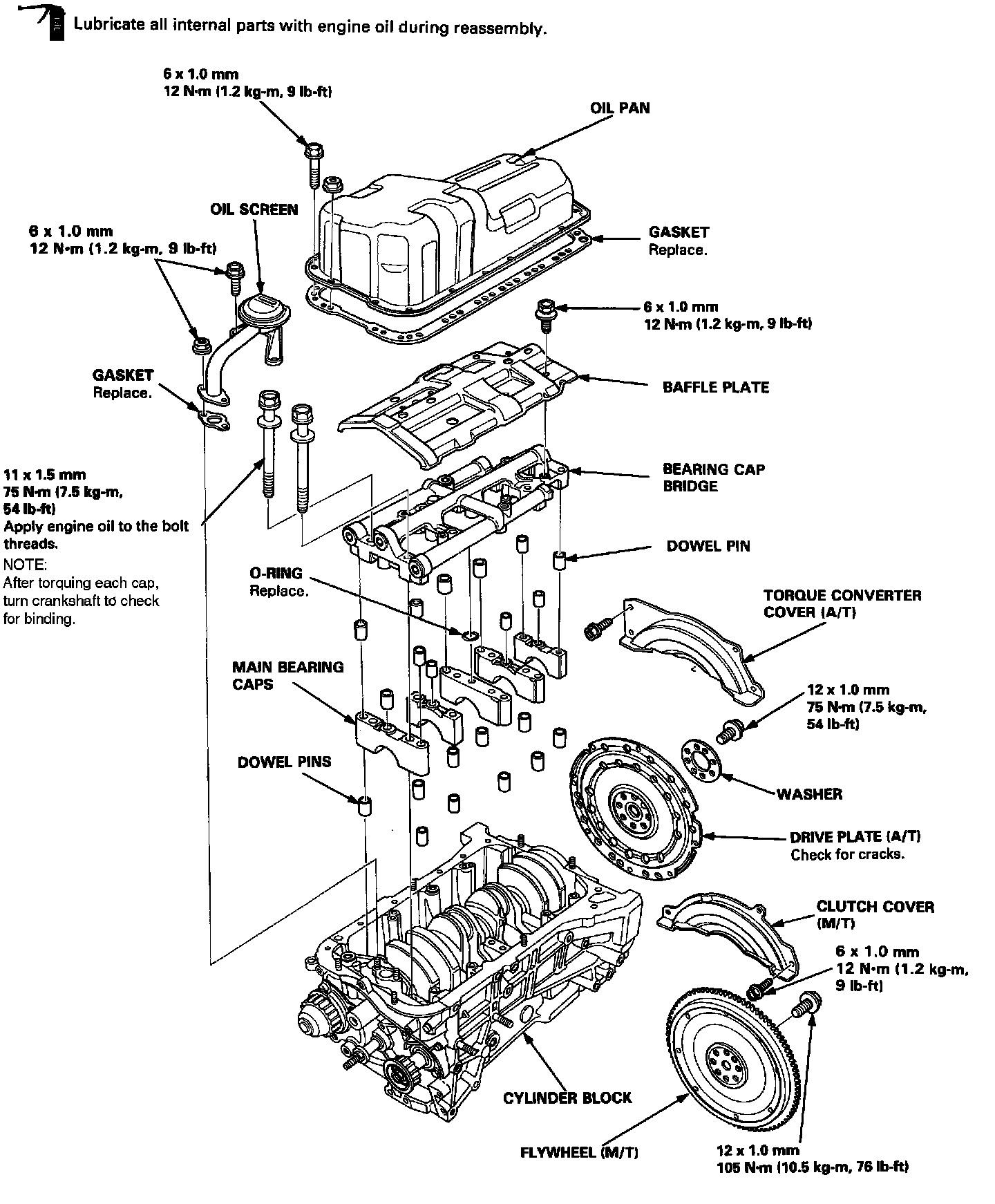

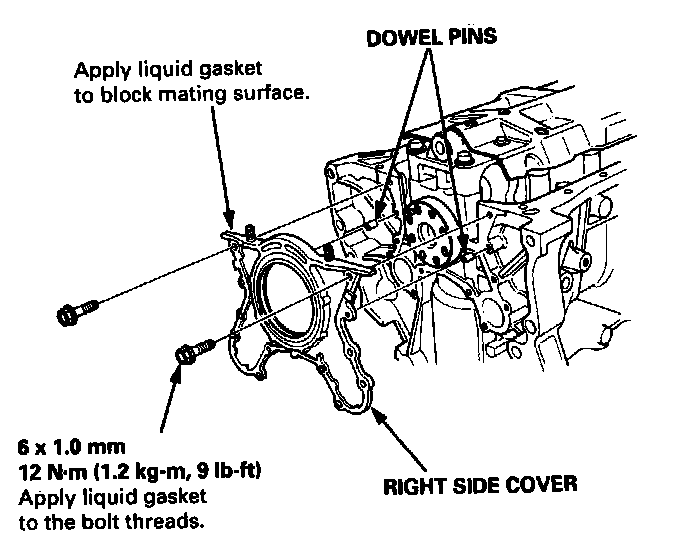

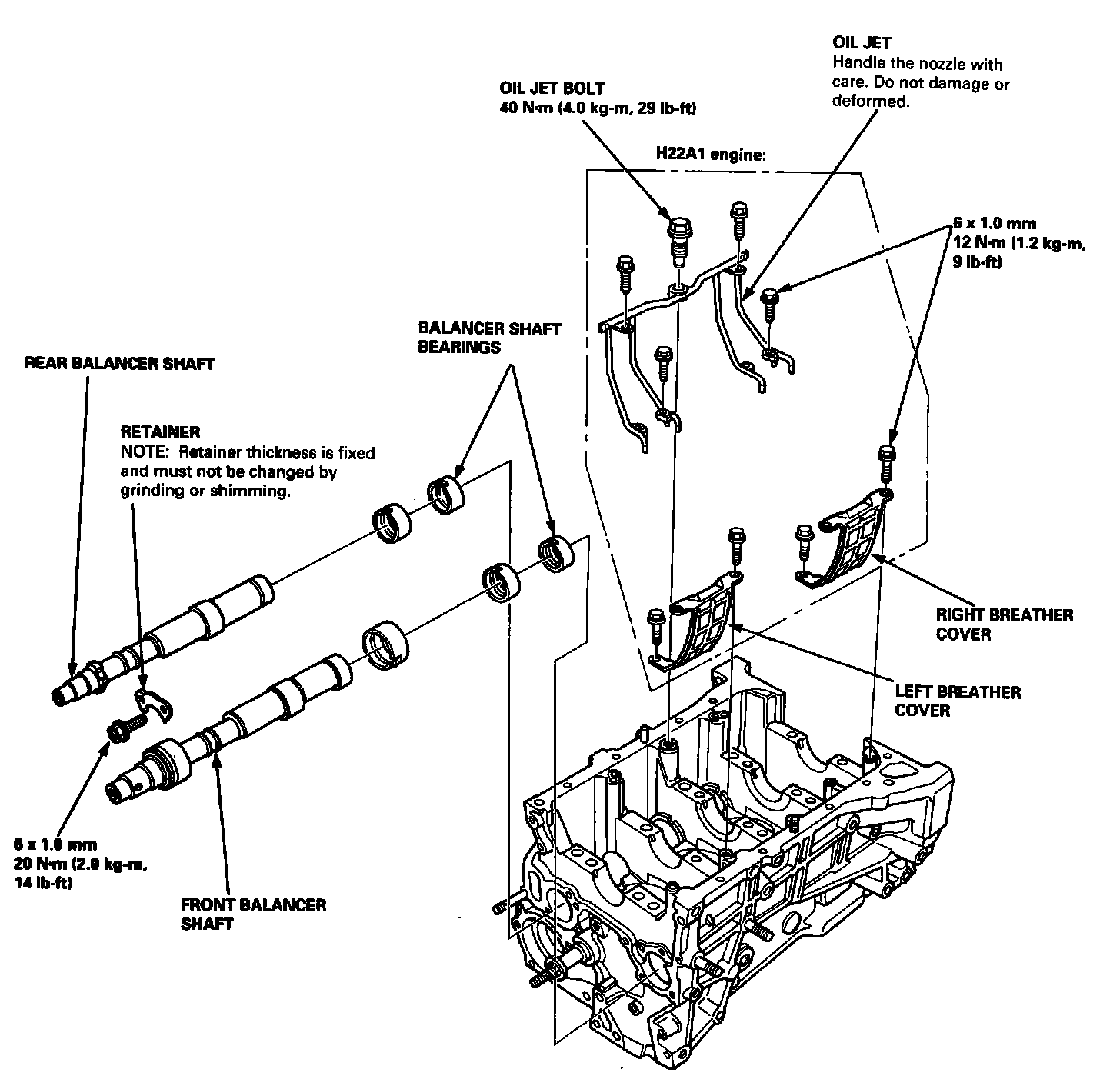

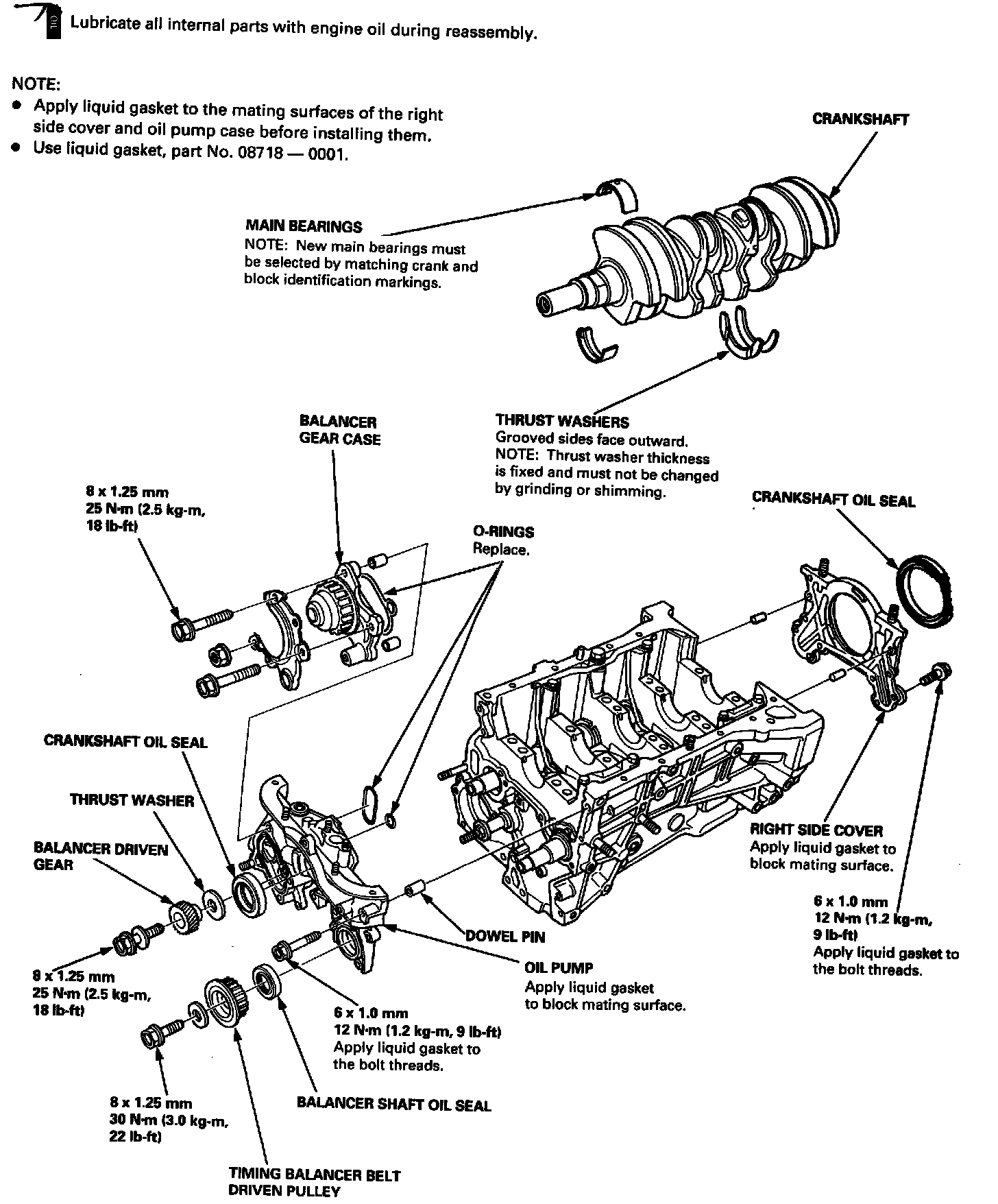

Lower Engine:

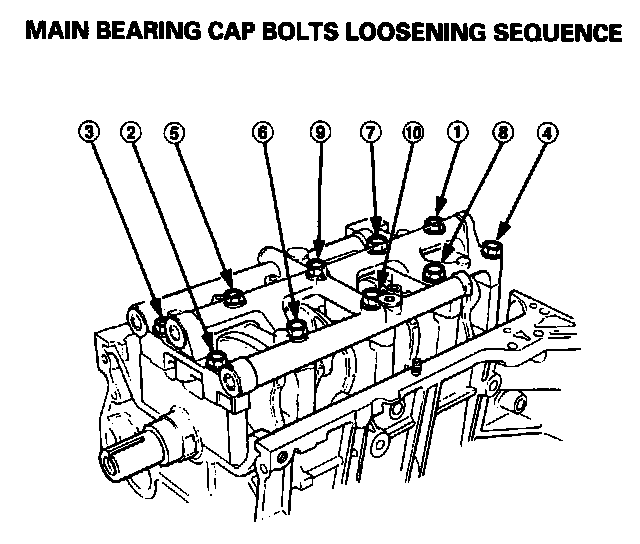

Main Bolt Loosening Sequence:

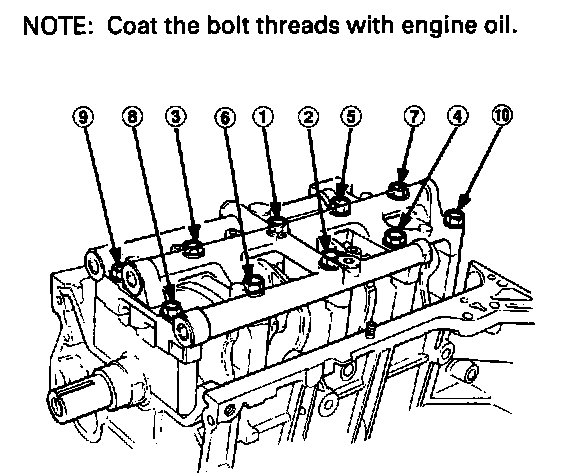

Main Bolt Torque Sequence:

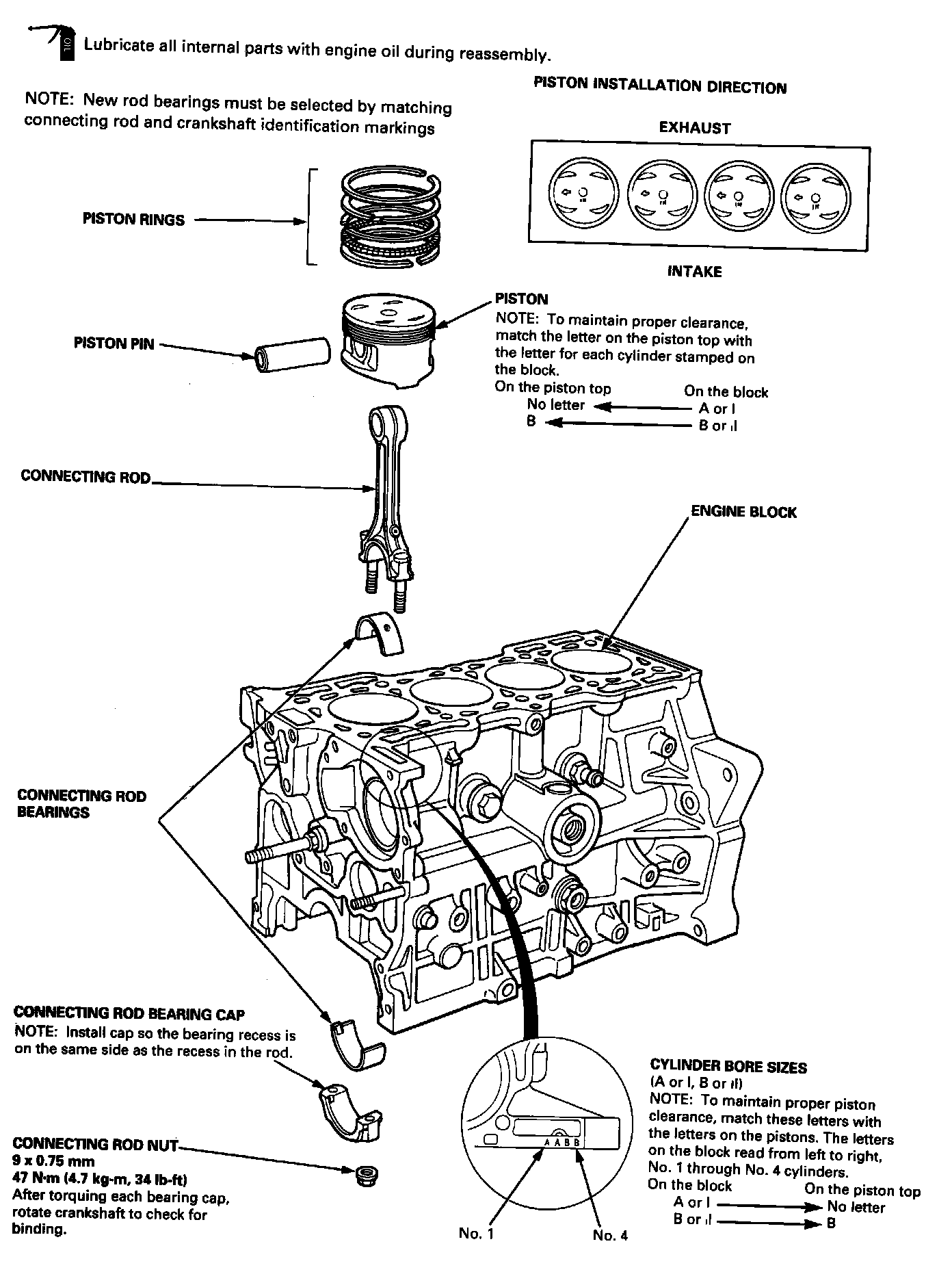

Connecting Rod:

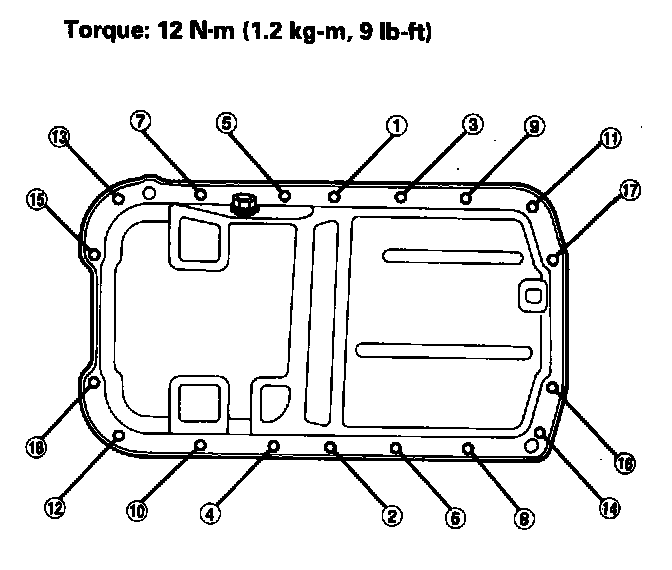

Oil Pan Bolt Torque Sequence:

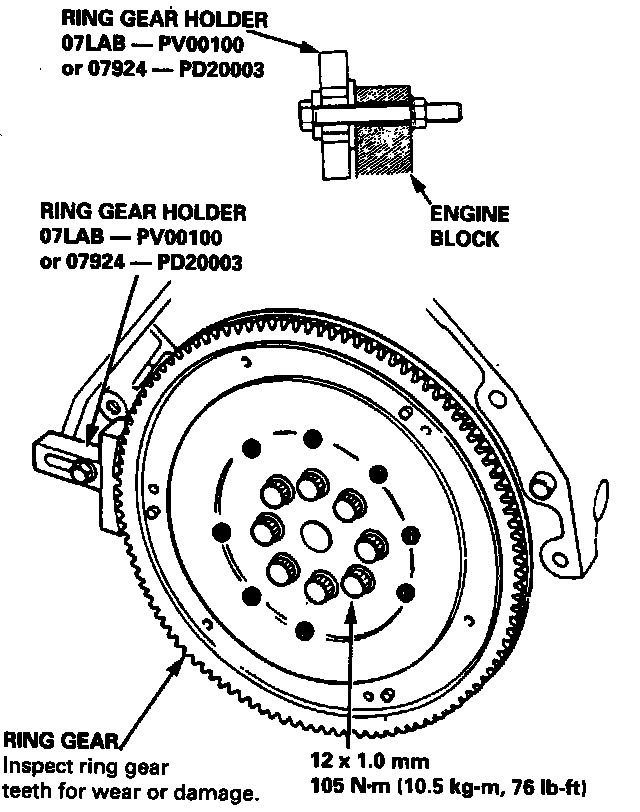

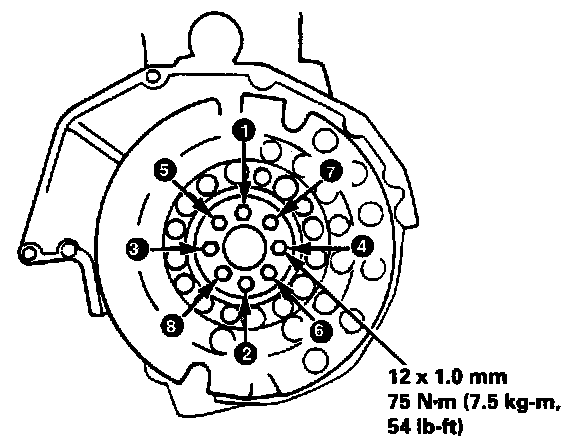

Flywheel (M/T) Torque/Sequence:

Drive Plate (A/T) Torque/Sequence:
