Code 6-1 Front Fail-Safe Relay Circuit

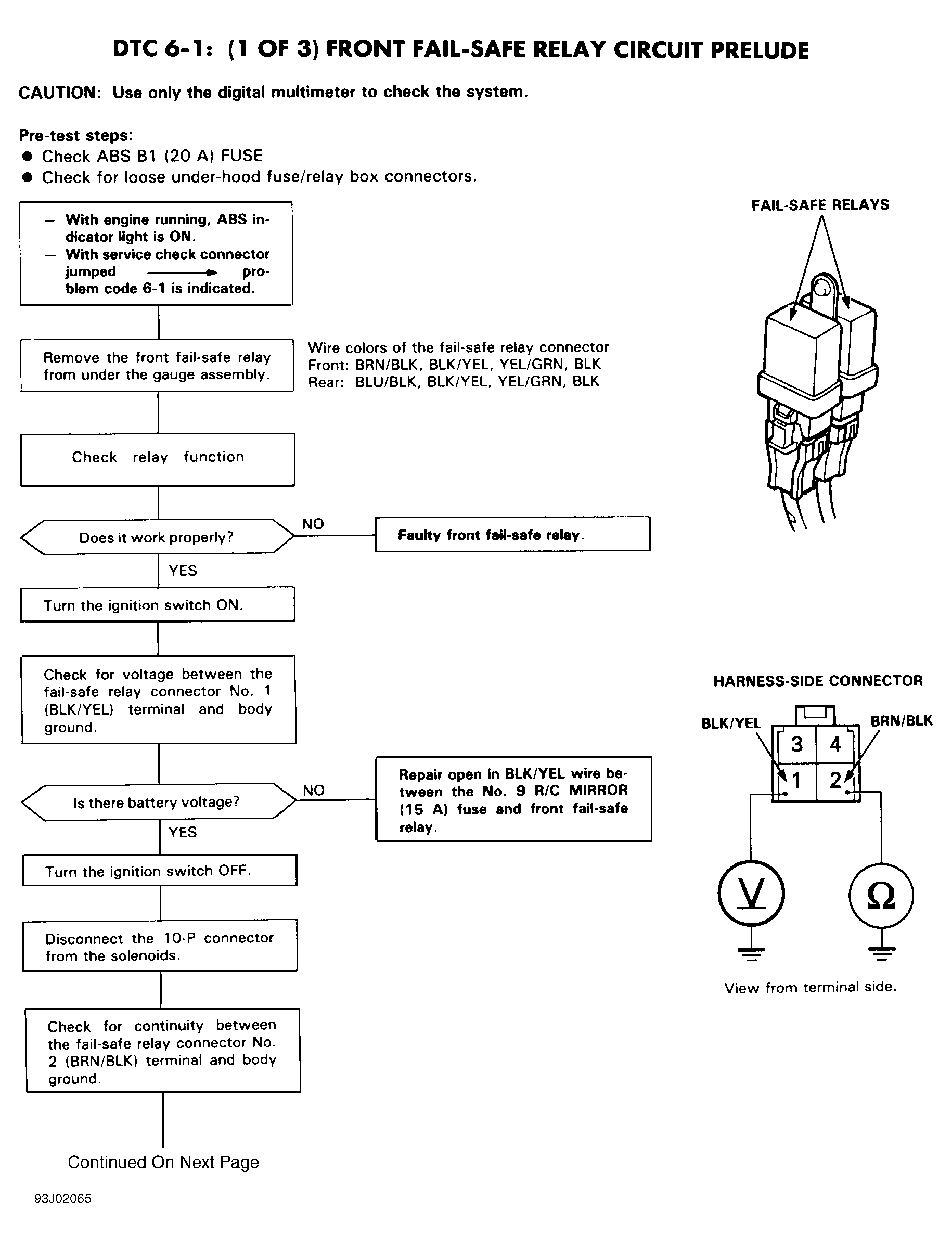

Fig 1: Code 6-1 Flow Chart (1 Of 3), Front Fail-safe Relay Circuit

Courtesy of AMERICAN HONDA MOTOR CO., INC.

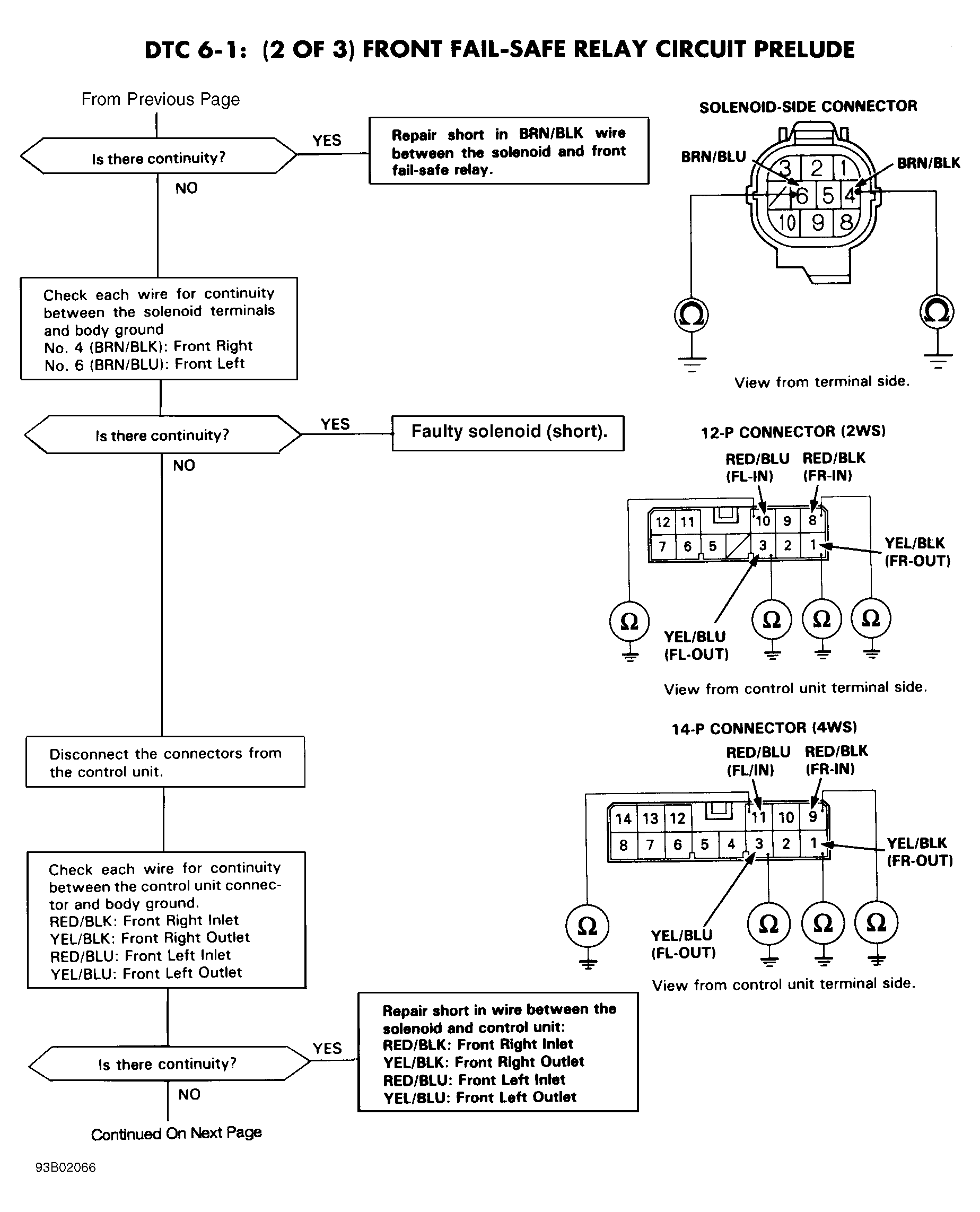

Fig 2: Code 6-1 Flow Chart (2 Of 3), Front Fail-safe Relay Circuit

Courtesy of AMERICAN HONDA MOTOR CO., INC.

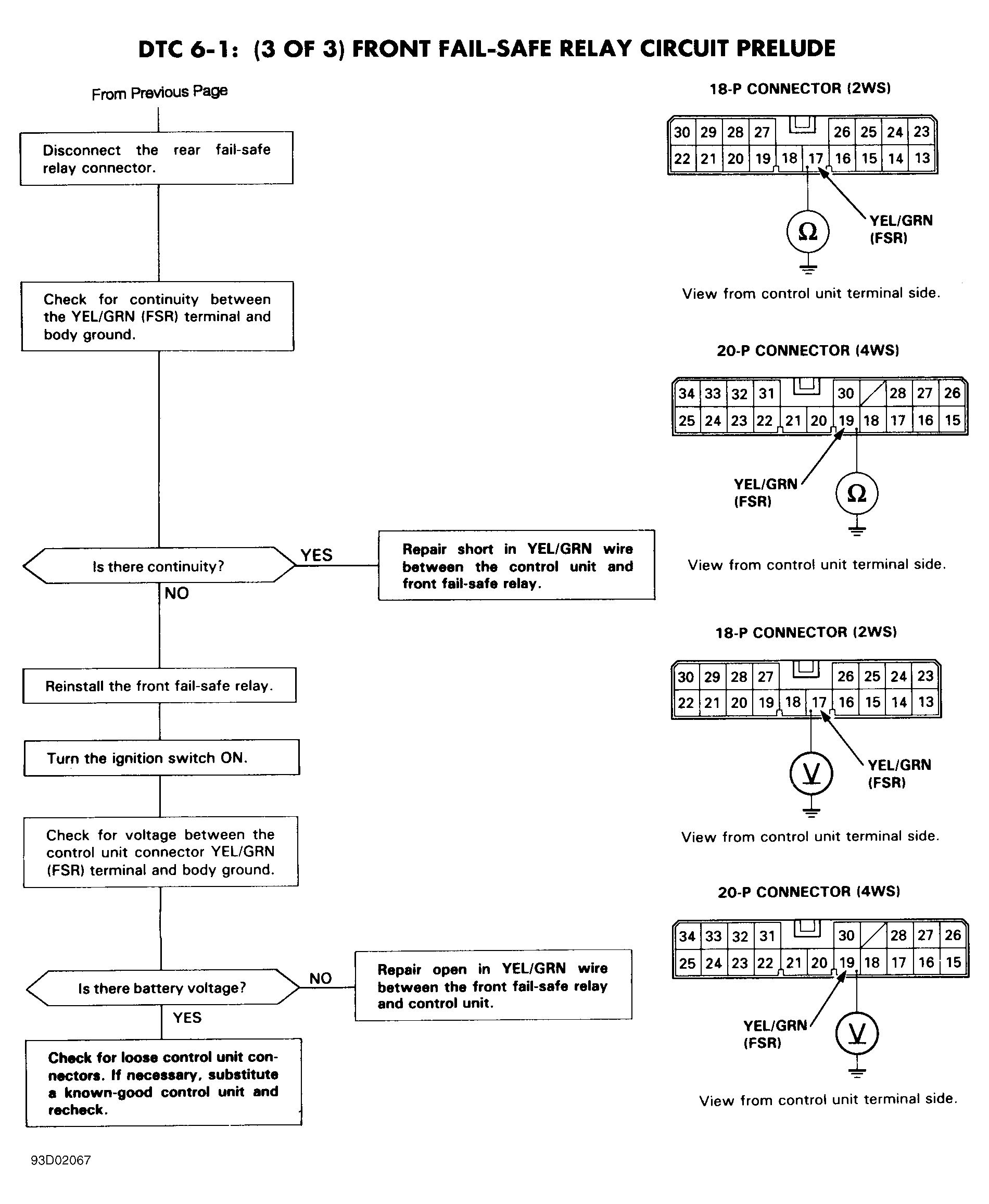

Fig 3: Code 6-1 Flow Chart (3 Of 3), Front Fail-safe Relay Circuit

Courtesy of AMERICAN HONDA MOTOR CO., INC.
