Hazard Warning Switch Test: Prelude

WARNING: This page is about a different car, the 1992 Honda Prelude, 1992 Honda Civic, and 1992 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.

Remove center console trim panel. Remove retaining screw from switch. Slowly rotate switch clockwise and remove from console. With hazard switch in specified position, use an ohmmeter to check continuity between switch terminals. See Fig 1 . If continuity is not as specified, replace hazard warning switch.

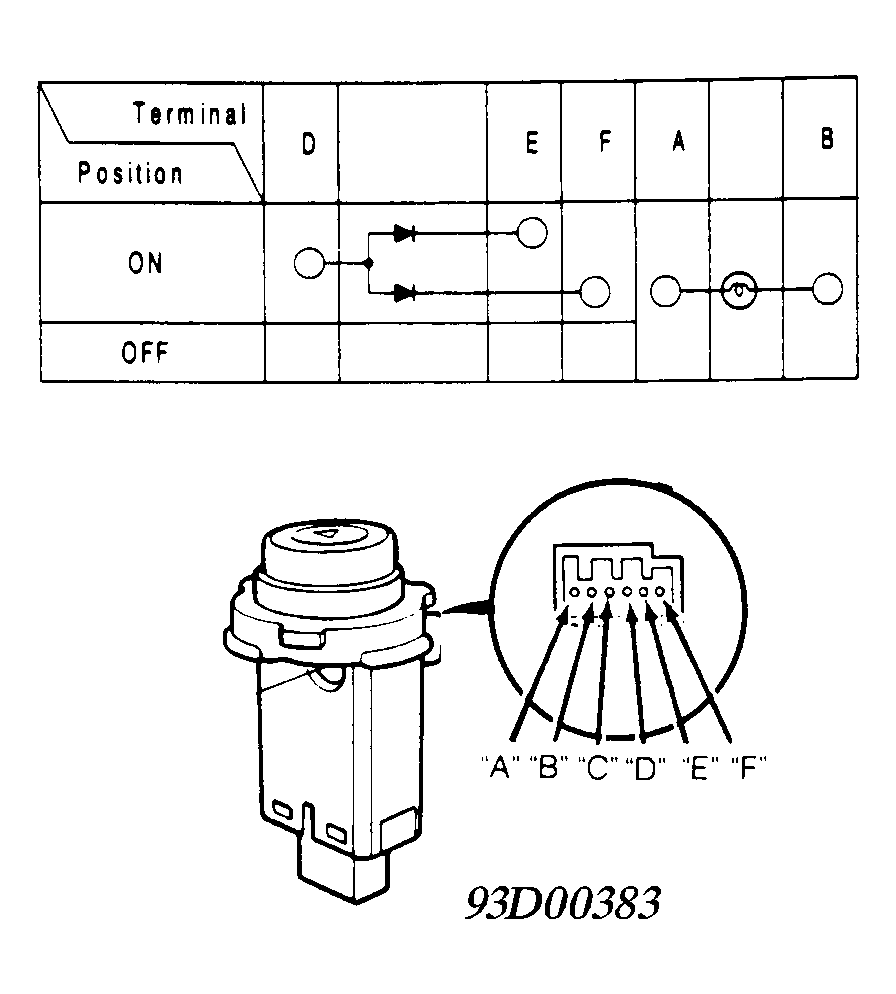

Fig 1: Testing Hazard Warning Switch (Prelude)
G93D00383Courtesy of AMERICAN HONDA MOTOR CO., INC.
