Mode (Airflow Direction) Control

WARNING: This page is about a different car, the 1994 Honda Prelude. However, it is still accessible from the selected car via links, so may be relevant.

The mode control door directs air to the selected outlets (vent, floor, defrost, etc.). This door is controlled by an electric mode control motor.

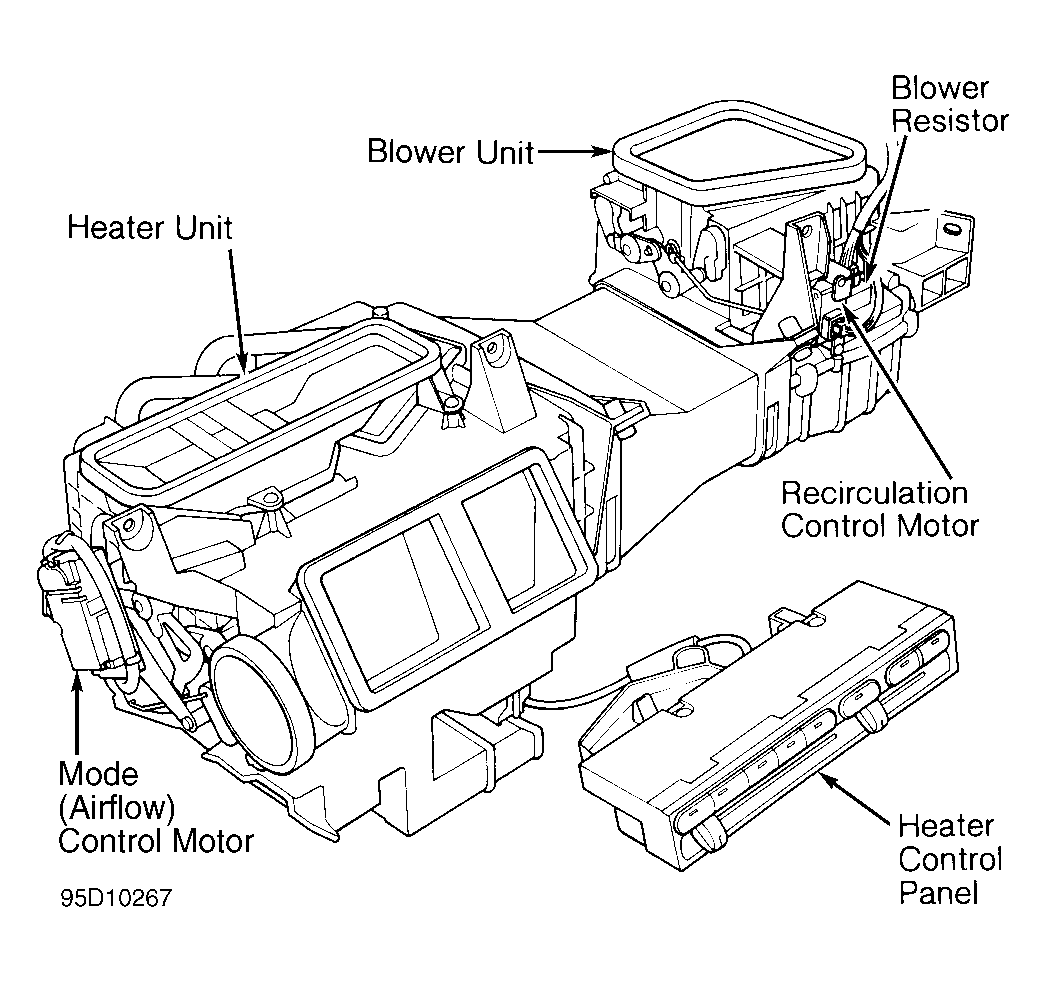

Fig 1: Identifying Heater System Components
G95D10267Courtesy of AMERICAN HONDA MOTOR CO., INC.
