Code 12 - EGR System

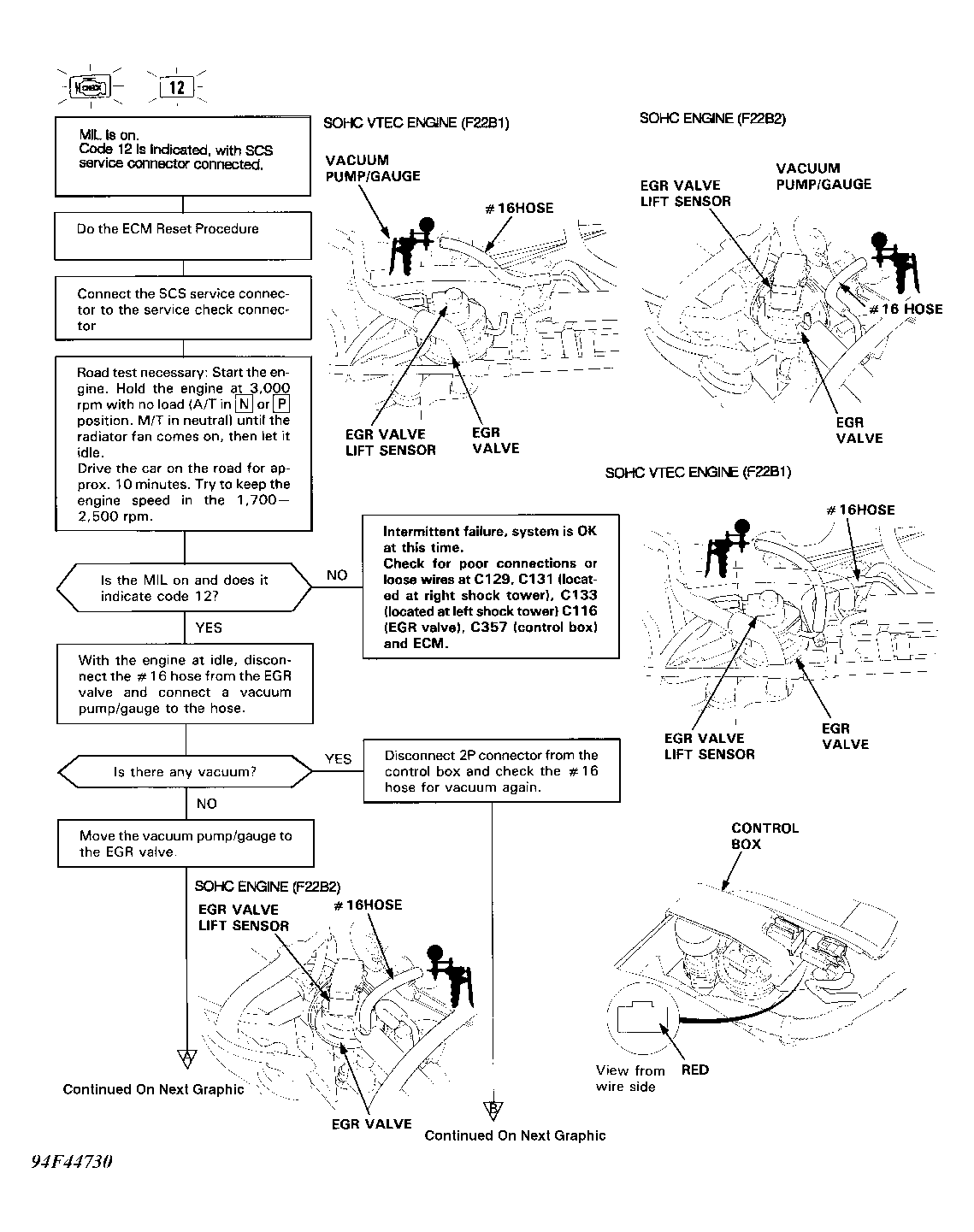

Fig 1: Code 12 Flow Chart (1 of 5) EGR System
G94F44730

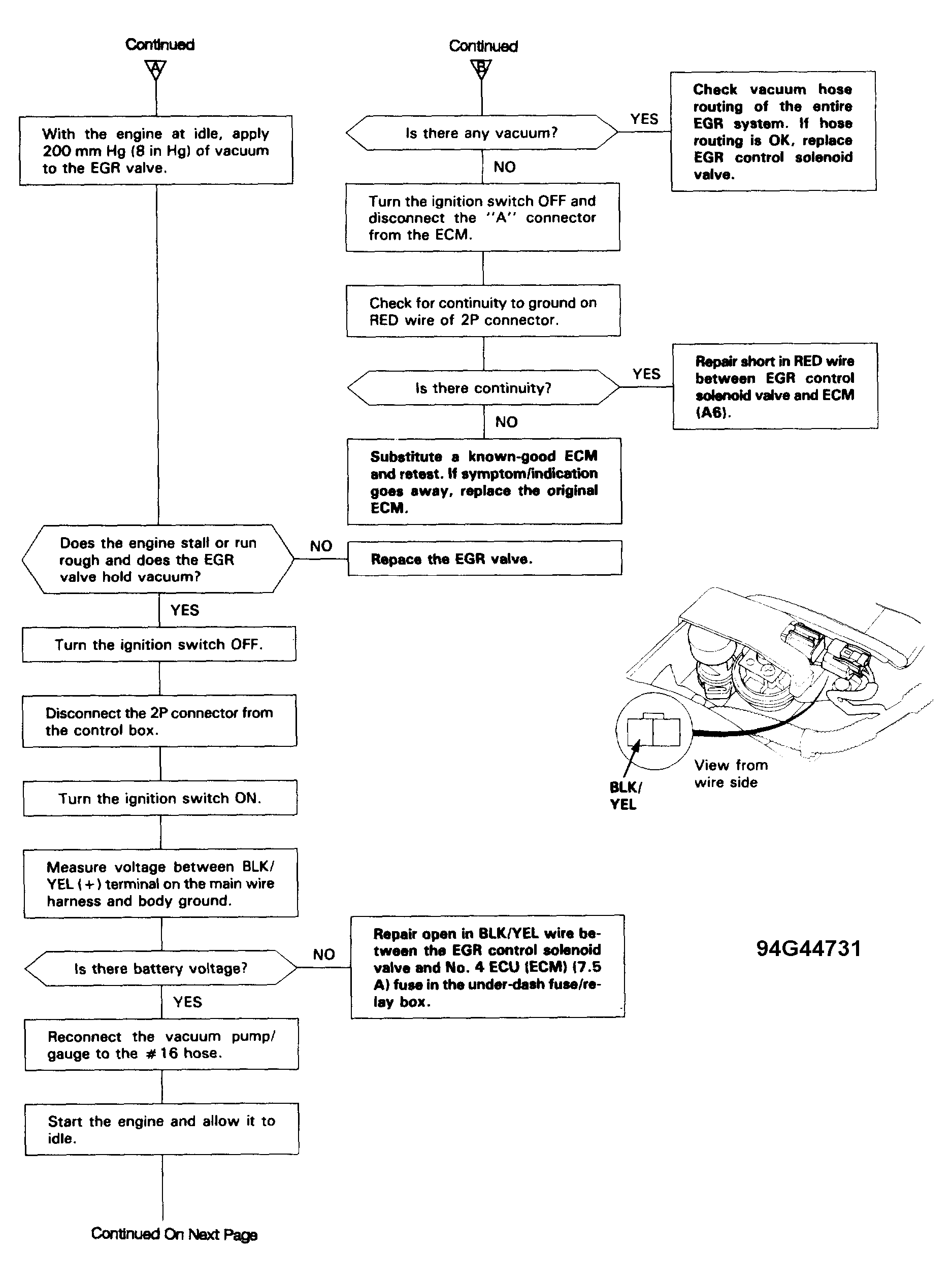

Fig 2: Code 12 Flow Chart (2 of 5) EGR System
G94G44731

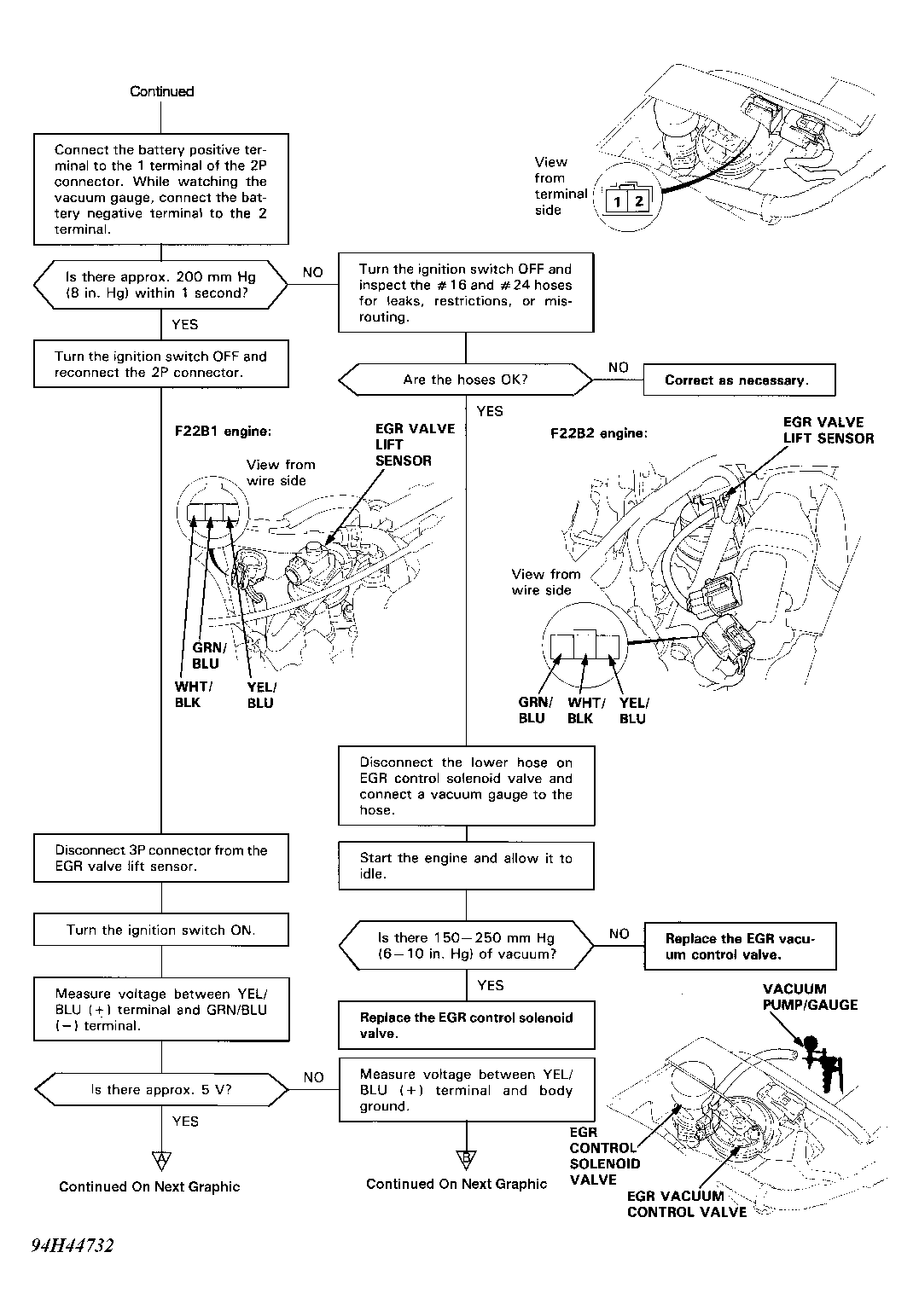

Fig 3: Code 12 Flow Chart (3 of 5) EGR System
G94H44732

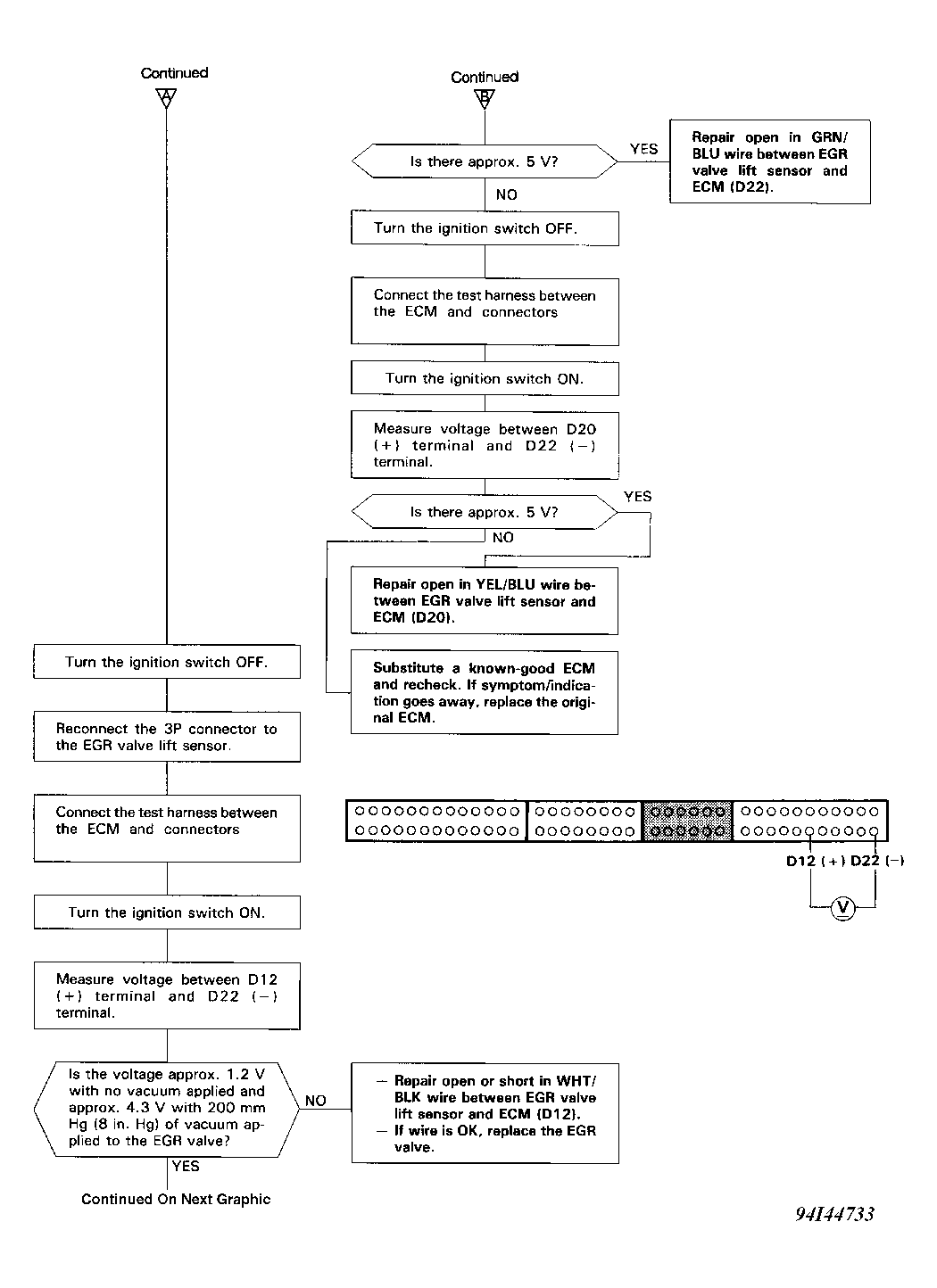

Fig 4: Code 12 Flow Chart (4 of 5) EGR System
G94I44733
Fig 5: Code 12 Flow Chart (5 of 5) EGR System
G94J44734
