Lighting System

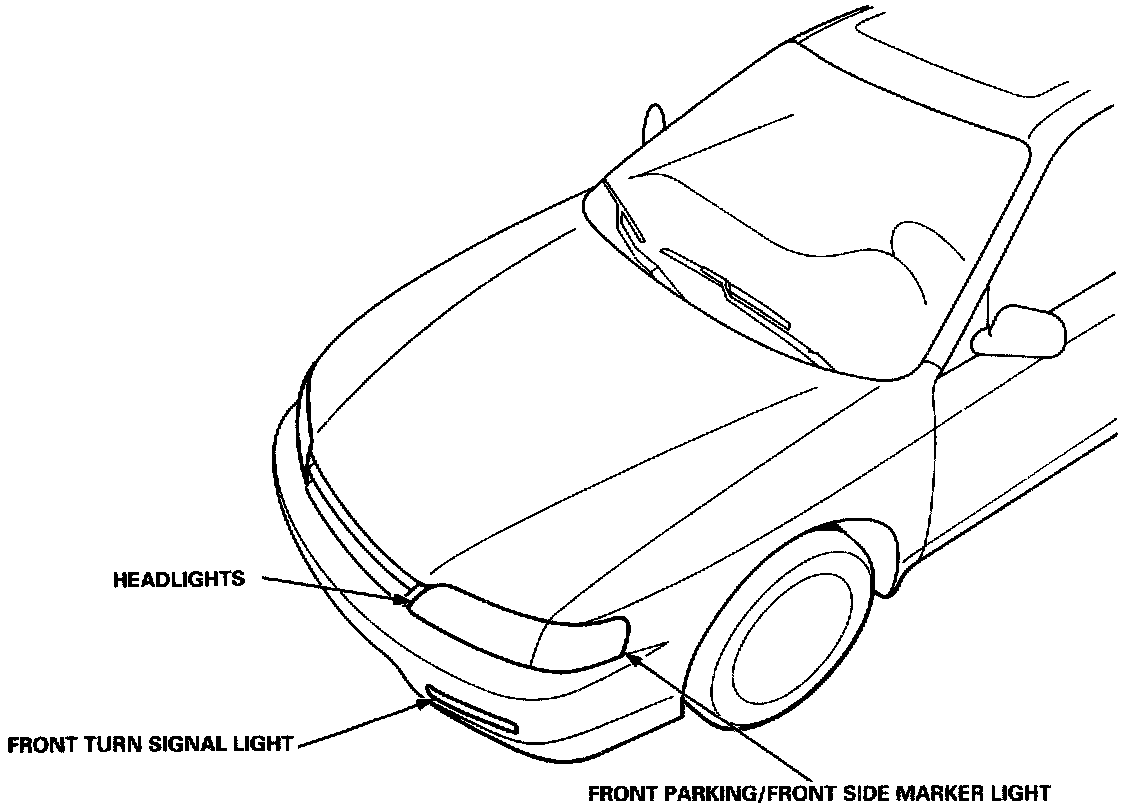

Lighting System (Component Location Index):

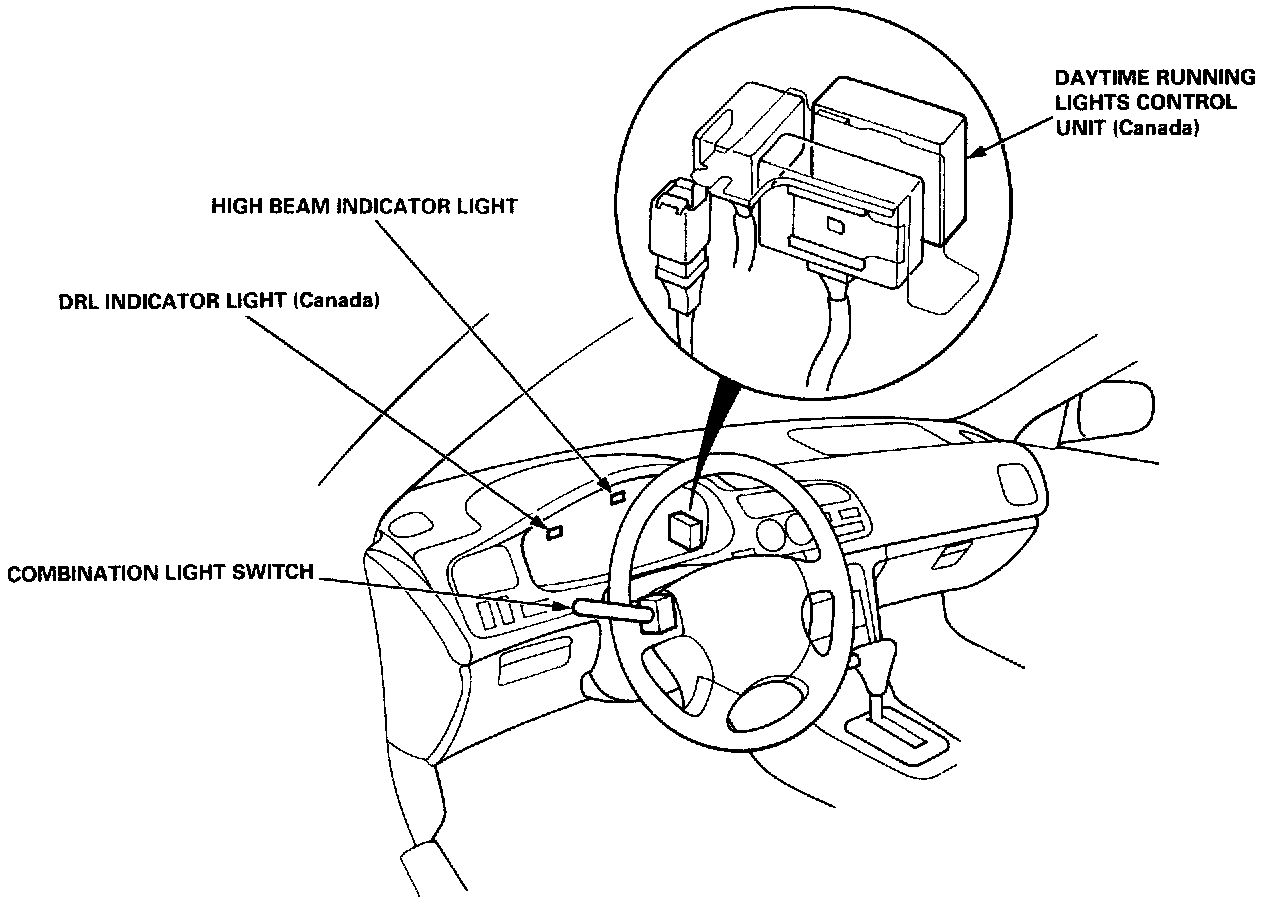

Lighting System (Component Location Index):

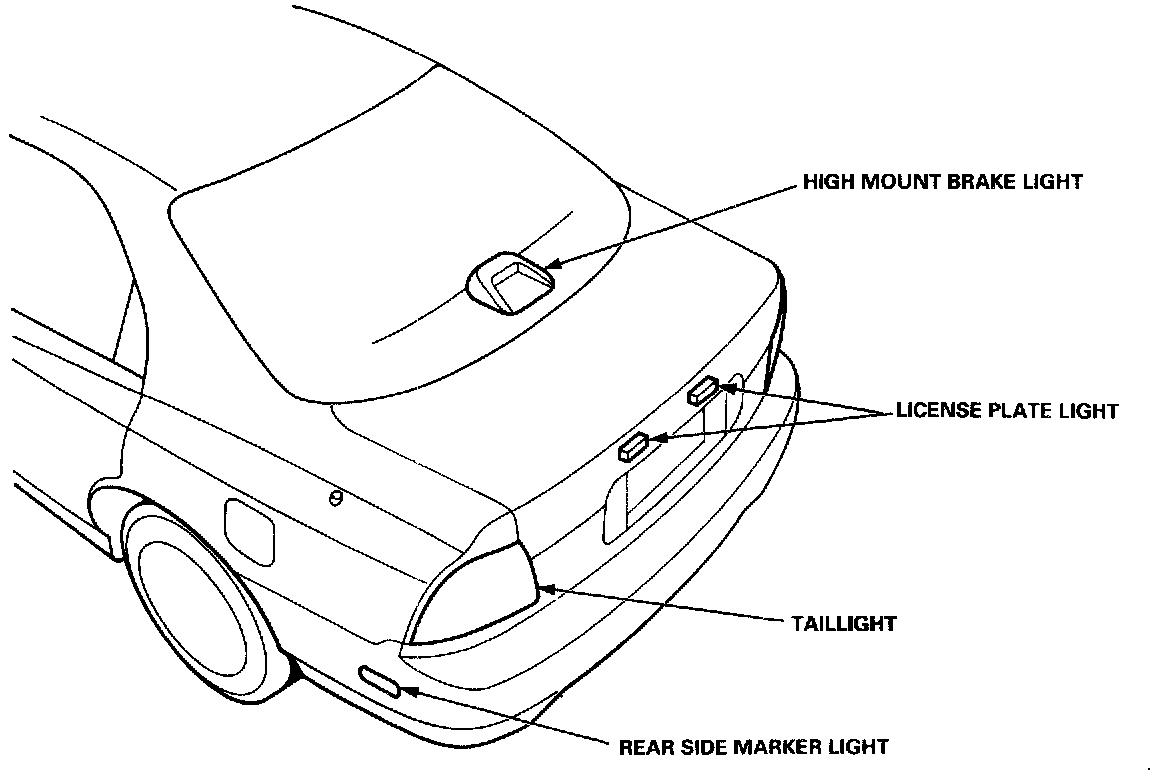

Lighting System (Component Location Index):

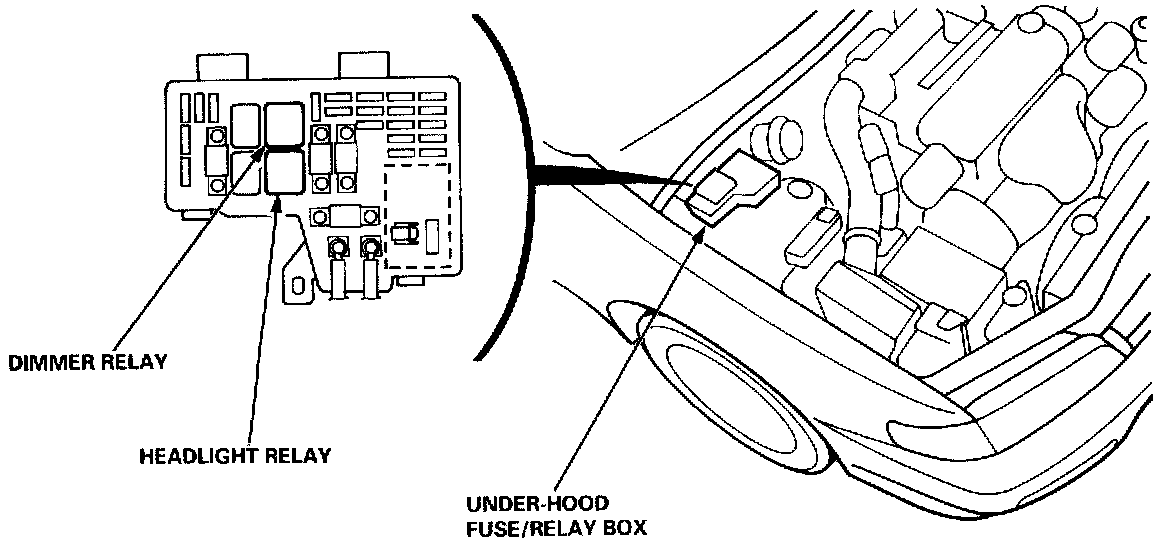

Lighting System (Component Location Index):
