Overhaul

HEATER CONTROL PANEL OVERHAUL

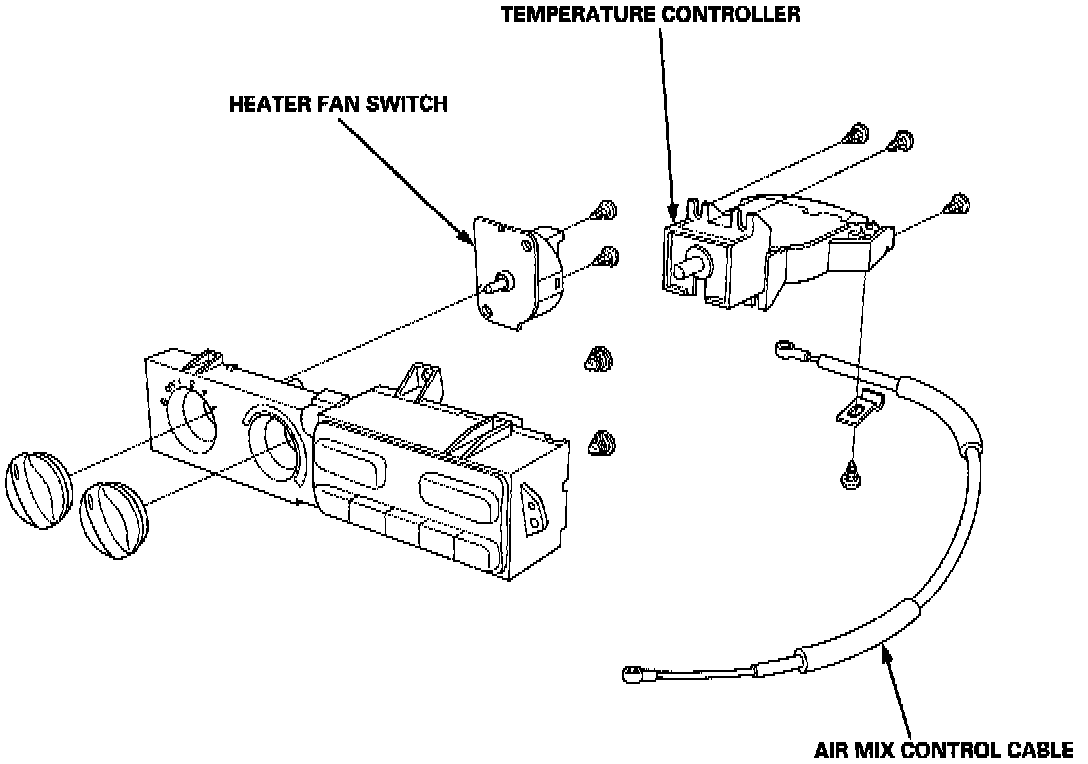

Refer to illustration for component replacement.

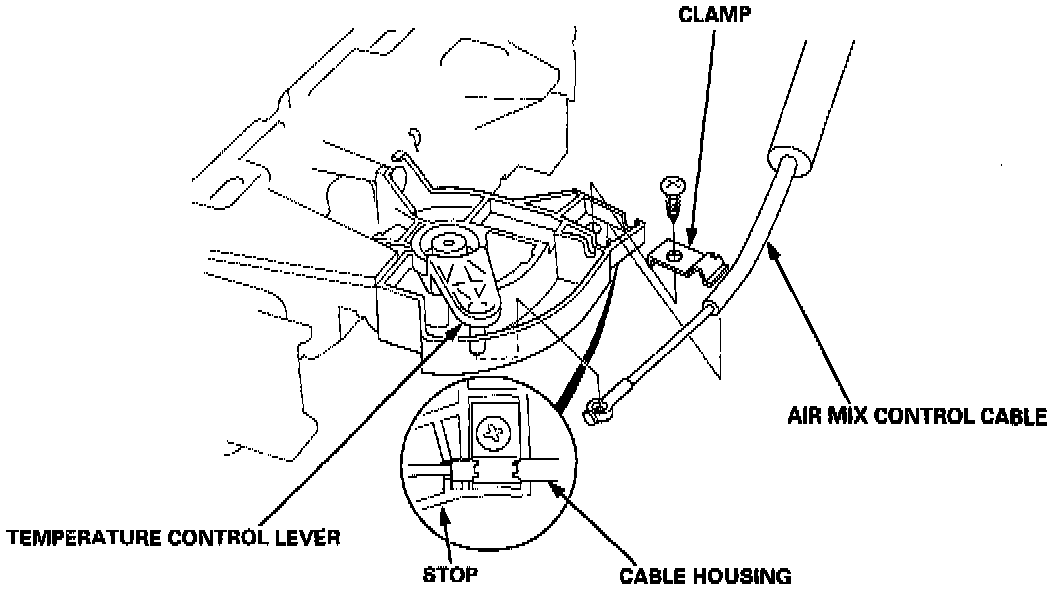

AIR MIX CONTROL CABLE REPLACEMENT
1. Remove the self-tapping screw and clamp.
2. Lift the end of the temperature control lever up, then remove the air mix control cable.
3. Install in the reverse order of removal. Make note of the following items:
- Be sure the end of the cable housing is against the stop before tightening the cable clamp.
- After assembly, check that the temperature control lever slides smoothly through the full stroke from right to left.
