Recirculation Control Switch Test
RECIRCULATION CONTROL SWITCH TEST

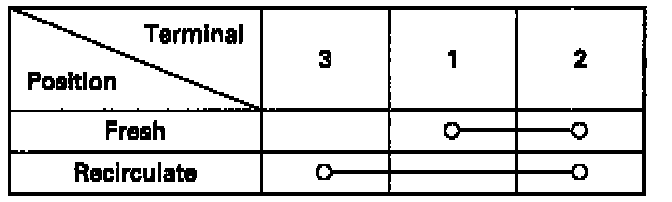

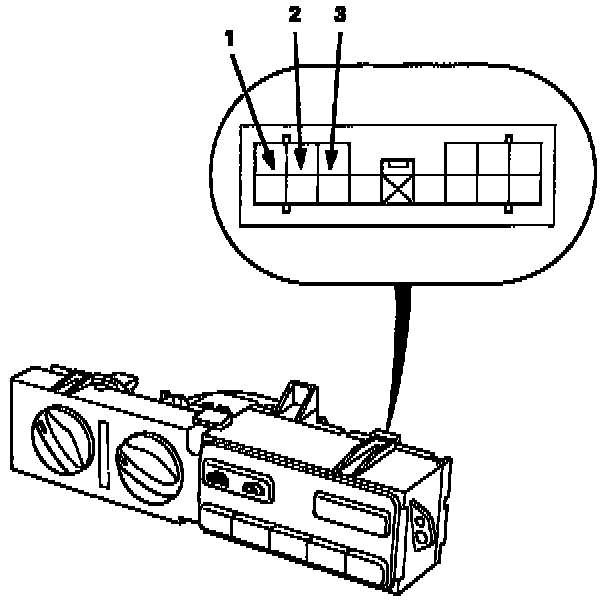

Refer to illustration for terminal identification. Check for continuity between the terminals according to the table.
RECIRCULATION CONTROL SWITCH TEST
Refer to illustration for terminal identification. Check for continuity between the terminals according to the table.
