Vehicle Speed Sensor: Service and Repair

VSS Replacement

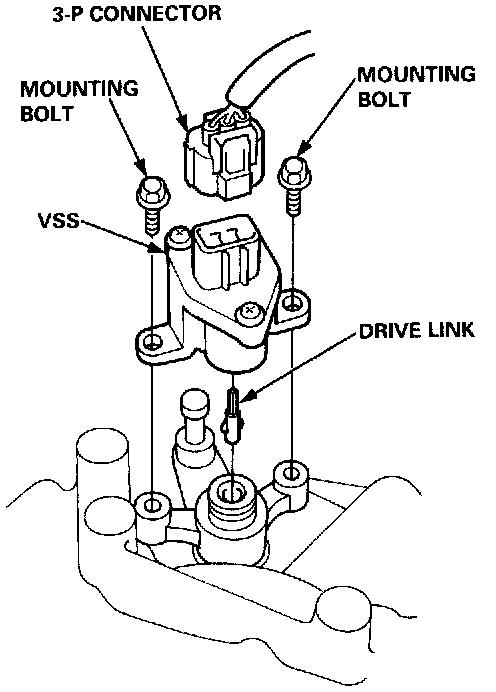

Vehicle Speed Sensor (VSS) Replacement:

1. Disconnect the 3-P connector from the vehicle speed sensor (VSS).
2. Remove the mounting bolts, then remove the VSS.

NOTE: The VSS drive link is a very small part, be careful not to lose it.

3. Install in the reverse order of removal.
