Electronic Brake Control Module: Service and Repair

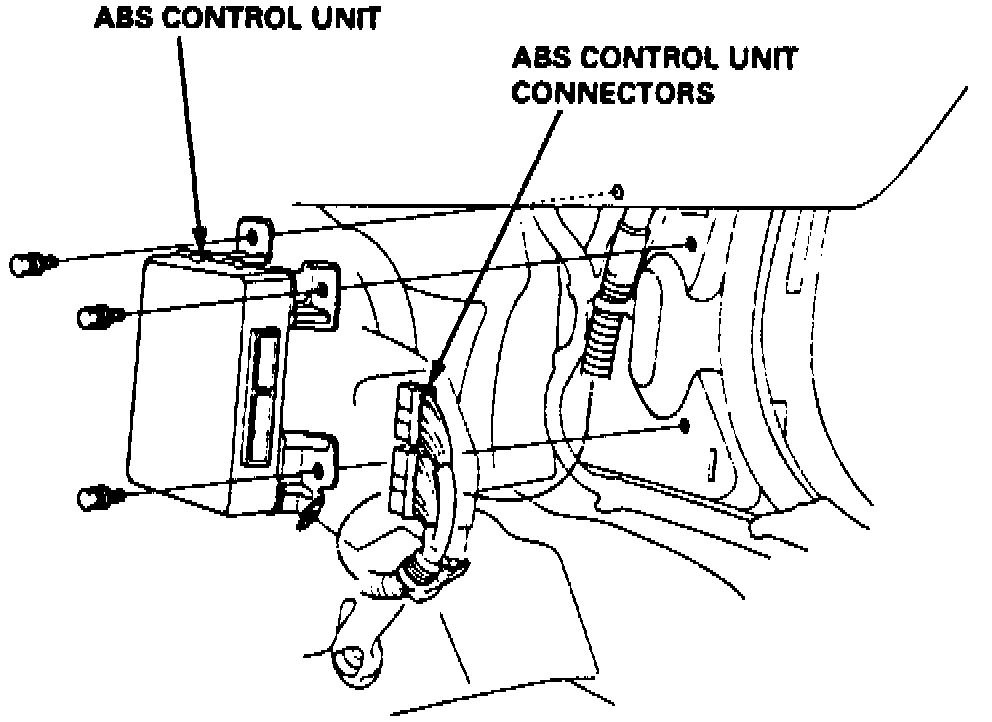

Fig. 89 Control Unit Replacement:





Refer to Fig. 89 when replacing the control unit.

1. Remove passenger side kick panel, then disconnect ABS control unit connectors.
2. Remove control unit mounting bolts, then the control unit.
3. Reverse procedure to install.
