Radiator Cooling Fan Control Module: Testing and Inspection

RADIATOR FAN CONTROL MODULE INPUT TESTS

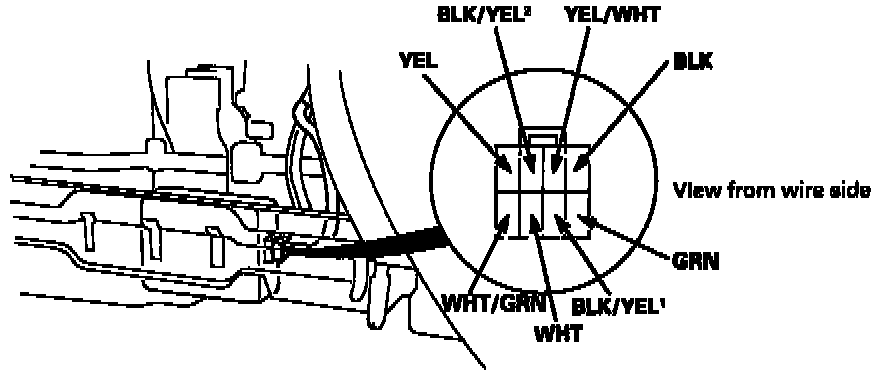

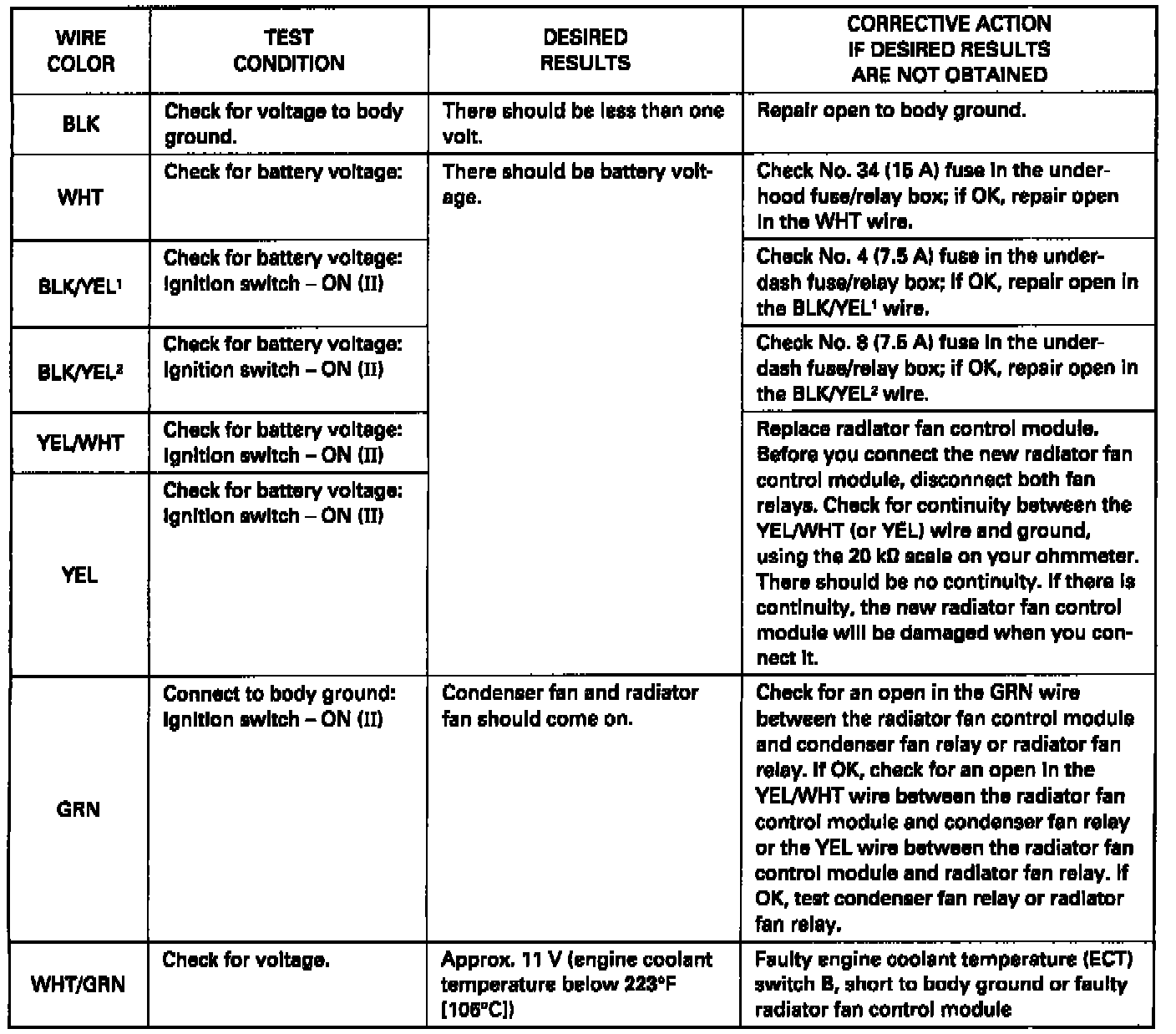

Perform the tests described in the table with the radiator fan control module connected, the ignition switch ON, and the A/C switch OFF. If you find the cause of a problem, correct it before you continue. Refer to image for terminal identification.
