Torque Specifications

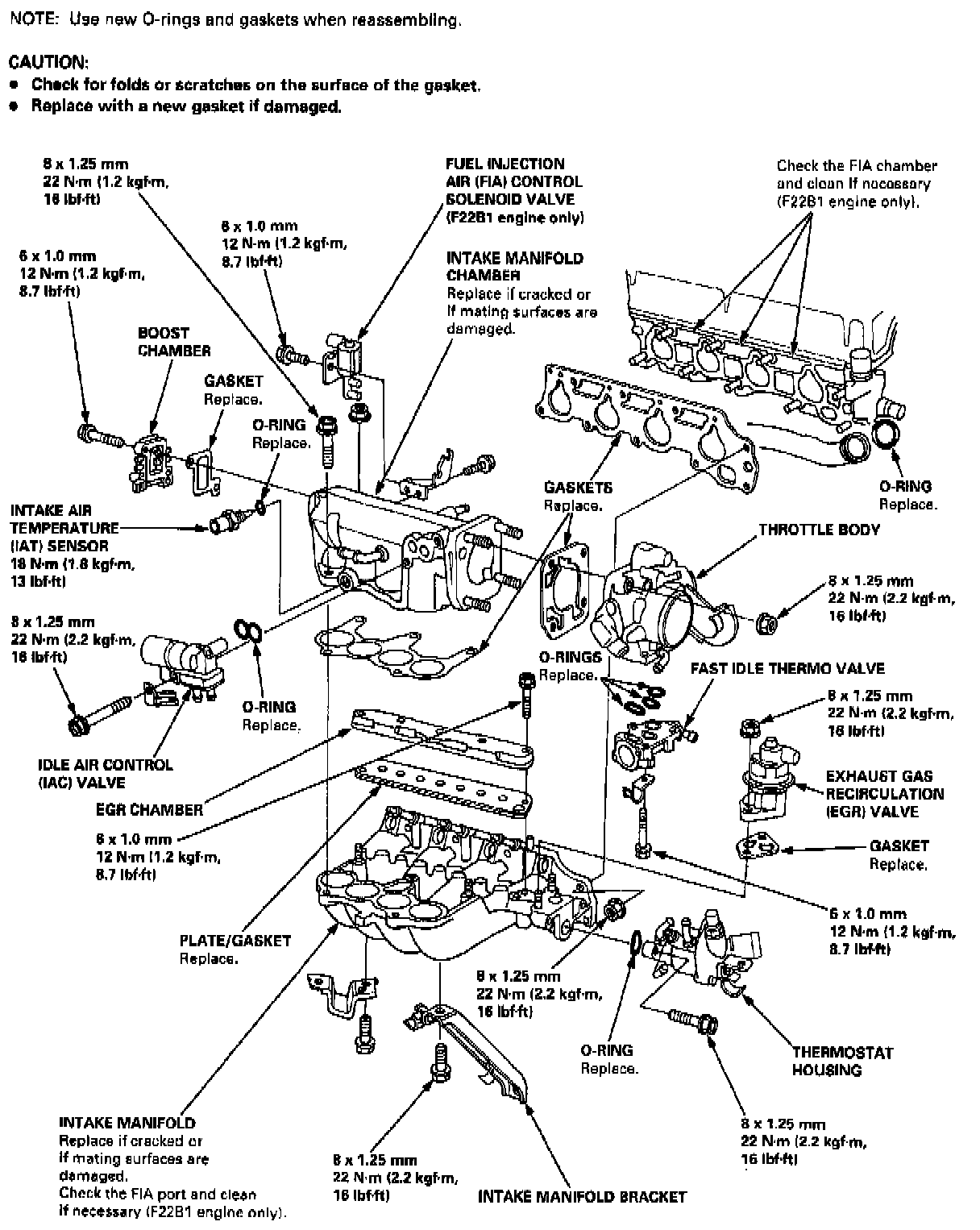

Intake:

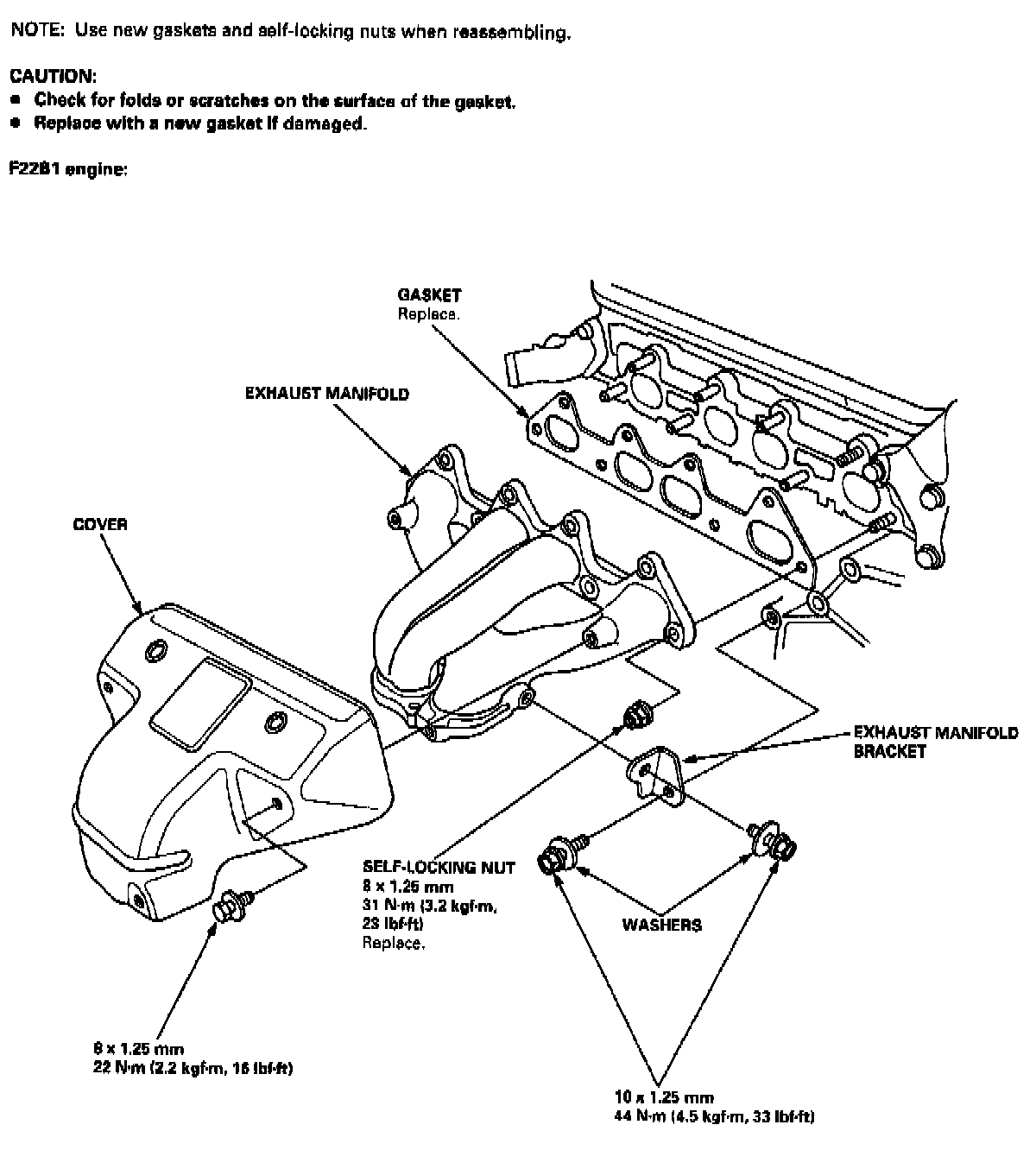

Exhaust Manifold:

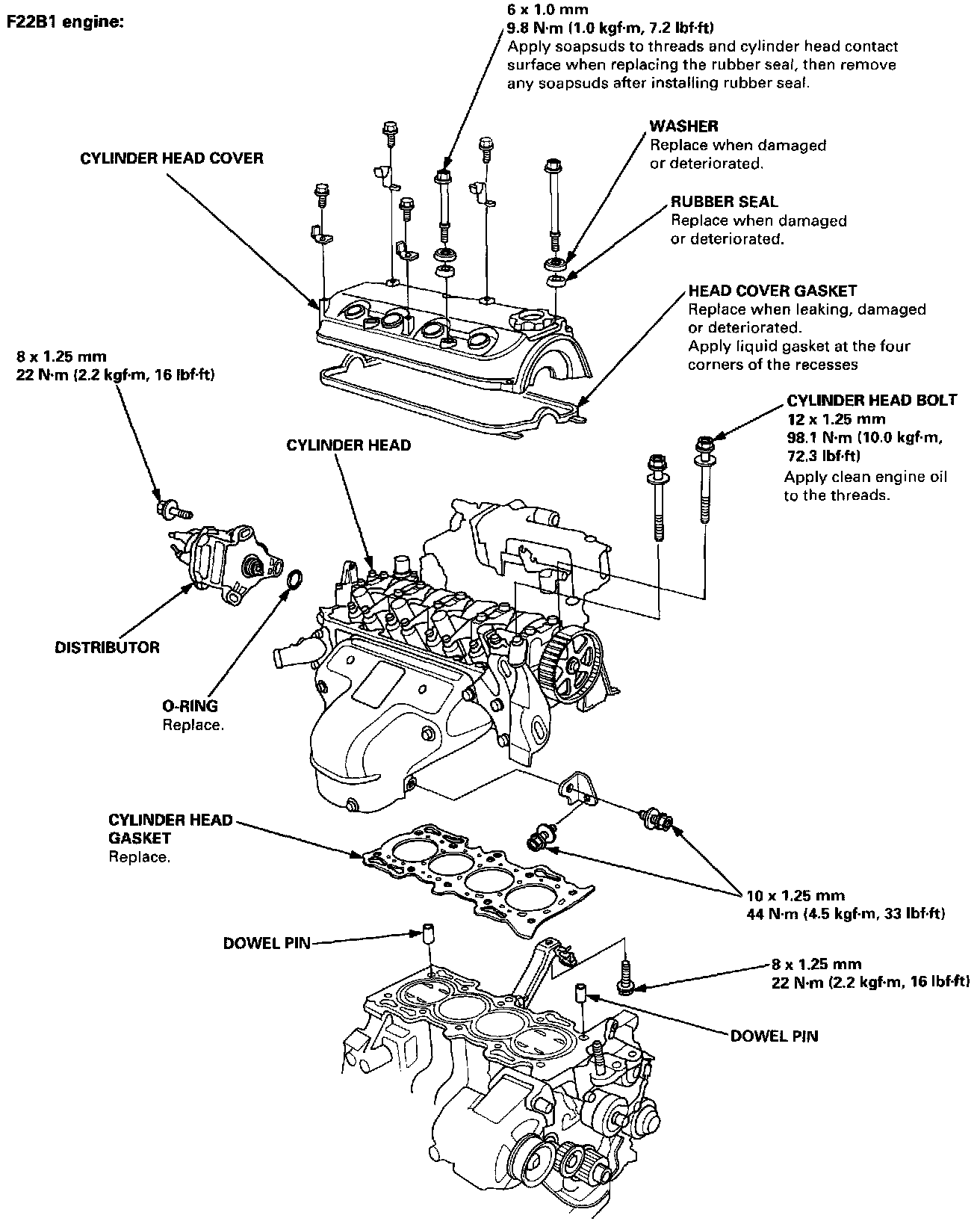

Cylinder Head:

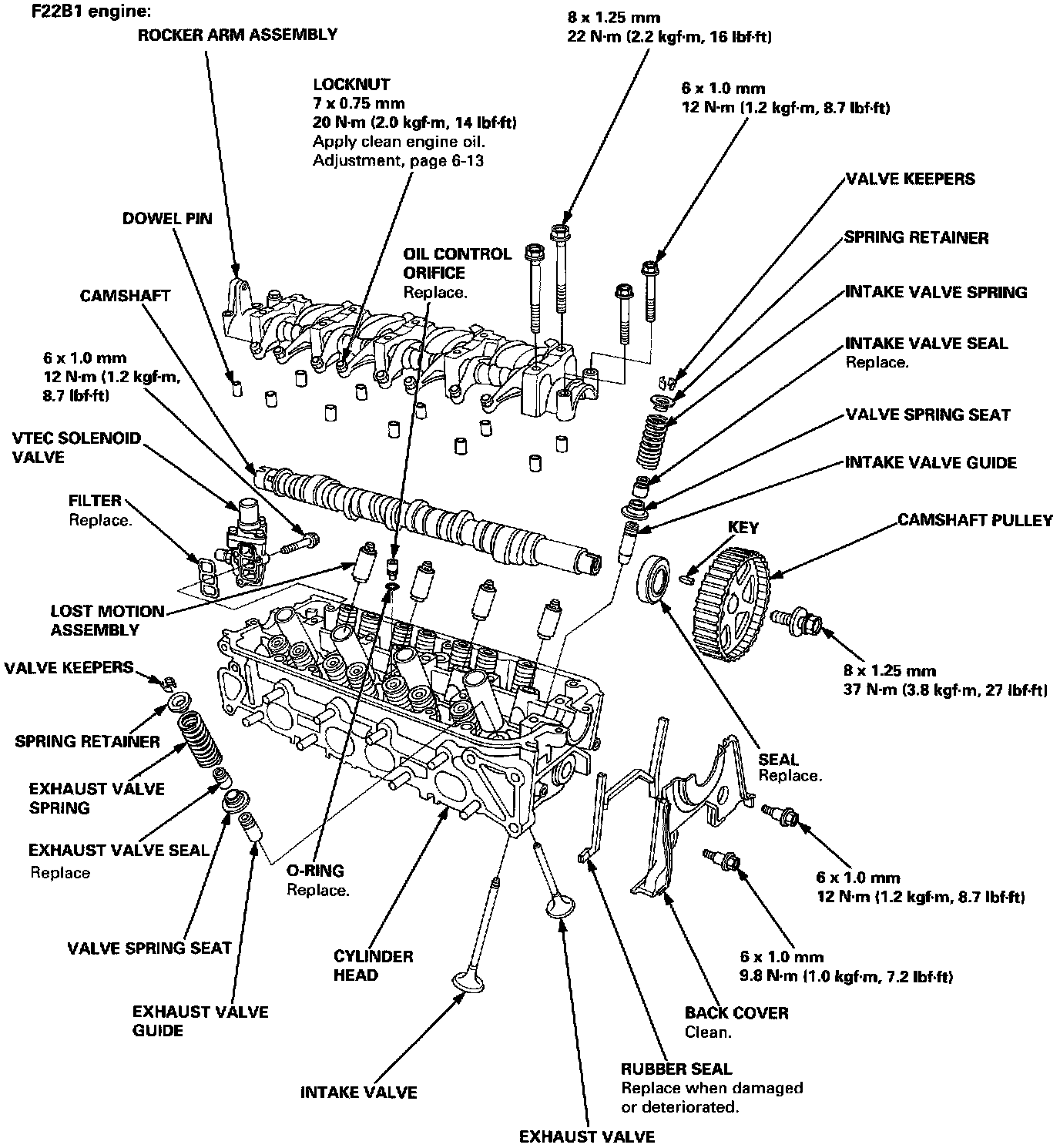

Camshaft And Rocker Arm:

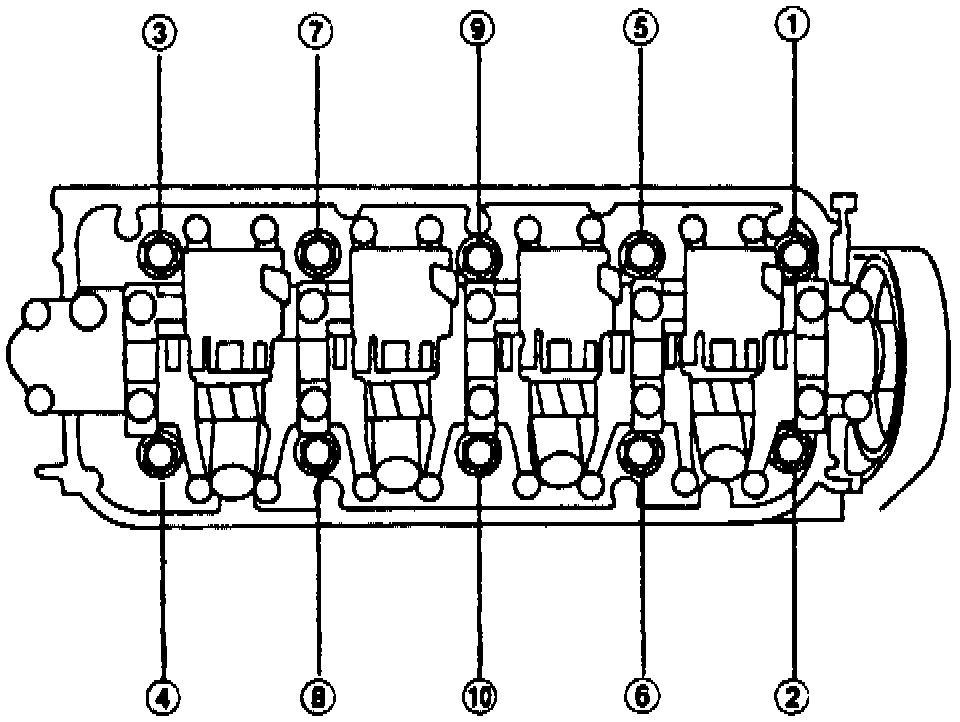

Fig. 11 Cylinder Head Bolt Loosening Sequence:

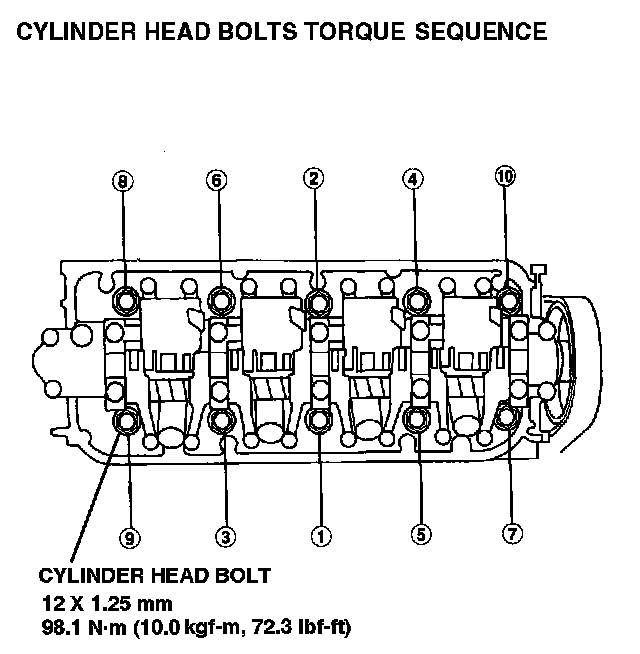

Cylinder Head Torque Sequence:

Torque cylinder head attaching bolts in three steps; first step to 29 ft. lbs., second step to 51 ft. lbs., third step to 72 ft. lbs.

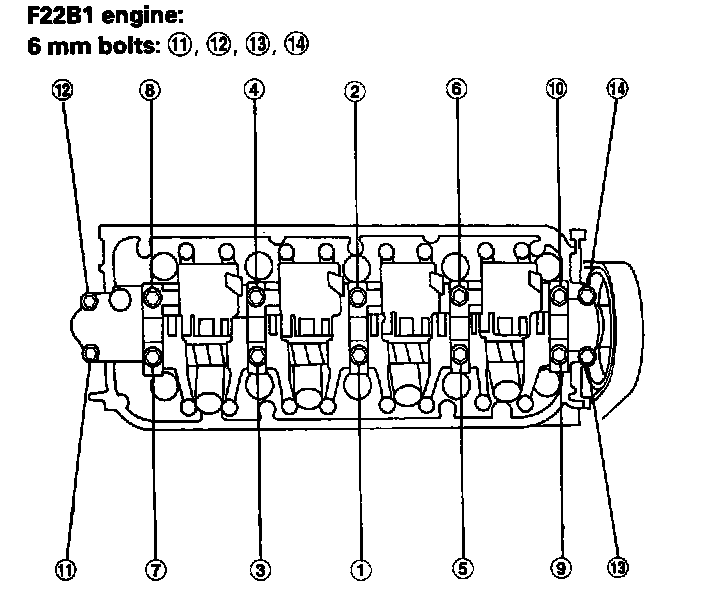

Cam Holder Torque Sequence:

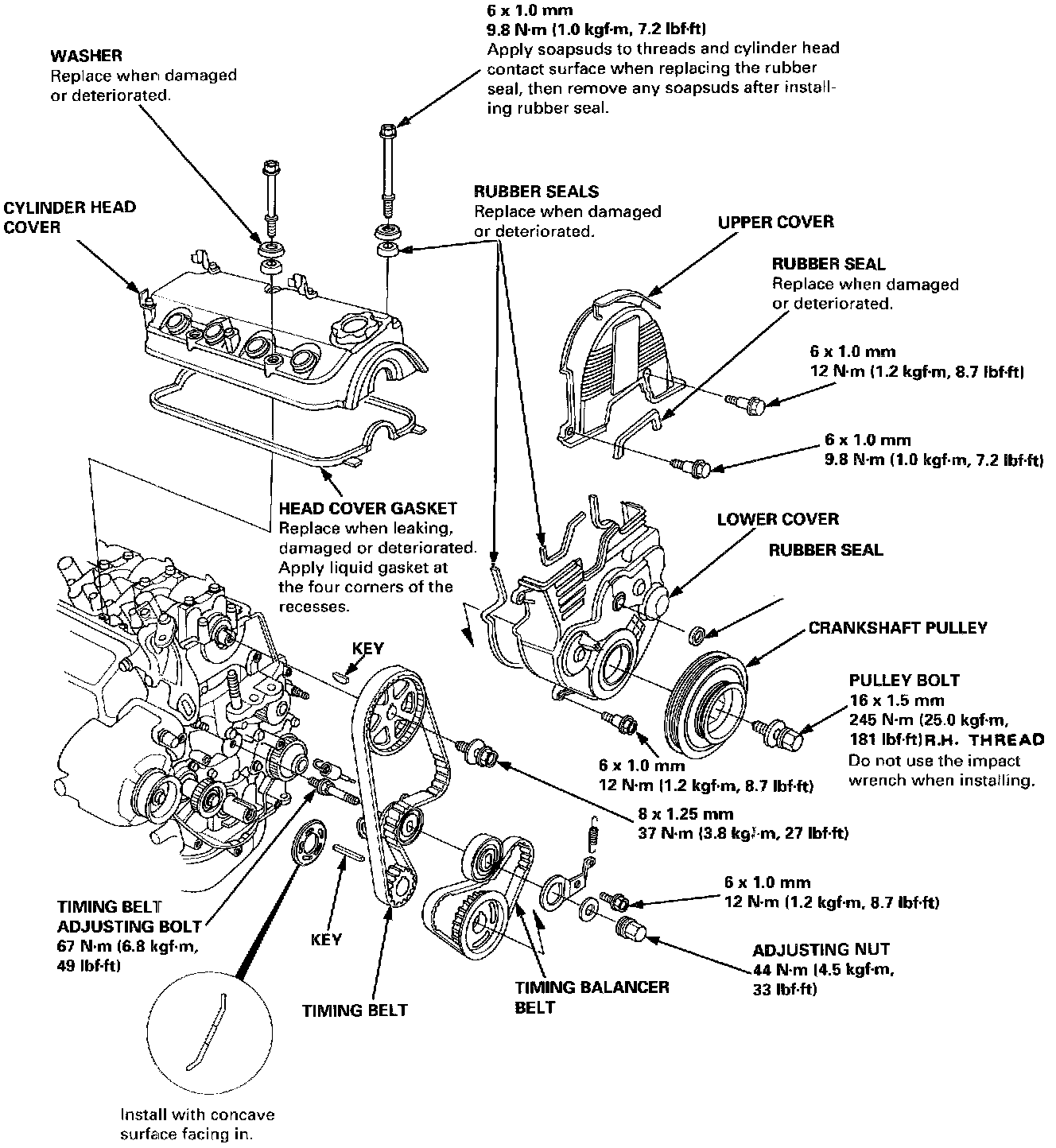

Timing Components:

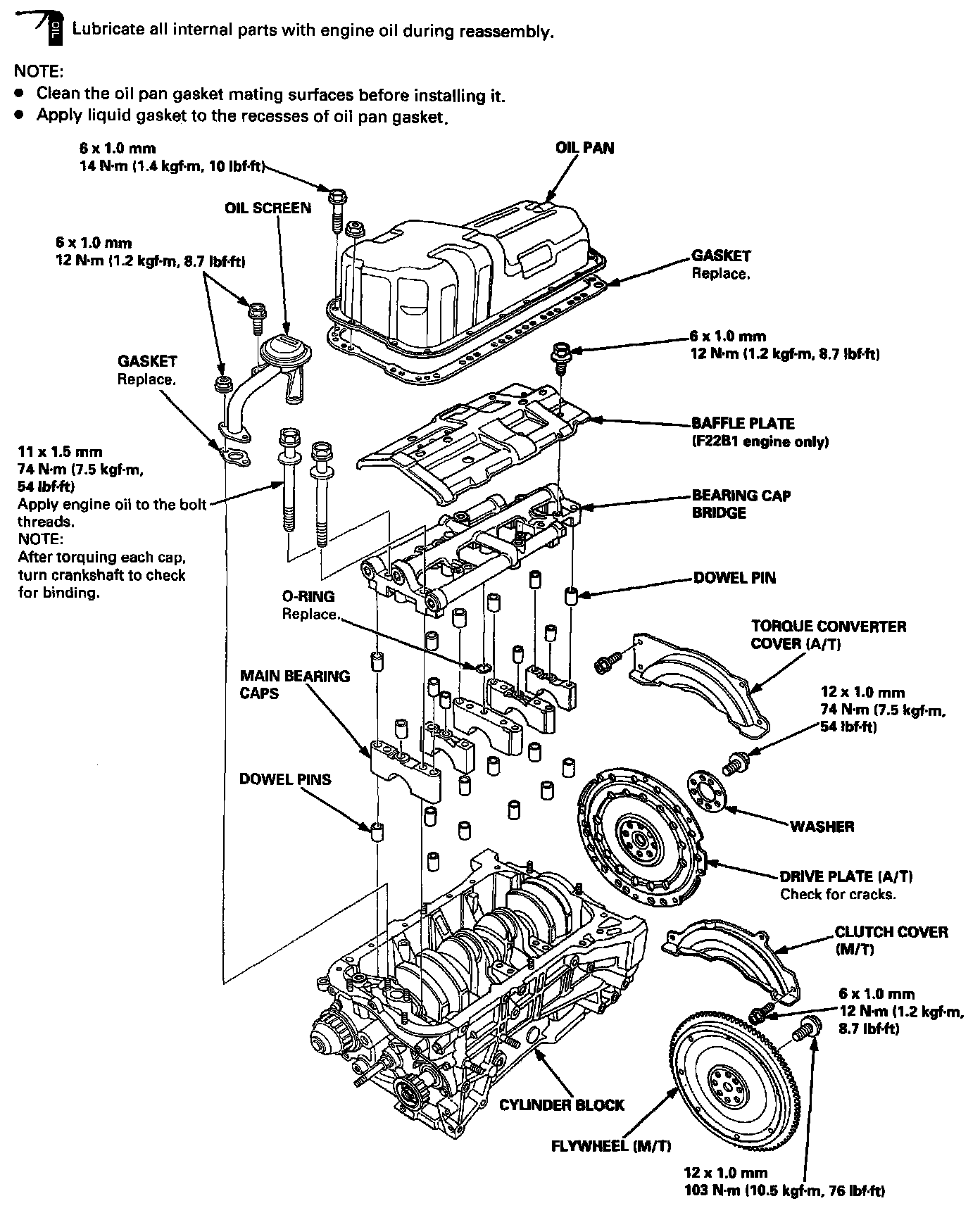

Lower Block:

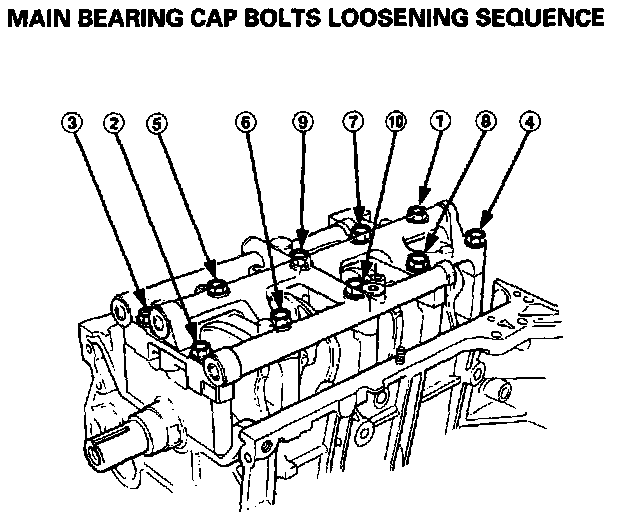

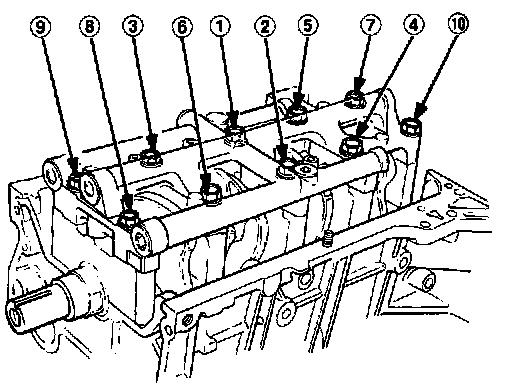

Main Bearing Cap Loosening Sequence:

Main Bearing Cap Torque Sequence:

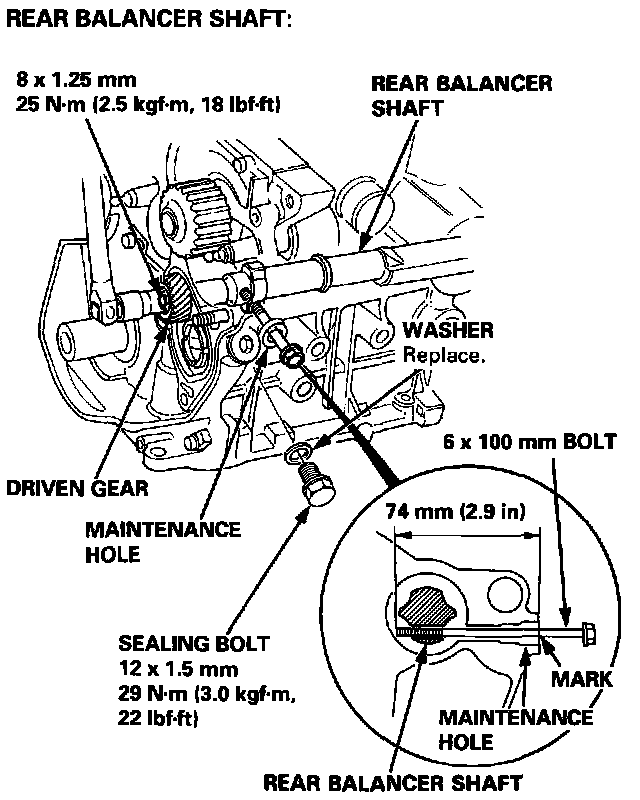

Balance Shaft:

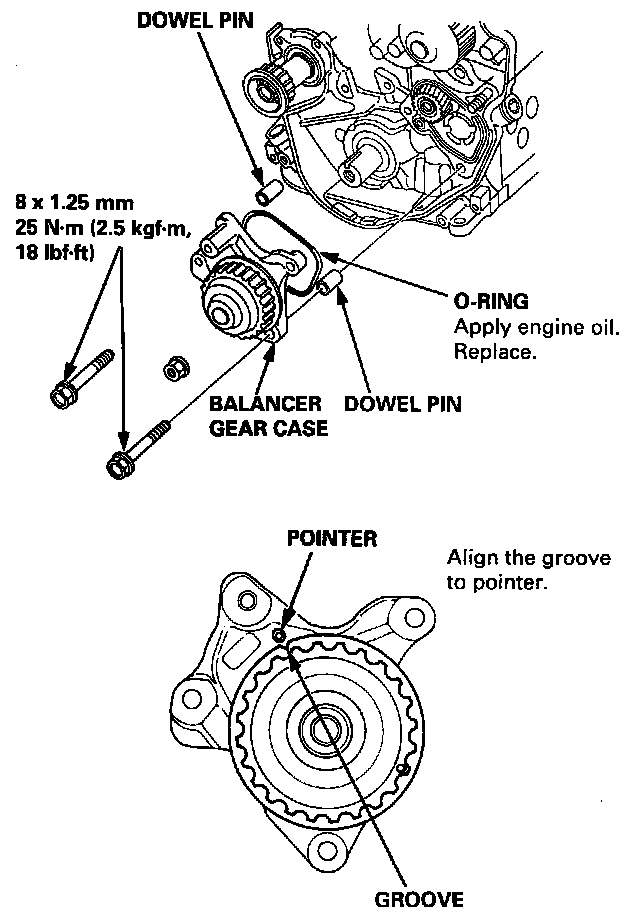

Balance Shaft Drive:

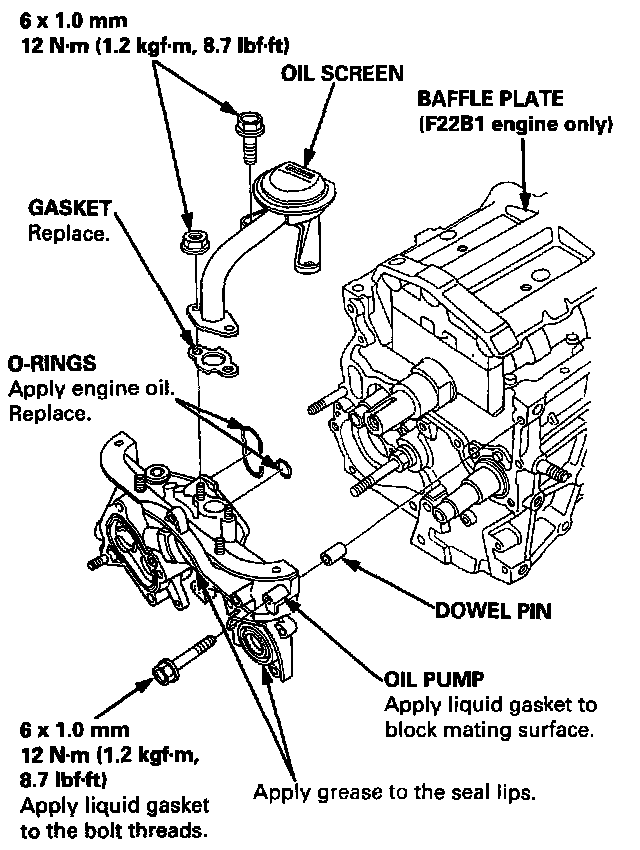

Lubrication System:

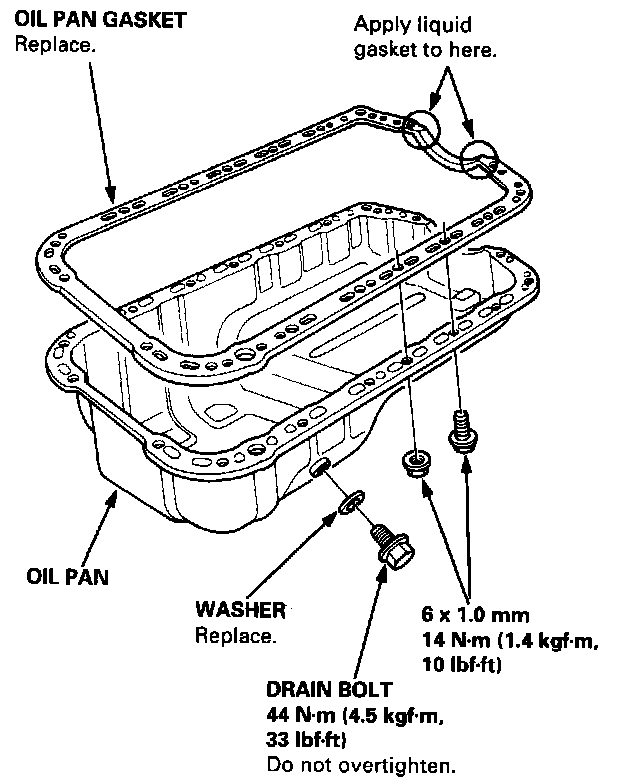

Oil Pan:

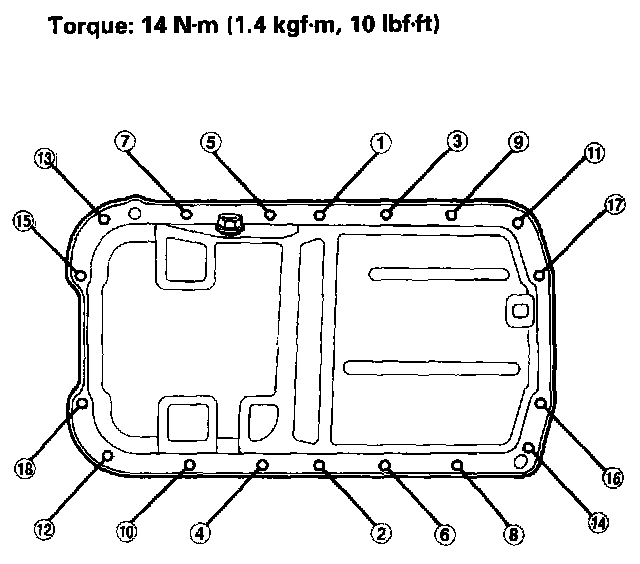

Oil Pan Sequence:

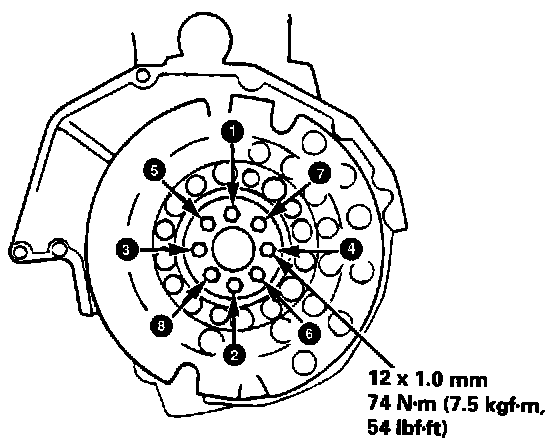

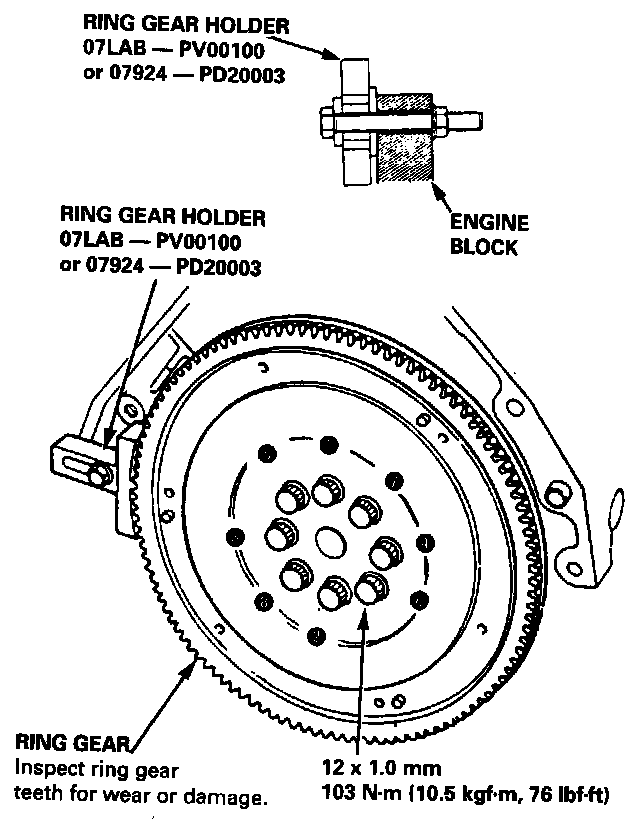

Flywheel Torque And Sequence:

Flexplate Torque And Sequence:
