Control Module: Testing and Inspection

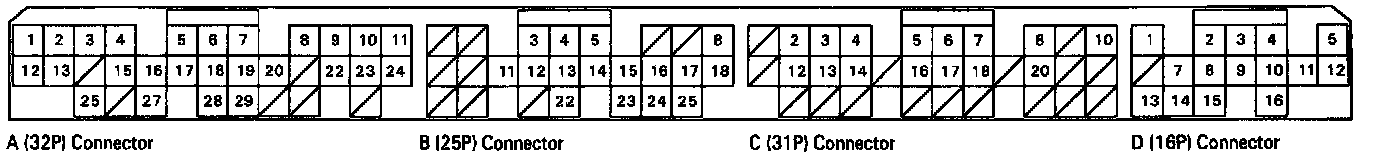

PCM Terminal Locations

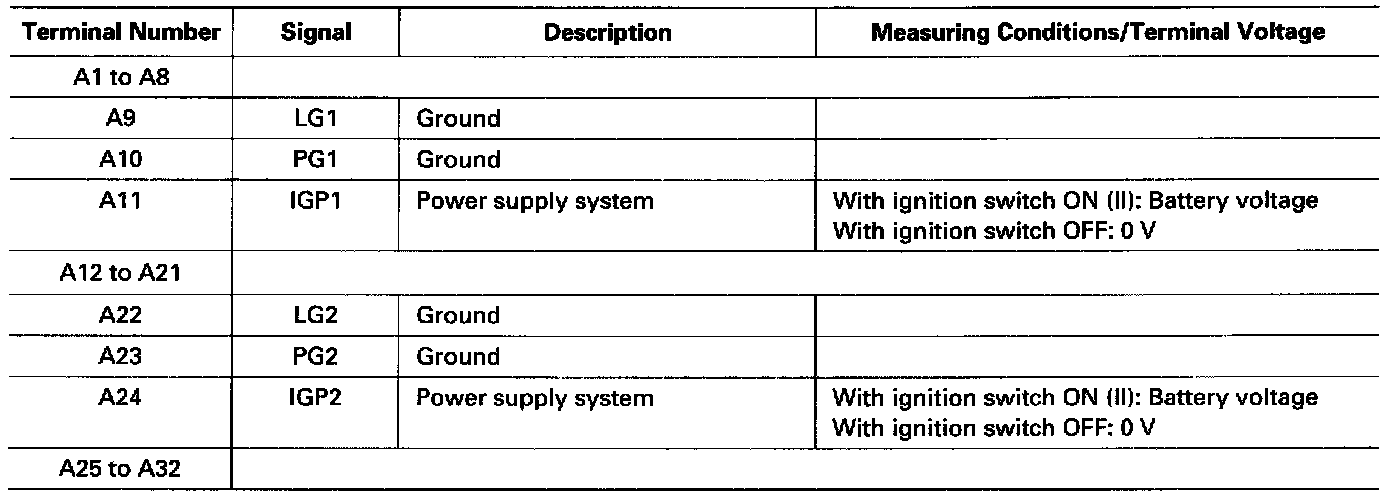

PCM CONNECTOR A (32P)

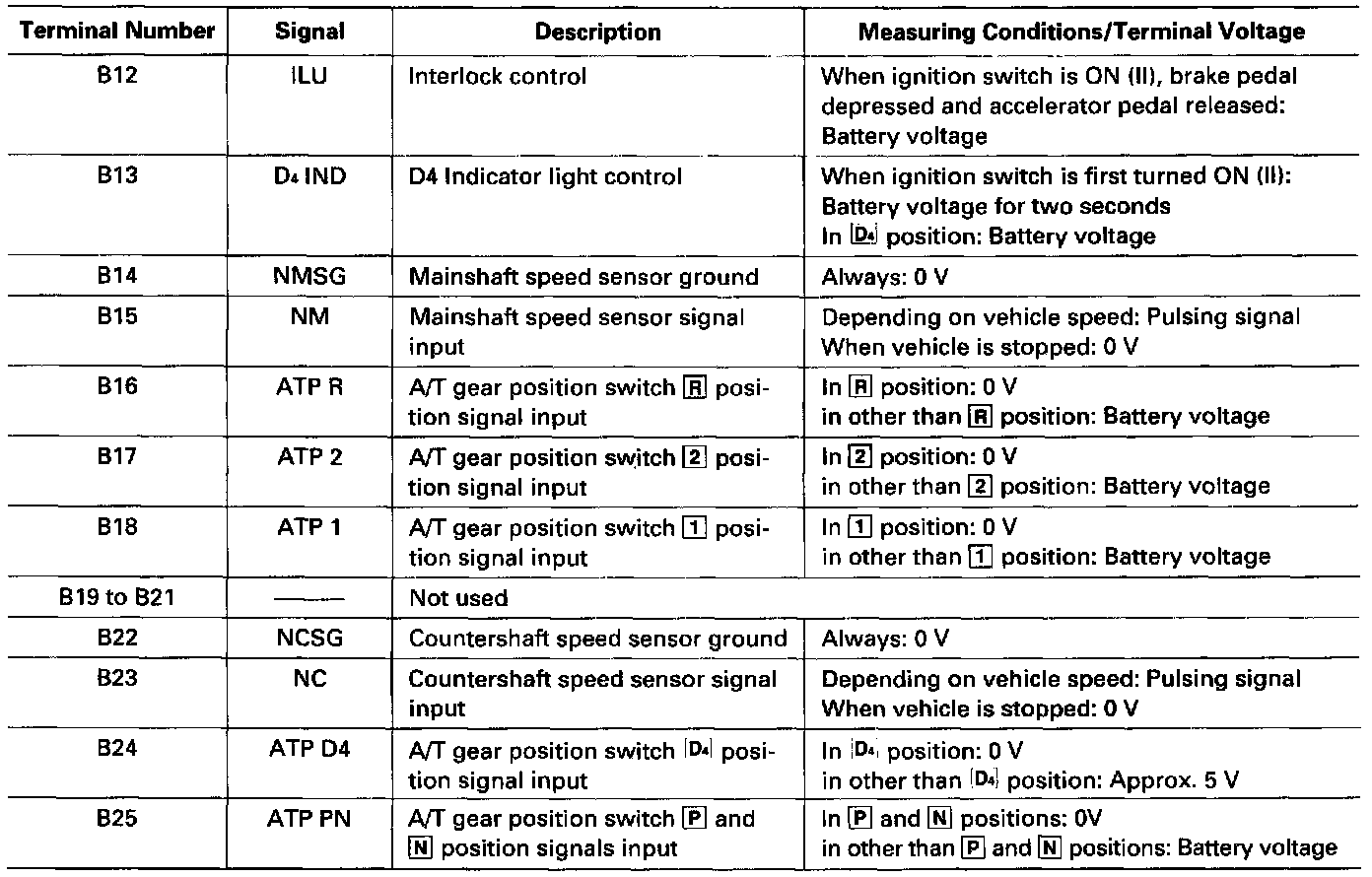

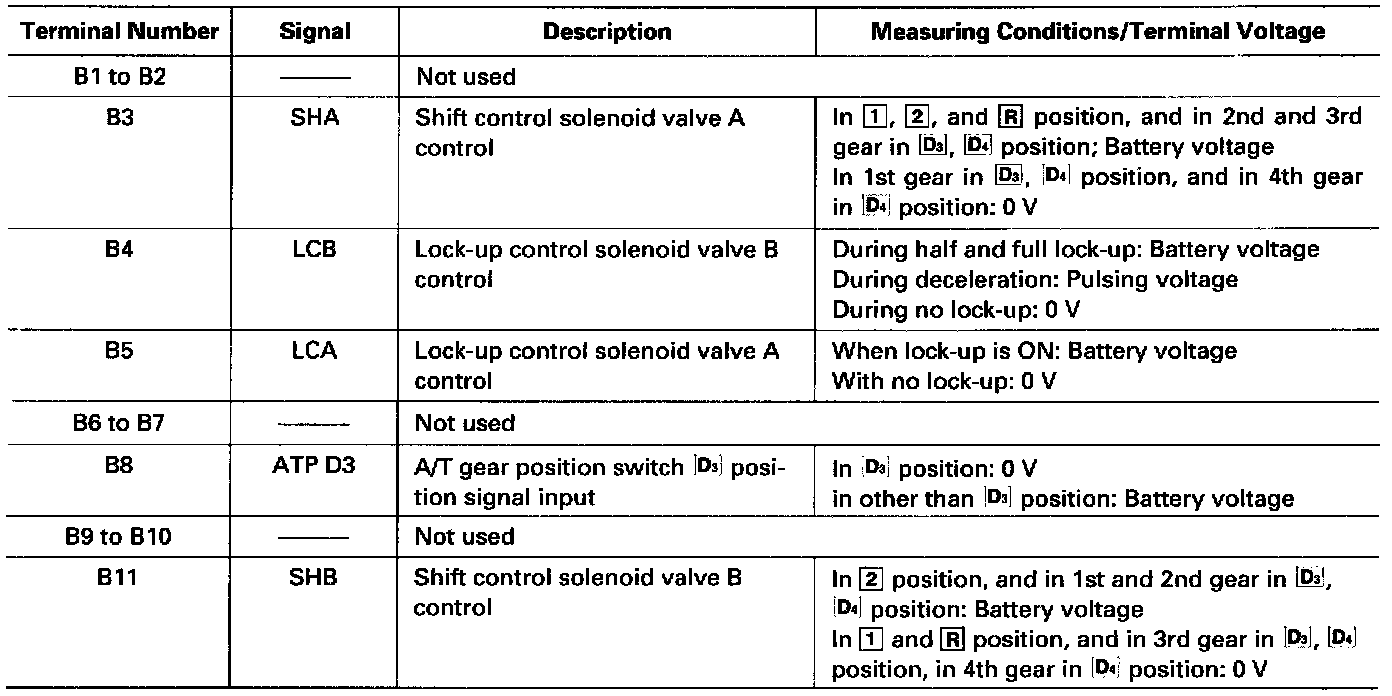

PCM CONNECTOR B (25P)

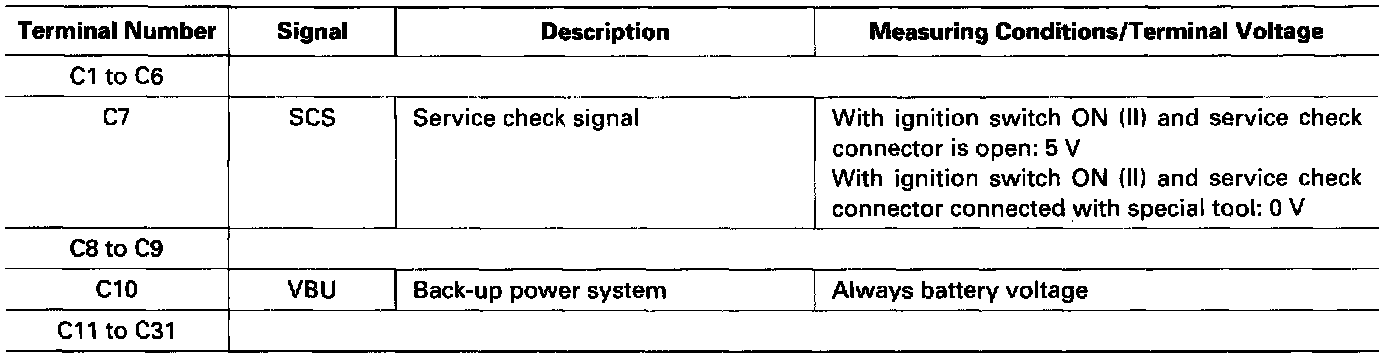

PCM CONNECTOR C (31P)

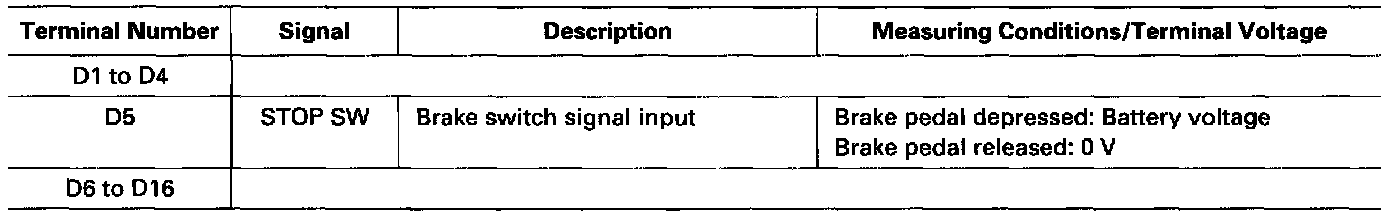

PCM CONNECTOR D (16P)

The PCM terminal voltage and measuring conditions are shown for the connector terminals that are related to the A/T control system. The other PCM terminal voltage and measuring conditions are described in Fuel and Emissions.
