Cruise Control Unit Input Test
WARNING: This page is about a different car, the 1996 Honda Civic and 1995 Honda Civic. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Deactivate air bag system before performing any service operation. See AIR BAG RESTRAINT SYSTEM
- 1995 or AIR BAG RESTRAINT SYSTEM
- 1996
article. Do not apply electrical power to any component on steering column without first deactivating air bag system. Air bag may deploy.
- Turn ignition off. Remove dashboard lower left cover. Cruise control unit is located under left side kick panel. Unplug cruise control unit harness connector.

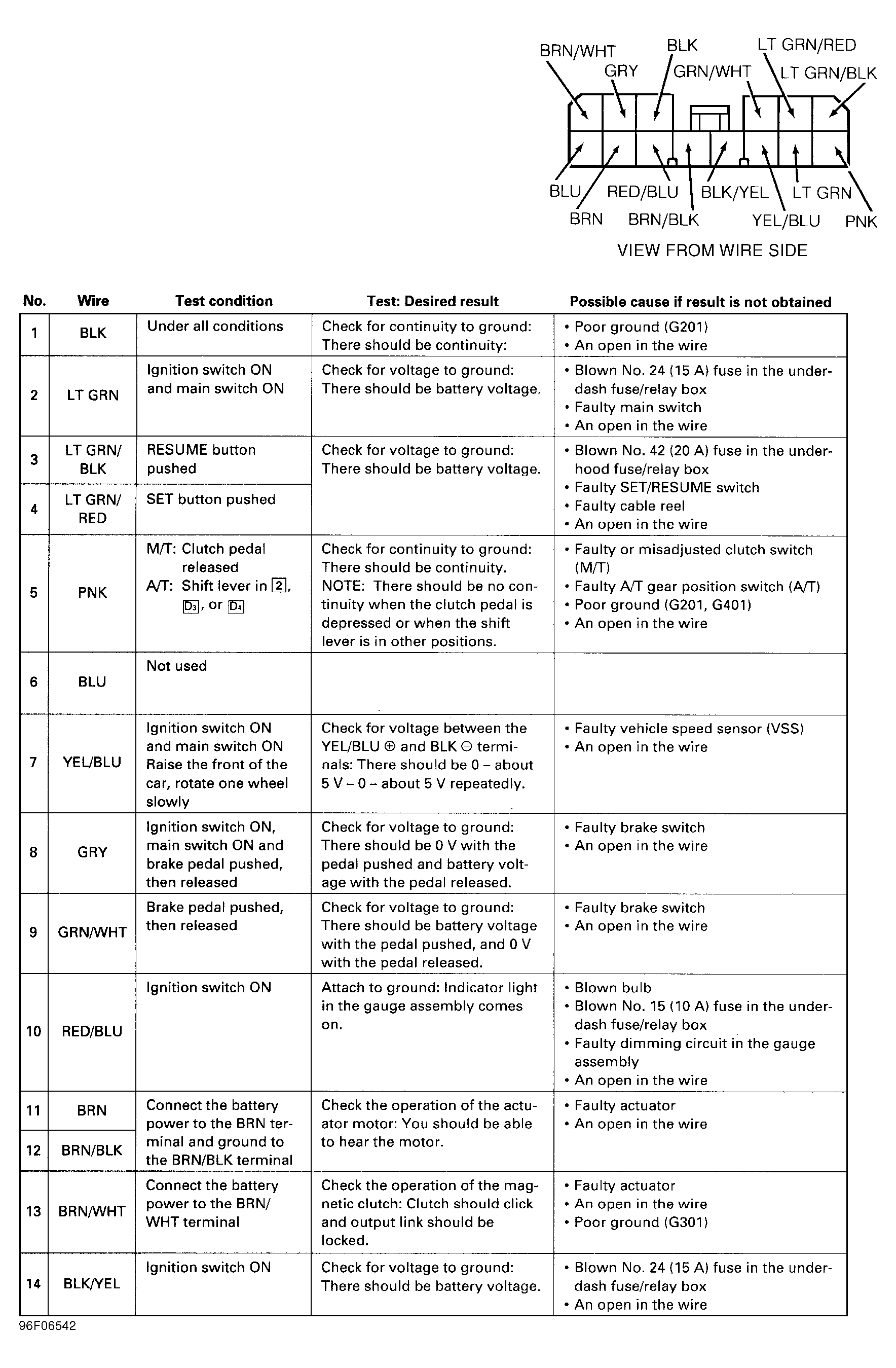

- Using a DVOM, perform cruise control unit input tests. See Fig 1 . If all input test results are okay, check cruise control unit connector for damage and proper fit to cruise control unit. If connector is okay and cruise control is still malfunctioning, replace cruise control unit.
