Code 10 - Intake Air Temperature (IAT) Sensor

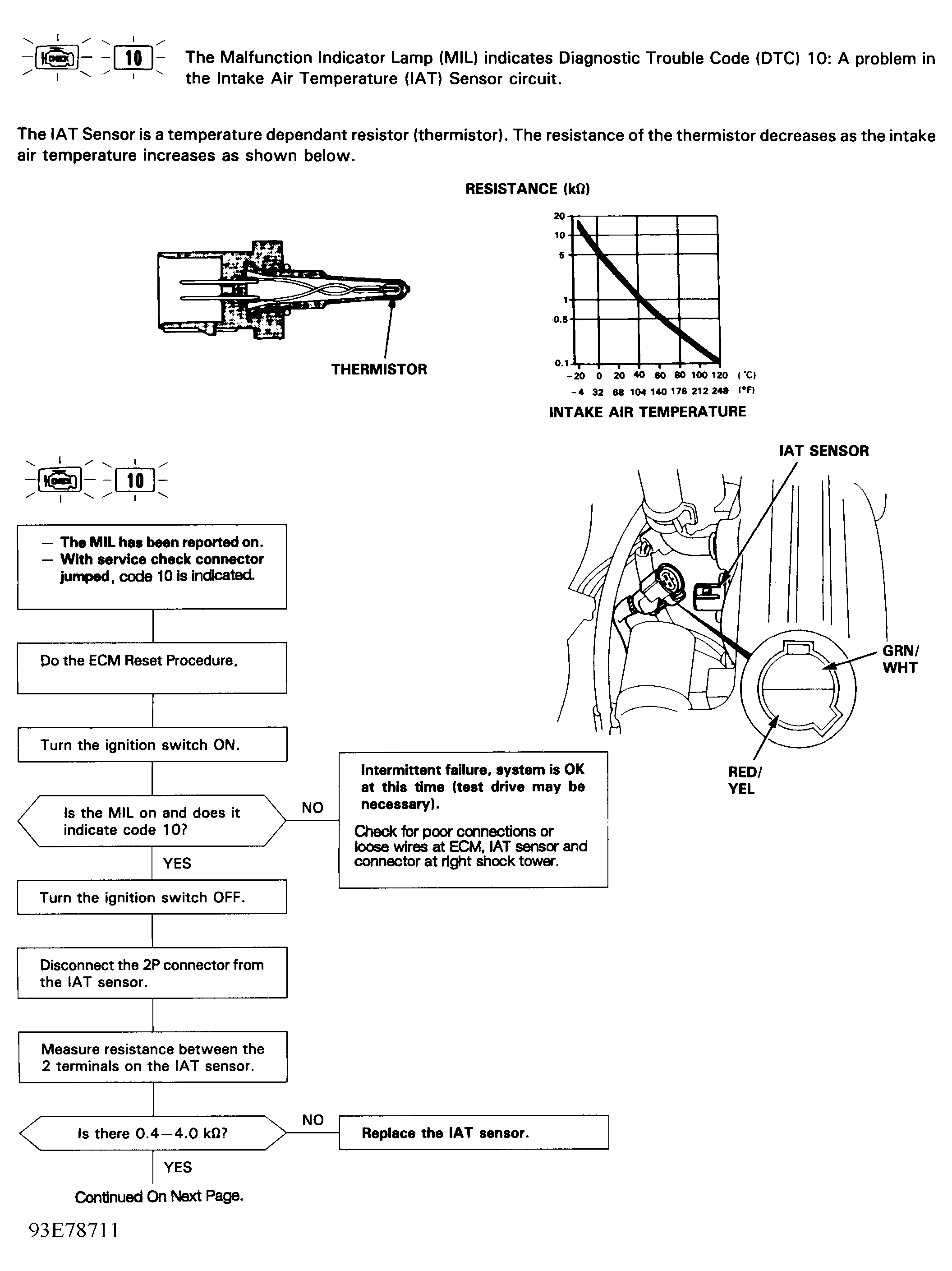

Fig 1: Code 10 Flow Chart (1 of 2) Intake Air Temperature (IAT) Sensor

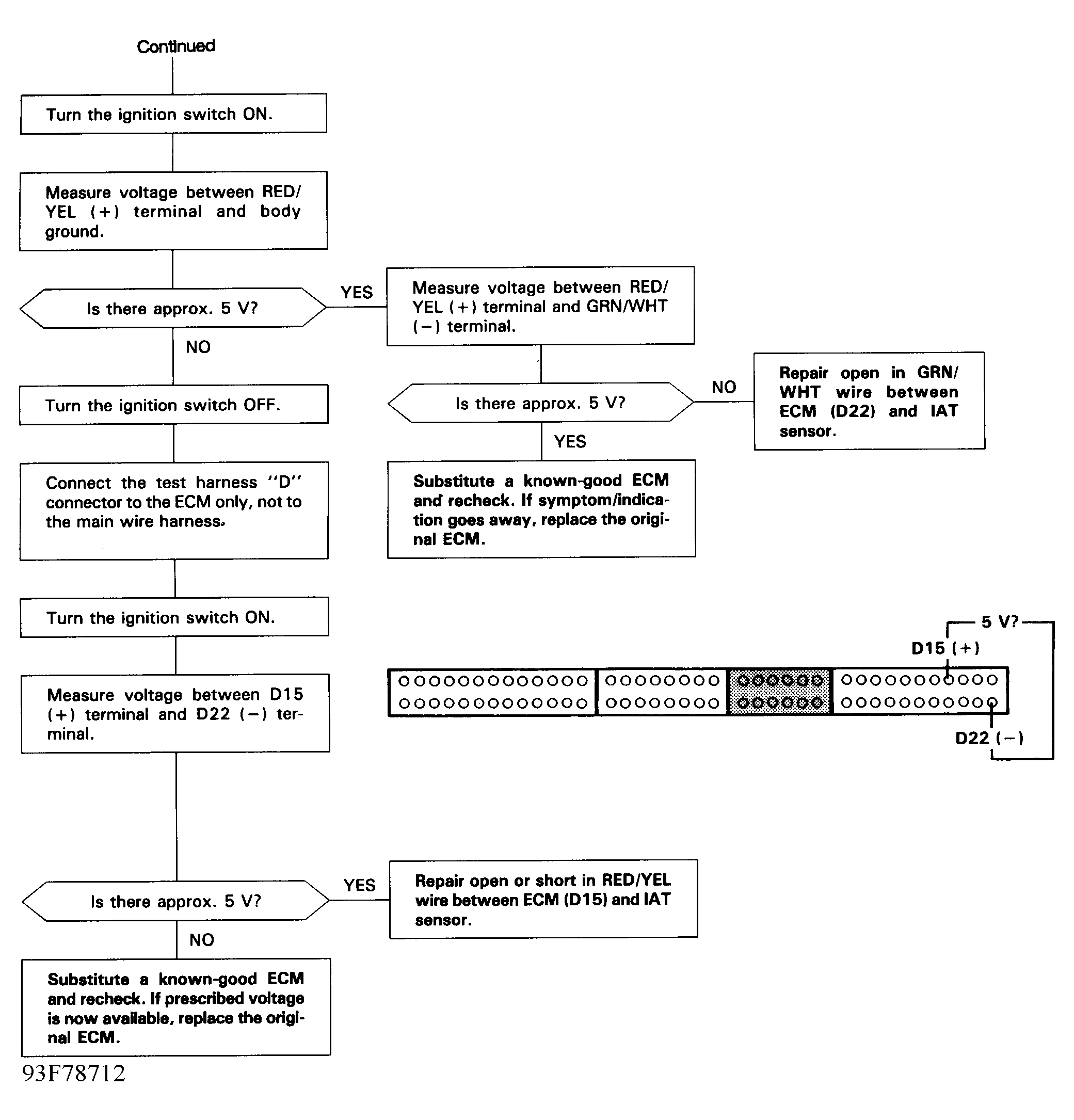

Fig 2: Code 10 Flow Chart (2 of 2) Intake Air Temperature (IAT) Sensor
