Del Sol L4-1.5L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Main Relay (Computer/Fuel System)
>>
Testing and Inspection
>>
Part 1
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Part 1

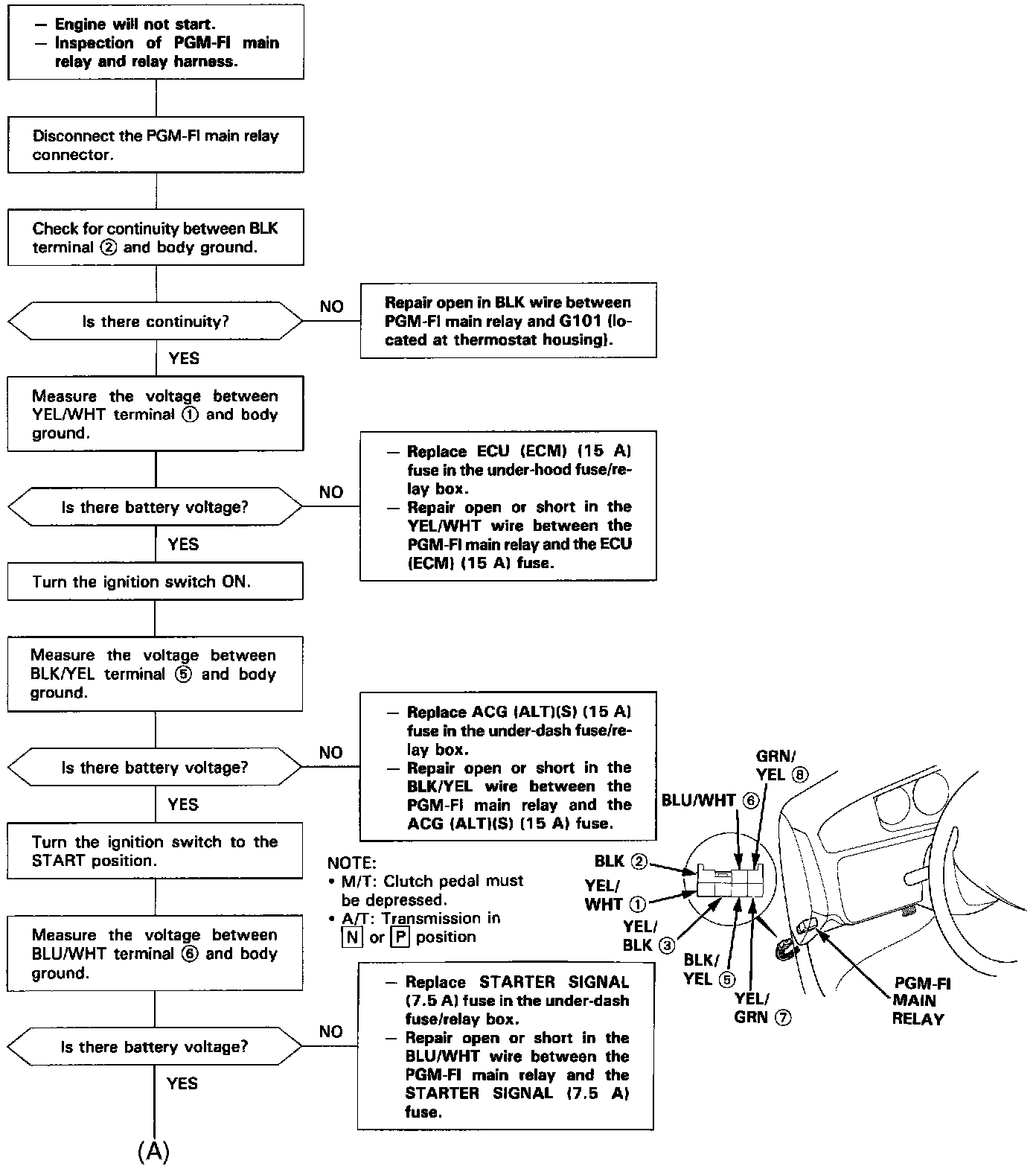

Main Relay Diagnostic Chart (Part 1 Of 2):
