Power Window Relay Test

Remove power window relay (located behind right side kick panel). Using an ohmmeter, check continuity between relay terminals No. 3 and 4. See Fig 1 . Continuity should not exist. Apply battery voltage to terminal No. 1. Ground terminal No. 2. Continuity should exist between terminals No 3 and 4. If relay does not test as described, replace relay.

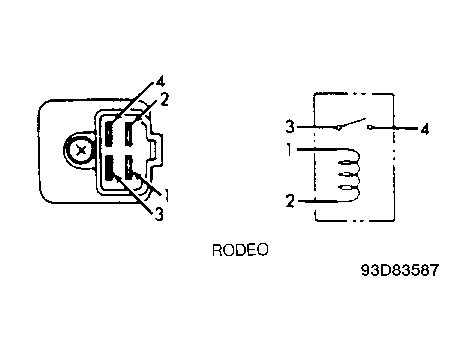

Fig 1: Identifying Power Window Relay Terminals
G93D83587Courtesy of ISUZU MOTOR CO.
