Torque Specifications

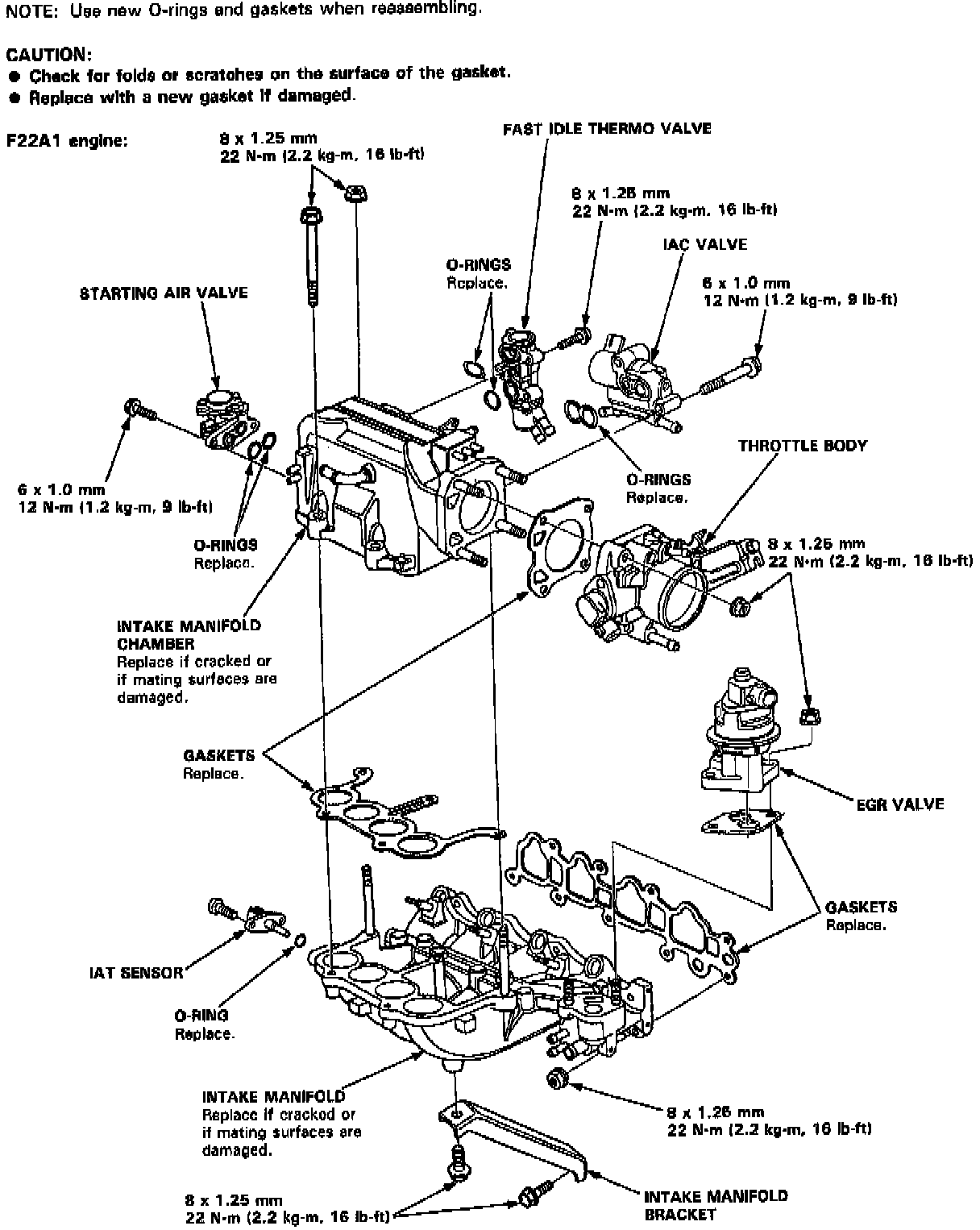

Intake:

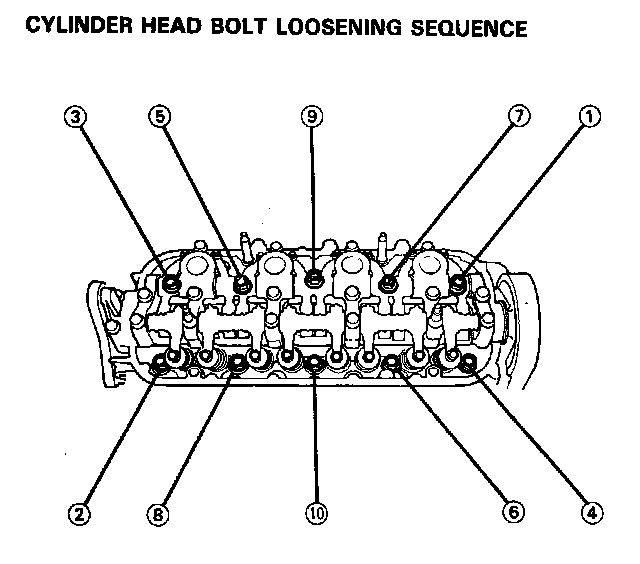

Head Bolt Loosening Sequence:

Cam Holder Loosening Sequence:

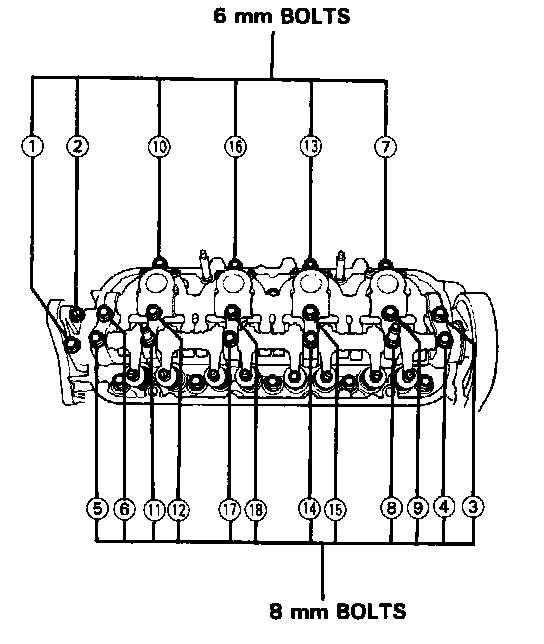

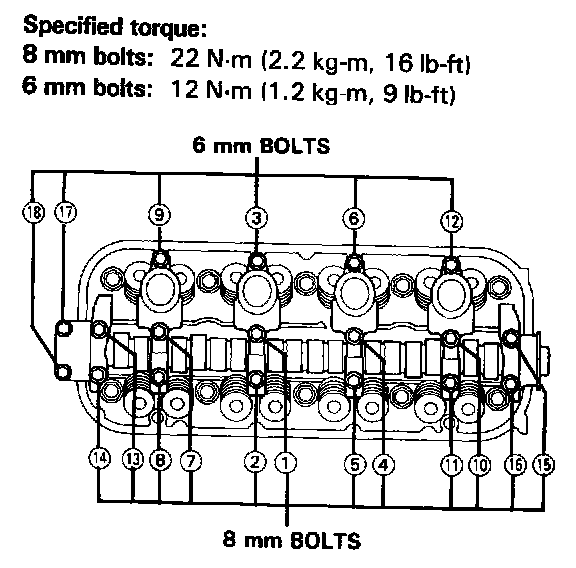

Cam Holder Torque Sequence:

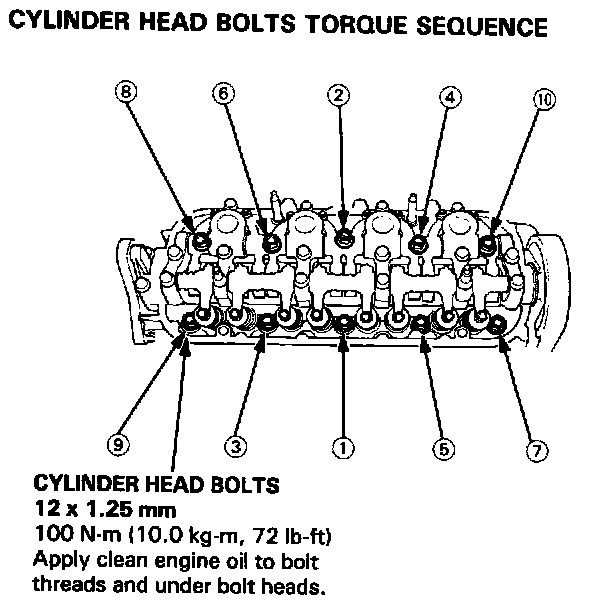

Head Bolt Torque Sequence:

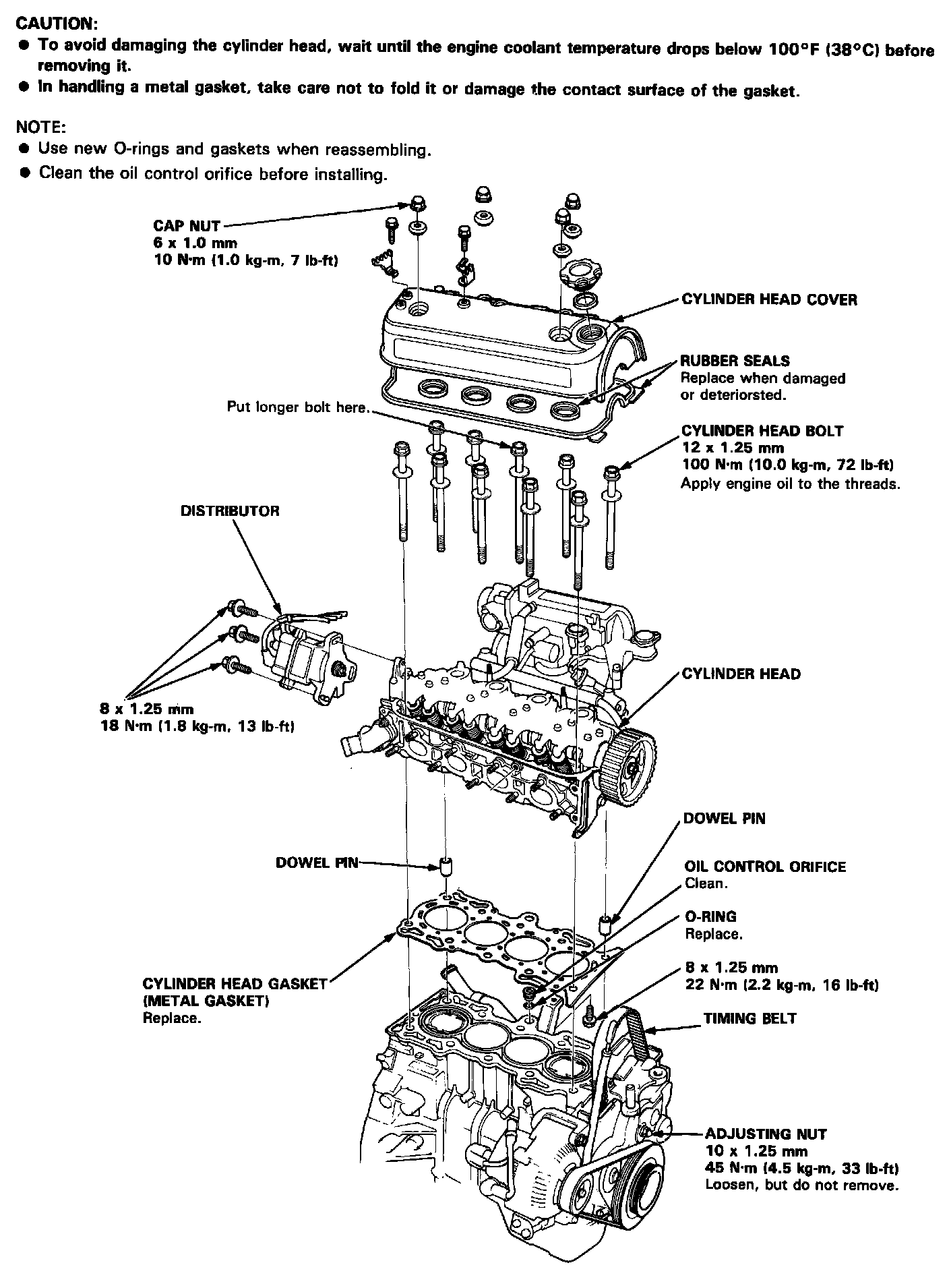

Torque cylinder head attaching bolts in three steps; first step to 29 ft. lbs., second step to 51 ft. lbs., third step to 72 ft. lbs.

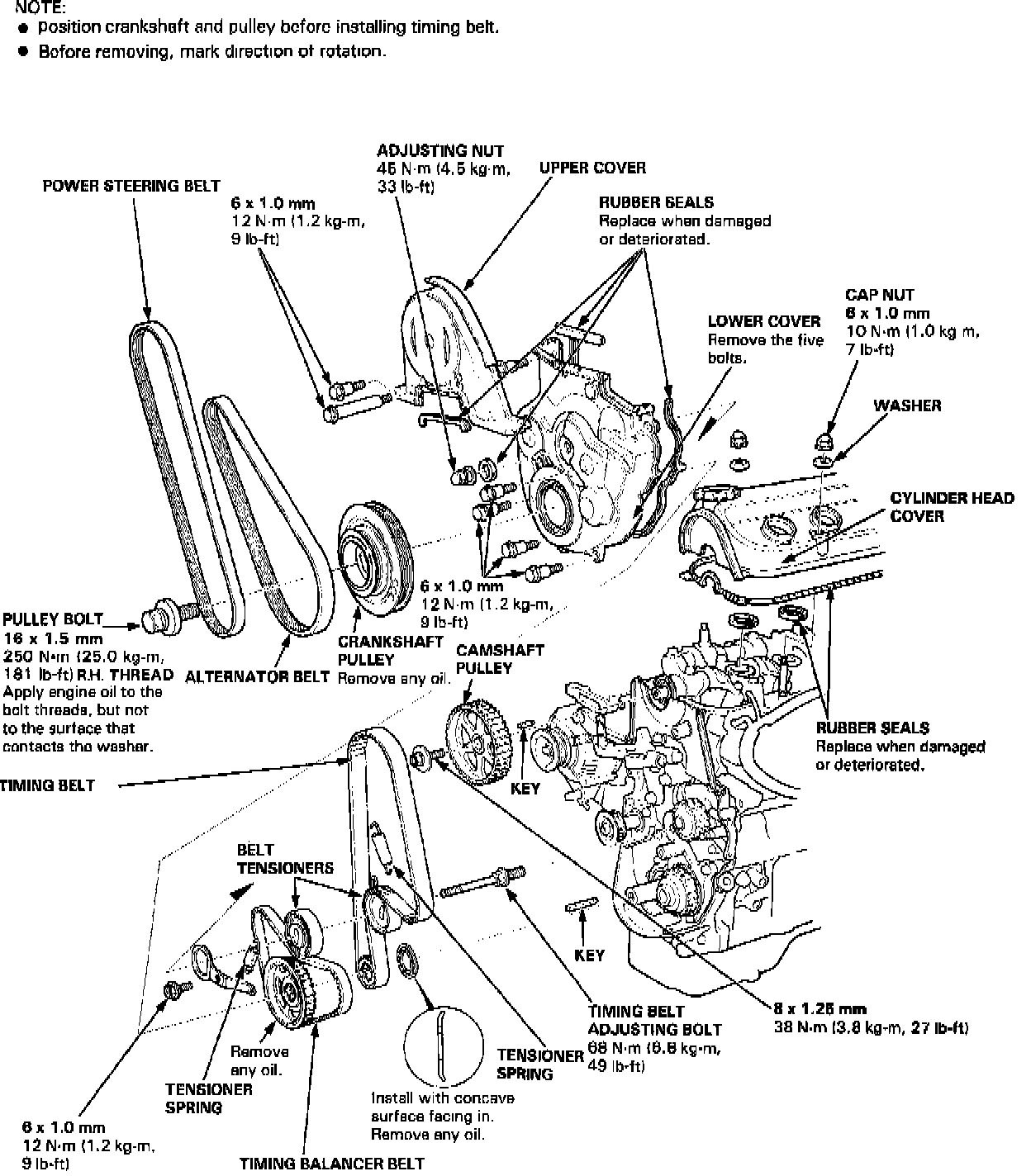

Timing Components:

Lower Engine:

Connecting Rod:

Main Bolt Loosening Sequence:

Main Bolt Torque Sequence:

Oil Pan Torque Sequence:

Flywheel (M/T) Torque/Sequence:

Drive Plate (A/T) Torque/Sequence:
