Cruise Control Unit Input: Prelude

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1992 Honda Prelude, 1992 Honda Civic, 1992 Honda Accord, 1991 Honda Prelude, and 1991 Honda Civic. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition off. Remove dashboard lower left cover. On 1991 models, cruise control unit is located near left kick panel. On 1992 models, cruise control unit is located above steering column under dashboard. Disconnect cruise control unit 13-pin connector.
  2. Using a DVOM, perform cruise control unit input tests. See Fig 5 or Fig 6 . If all input test results are okay, check cruise control unit connector for damage and proper fit to cruise control unit. If connector is okay and cruise control is still malfunctioning, replace cruise control unit.

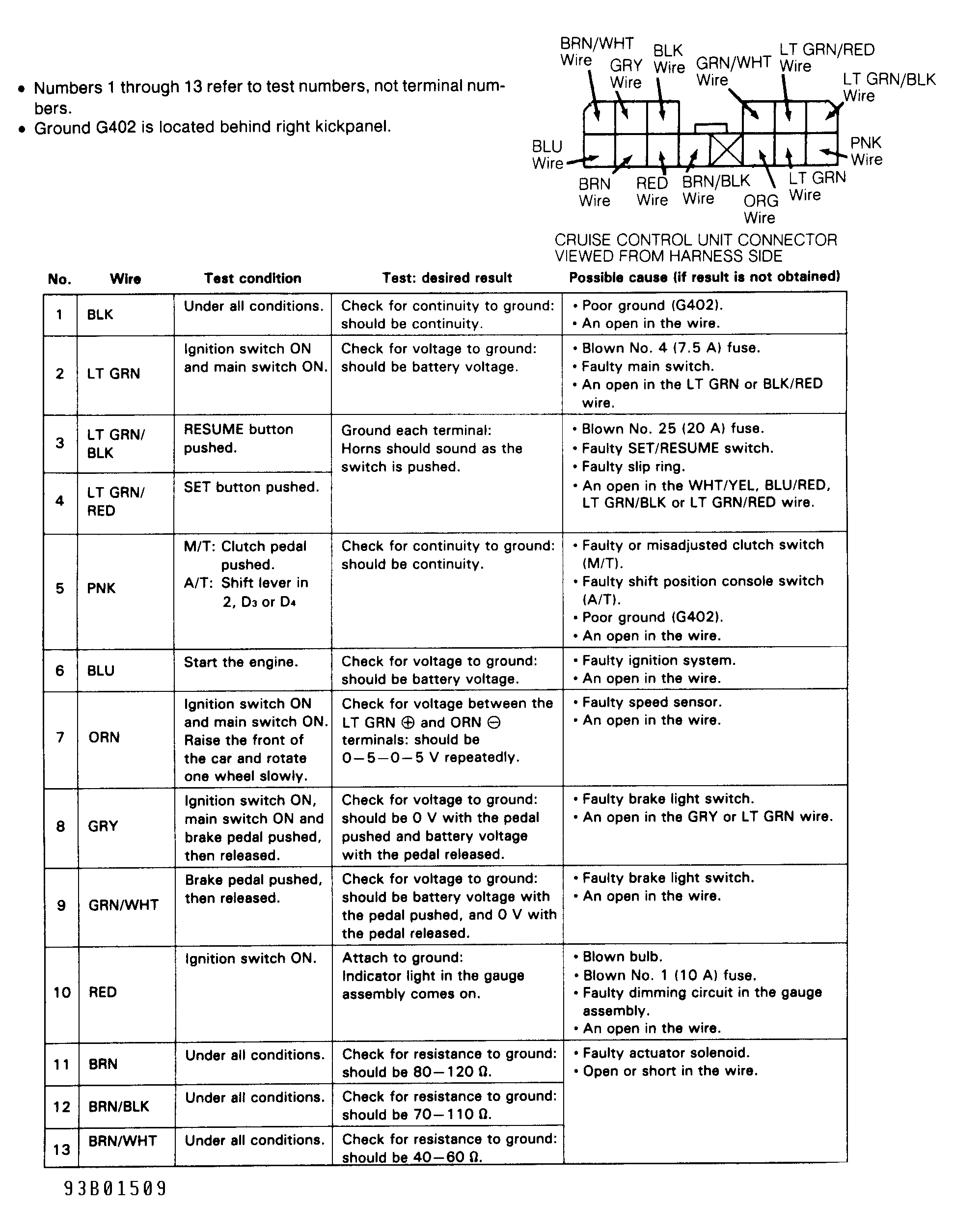

Fig 1: Cruise Control Unit Input Test (1991 Accord)
G93B01509Courtesy of AMERICAN HONDA MOTOR CO., INC.

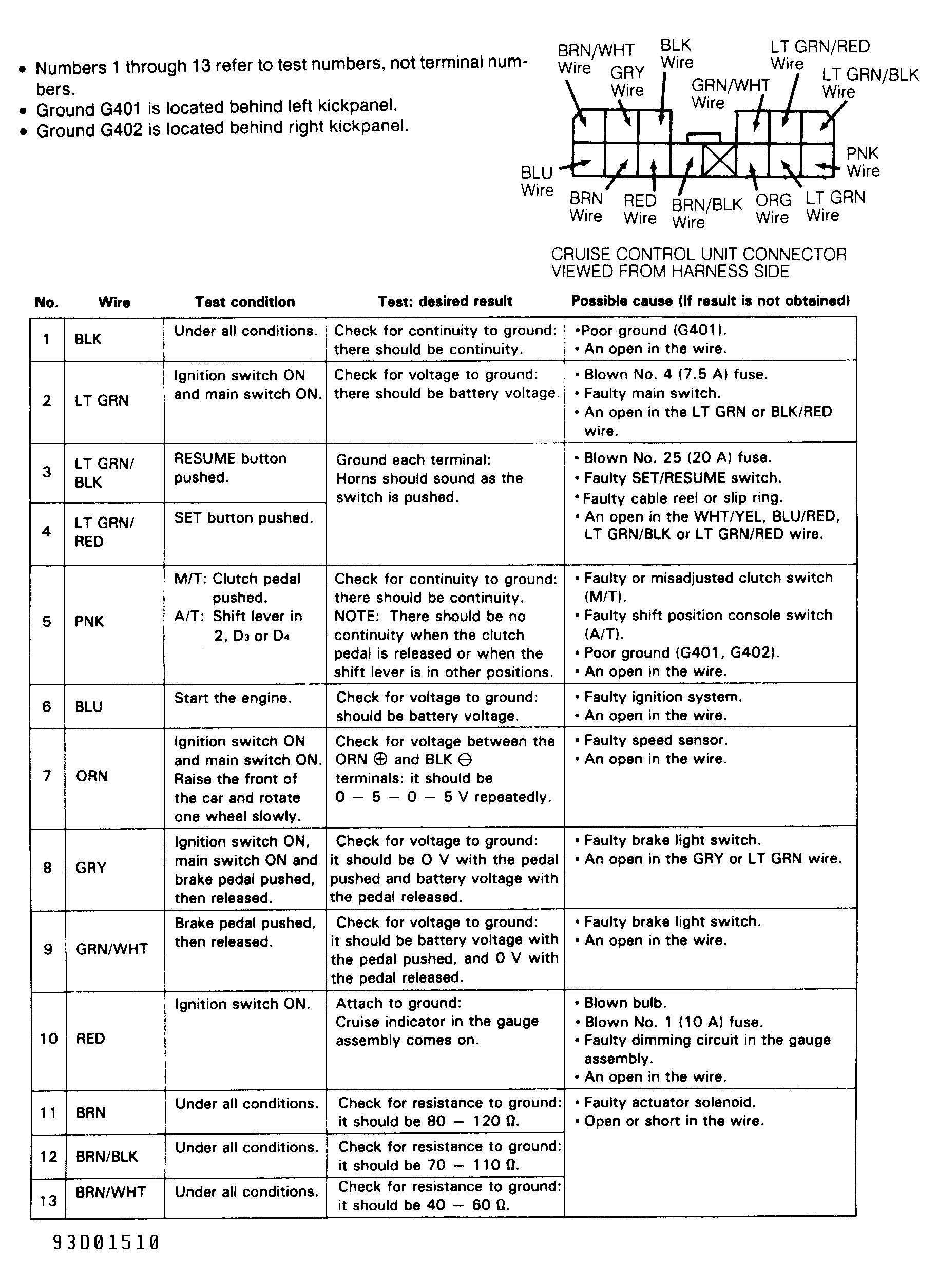

Fig 2: Cruise Control Unit Input Test (1992 Accord)
G93D01510Courtesy of AMERICAN HONDA MOTOR CO., INC.

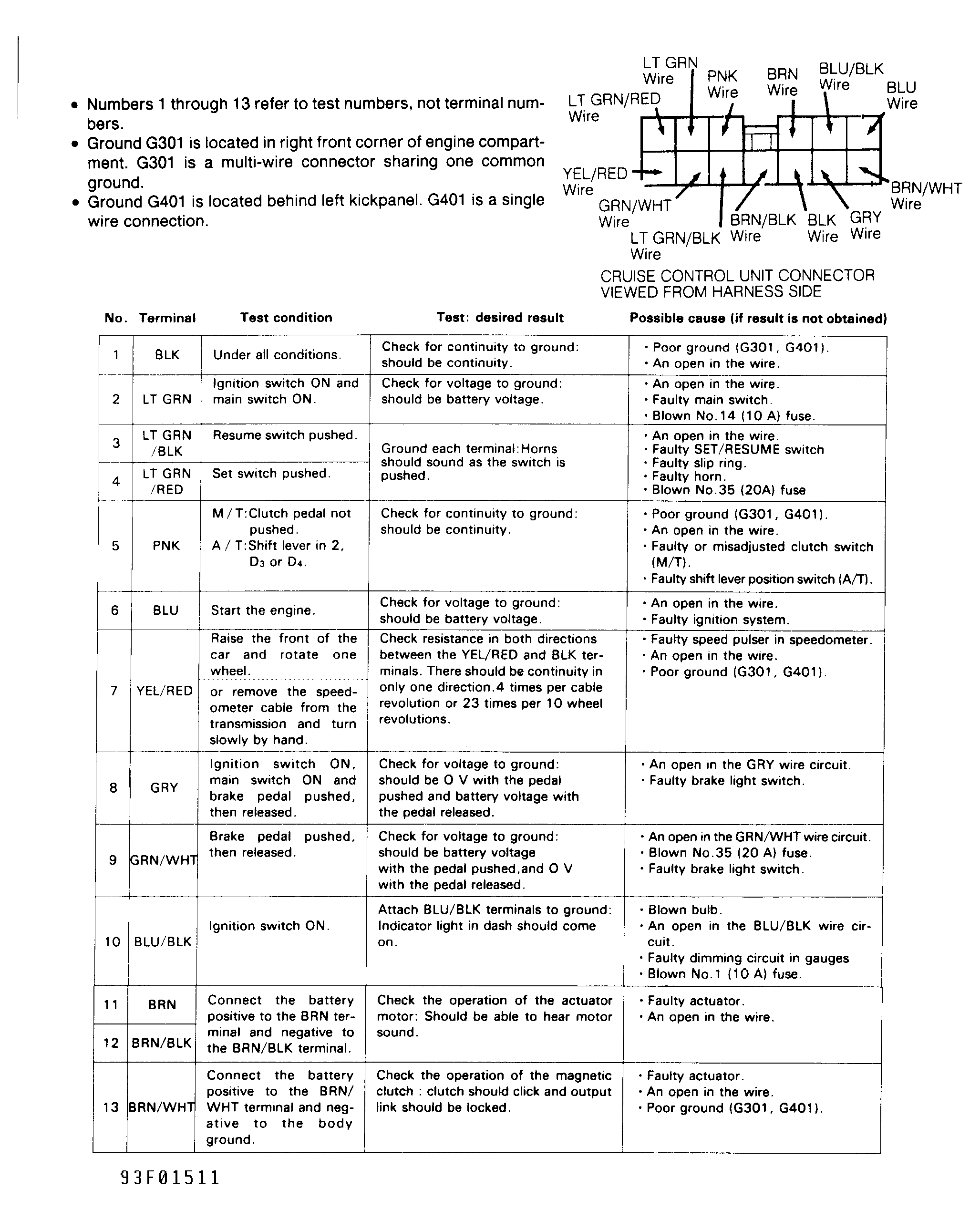

Fig 3: Cruise Control Unit Input Test (1991 Civic)
G93F01511Courtesy of AMERICAN HONDA MOTOR CO., INC.

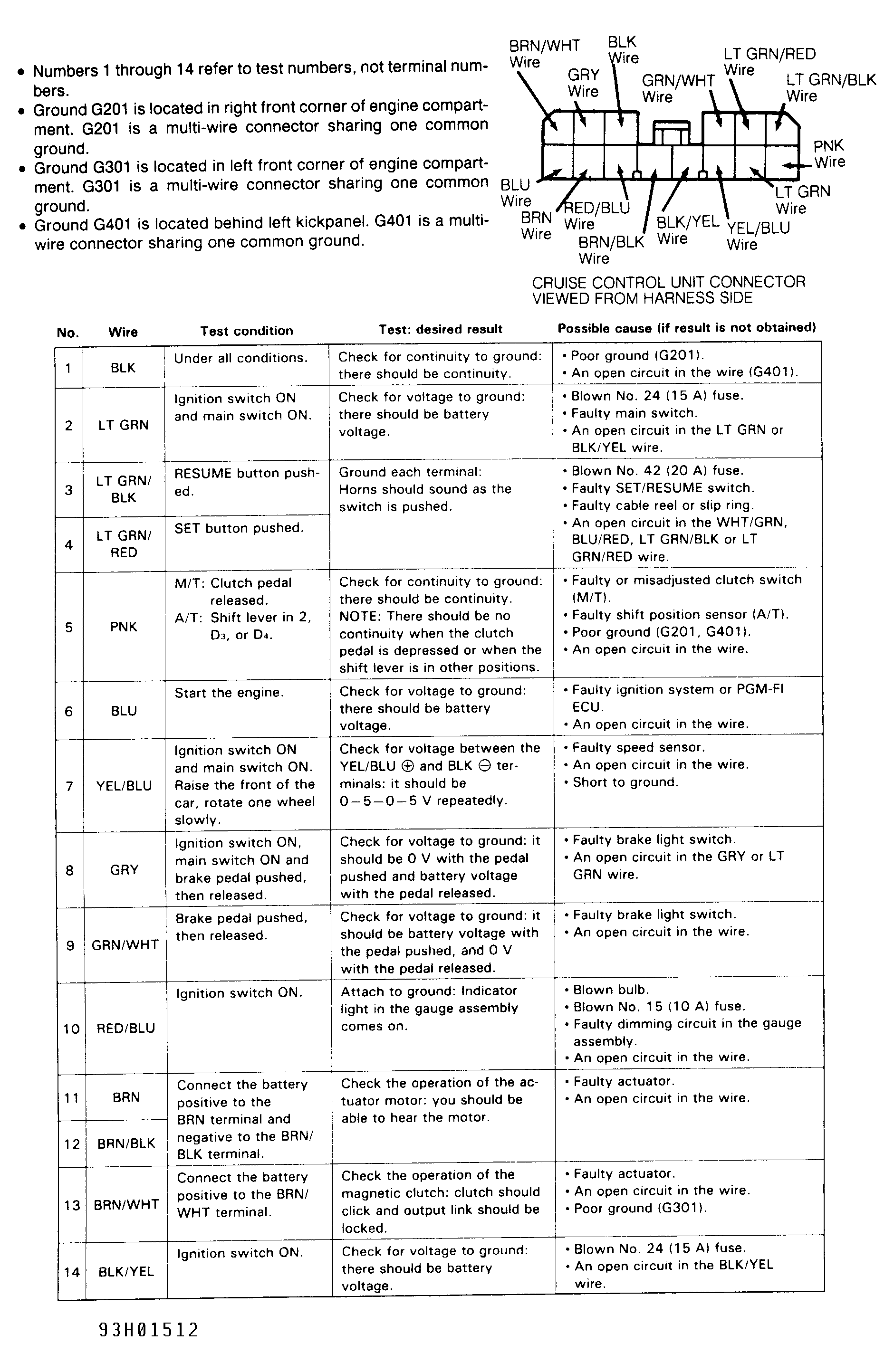

Fig 4: Cruise Control Unit Input Test (1992 Civic)
G93H01512Courtesy of AMERICAN HONDA MOTOR CO., INC.

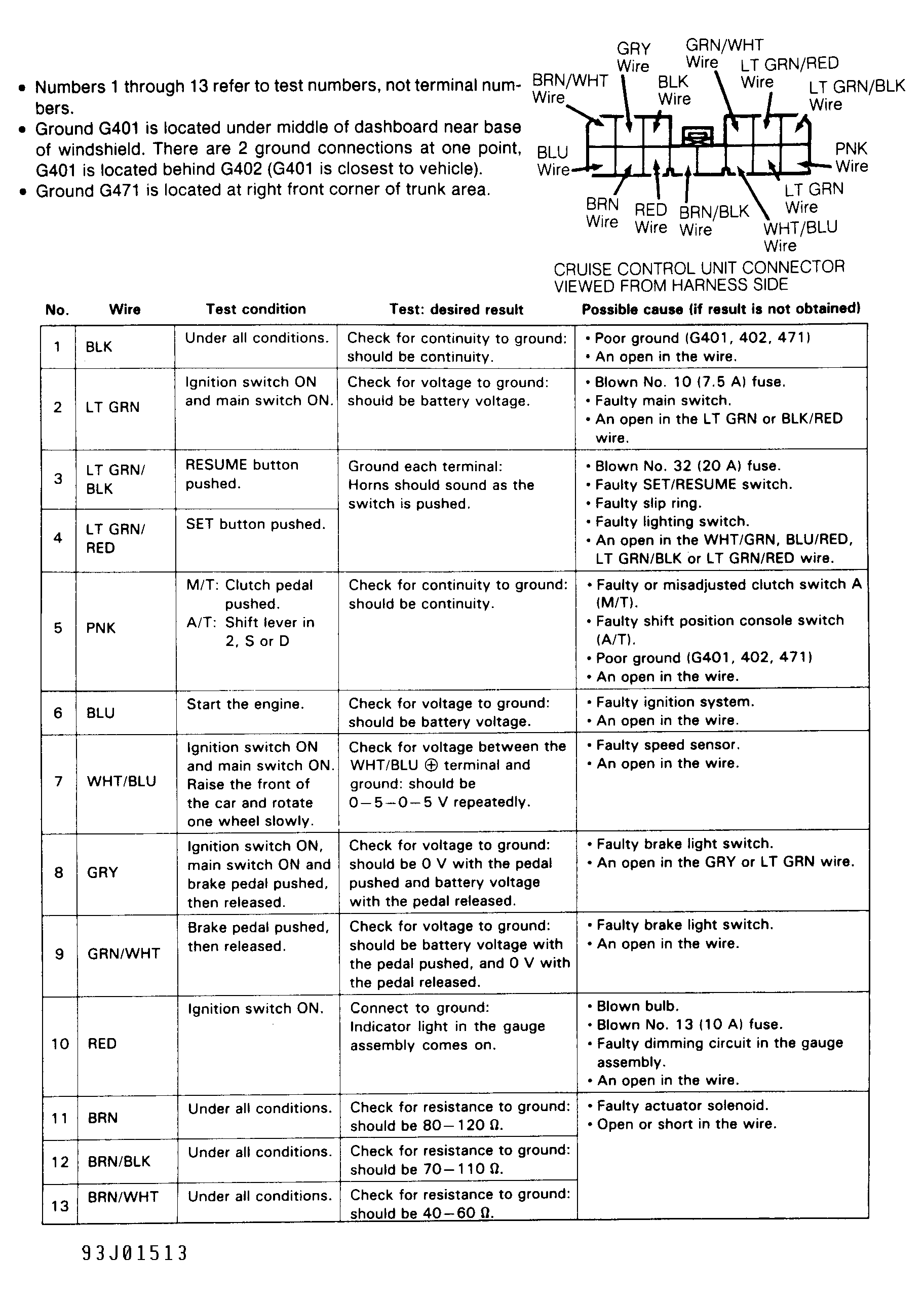

Fig 5: Cruise Control Unit Input Test (1991 Prelude)
G93J01513Courtesy of AMERICAN HONDA MOTOR CO., INC.

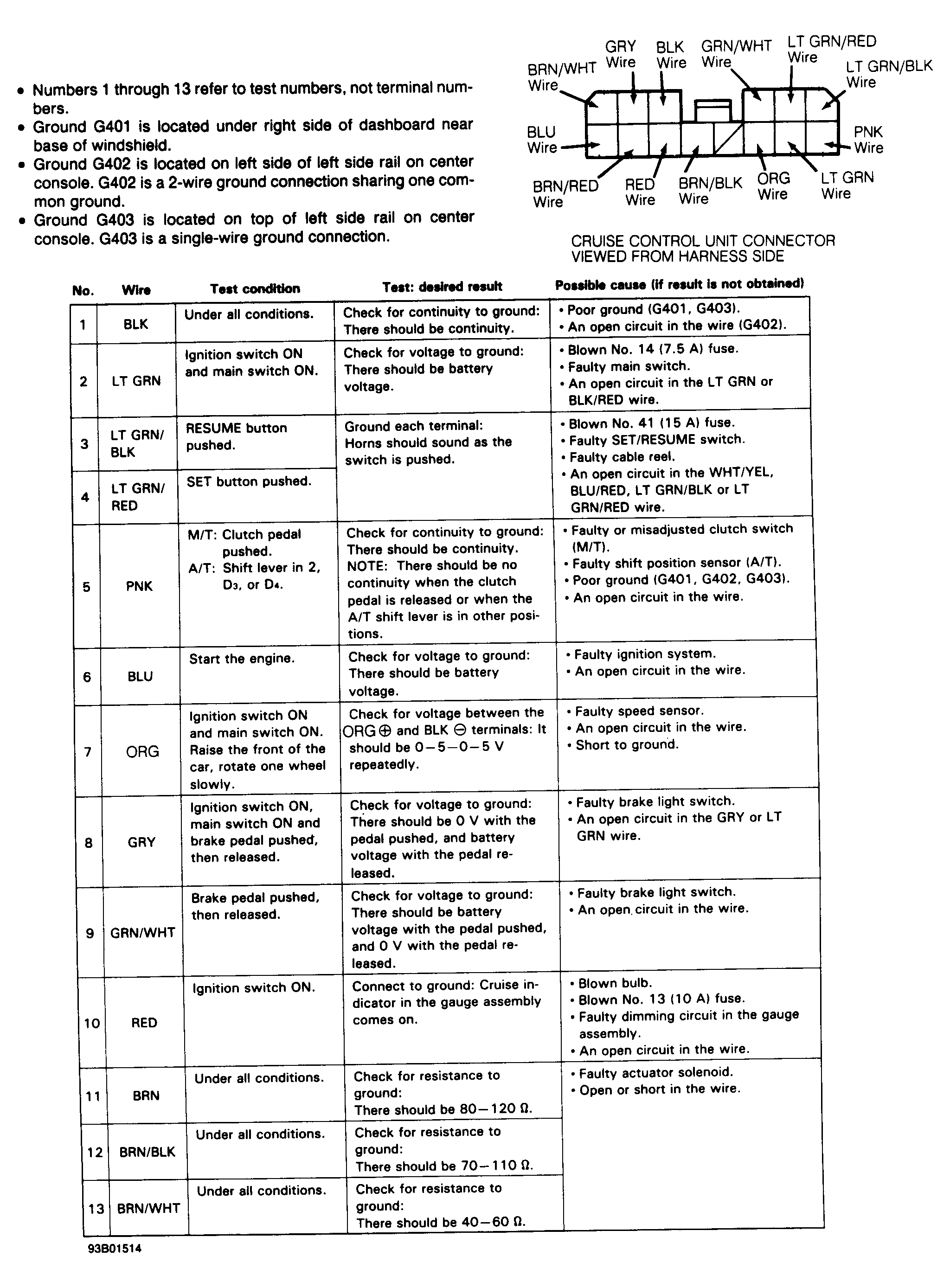

Fig 6: Cruise Control Unit Input Test (1992 Prelude)
G93B01514Courtesy of AMERICAN HONDA MOTOR CO., INC.
