Wiper/Washer Switch Test: Prelude

WARNING: This page is about a different car, the 1992 Honda Prelude, 1992 Honda Civic, and 1992 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.

Remove instrument cluster lower trim panel. Disconnect steering column 10-pin connector. Check continuity between specified switch connector terminals, with wiper/washer switch in the positions indicated. See Fig 3 . If continuity is not as specified, replace wiper/washer switch.

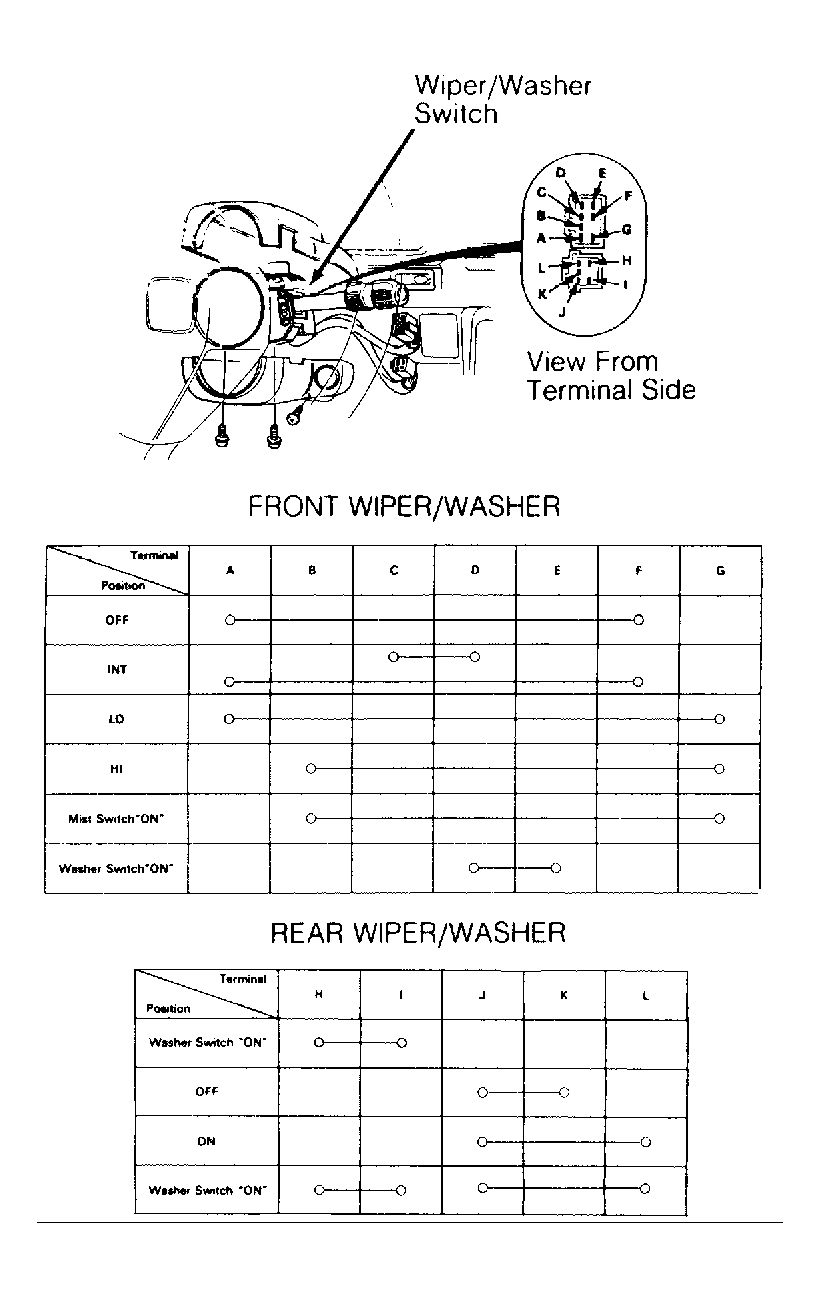

Fig 1: Testing Wiper/Washer Switch (Accord)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Testing Wiper/Washer Switch (Civic)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Testing Wiper/Washer Switch (Prelude)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
