Cruise Control Unit Input
WARNING: This page is about a different car, the 1993 Honda Prelude. However, it is still accessible from the selected car via links, so may be relevant.
- Turn ignition off. Remove dashboard lower left cover. Cruise control unit is located above steering column under dashboard. Unplug cruise control unit 13-pin connector.

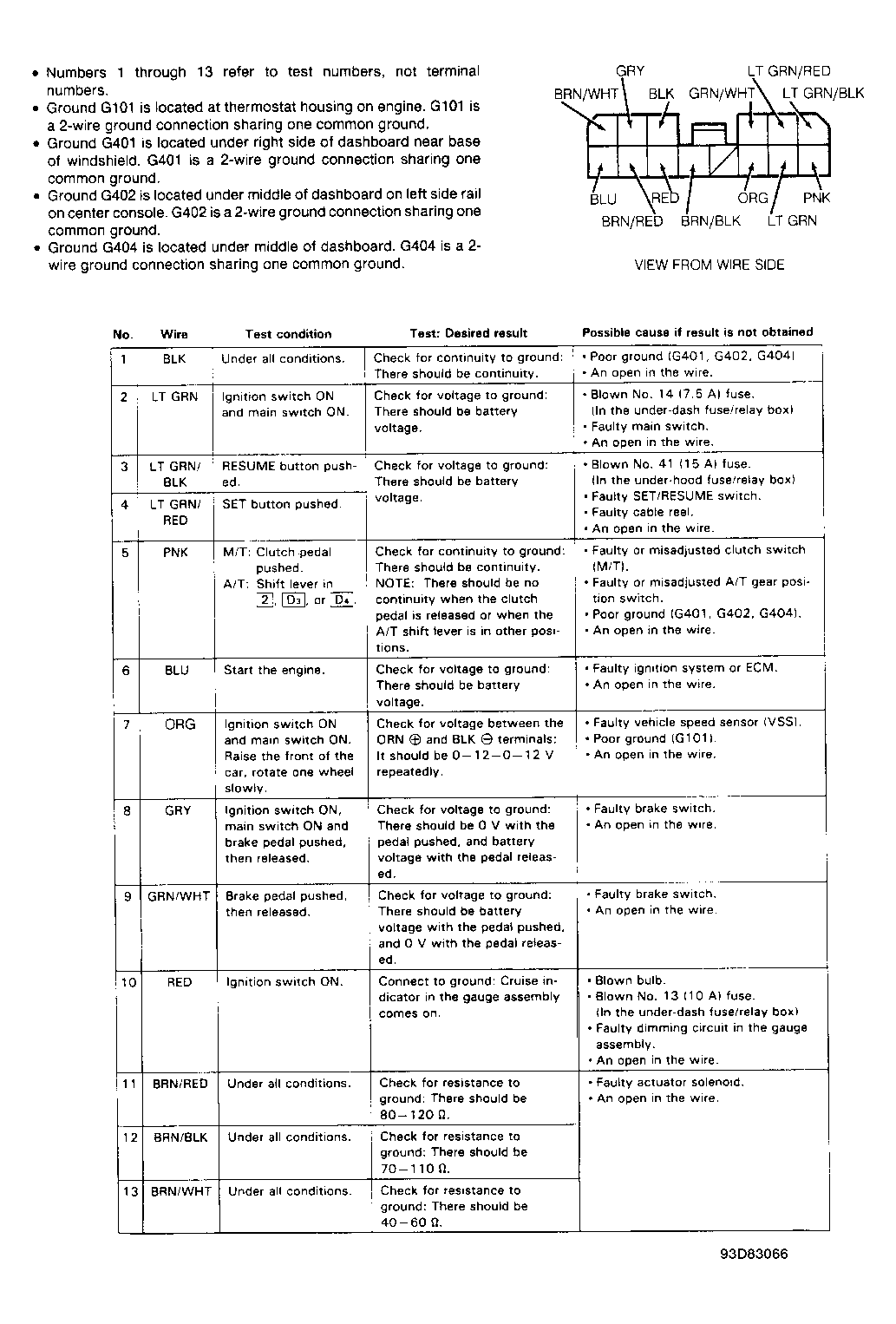

- Using a DVOM, perform cruise control unit input tests. See Fig 1 . If all input test results are okay, check cruise control unit connector for damage and proper fit to cruise control unit. If connector is okay and cruise control is still malfunctioning, replace cruise control unit.
