Set/Resume Switch
WARNING: This page is about a different car, the 1993 Honda Prelude. However, it is still accessible from the selected car via links, so may be relevant.

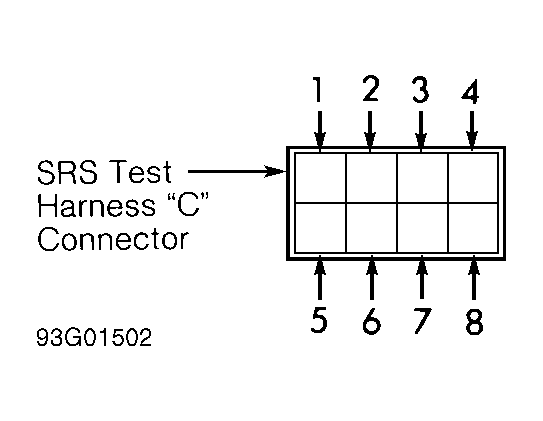

- Disable air bag system. See AIR BAG RESTRAINT SYSTEM article in the ACCESSORIES/SAFETY EQUIPMENT section. Connect SRS Test Harness "C" (07LAZ-SL40300) to cable reel 6-pin connector. Using a DVOM, check for continuity between SRS Test Harness "C" connector terminal No. 2 (Light Green/Red wire on cable reel harness) and terminal No. 3 (Blue/Red wire on cable reel harness) with SET pressed. See Fig 1 . If continuity exists, go to next step. If no continuity exists, go to step 3).
- Using a DVOM, check for continuity between SRS Test Harness "C" connector terminal No. 1 (Light Green/Black wire on cable reel harness) and terminal No. 3 (Blue/Red wire on cable reel harness) with RESUME pressed. See Fig 1 . If continuity exists, SET/RESUME switch and cable reel are okay. If no continuity exists, go to next step.

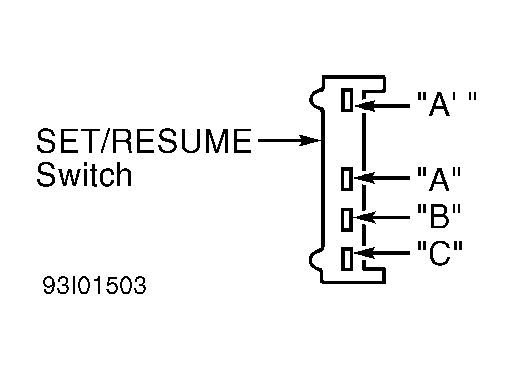

- Remove SET/RESUME switch from steering wheel. See SET/RESUME SWITCH under REMOVAL & INSTALLATION. Using a DVOM, check for continuity between SET/RESUME switch terminals "A" or "A' " and "C" with SET pressed. See Fig 2 . If continuity exists, go to next step. If no continuity exists, replace SET/RESUME switch.
- Using a DVOM, check for continuity between SET/RESUME switch terminals "A" or "A' " and "B" with RESUME pressed. See Fig 2 . If continuity exists, replace cable reel. See CABLE REEL under REMOVAL & INSTALLATION . If no continuity exists, replace SET/RESUME switch.
