Wiper/Washer Switch Test

WARNING: This page is about a different car, the 1993 Honda Prelude. However, it is still accessible from the selected car via links, so may be relevant.

Remove instrument cluster lower trim panel. Disconnect steering column 10-pin connector. Check continuity between specified switch connector terminals with wiper/washer switch in indicated positions. See Fig 1 . If continuity is not as specified, replace wiper/washer switch.

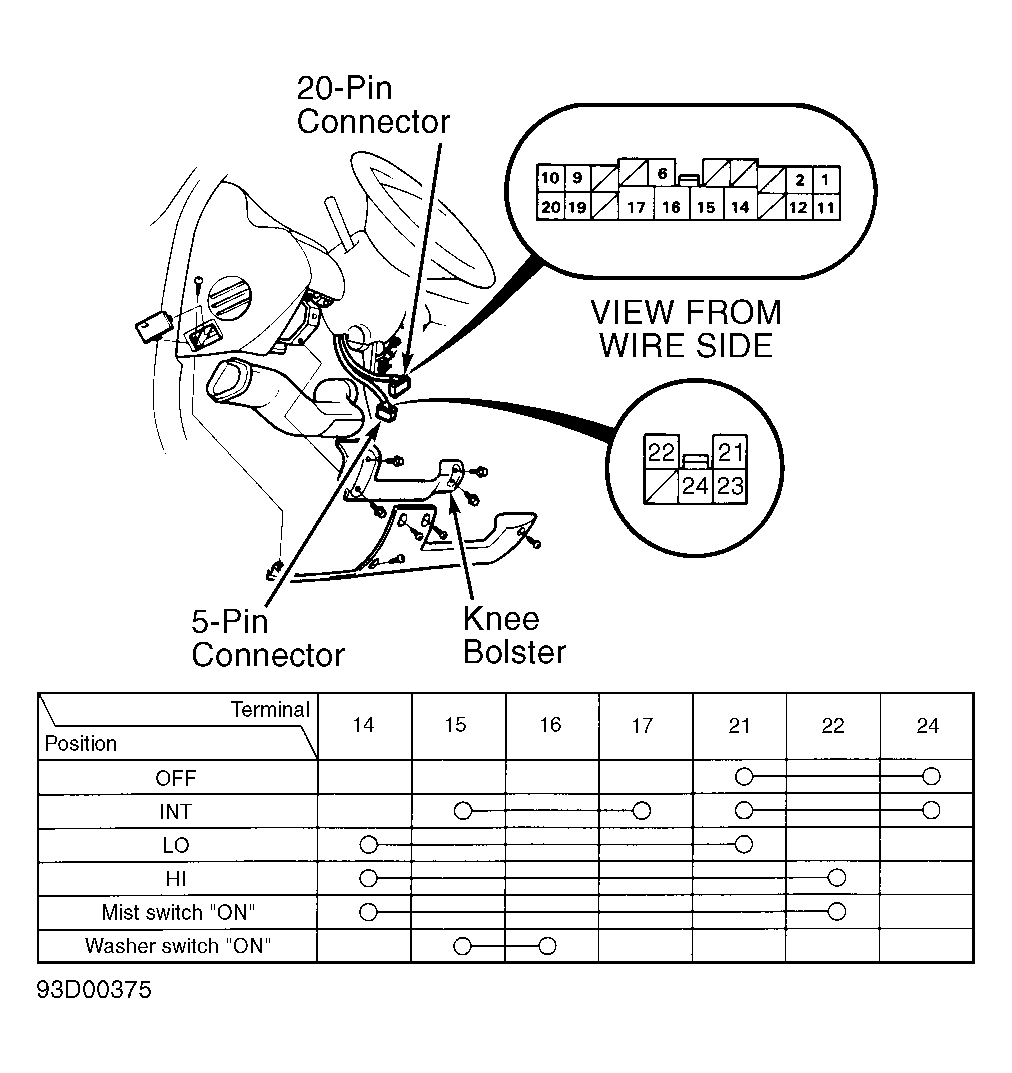

Fig 1: Testing Wiper/Washer Switch
G93D00375Courtesy of AMERICAN HONDA MOTOR CO., INC.
