Angle Sensor Neutral Test: Preparation

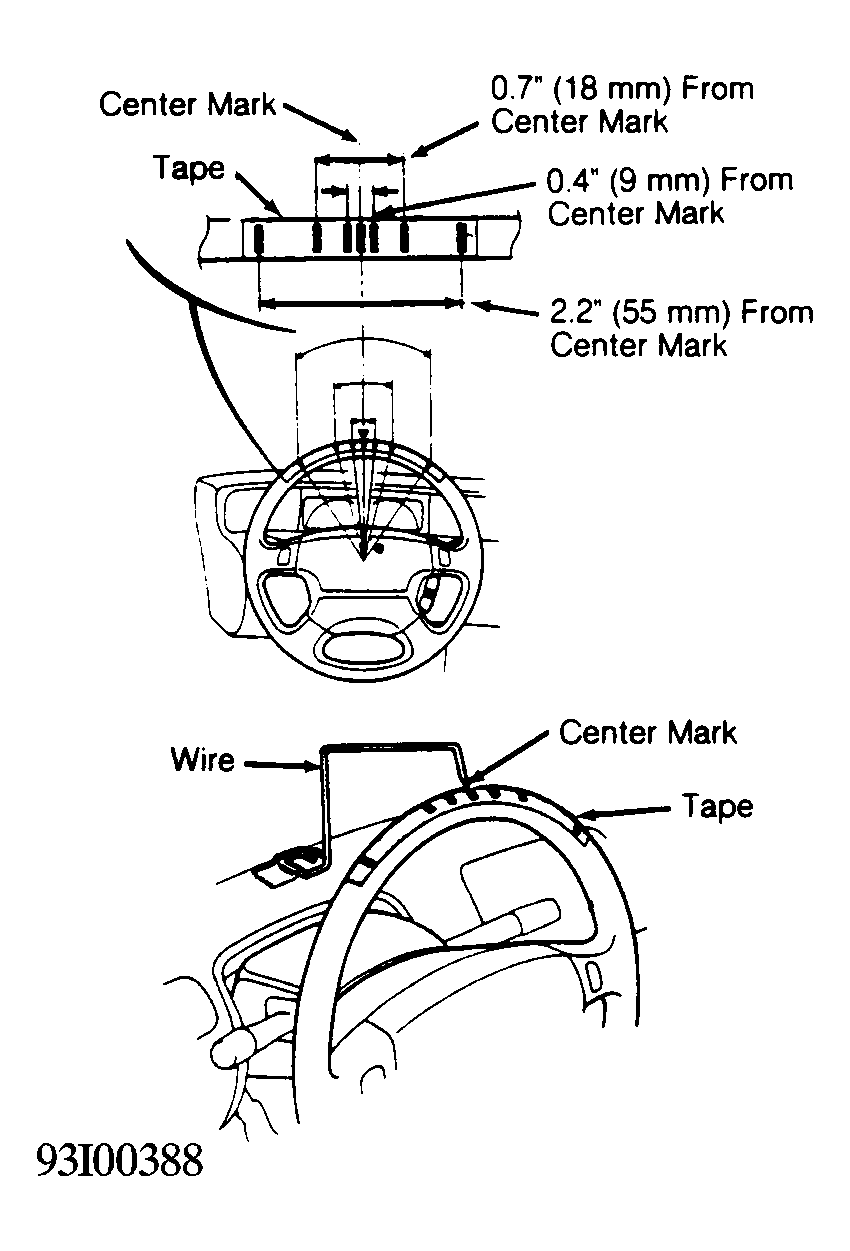

- Raise vehicle. Set each wheel in center of turning radius gauge tables. Set wheels in straight-ahead position. Attach a piece of masking tape about 11.8" (300 mm) to top of steering wheel. Mark center line of steering wheel on tape. Add marks at appropriate measurement on both sides of center mark. See Fig 1
. Use heavy wire stock to make pointer. Using masking tape, attach pointer to dash aligned with center mark on steering wheel.

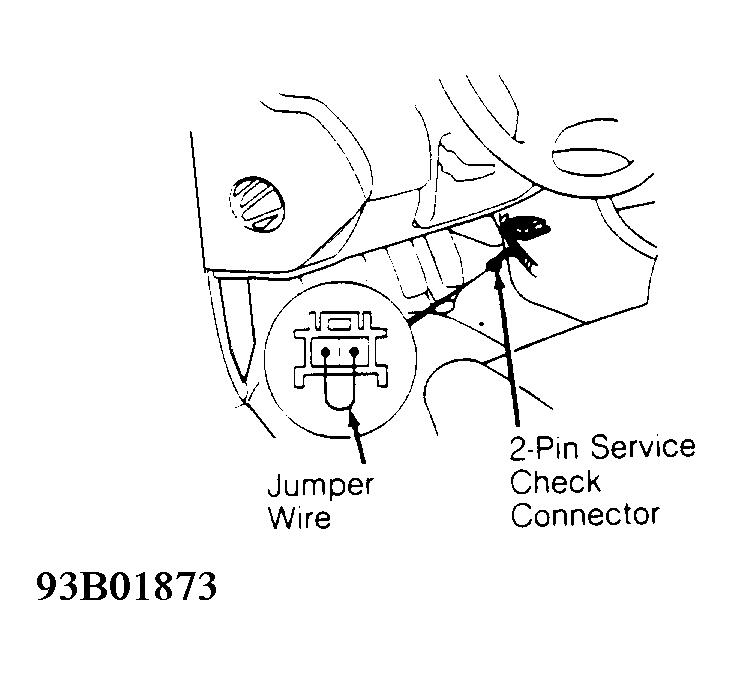

- Take 2-pin service connector (Blue wires) from behind center console. Connect terminals with jumper wire. See Figure

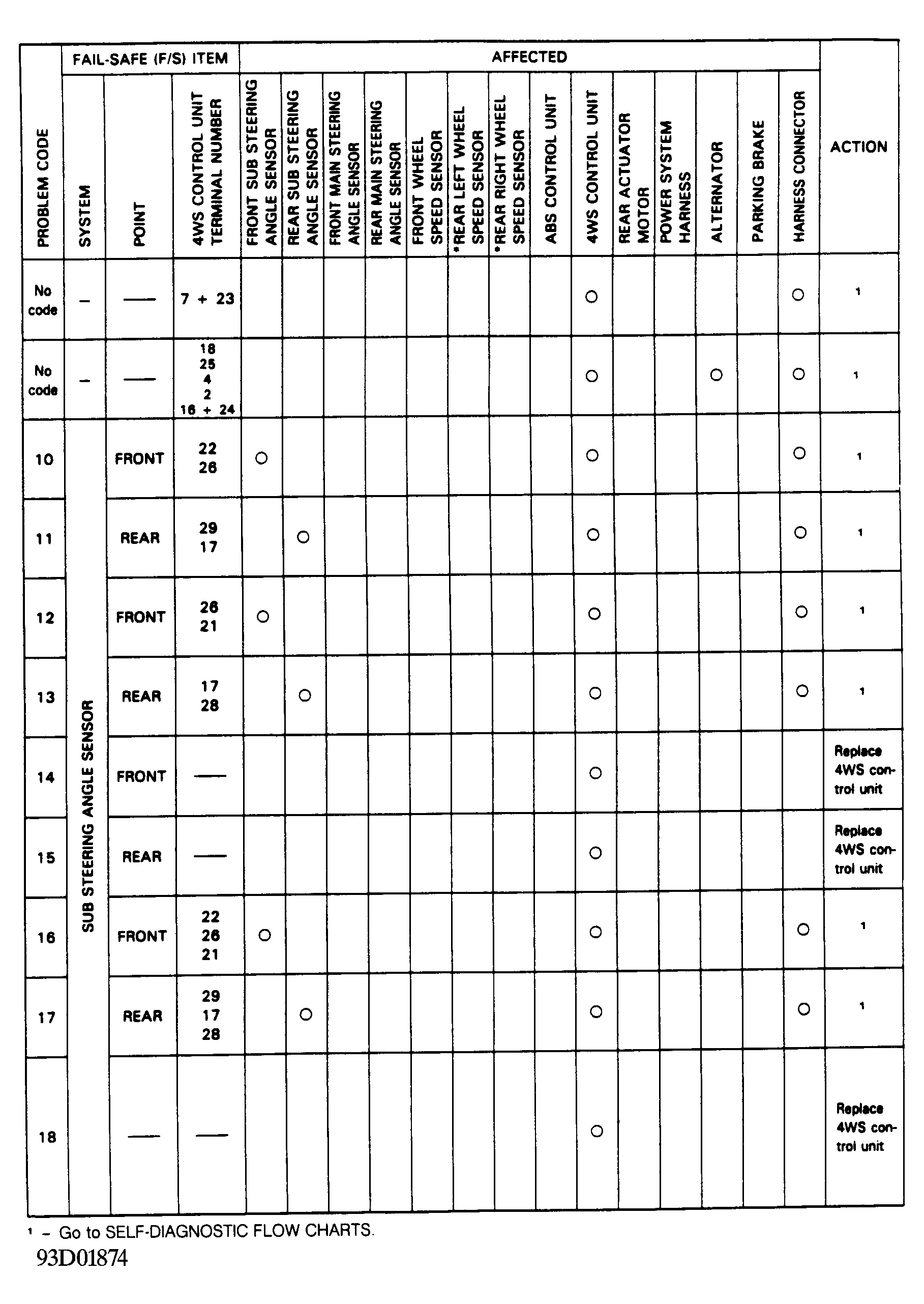

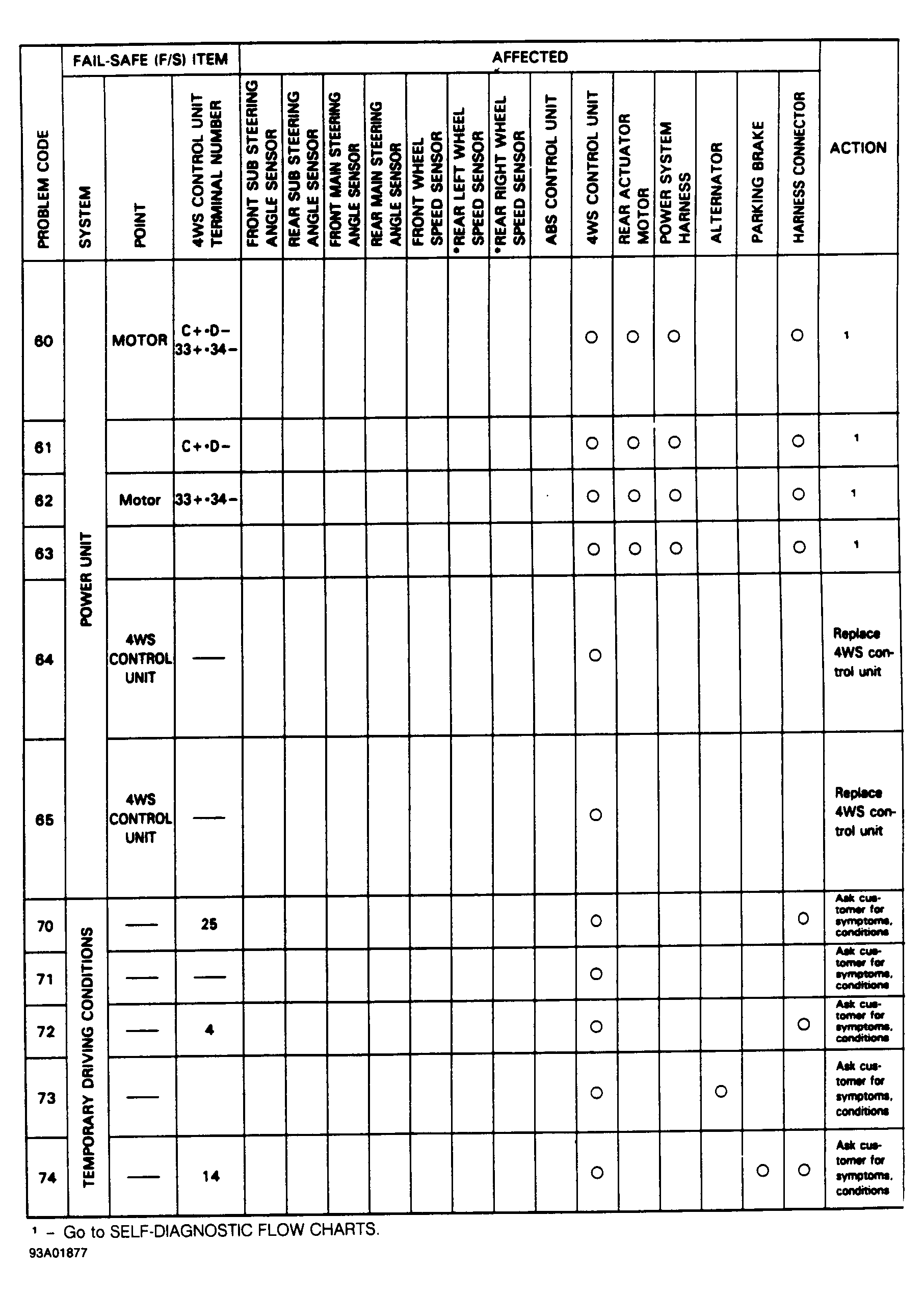

. 4WS indicator light will display DTCs. Record and correct DTCs before continuing with neutral check. See Figure
-Figure
.
- Apply parking brake and turn ignition switch to ON position. This will turn parking brake indicator light on and set front sensors in inspection mode.
