Ignition Key Switch
WARNING: This page is about a different car, the 1996 Honda Accord. However, it is still accessible from the selected car via links, so may be relevant.

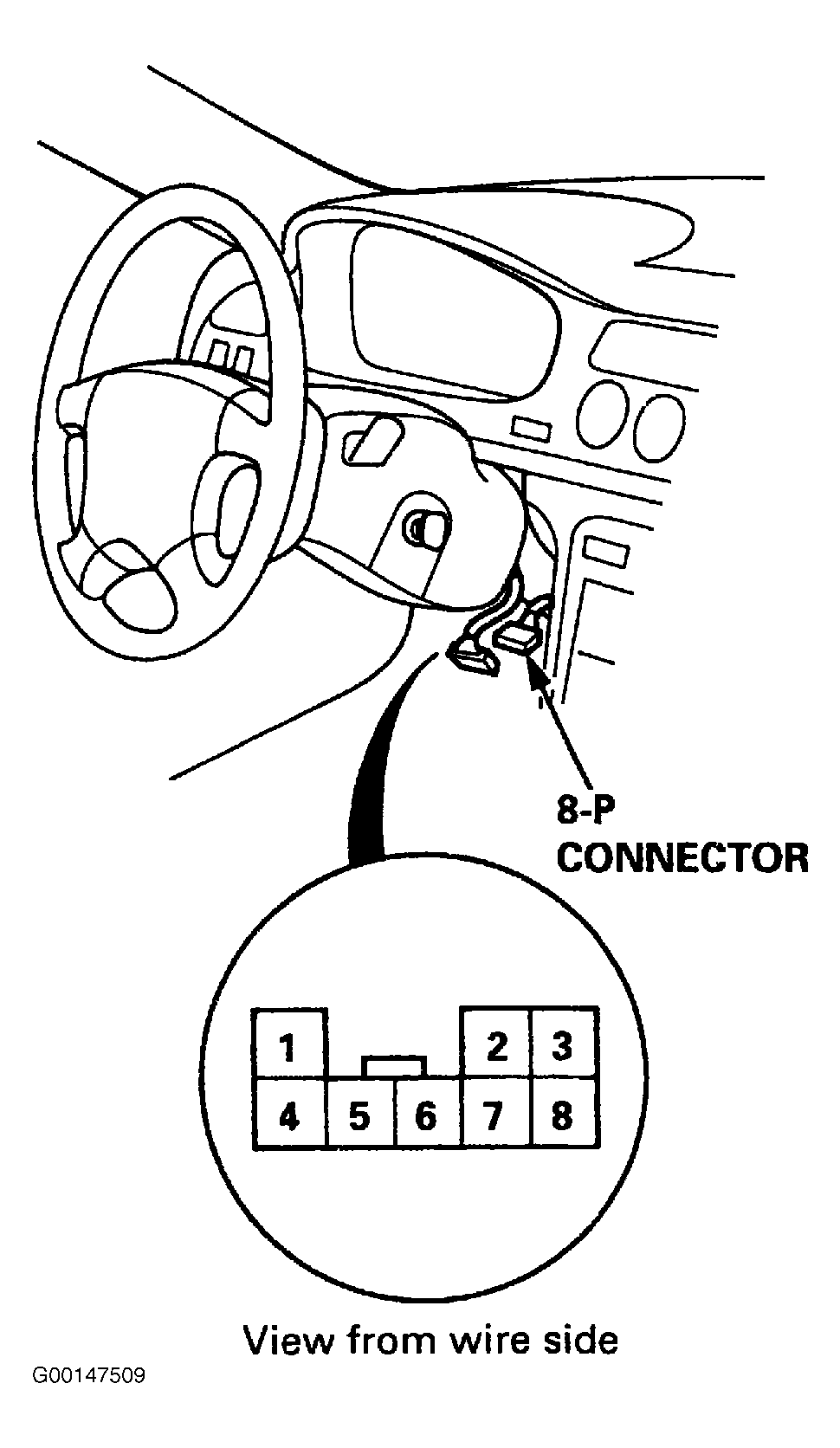

- Remove the dashboard lower cover and knee bolster, then disconnect the 8-P connector from the main wire harness. See Fig 1 .
- There should be continuity between the No. 5 and No. 8 terminals when the ignition switch is inserted into the ignition key cylinder. There should be no continuity when the ignition key is removed.
