With Keyless Entry

Control Unit Input Test (Wagon: With Keyless Entry)
Slide the left front seat forward. Leave the harness connected and make the tests shown on the following page by probing the back of the connectors. Inspect the connector terminals to be sure they are all making good contact.
^ If the terminals are bent, loose, or corroded, repair them as necessary. and recheck the system.

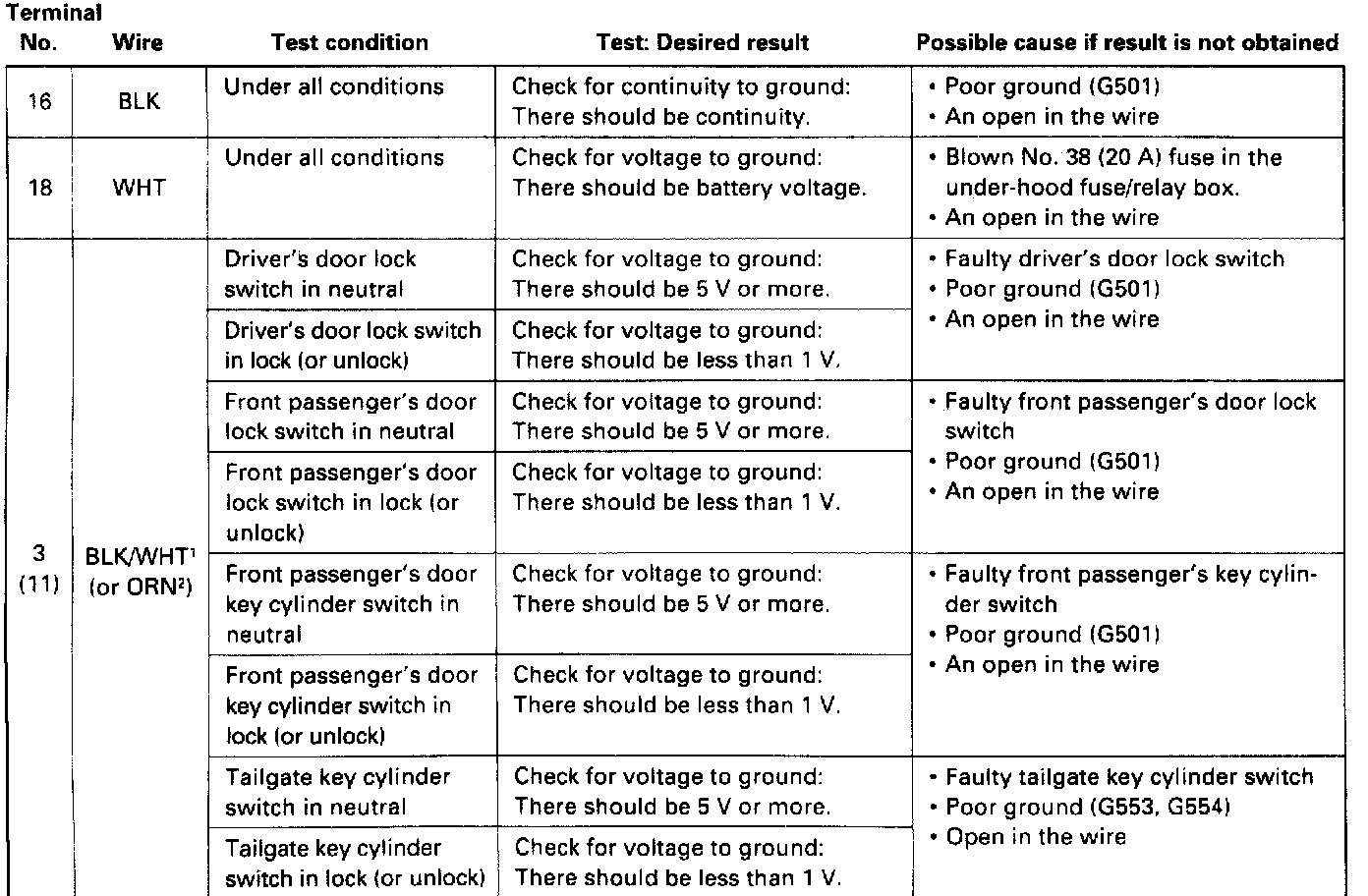

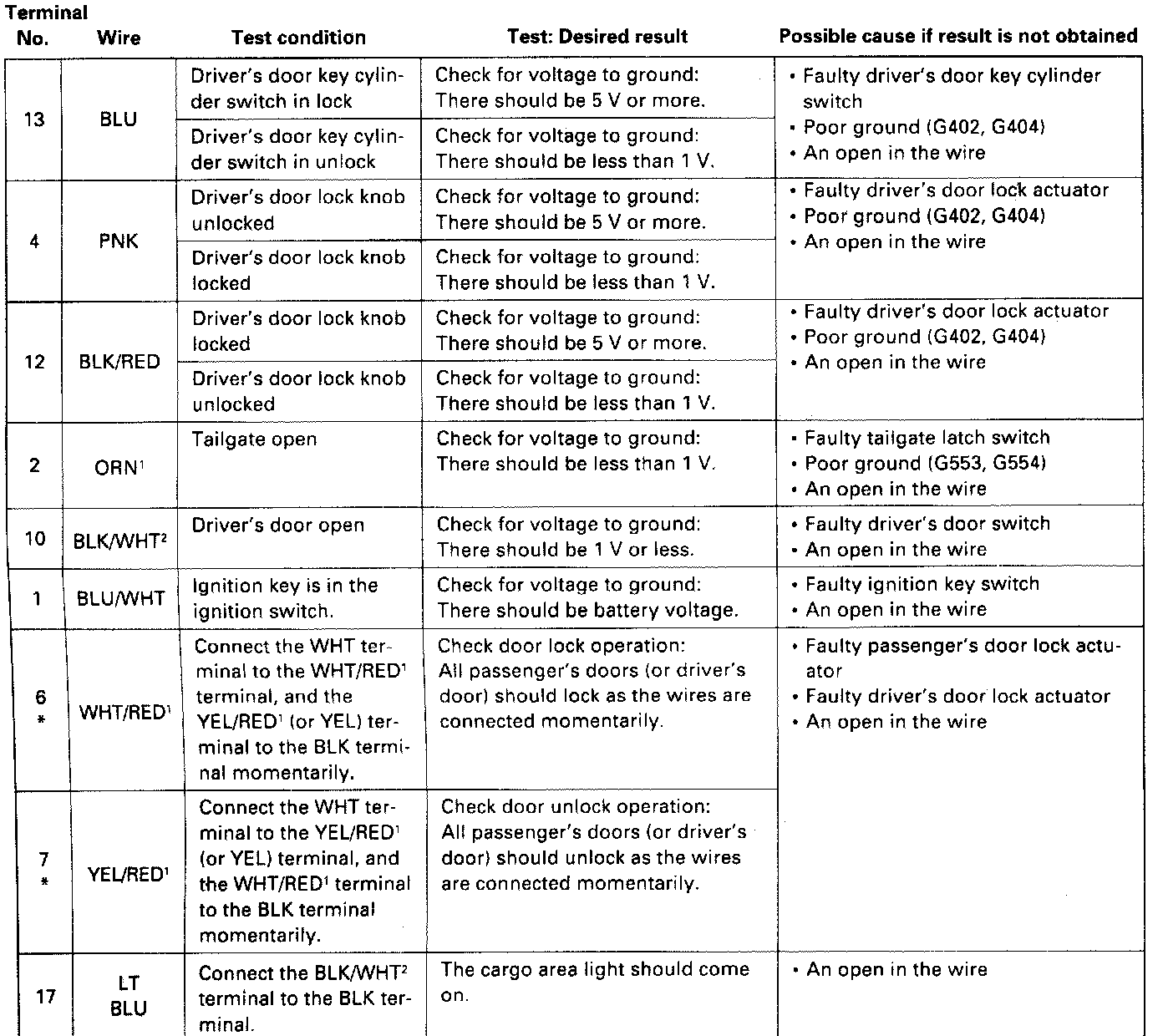

^ If the terminals look OK, make the following input tests at the connector. If any test indicates a problem, find and correct the cause, then recheck the system. If all the input tests prove OK, the control unit must be faulty; replace it.
















CAUTION: To prevent damage to the motor, connect power and ground only momentarily
*: Disconnect the connector, and make these tests at the wire terminals.
