Without Keyless Entry

Control Unit Input Test (Coupe/Sedan/wagon: Without Keyless Entry)
1. Remove the driver's door panel (see section 20}.
2. Disconnect the 14-P connector from the control unit.
3. Inspect the connector and socket terminals to be sure they are all making good contact.
^ If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.

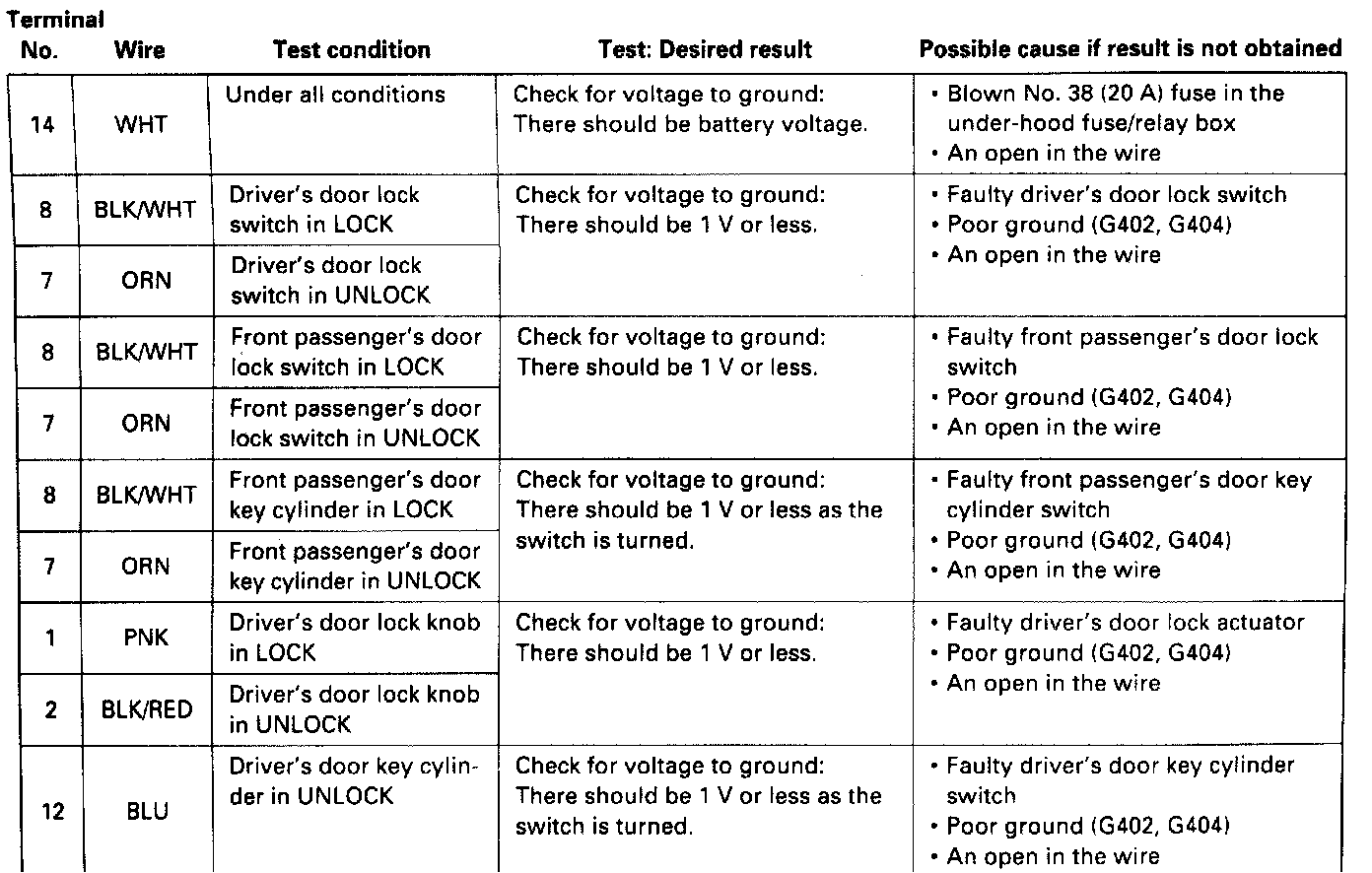

^ If the terminals look OK, make the following input tests at the connector.

- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, the control unit must be faulty; replace it.






Disconnect the 14-P connector from the power door lock control unit.






Reconnect the 14-P connector to the power door lock control unit.






CAUTION: To prevent damage to the motor, apply battery voltage only momentarily.
