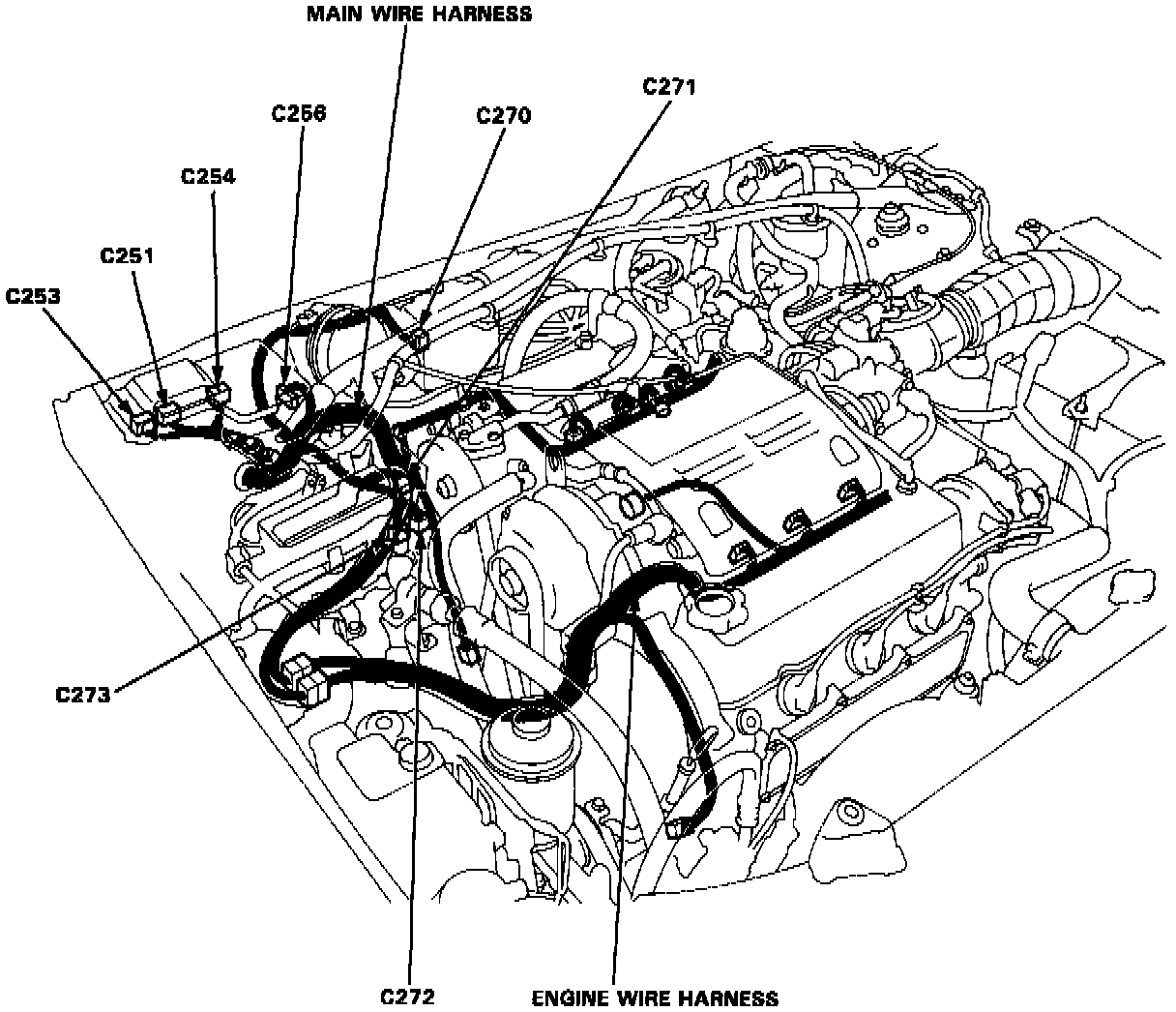

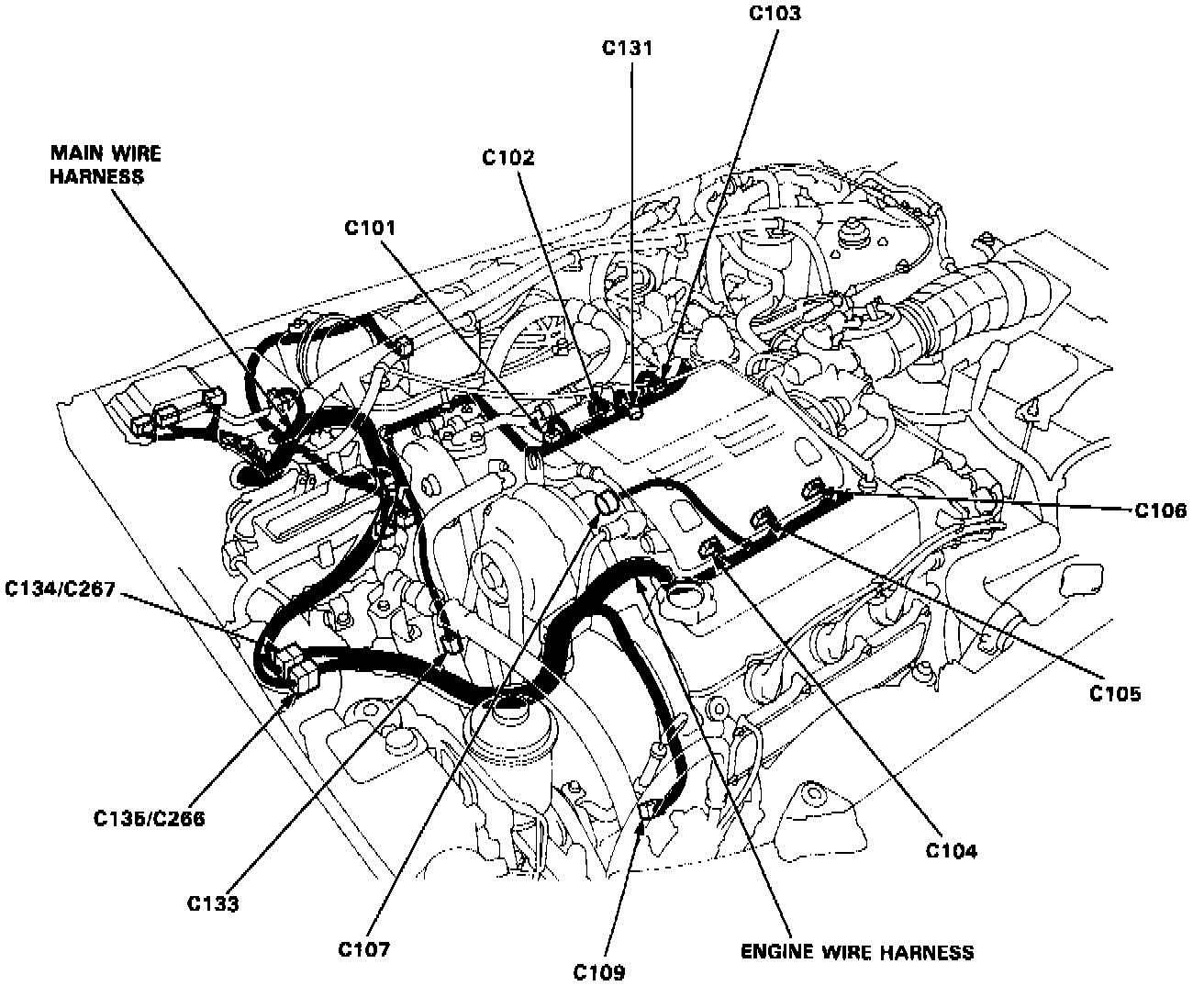

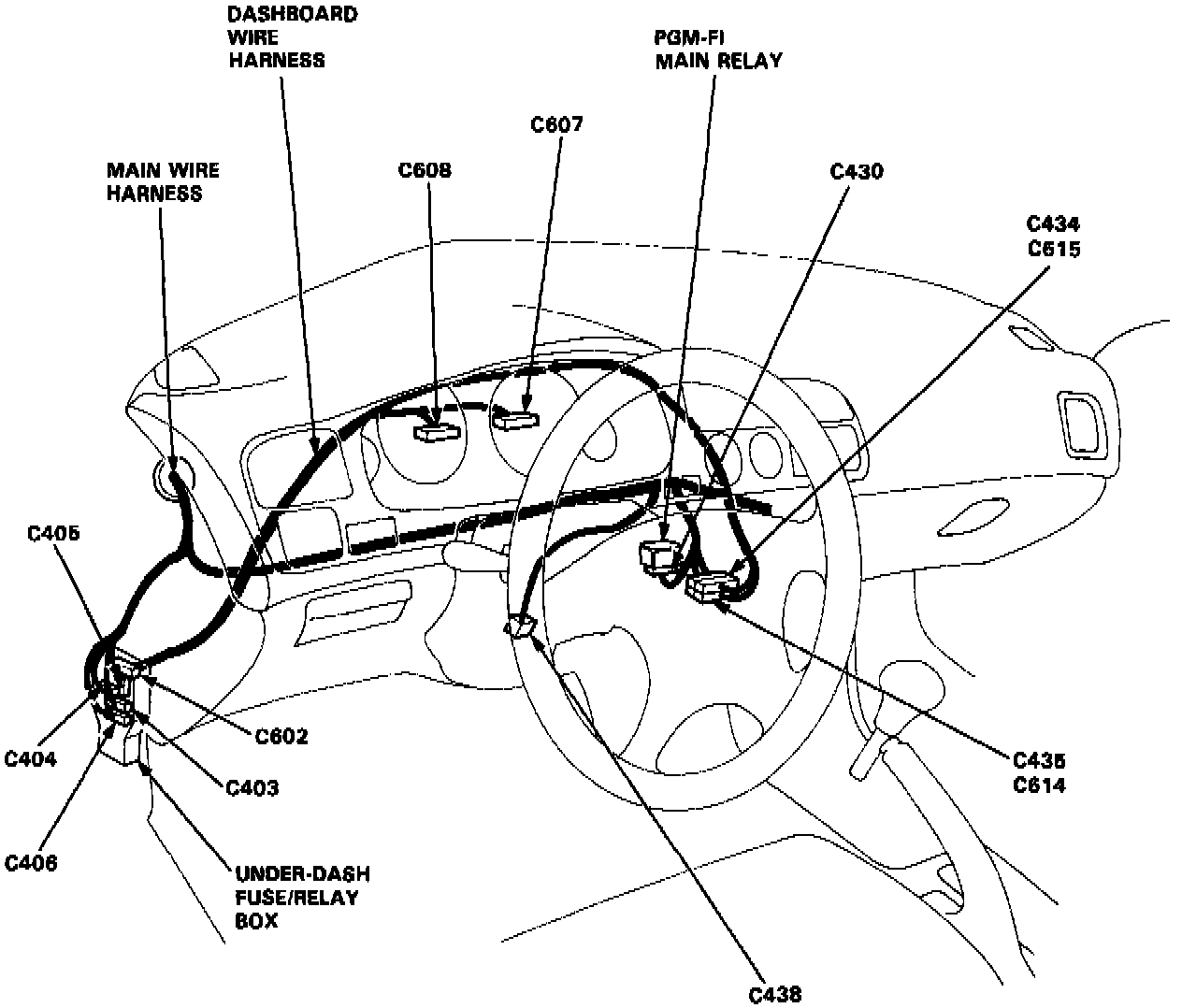

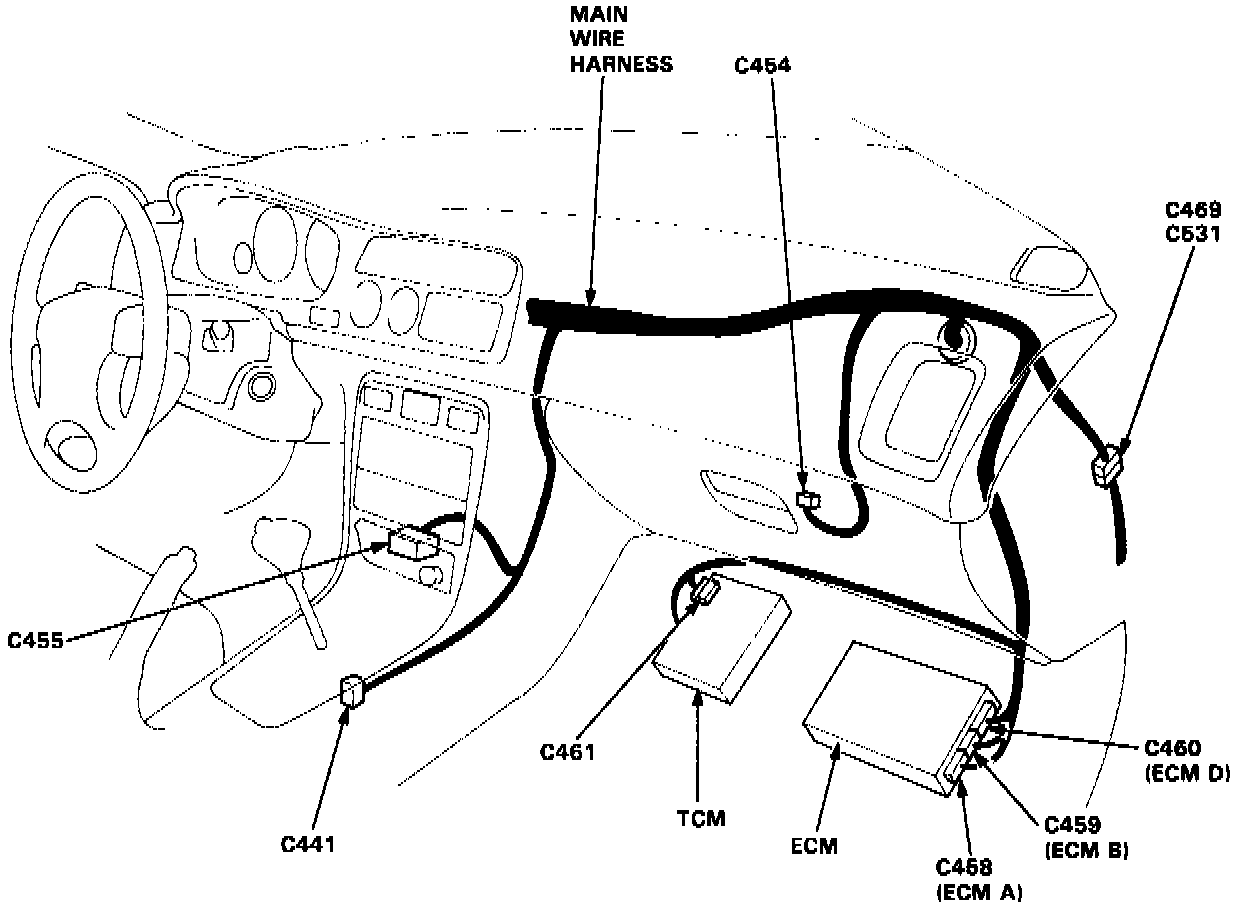

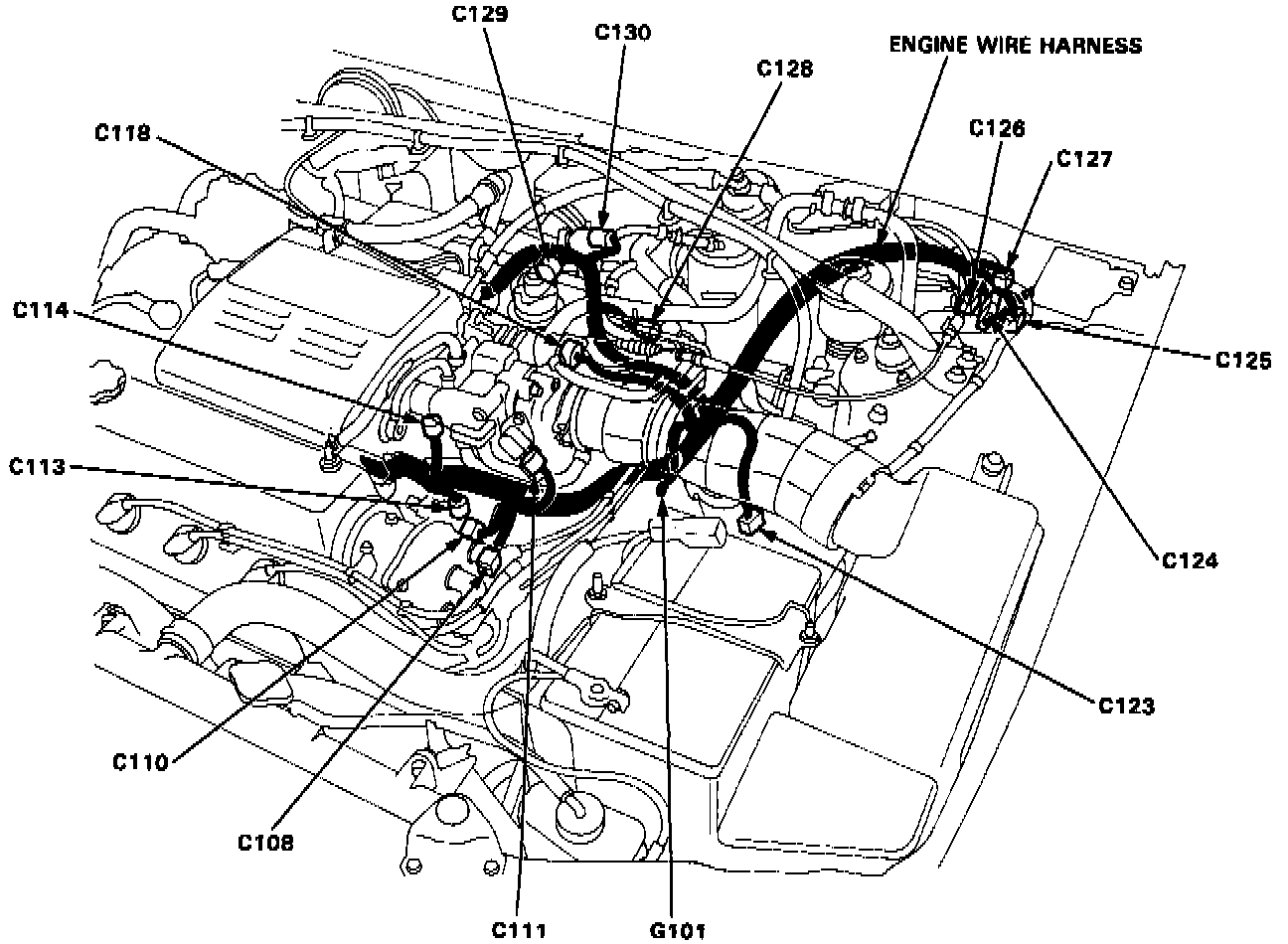

Computers and Control Systems: Locations

NOTE:

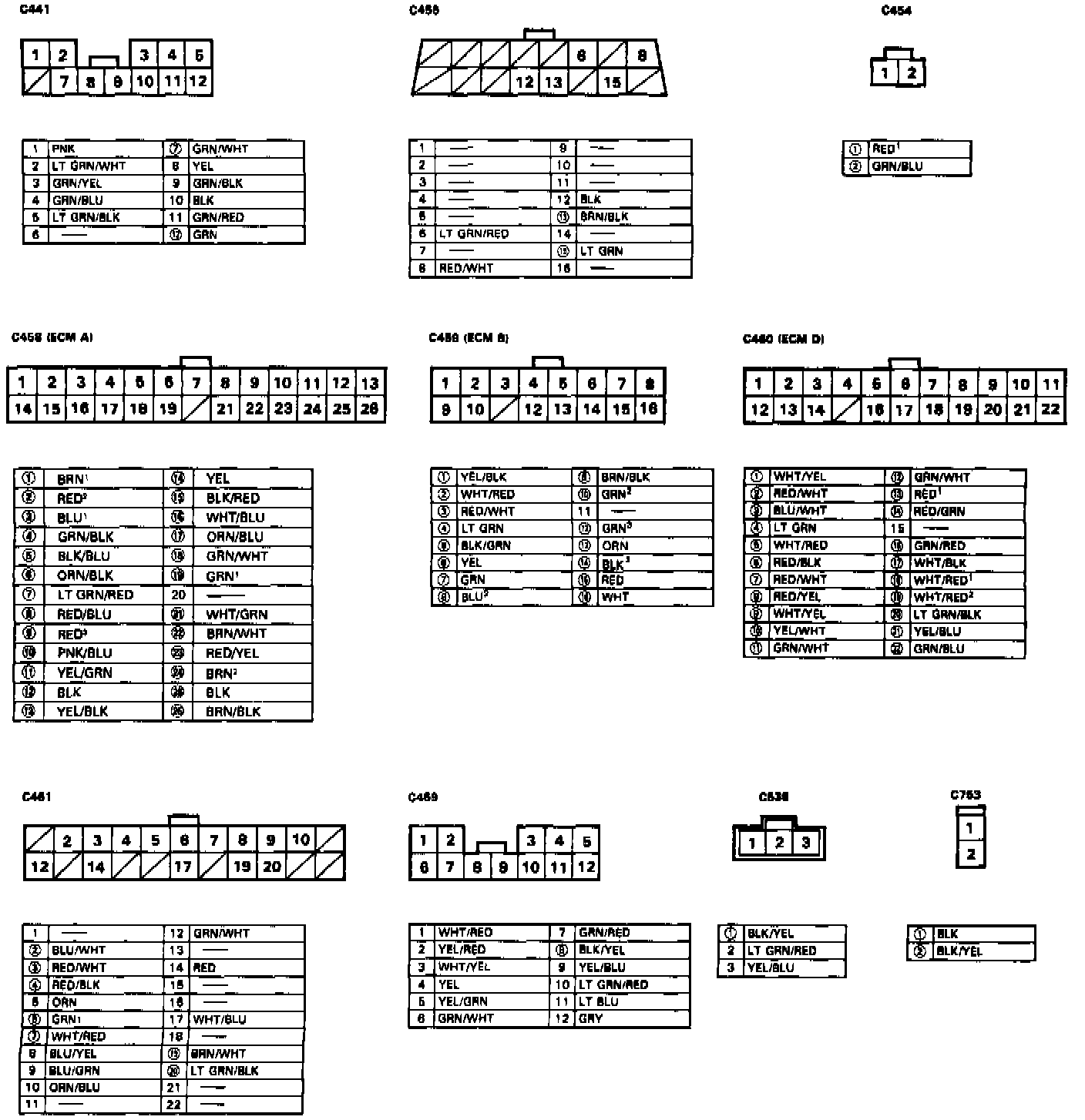

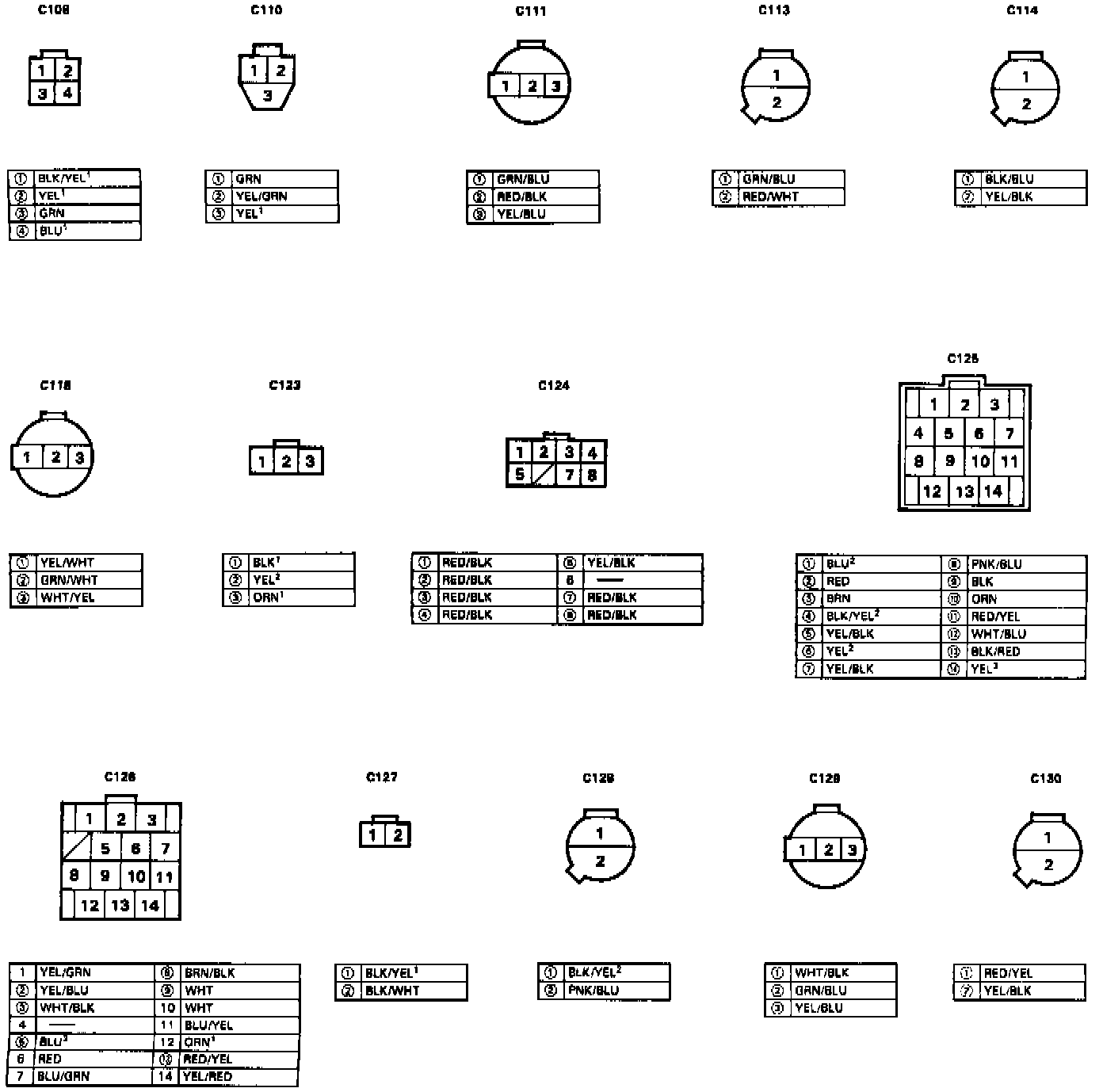

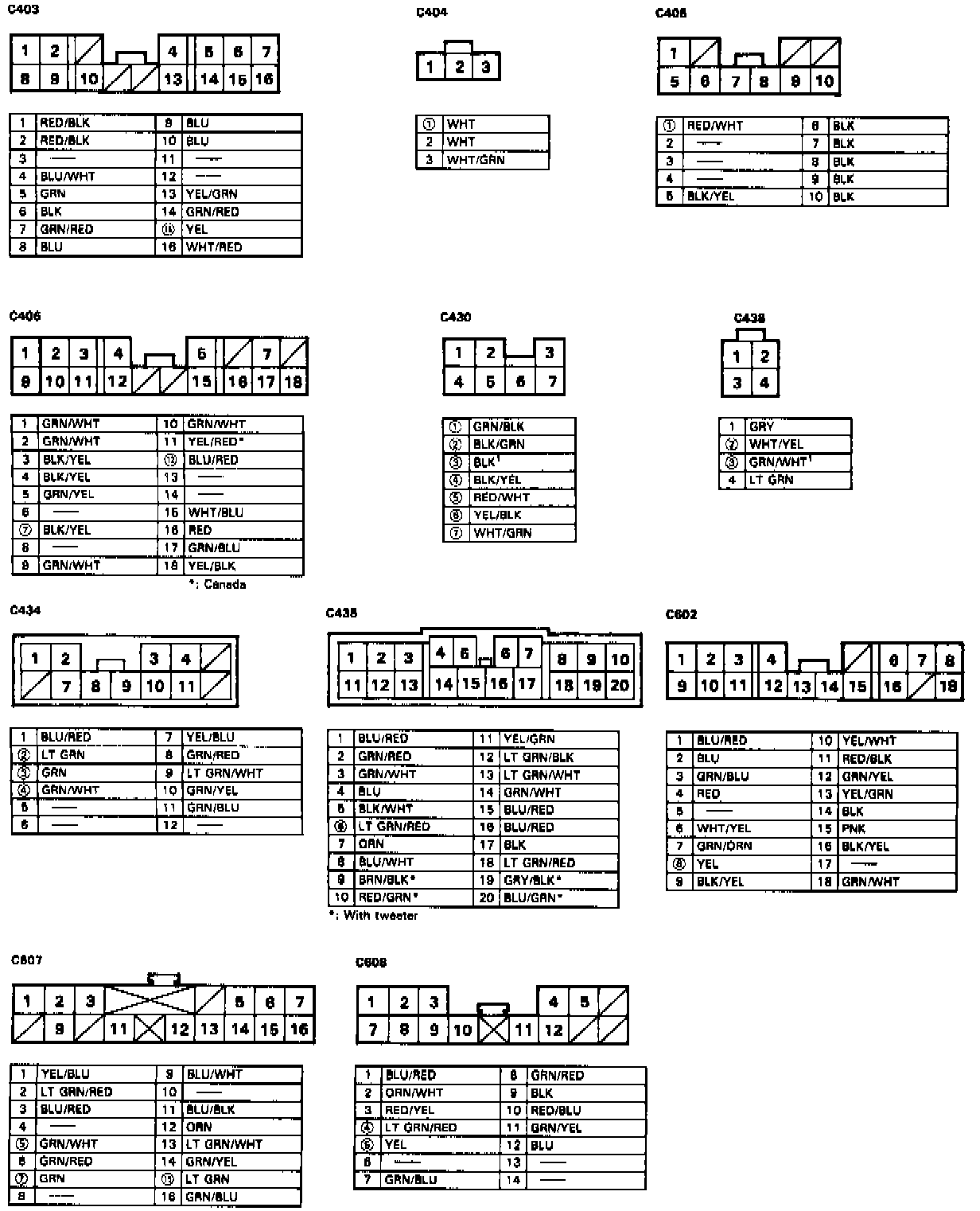

^ - Different wires with the same color have been given a number suffix to distinguish them (for example, YEL/BLK1 and YEL/BLK2 are not the same).
0: Related to Fuel and Emissions System.
^ - Connector with male terminals (double outline): View from terminal side.
- Connector with female terminals (single outline): View from wire side.
