Transmission Position Sensor/Switch: Testing and Inspection

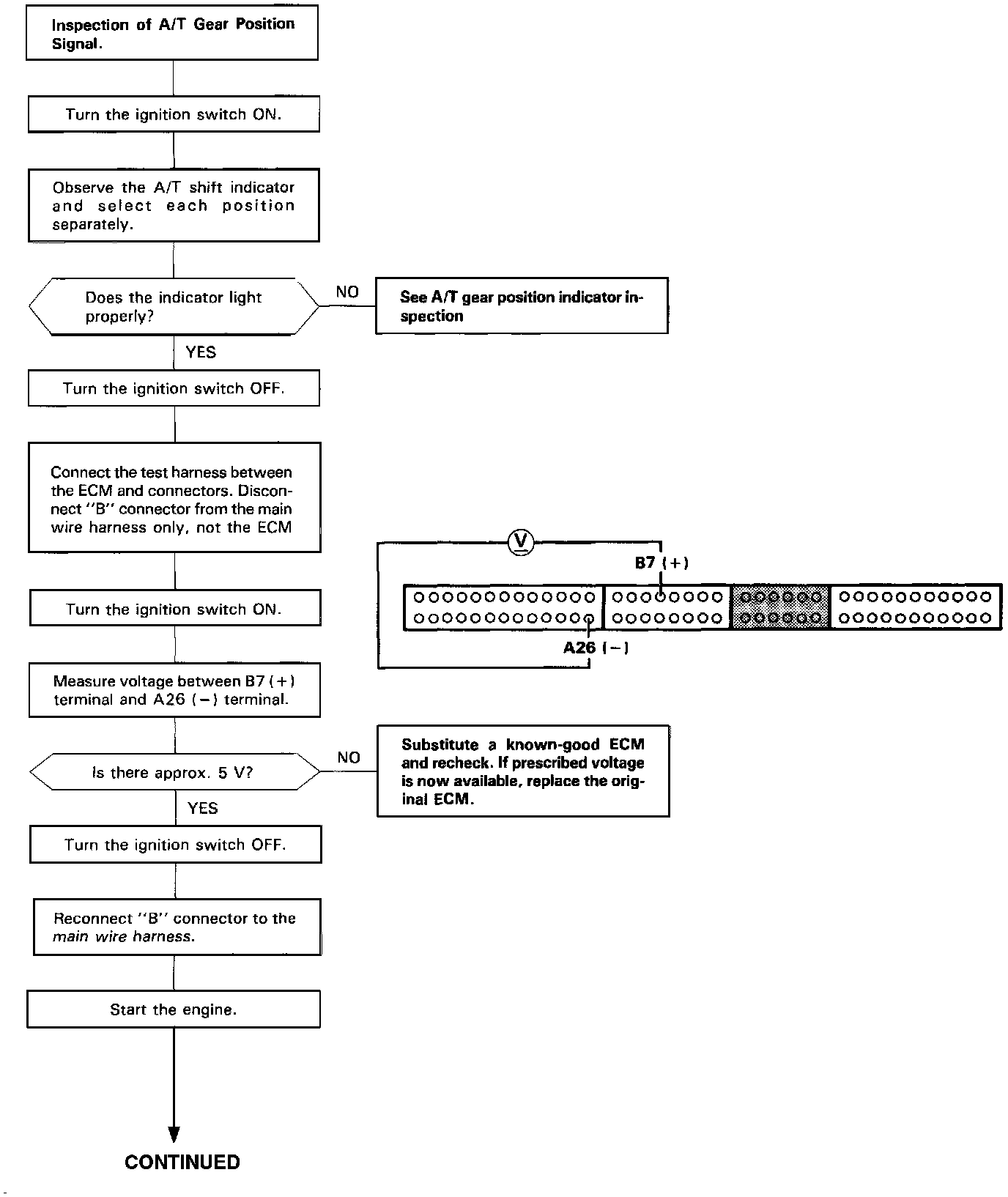

Automatic Transaxle (A/T) Gear position Signal (A/T only) / Flowchart / Part 1 Of 2:

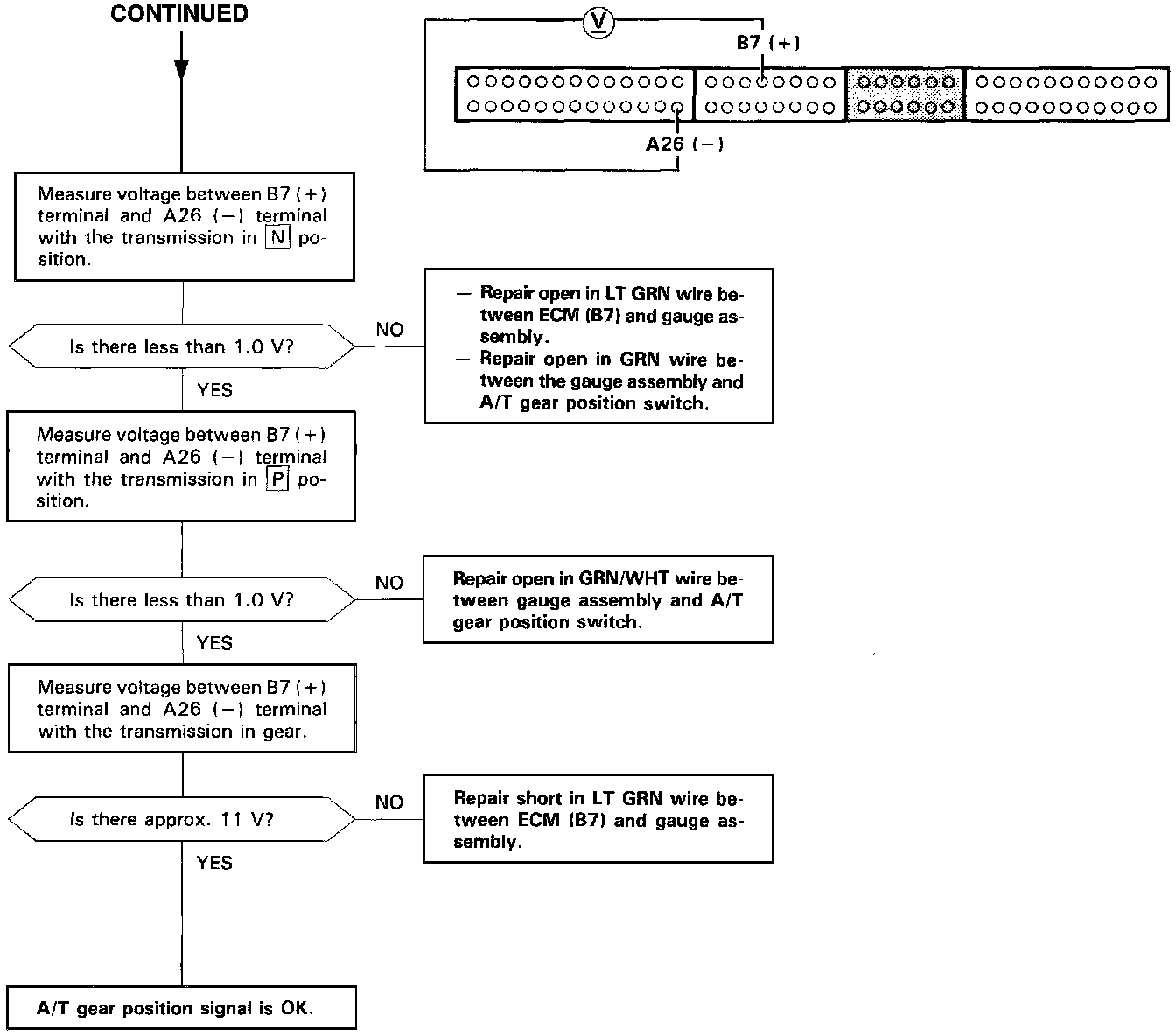

Automatic Transaxle (A/T) Gear position Signal (A/T only) / Flowchart / Part 2 Of 2:
