Diode/Rectifier Assembly

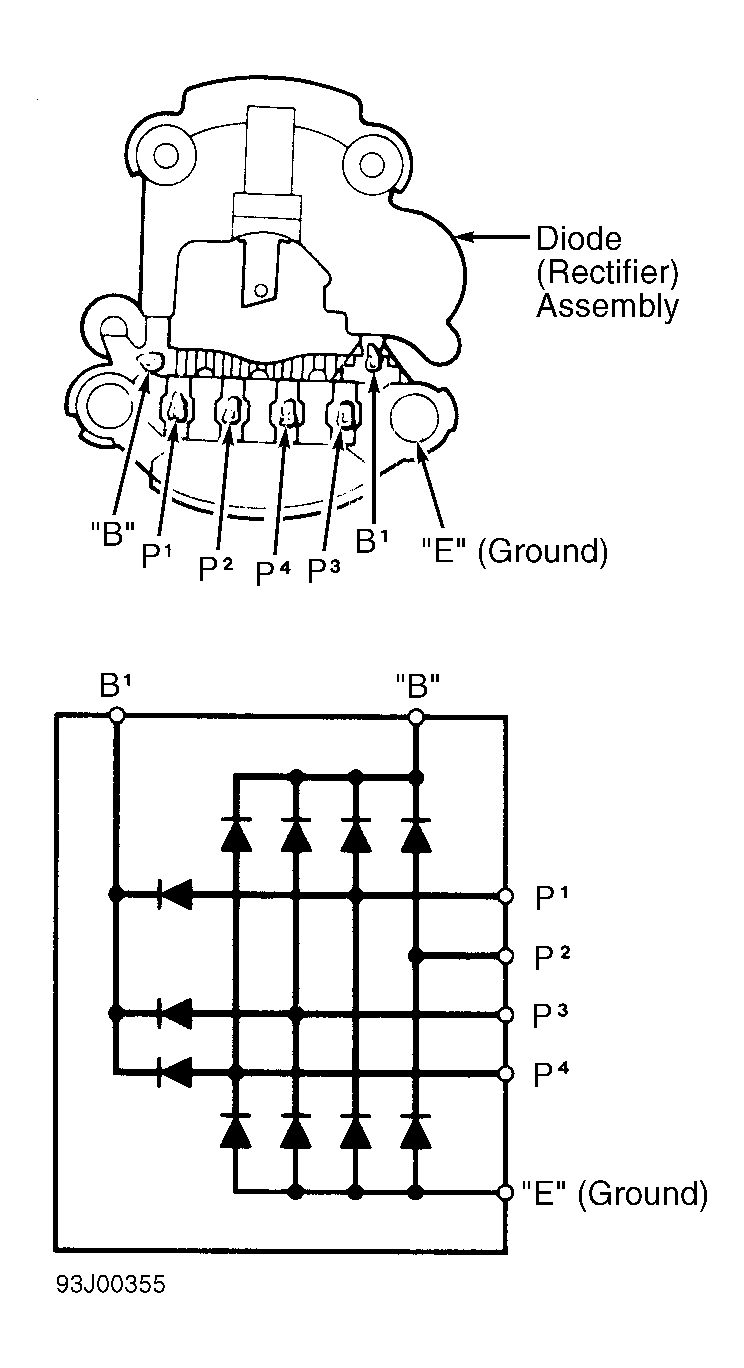

- Remove diode (rectifier) assembly from generator. Check continuity on each diode in both directions by reversing test probes between diode terminals. See Fig 1 .
- All diodes should show continuity in one direction and no continuity in the opposite direction. If any diode does not test as specified, replace diode (rectifier) assembly.
