Engine Controls - Tests W/Codes - 1.6L
>>
Connector Identification
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Connector Identification
Fig 1: Test Harness (07LAJ-PT3010A) Terminal ID (1.6L Civic & Civic Del Sol)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

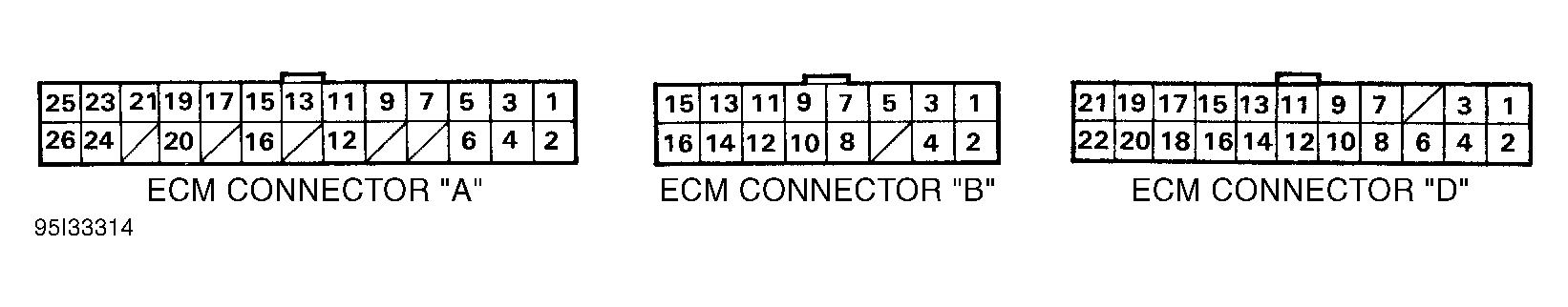

Fig 2: ECM Connector Terminal ID (1.6L Civic & Civic Del Sol)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
